SWAG Electric Drive / Bottle Jack Kit For The Harbor Freight Tubing Roller
Looking to take the manual labor out of the Harbor Freight Tubing roller?
The Harbor Freight Tubing roller is in a league of its own based on one simple principle.....price. For ~ $180 you can purchase the HF tubing roller which includes the machine and three roller die sets, 1.0" 1.5" and 2.0" round tube dies. However at such a low price point there is definitely room from improvement.

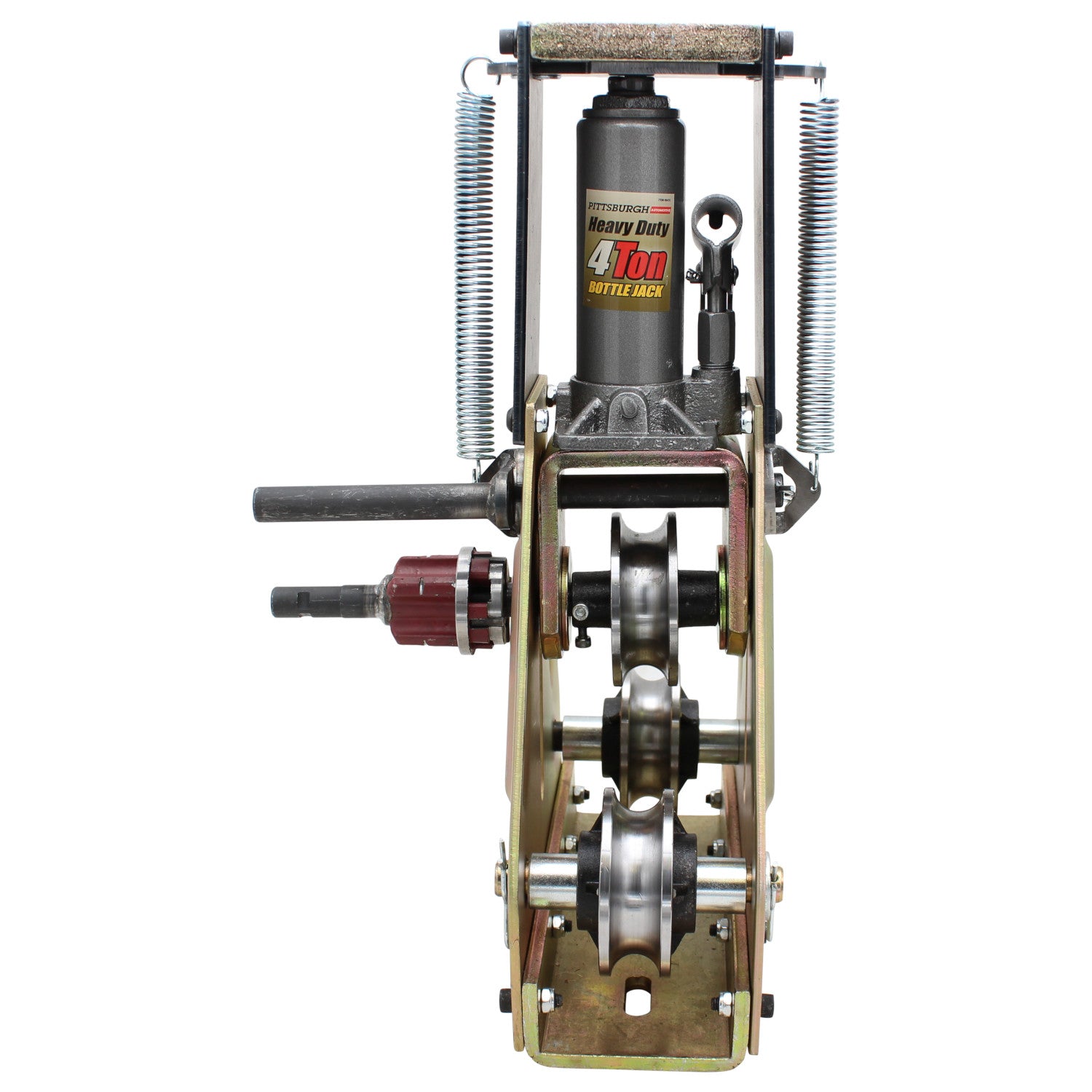

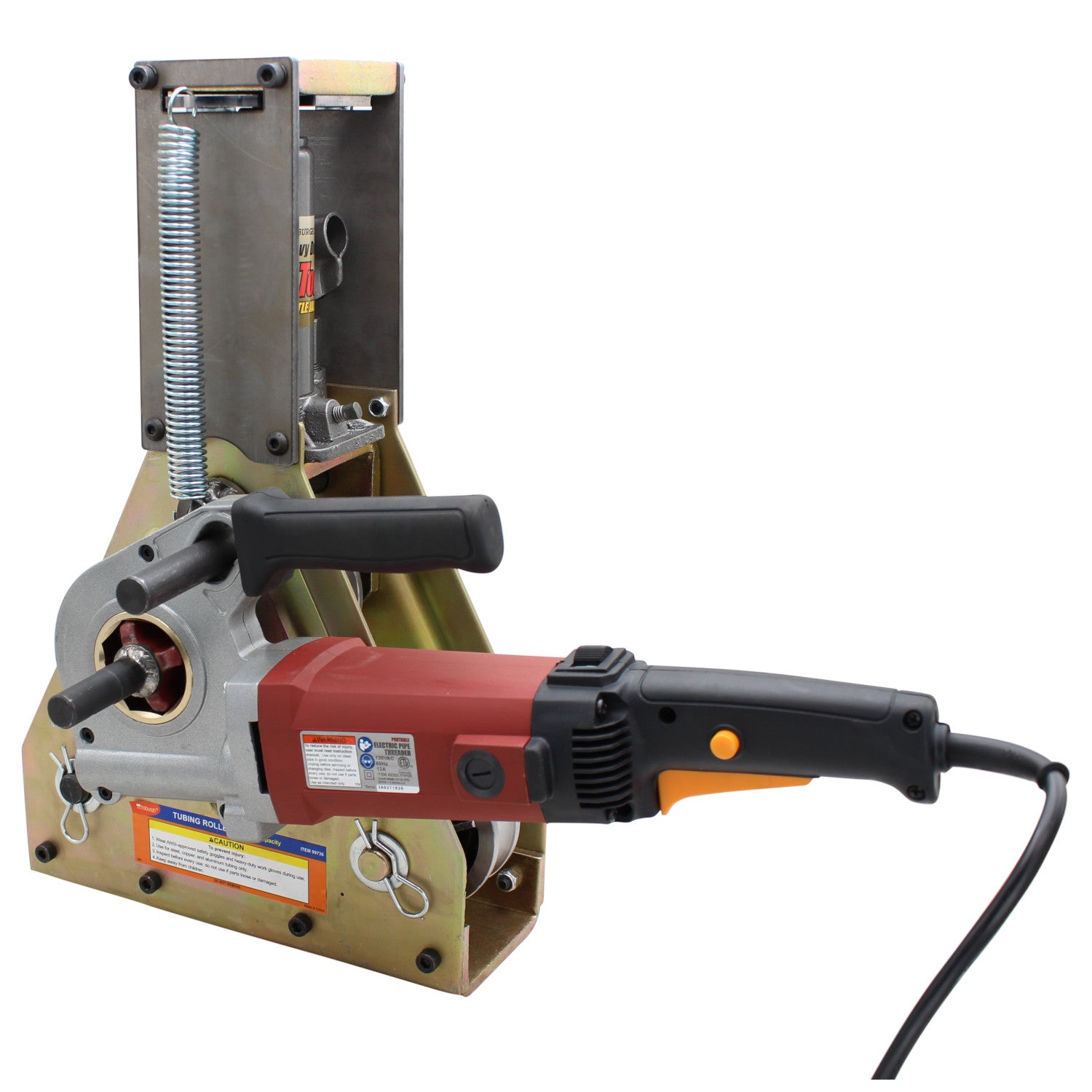

This kit uses the Harbor freight electric pipe threader and the Harbor Freight 4 ton bottle jack, however it can be broken up if you are looking to use just the bottle jack or the electric pipe threader attachments by it self.
You will notice in the pictures above that we also have our weld on wings kit installed, the wings are highly recommended in conjunction electric drive / bottle jack kit for one reason. We have modified the tubing roller far beyond it's original design intent and the weld on wings reduce the amount of stress on the center drive axle, bearings and roller dies, it also reduces premature wear on the electric pipe threader.
The weld on wing's, 4 ton bottle jack, electric pipe threader and the Harbor Freight tube roller is not included with this kit.
We know what you are thinking...how many Chinese parts can you attach to this tubing roller, rest assured the pipe threader is a true work horse, it is rated at 2.15 HP motor more than enough power to easily swing a 200 lb man in circles if desired. We have tried to kill the pipe threader by rolling a 20' piece of 1.75" .120 wall DOM material down to a 24" dia circle. in less than a hour.....it got hot, but still works as good as the day we pulled it out of the box.

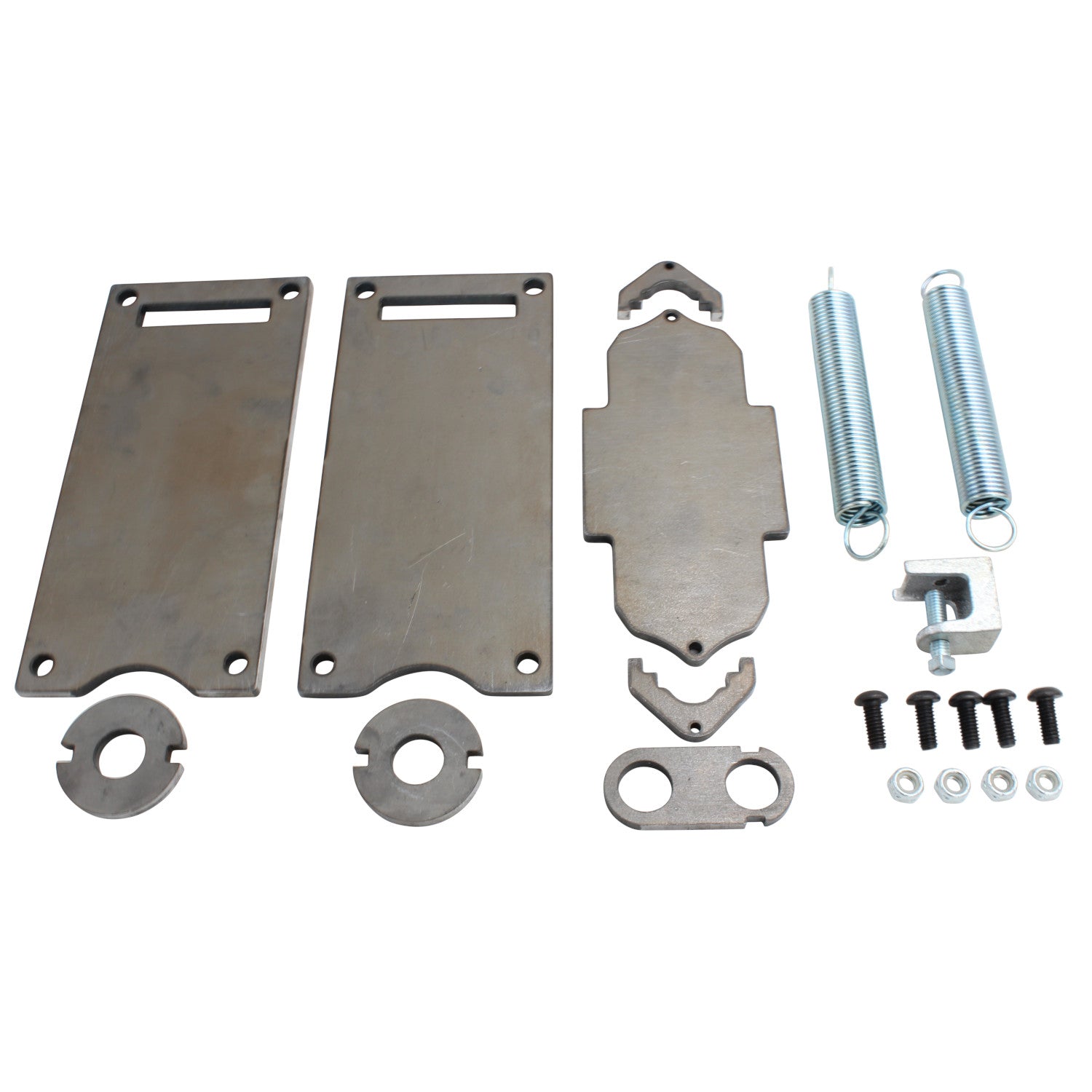

All material is laser cut out of 1/4" steel, springs, bottle jack clamp and detailed color instructions are provided.
The HF 4 Ton Bottle Jack can be purchased for ~ $18 HERE The HF Pipe Threader can be purchased for ~ $169.99 HERE
Lets do the math, your HF tubing
roller $180, our electric drive kit $72, a HF 4 ton bottle jack $18, and a HF
pipe threader $170, total cost = $440. For the total cost of ~ $440 you have an
electrically driven tubing roller that comes with 3 die sizes 1.0"
1.5" and 2.0" round tube dies. Hydraulic applied down pressure. No other kit
on the market even comes close at even 2.5X the cost. In addition we sell 54
different size dies all designed to fit the HF tubing roller.
your looking to speed up the assembly process and don't want to weld
the 1/2" pipe threading die that comes with the Harbor Freight pipe
threader kit to the tube roller drive axle, we now sell a fully machined
drive hub that will allow you to easily attach the pipe threader to the
drive axle. The 1/2" pipe threading die is not sold individually
through Harbor Freight so once it is welded in place you are not able to
take it off if/when you need to use the tool as it was originally
intended for. We also sell the tubing roller drive axle that is machined out of 4130 cromoly steel.
TUBING ROLLER ELECTRIC DRIVE INSTRUCTIONS.pdf
For an in depth detailed review along with great useful tips and tricks to mastering the HF tubing roller click this link here.
