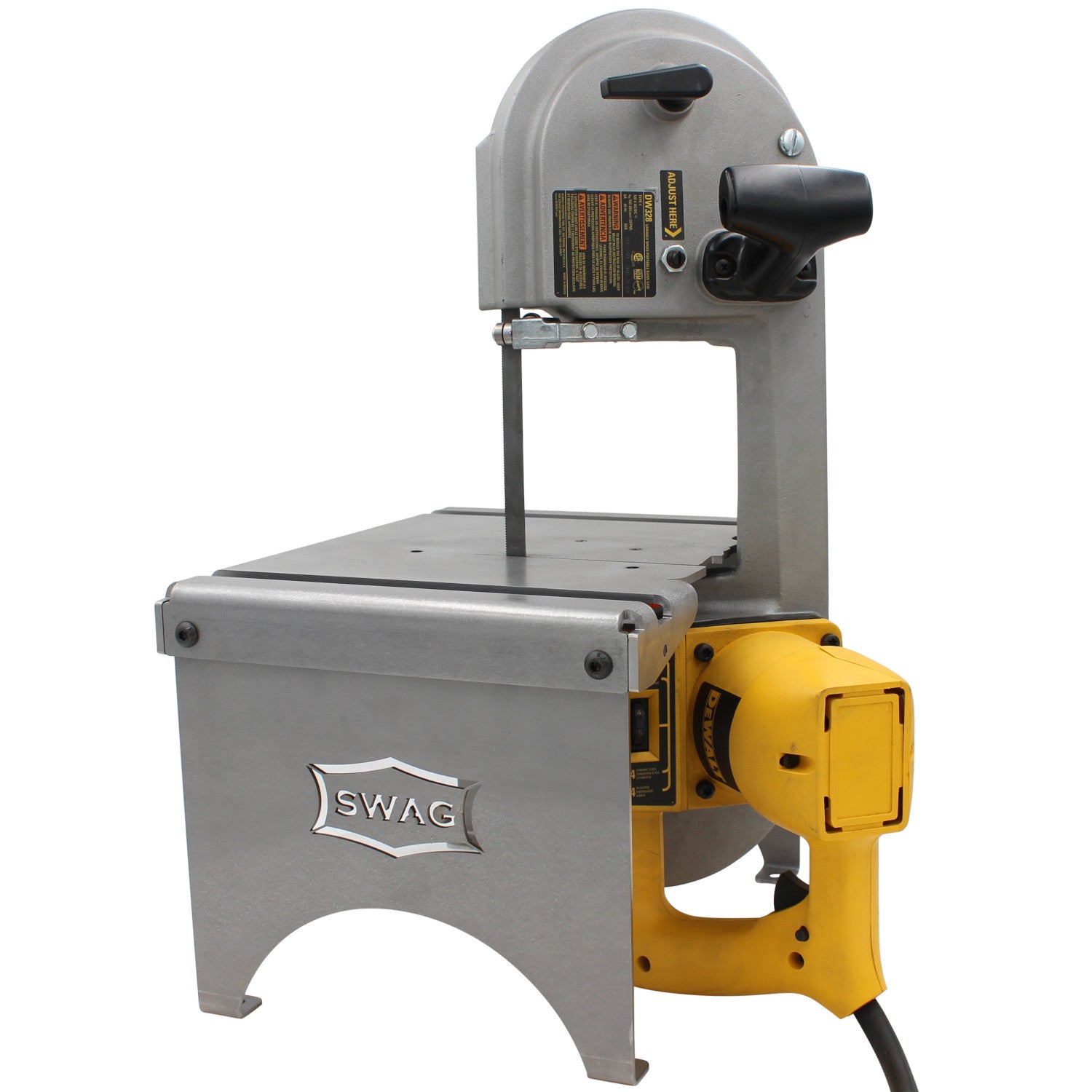

SWAG V2.0 Portaband Table
Here at SWAG our Portaband
tables are built for individuals looking for quality, 100% American made tools
at an affordable price. Designed for those working with limited space and or those
looking to maximize the full potential of their hand held band saws.
evolution and expansion has led us to SWAG Portaband table V2.0. The

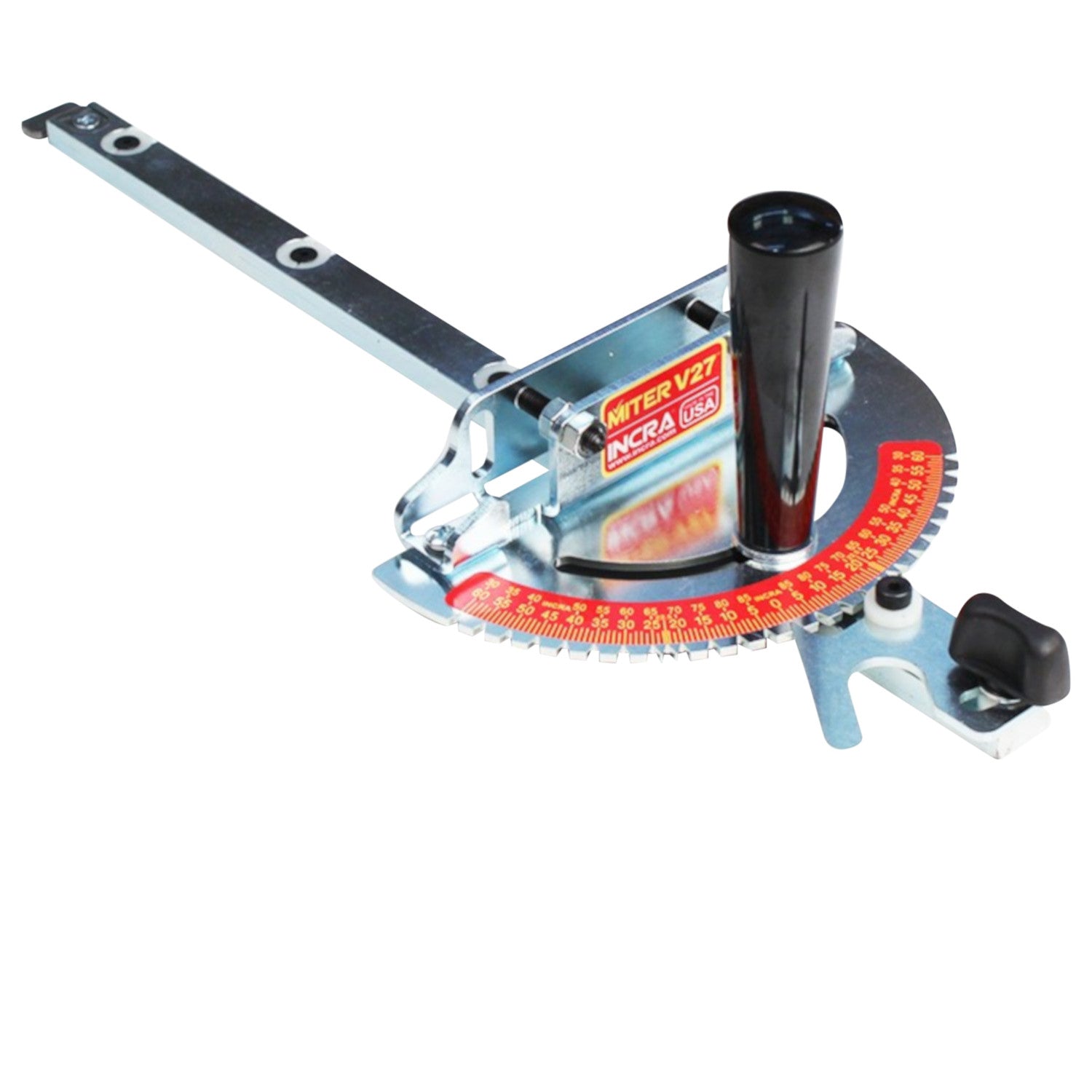

SWAG V2.0 features built in dual miter gauge slides, 1/8" thick bolt on
steel legs to greatly reduce shipping cost, Fixed center section and an
improved blade slot with narrower window to reduce potential blade

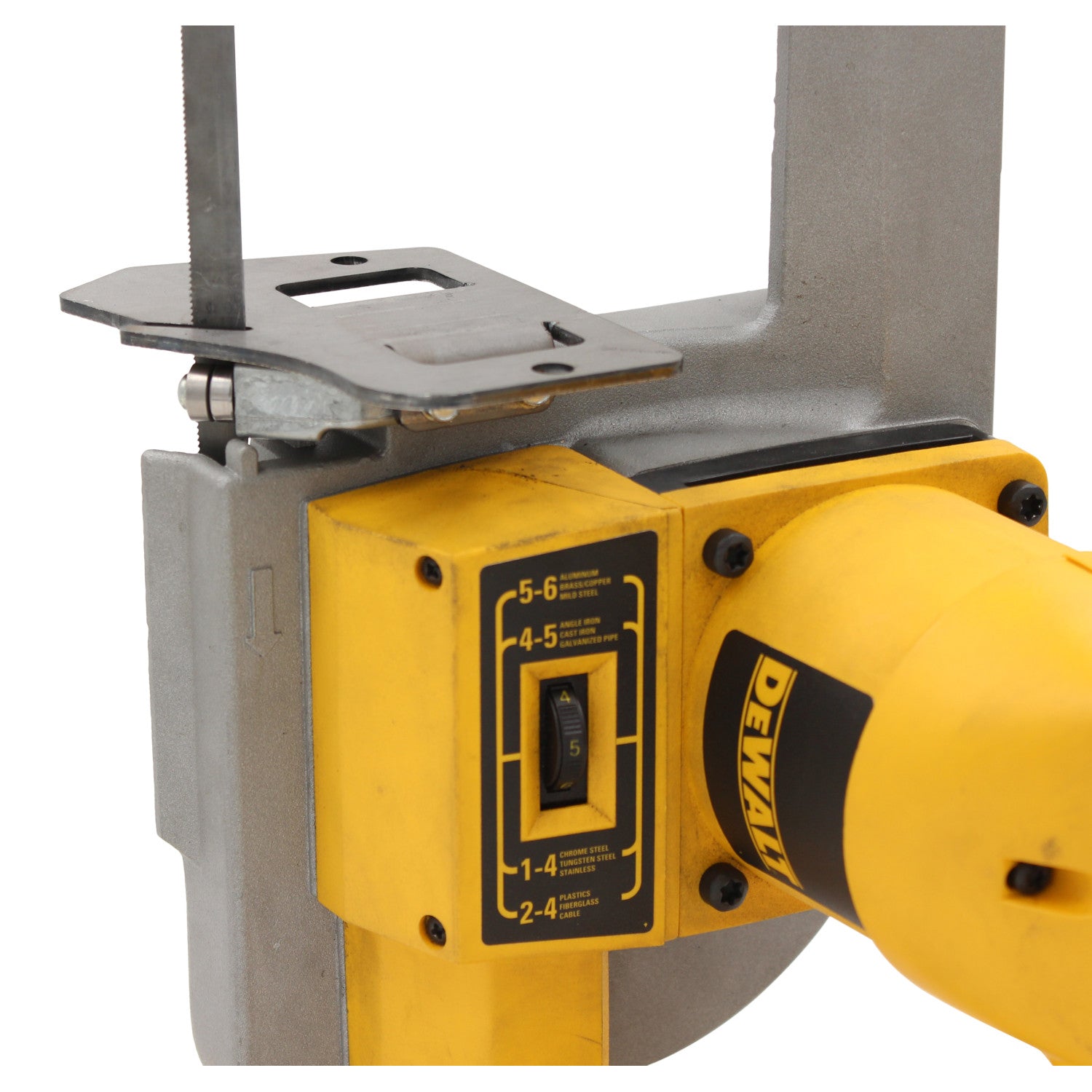

To convert your saw into a vertical band saw, installation

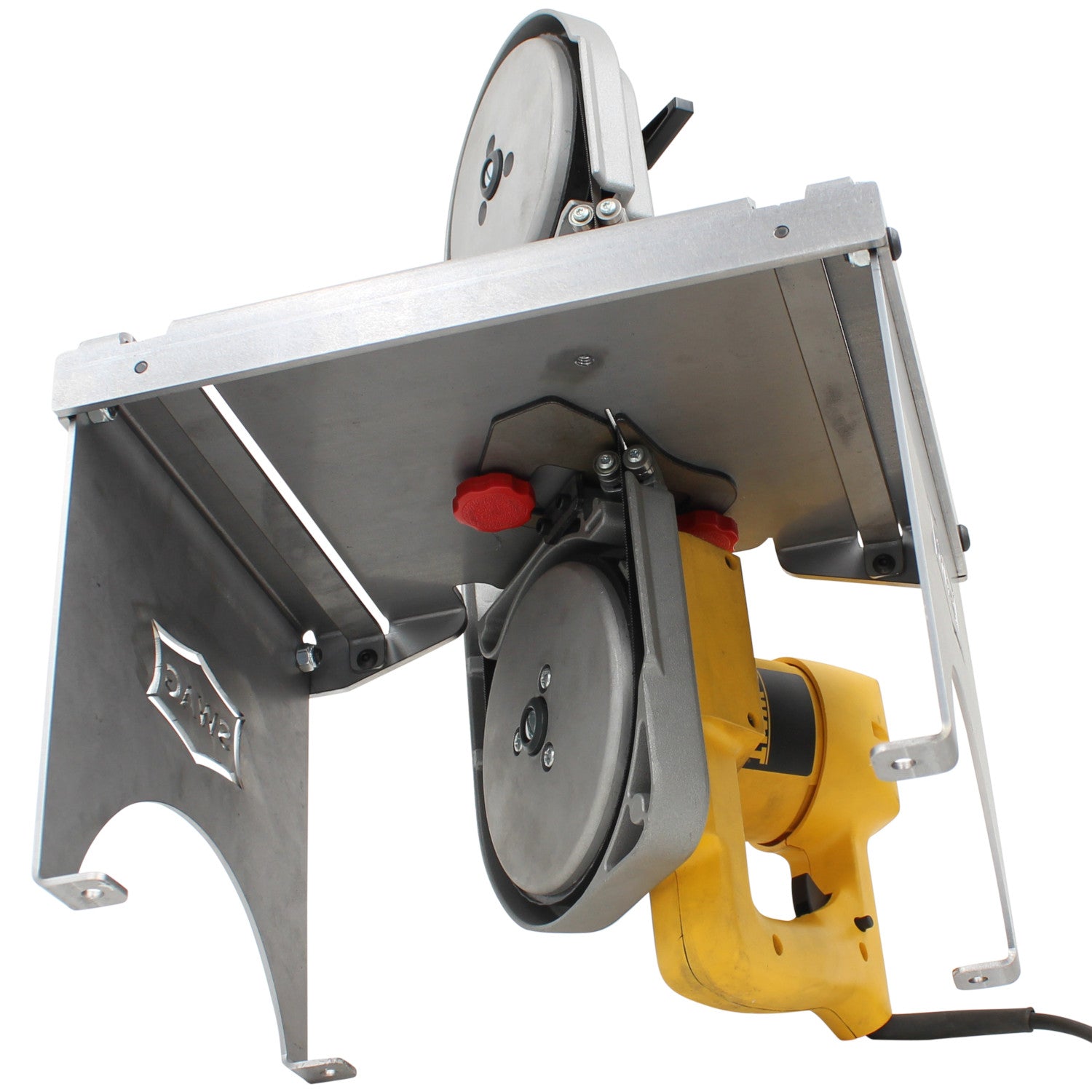

could not be any easier. Remove the factory blade guards two mounting screws and reinstall the provided blade guard with the associated fasteners, insert the saw into the stand and tighten the provided two red thumb knobs. You now have a
saw that performs two functions, a portable band saw and a vertical band saw
that does not require any tools to switch between the two functions.
V2.0 table is cut on a CNC laser out of 3/16" thick steel plate, formed on a CNC press brake and weighs in at ~ 18 pounds for ultimate durability.
The Table dimensions are 9.75 tall, 11" deep & 13.5" wide. With the
saw installed the overall dimensions are ~22" tall, 18" deep &
Please verify that your complete model number of the saw you own is listed below as a supported model.
Dewalt Model #'s DW328 TYPE 2, DW328 TYPE 3, DW328 TYPE4
- Porter Cable Model #'s 7723, 7724, 725
Black & Decker Model # 3128
SWAG V 2.0 INSTALLATION INSTRUCTIONS
120V 15 Amp Power Maintained Foot Switch
Imagine how easy your job is going to be using the foot pedal to start and stop your SWAG Portaband table. Plug
your Portaband power chord into the 15 amp outlet on the foot pedal.
Plug the foot pedal cord into a 110 volt outlet. Press the pedal to
start the saw, then press again to
