SWAG REV 2 Tube Bender

Sale price$769.95

Select Dies

Choose Options

Made in USA
Pay in 4 interest-free installments of $192.48 with Shop Pay


SWAG REV 2 Tube Bender
The REV 2 is designed, machined, formed, manufactured & assembled in the USA.


Introducing the REV 2 Tube Bender - the latest addition to our line of high-quality tube forming tools! We are thrilled to finally offer our customers the reliable and precision tube bender that they have been asking for. The REV 2 is the result of years of research and development, and we are confident that it is the best tube bender in its class.

One of the key features of the REV 2 Tube Bender is the tight tolerances. All of the components have been precision machined. It is equipped with oil impregnated sintered iron-copper bushings that ensure smooth operation with minimal slop. This means that you can expect a solid and dependable machine that delivers precise bends with each use. The REV 2 also boasts an extremely accurate degree wheel, which is made from anodized and laser engraved aluminum. This, along with the stainless steel indicator arm, allows for precise bends every time.

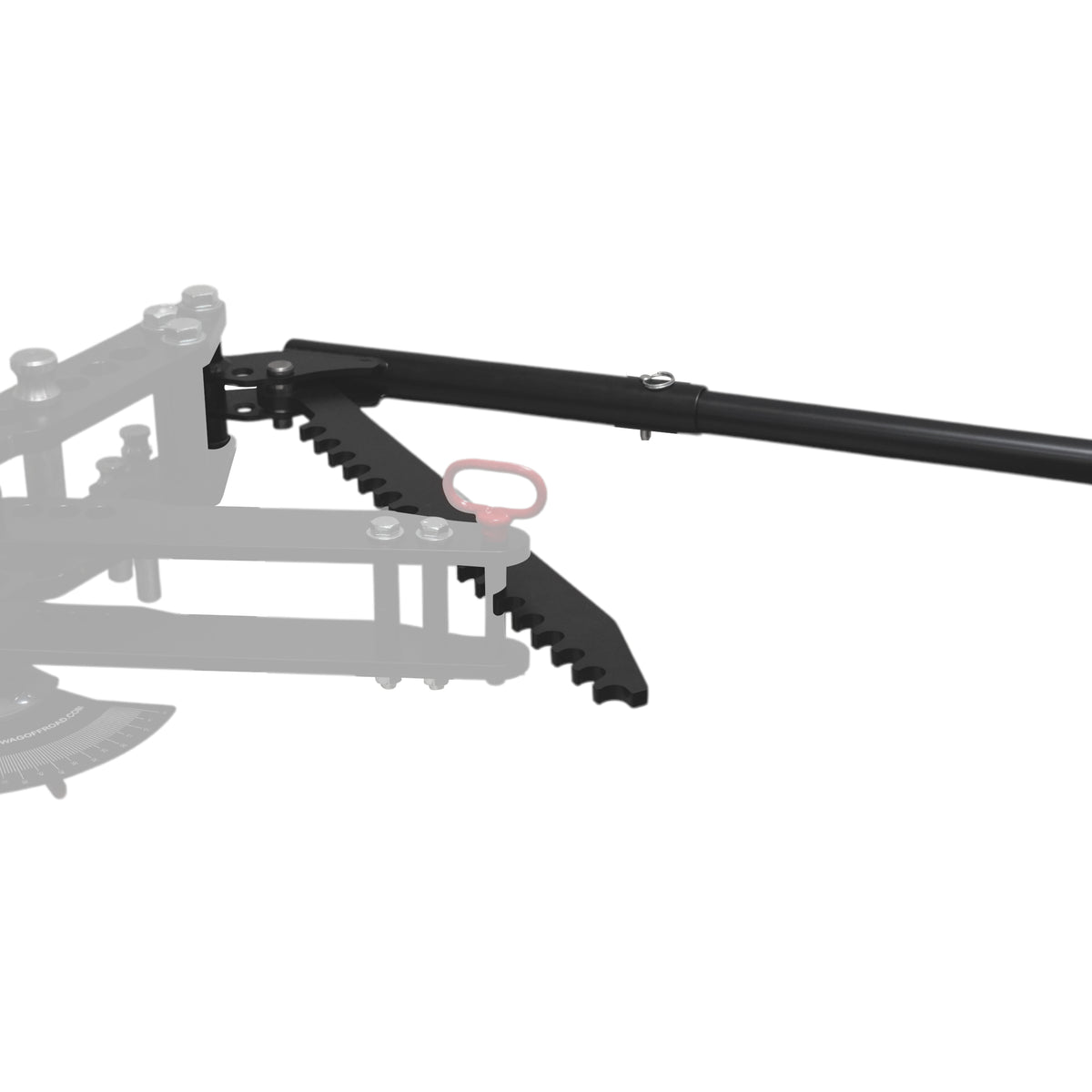

We understand that versatility is key when it comes to tube benders, and that's why the REV 2 is an evolving project. We currently have more than 50 die sizes in stock, but we plan on covering all common materials in the near future. In addition, we are also working on offering a full manual option and a full hydraulic option, so that you can choose the right tool for your needs. We also have some unique upgrades in the works already that you'll be able to add directly to your existing machine.

In this business, time is money, which is why we want you to hit the ground running with your new REV 2. The machine comes 95% assembled, so you can start using it right away. All you need to do is set up the degree wheel, slide in a die, and get started on your next project.

Please note that the REV 2 includes the Air/Hydraulic Ram Mount and the Elastic Return Spring, but the RAM IS NOT INCLUDED unless selected. Additionally, DIES ARE NOT INCLUDED UNLESS OTHERWISE SELECTED. If you have any questions about the product or how to use it, please don't hesitate to reach out to us. We are proud of our name and reputation, and we stand behind our products. Get your hands on the REV 2 Tube Bender and take your metalworking projects to the next level!

The REV 2 Bender does include a mounting plate with a 2" receiver hitch welded to the bottom. This creates a wide range of mounting options be it a rolling stand, fixed pedestal, or welding table mount. As long as you have ~5" of 2" square tube sticking up from your custom stand, it will slide right into the hitch mount and lock in place with the included hardware.

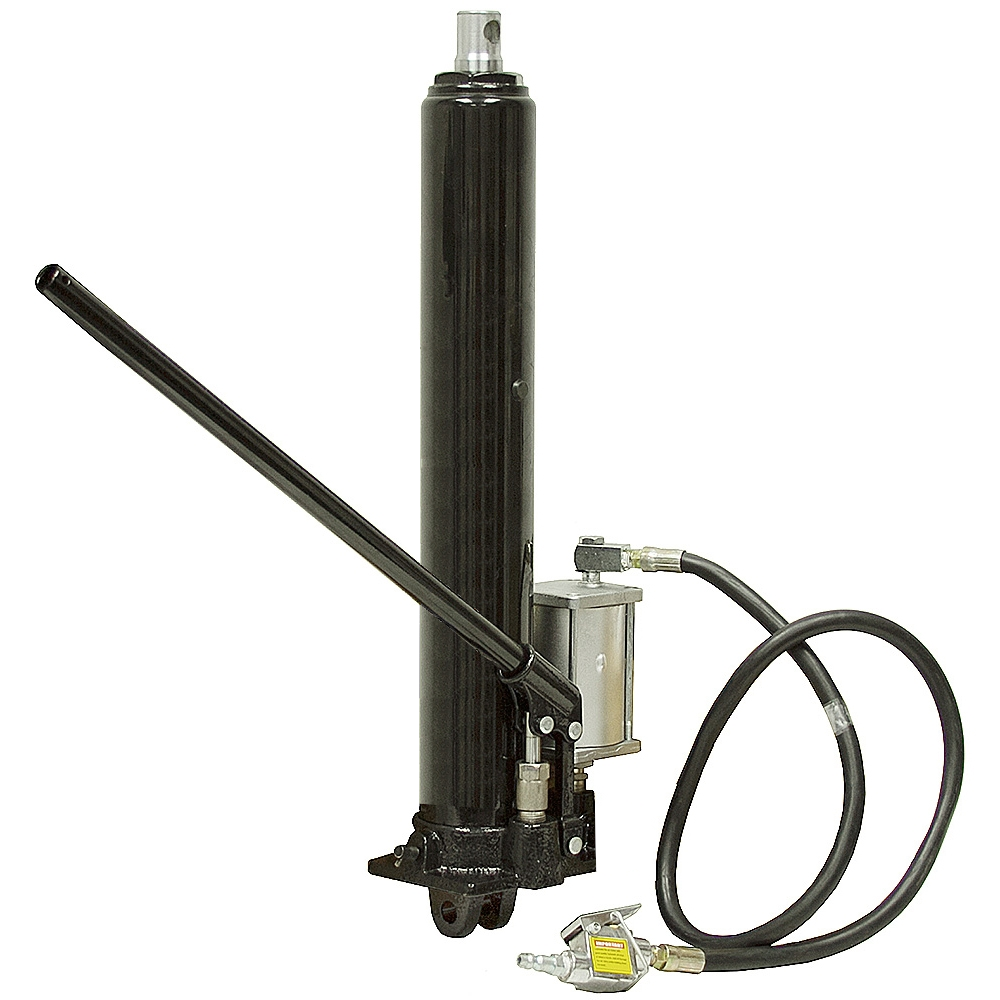

The Ram Mount is designed to accept Air/Hydraulic Rams with an 80mm body. The Ram we offer will fit, as will the new Pittsburgh Ram from Harbor Freight and the Northern Tool 8 Ton Long Ram. Please note, Vevor lists their ram as 80mm but it is actually 3.1" (78mm) and will not work with our mount.

 You can find the Harbor Freight Ram HERE

You can find the Northern Tool Ram HERE

Have questions about dies or want assistance creating a cart? Give us a call at 541-915-2775 and we'd be happy to help!

Maximum / Minimum Wall Thickness Recommendations

Pipe sizing is specifically for Sch 40. Please note the dimensions below.

  • 5 stars: 16 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
G
Greg Henderson
Beautiful made and functioning

You can feel the quality of this bender, everything moves smoothly. All the pins fall into the holes perfectly. Had a few questions and they were answered promptly over the phone. Great Oregon company! Oh and the bender bends perfectly a real professional piece .

Greg,

Very glad to hear the bender is working well for you! We can't thank you enough for your business! I do want to note, if you slide the ram a bit further back in the ram mount, you will be able to close the bender a bit more and it will be much easier to insert your material into the machine!

Don't hesitate to reach out if there is anything we can assist with.

Thank you,
SWAG Off Road

B
B.M.
1.5 sq. Die

Works great

K
Kasey Sanders
Rev 2 Bender

Im very impressed with this bender. Super heavy duty, well built and well thought out. Should be last bender I ever purchase. Thanks for a great product!!!

Kasey,

Thank you so much for your kind review of our SWAG REV 2 Tube Bender. We are thrilled to hear that you are satisfied with your purchase.

We can't thank you enough for your business and don't hesitate to reach out if there is anything we can help you with.

Thank you,
SWAG Off Road

J
Joshua Wood
Heavy duty

Makes easy work of 1.75 x1.20 DOM. Wouldn’t buy anywhere else

J
JOHN LABERDIE
Well built and great shipping

This is a well built and very well designed. Bent some tube and very happy how it works.love how everythings fits and hass holders for the pins. The spring is very nice. Hands down the best bender ive used.

M
Michael Rainey
Update

I would like to add to my initial review.
within 2 hours of my first review, may have been sooner i received a phone call from SWAG concerning the pins being soft. They told me that the pins were supposed to be Chrome molly that they had some prototype pins that had been shipped by mistake. Before the end of the day I had an email where they had shipped replacement pins for my bender!!

so, in addition to a well-made product you can add great customer service. I would definitely do business with them again.

s
sean

Great machine

F
FL

The tool quality is excellent

D
Dane S.
American always wins

Ive been in the market for a tube bender for a long time. After too many hours of research, I was sold on the REV 2.... I reached out to the SWAG prior to my purchase and was blown away at how honest and open they were. The customer service alone is worth buying their stuff.
The bender arrived within the week and this thing is beautiful. Ive used benders in the past and it's obvious they have too. Lots of little comforts/fixes that make this an enjoyable tool to use. This is the only way to fly, if you're on the fence don't be. Buy the REV 2!

D
Daniel
Awesome Products and Excellent Customer Service

I'm a hobby fabricator on a budget, so I spent a lot of time comparing the different benders before I made the decision to buy the Swag Offroad Rev2.

As I get older the air/hydraulic setup was appealing, and the fact that they designed it to work with a readily available ram that I bought locally (on sale) shows just how much thought they put into their products.

I emailed a couple of questions I had about the bender, and the staff were super helpful and quick to respond. The items shipped quick and were packaged well.

I also bought their digital u-turn readout kit, and plane of bend bracket. My local HF doesn't carry the digital angle finder, but it was available on Amazon.

I'm happy to buy a product made in the USA, you can tell they take pride in their work.

C
Chris watts
Rev 2 bender

First thing I noticed is how solid this bender is. Also, all the machined parts are done well and clean and deburred. Very solid unit, really can’t wait to try it out.

Thanks so much for the kind words! Very glad to hear that you are satisfied with your purchase!

Don't hesitate to reach out to us if any questions come up.

Thank you,
SWAG Off Road

M
M.M.
I love ur products.

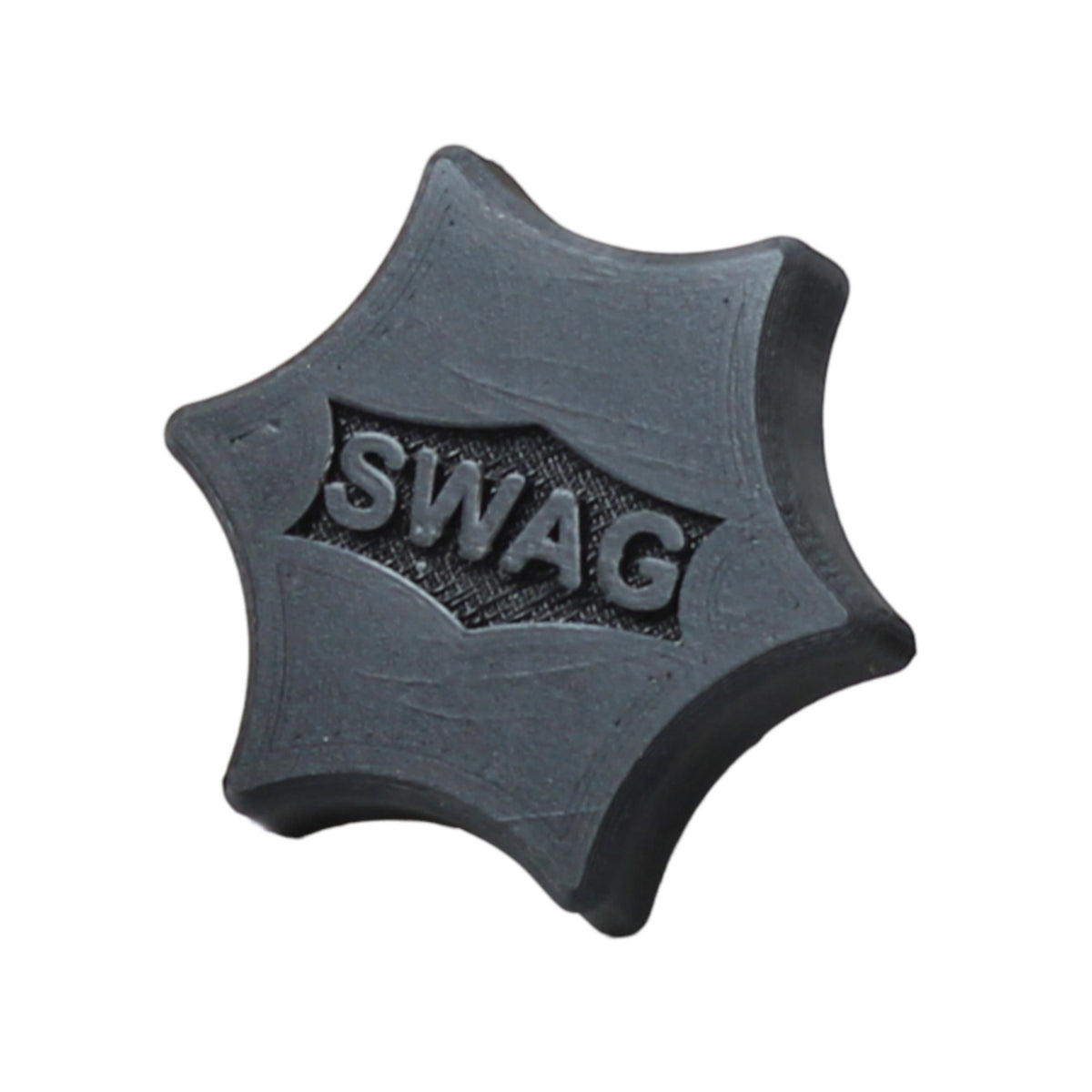

Almost went with jd2 bender . I'm glad I didn't. I am also very happy with your customer service. They did a amazing job with my questions since I'm new to this product . One of the knob was missing from the ram n I emailed n it was taken care of instantly. I got it in few days . I have no buyers remorse . Super happy with product. Overall great products great service ,great company !!! Keep it up .

K
Kyle

Outstanding quality what i would expect from an American made company. Get people to work with

J
Josh Williams
Well Built

The is a well built tool. I push most of my tools to the limit and this one held up. The customer service is great. I got a pin that was too long and I saw it on install but didn't catch it on the first bend and it caught the degree wheel and tried to rip it off the bender. I contacted customer service to get replacement parts on order and once they realized they had sent 2 long pins instead of 1 long and 1 short they sent me out the parts to repair my bender without charging me.

C
Chris

Amazing quality really happy

T
Tate Bolin
Awesome

Super nice bender can not say enough good things about this.
Super strong construction
Super easy to use
And probably the best customer service I've seen.

J
Jim

Will this bend 2x3x1/8 rec strong side?
Thanks

SWAG Off Road

Hello,

Thank you for your interest in our products.

Unfortunately, the REV 2 is not designed for any rectangular tube.

Let us know if you have any other questions.

Thank you,
SWAG Off Road

C
Chris White

What is the difference between your air/hydraulic ram for your bender and the ones offered from Northern and Harbor Freight?

SWAG Off Road

Chris,

They are functionally identical. To be totally honest, after carefully looking over all three rams, I'm confident that ours are made in the exact same factory as Harbor Freights. We really just carry the ram for customers that cannot get one from HF for whatever reason.
I would highly recommend just picking up the ram from Harbor Freight. They beat both Northern Tool and us by a significant margin on the price and their ram does seem to be of superior quality when compared to the Northern Tool.

Let us know if you have any questions.

Thank you,
SWAG Off Road

R
RWB

What's the approx weight of the assembled bender, without the ram?

SWAG Off Road

Richard,

Thank you for your interest in our products.

The REV 2 Bender (without the Ram) ships in a box that measures 24" x 13" x 13". The total weight of the package is 63 Lbs 12 oz.

Let us know if you have any other questions.

Thank you,
SWAG Off Road

D
Dave Craig

Would the Rev 2 bender be capable of bending exhaust tubing tight enough for an exhaust system. Or would that be more of a kink machine. Not looking to make headers, just wondering if it could do the bends to get around say a gas tank or trunk with standard aluminized exhaust tubing. Been wanting one of these bender for a while now . Thinking of different projects right now. And the possibilities of others. Thanks

SWAG Off Road

Dave,

Thank you for your interest in our products.

It really depends on the size and wall thickness of tubing that you plan on using. If you are using standard 2" or 2.5" tube with .065" wall thickness, unfortunately a rotary draw bender is not suited for that application. Most exhaust tubing requires the use of a mandrel bender due to the relatively thin wall of the material.

Let us know if you have any other questions.

Thank you,
SWAG Off Road

D
Dave Craig

Could you show a picture of the 2" recievr needed for mounting the rev2 on? I'm not sure if it needs to be straight out horizontal like a trailer hitch or straight up like a vertical post hitch?

SWAG Off Road

Dave,

Thank you for your interest in our products.

You can orient the 2" Square tube vertically or horizontally depending on how you want your bender set up. If you would like the bender in the standard horizontal orientation (as shown in the photos,) you would create a pedestal with the 2" Square tube sticking up vertically. If you would like the bender to be positioned vertically, you would have your 2" square tube parallel to the ground. You can see the receiver in the first photo on the product listing. It is directly below the ram mount with a single bolt sticking out of the corner of the square hitch.

Please don't hesitate to reach out to us directly if you would like further details. You can contact us at sales@swagoffroad.com

Thank you,
SWAG Off Road
