The System 16 Welding Table Series is the ideal choice for fine detail applications.
All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

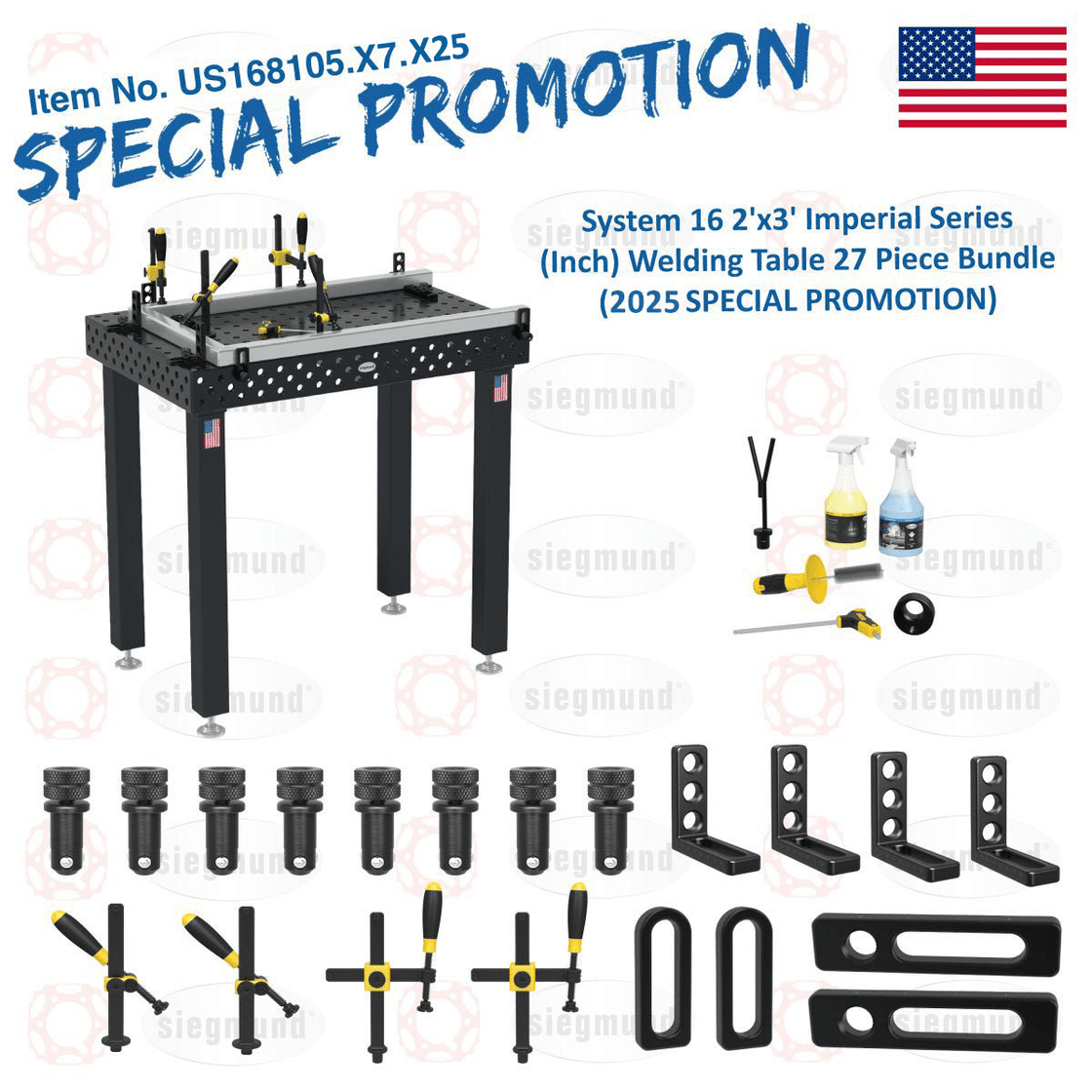

Items Included in Bundle #US168105.X7.X24
for the Siegmund System 16 Welding Tables (27 Piece Bundle)
Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.
Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)
Total Weight of Set: 245 lbs.
Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (0.63") Bore Holed Siegmund Welding Tables.
Items Included in Bundle #US168105.X7.X24
for the Siegmund System 16 Welding Tables (27 Piece Bundle)
Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.
US16005.X7
Quantity: 1
2'x3' Imperial Series Welding Table
(Plasma Nitrided)
US160610.N
Quantity: 2
Professional Screw Clamp (Nitrided)
US160630
Quantity: 2
45°/90° Professional Screw Clamp (Burnished)
US160511
Quantity: 8
Short Fast Clamping Bolt (Burnished)
US160110.N
Quantity: 4
3-1/2" L Stop and Clamping Square (Nitrided)
US160420.N
Quantity: 2
5" Universal Stop (Nitrided)
US160410.N
Quantity: 2
3-3/16" L Universal Stop (Nitrided)
US163999
Quantity: 1
Maintenance Set
- The materials used are fundamental to the high level of hardness and long service life.
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
Specs and Features
of the System 16, 8.7 Imperial Series Welding Tables
Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 2' x 3' (24" x 36")
- Borehole Diameter: Ø 16mm (5/8")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 7/16" to 1/2"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Maximum Weight Load: 5,557 lbs. (Based on Even Distribution)
- Approximate Table Weight: 309 lbs.
- Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
- Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 3-5/16" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.
-
Bottom of Structure has Reinforced Ribbing.
Welding Table Leg Options
Part Numbers, Specs and Pricing
Welding Table Leg Options
Part Numbers, Specs and Pricing
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
|
1. Standard Leg |
US160858.X |
2,200 lbs. |
32" |
36" |
Included |
|
2. Alternative Height Leg |
US160853.X |
2,200 lbs. |
30" |
36" |
$0 |
|
3. Height Adjustable Leg |
US160877.XX |
2,200 lbs. |
22"-38" |
26"-42" |
$85 |
Siegmund System 16 Welding Table Leg Options - Full Specifications
1. Standard Siegmund Leg(s)
- Item No.: US160858.X
- Leg Height: 32"
- Table Height: 36"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
2. Alternative Height Leg(s)
- Item No.: US160853.X
- Leg Height: 30"
- Table Height: 36"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $0
- Cost Per 4 Leg Set: $0
3. Height Adjustable Siegmund Leg(s)
- Item No.: US160877.XX
- Leg Height (Adjustable): 22" - 38"
- Table Height (Adjustable): 26" - 42"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg : $85
- Cost Per 4 Leg Set: $340
