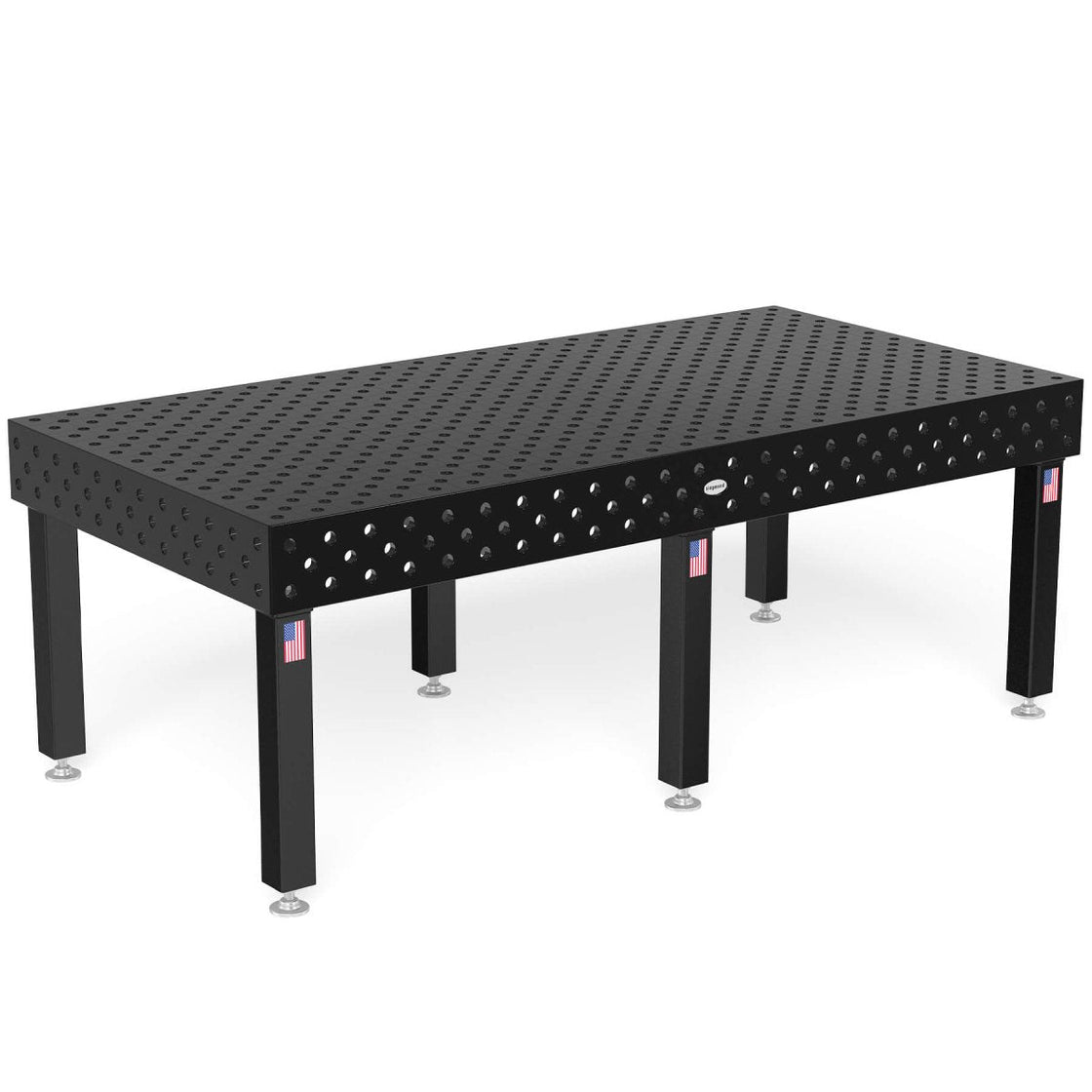

The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
- The materials used are fundamental to the high level of hardness and long service life.
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
Specs and Features
of the System 28, 8.7 Imperial Series Welding Tables
Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 4' x 8' (48" x 96")
- Borehole Diameter: Ø 28mm (1-1/10")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US280030.XD7
- Maximum Weight Load: 15,410 lbs. (Based on Even Distribution)
- Approximate Table Weight: 2,190 lbs.
- Boreholes on the Surface are in a Diagonal Grid Configuration.
- Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 7-7/8" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.
-
Bottom of Structure has Reinforced Ribbing.
Welding Table Leg Options
Part Numbers, Specs and Pricing
Welding Table Leg Options
Part Numbers, Specs and Pricing
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
|
1. Standard Leg |
US280858.X |
4,400 lbs. |
28" |
36" |
Included |
|
2. Height Adjustable Leg |
US280877.XX |
4,400 lbs. |
22"-36" |
30"-44" |
$124 |
|
3. Leg with Casters and |
US280876.XX |
1,760 lbs. |
36" |
36" |
$156 |
|
4. Height Adjustable Leg |
US280879.XX |
1,760 lbs. |
22"-30" |
30"-38" |
$202 |
Siegmund System 28 Welding Table Leg Options - Full Specifications
1. Standard Siegmund Leg(s)
- Item No.: US280858.X
- Leg Height: 28"
- Table Height: 36"
- Fine Adjustment: 2"
- Capacity Per Table Leg: 4,400 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
2. Height Adjustable Siegmund Leg(s)
- Item No.: US280877.XX
- Leg Height (Adjustable): 22" - 36"
- Table Height (Adjustable): 30" - 44"
- Fine Adjustment: 2"
- Capacity Per Table Leg: 4,400 lbs.
- Cost Per Leg: $124
- Cost Per 6 Leg Set: $744
3. Siegmund Leg(s) with Casters and Locking Brakes
- Item No.: US280876.XX
- Leg Height: 28"
- Table Height: 36"
- Fine Adjustment: 13/16"
- Capacity Per Table Leg: 1,760 lbs.
- Cost Per Leg: $156
- Cost Per 6 Leg Set: $936
4. Height Adjustable Leg(s) with Casters and Locking Brakes
- Item No.: US280879.XX
- Leg Height (Adjustable): 22" - 30"
- Table Height (Adjustable): 30" - 38"
- Fine Adjustment: 13/16"
- Capacity Per Table Leg: 1,760 lbs.
- Cost Per Leg: $202
- Cost Per 6 Leg Set: $1,212
