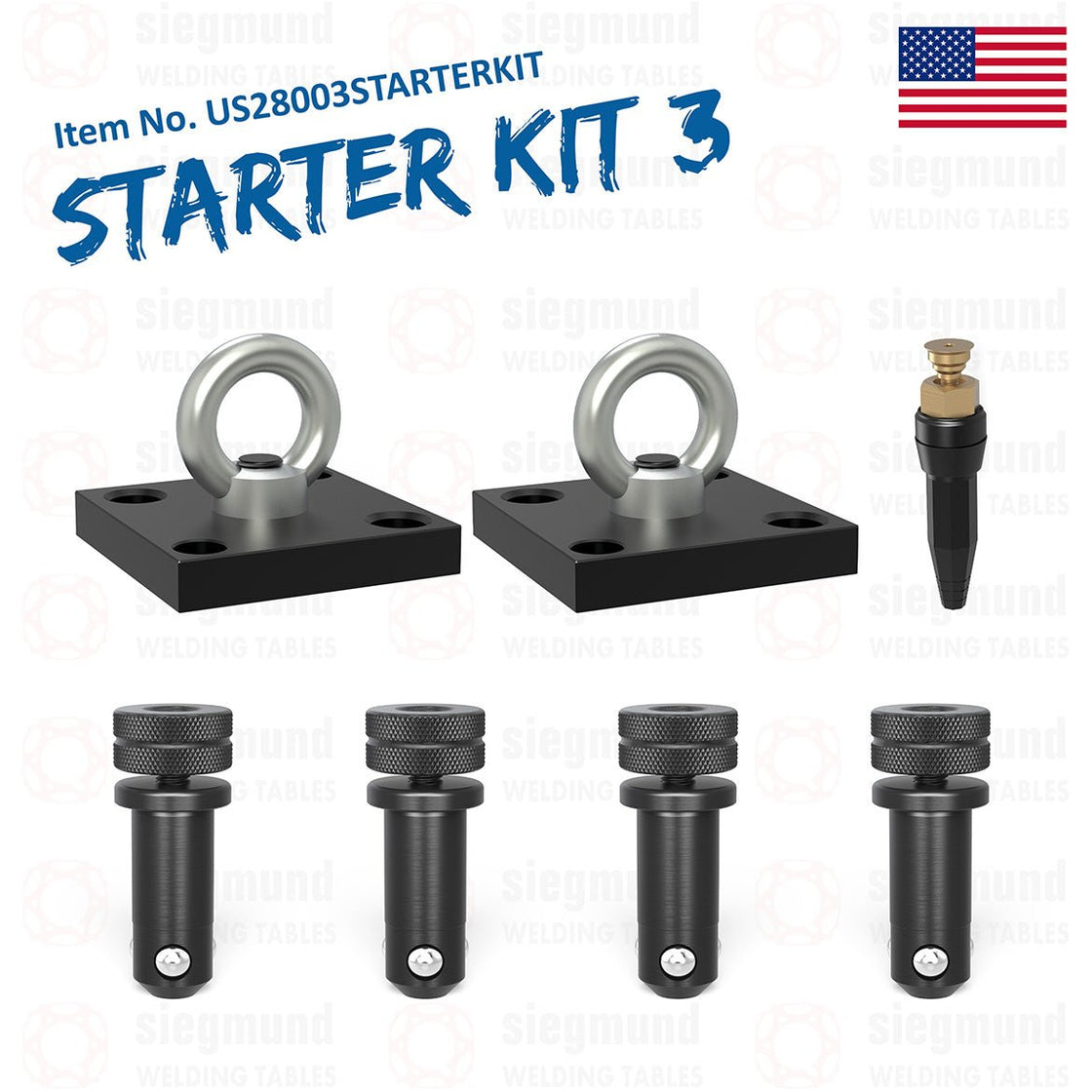

The Imperial System 28 Dual Bracket
Starter Kit for the 5'x10' Welding Tables
(7 Pieces)
Item no.: US28003STARTERKIT
The Imperial System 28 Dual Bracket
Starter Kit for the 5'x10' Welding Tables
(7 Pieces)
Item no.: US28003STARTERKIT
US000830
Quantity: 2
Universal Shipping / Lifting Bracket with Fastening Plate
The Siegmund Shipping / Lifting Bracket with Fastening Plate is is the Best Solution to Quickly and Safely Transport Heavy Siegmund Parts. It is Used to Move Welding Tables and Other Heavy Siegmund Elements Safely and Easily.
Please consider following safety instructions:
1. Ring nuts should be completely bolted.
2. Ring nuts should bear flat and completely on support surface.
3. Length of mating thread has to be sufficient.
4. Lateral pull should be avoided.
- Height: 1"
- Width: 5-7/8"
- Weight: 10.4 lbs.
- Length: 5-7/8"
- Load Capacity: 3,970 lbs. Capacity
US280511
Quantity: 4
Short Fast Clamping Bolt(Burnished)
The Bolt Without Slot is Particularly Suitable for Clamping the Entire Siegmund Range. The Fast Clamping Bolt with Twist lock is the Ideal Connecting Element Between Siegmund Components.
- Length: 3.74"
- Weight: 1.2 lbs.
- Diameter: 1-1/10"
- Finish: Burnished
- Tensile Force: 25 kN
- Shearing Force: 220 kN
- Tightening Torque Steel: 215 Nm (158.58 ft-.lb
- Tightening Torque Aluminum: 10 Nm
US000810
Quantity: 1
Ground Connection Comfort
Ground Connection, guarantees 100% contact to the welding table, therefore no overheating is possible. Simple installation by fastening it in a system borehole. This Ground Connection is for structural welding only. Not recommended for thin materials (i.e. Sheet Metal).
This may not work for all applications.
- Weight: 2 Ibs.
- Load up to 500 ampere
- Cable cross section: 0.109 - 0.147 square inch
