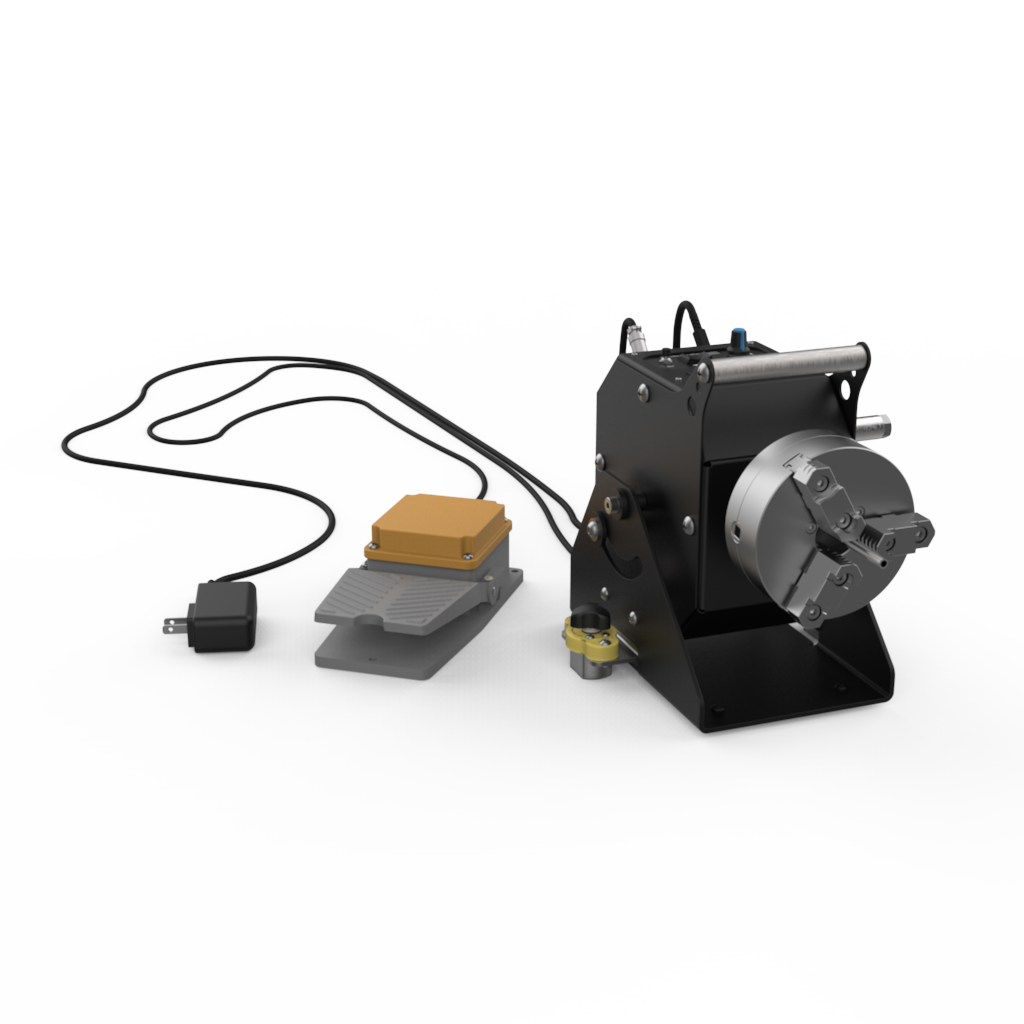

PRO 300A TIG Turret Rotary Welding Positioner

Same great portable and compact size as our original TIG Turret. But this machine packs a punch. We've upgraded almost every mechanical component on this machine to give serious fabricators the do-it-all support they need for heavy-duty tasks.

Our new patent-pending conductive front bearing design carries up to 400A of welding current without risk of bearing failure. We've put this thing through some serious tests and are confident you can handle high-volume production jobs with this machine, day-in and day-out.

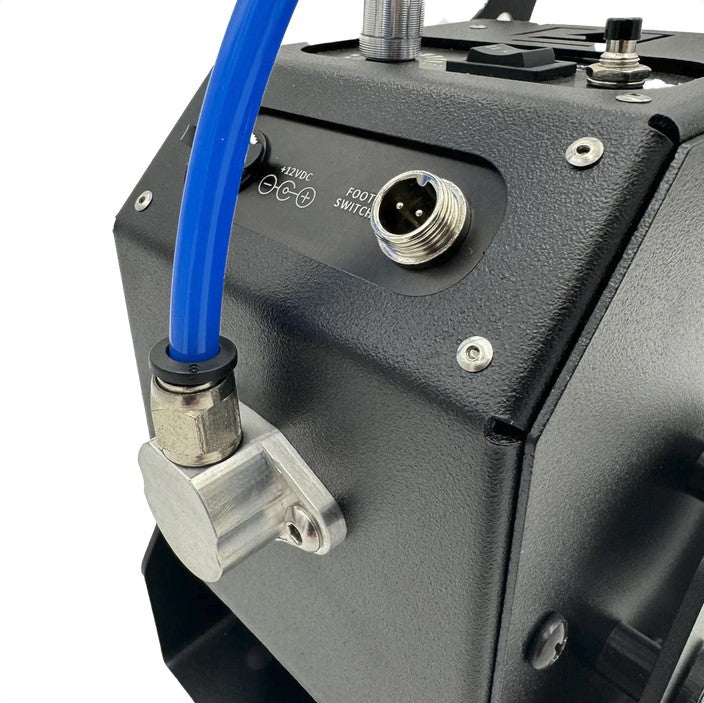

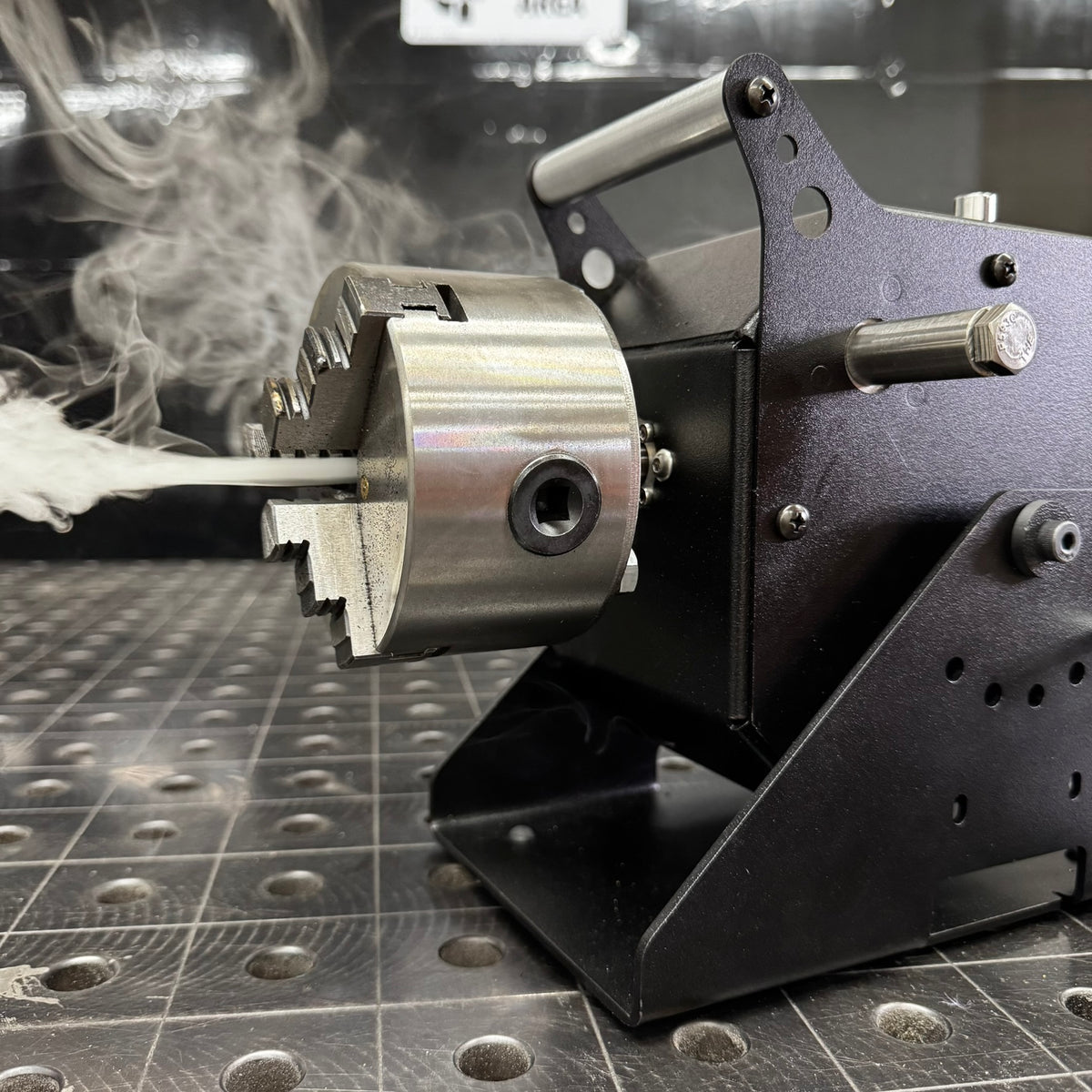

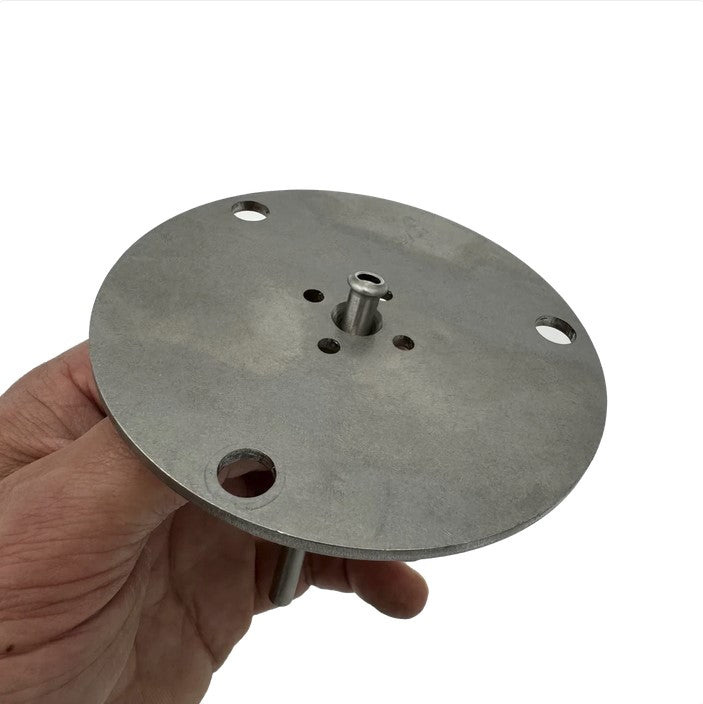

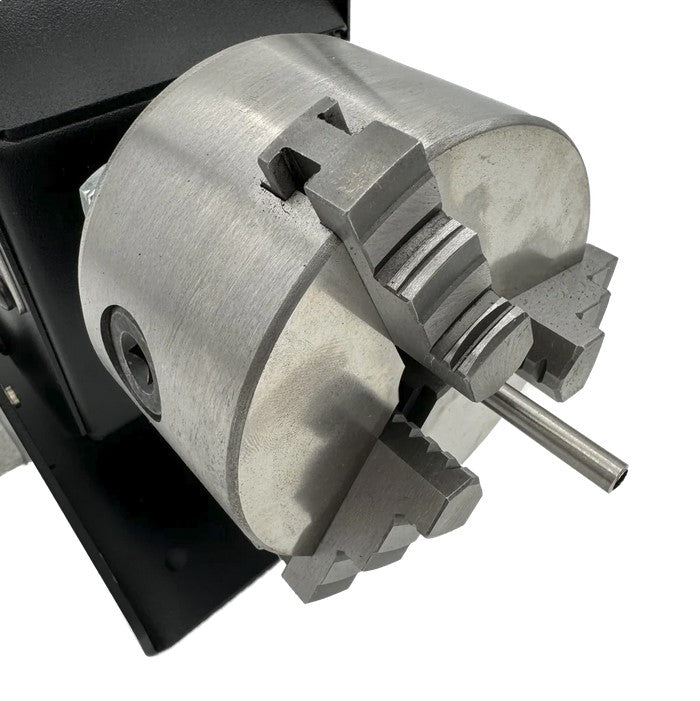

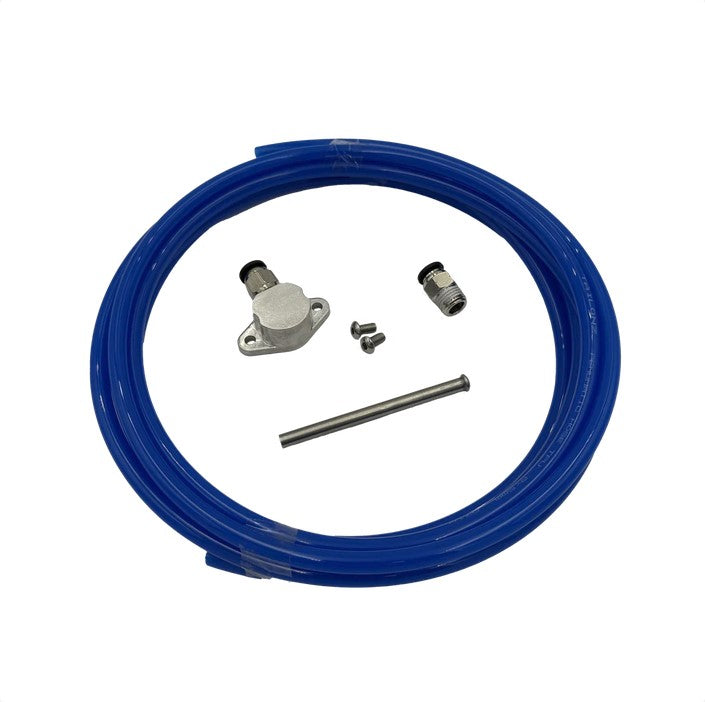

Addon the optional through-purge kit for an easy connection to purge argon through your weld subjects, designed to be compatible with the most popular purge plugs on the market.

The PRO unit still comes with a 4" 3-jaw chuck, and speed ranges dialed in for optimum TIG welding travel speeds. Powered by 12VDC, when used with the correct power adapter, this machine can be operated anywhere in the world; in the field, powered by vehicle, or by battery. We include a standard 2-prong 120V power adapter, designed to work with standard U.S. house plugs.

Features

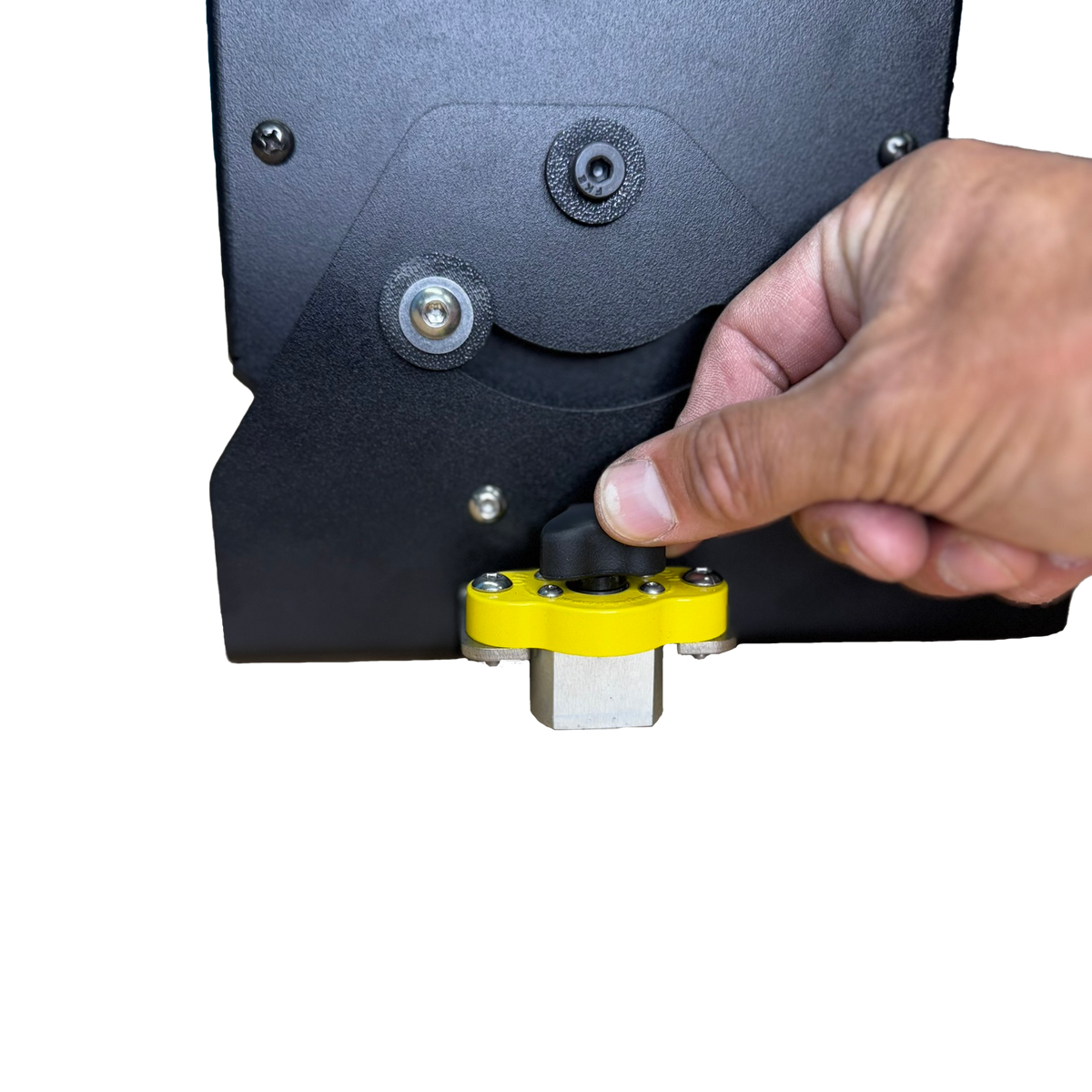

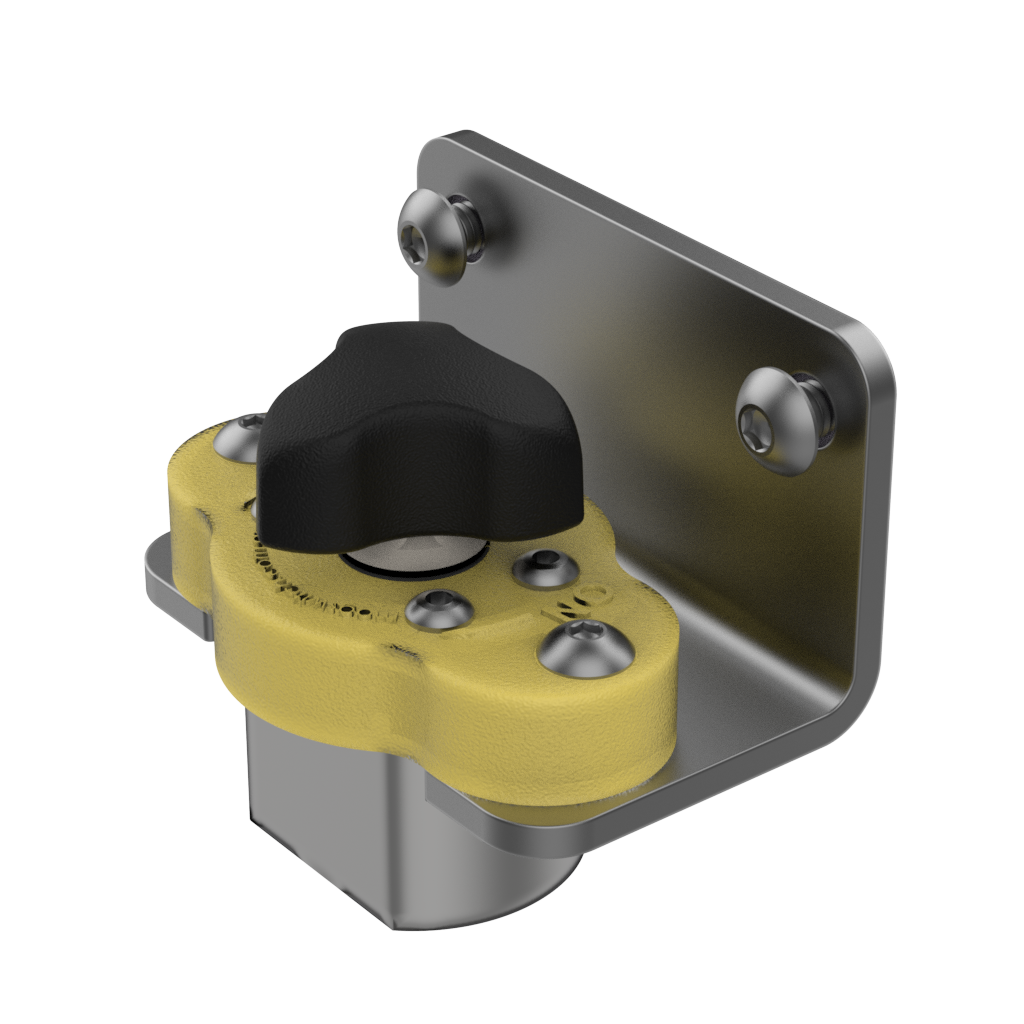

The TIG Turret is designed and manufactured in the U.S.A with exception of electrical components! We stand behind this product completely, including a 1-year warranty. Optional MAG Base upgrade includes two switchable (on/off) magnets located on either side of the base to secure machine to your welding bench and increase stability. Each magnet has 95lbs of holding force.

  • Variable-speed control knob
  • Momentary on/off foot switch (not variable speed foot pedal)
  • Directional control switch for left / right rotation
  • “Jog” Button for quick re-positioning; useful for setting rotation speeds or re-positioning parts without foot pedal
  • Head rotates from horizontal to vertical for various welding positions and is locked in place with a pin in 22.5 degree increments
  • Includes heavy-duty, momentary, on/off foot pedal switch with 8′ long cord
  • Heavy-duty formed-steel construction, powder coated "Texture Black" for durability and a brilliant look!
  • Large lug for welder ground clamp
  • Anti-slip rubber feet on base for vibration resistance and machine protection
  • Handle for convenient carrying and moving
  • *Optional* add-on on/off switchable magnetic base kit
  • *Optional* add-on through-purge kit
Specifications
  • Variable shaft speed from .3 to 3.3 RPM
  • 12VDC 2A input – 120VAC with supplied adapter (international adapters available)
  • Rated 300A continuous / 400A peak welding current
  • 47kg-cm / 41lb-in rated torque
  • Internal clamping range of 1.18″ to 3.15″
  • External clamping range of .078″ to 3.54″
  • 30lb. rated capacity (in the vertical position)
    What's Included
    • TIG Turret PRO weld positioner & base
    • 120V, 2A, 2-prong power adapter (US)
    • Heavy-duty aluminum foot pedal switch
    • 4" Steel 3-Jaw Chuck
    • *Optional* Upgraded magnetic base brackets & magnets
