SWAG 12 TON Press Brake DIY Builder Kit
Choose Options

SWAG 12 TON Press Brake DIY Builder Kit
Sale price$229.95

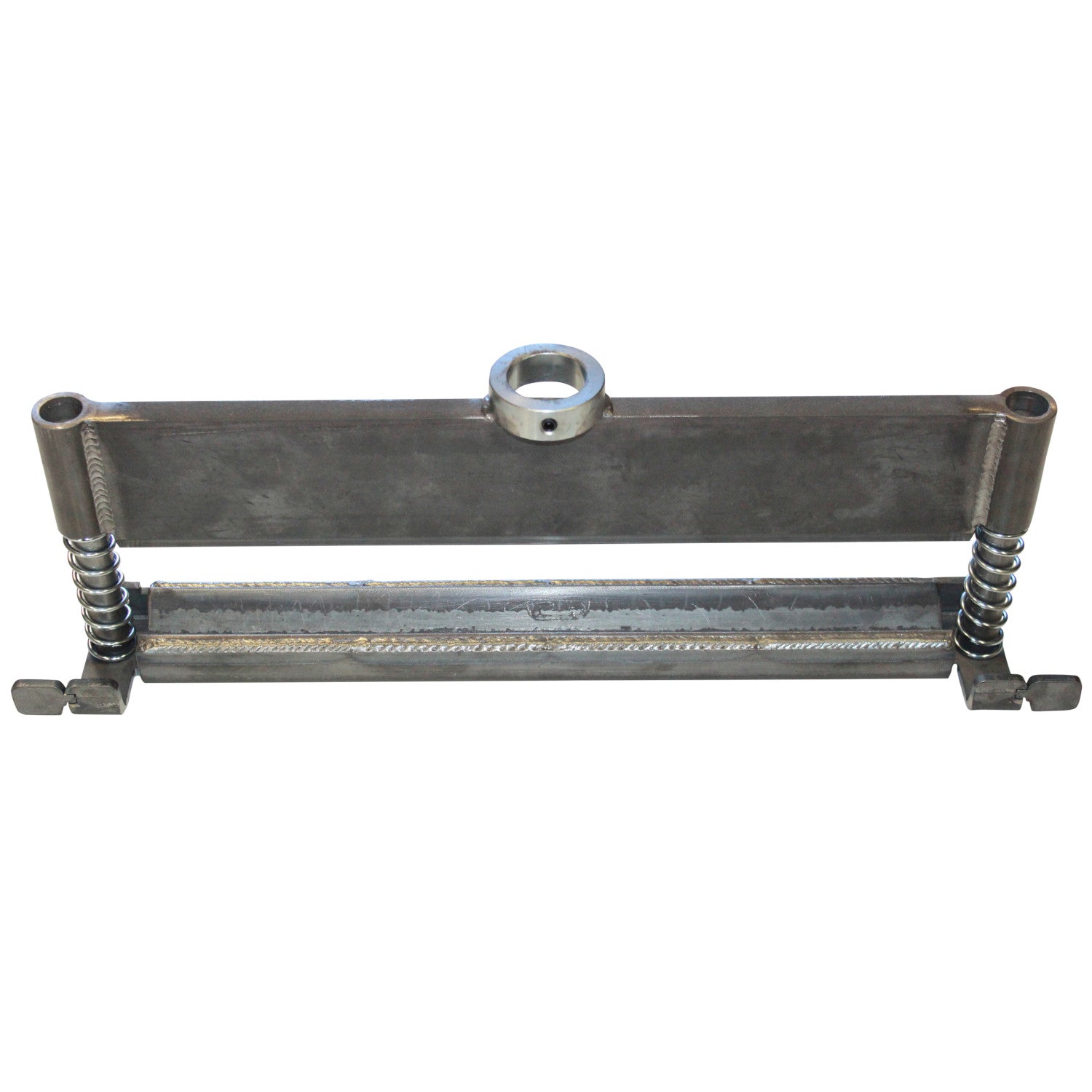

12 TON Finger Brake DIY Builder Kit

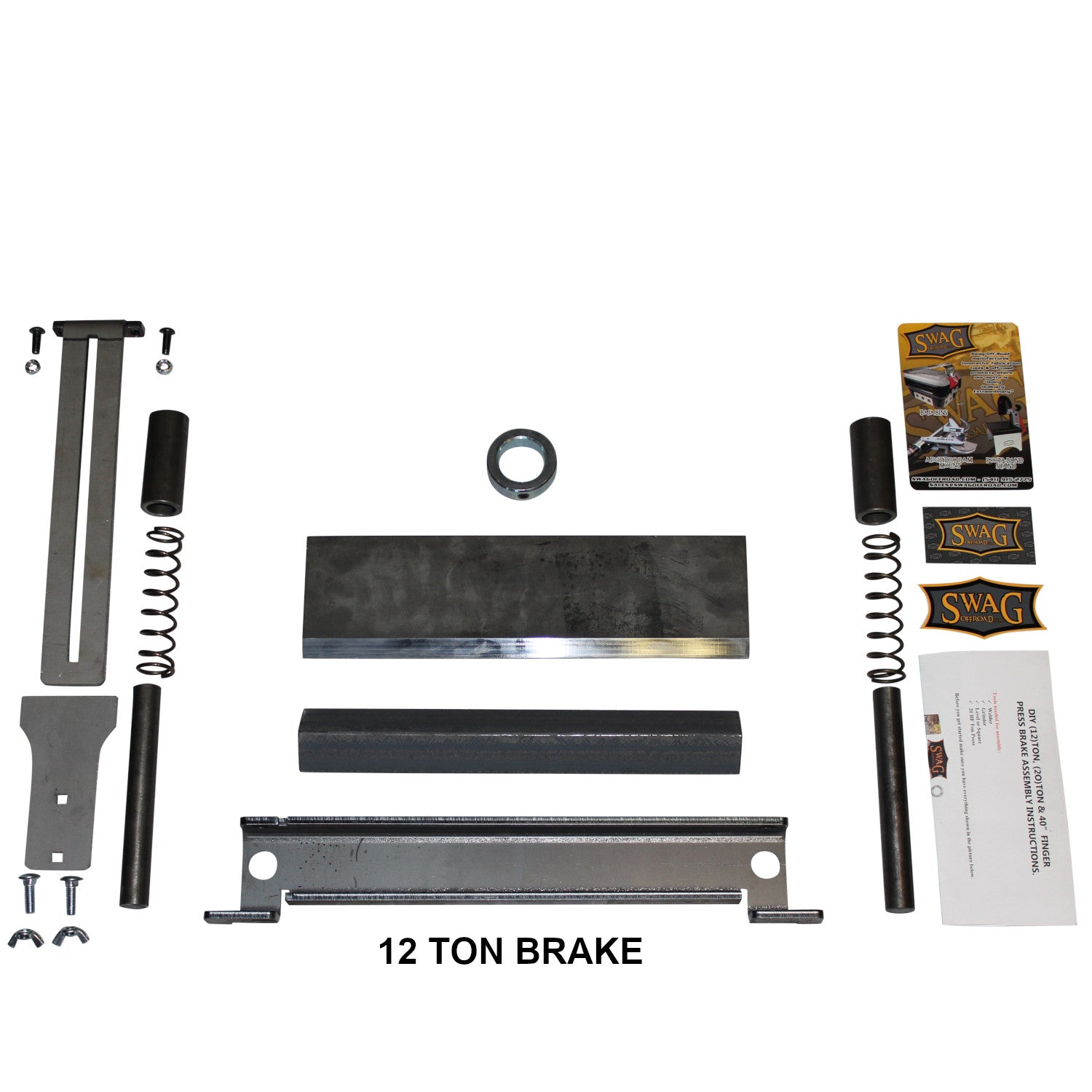

Press Brake kit comes unassembled, you do the final assembly and welding.

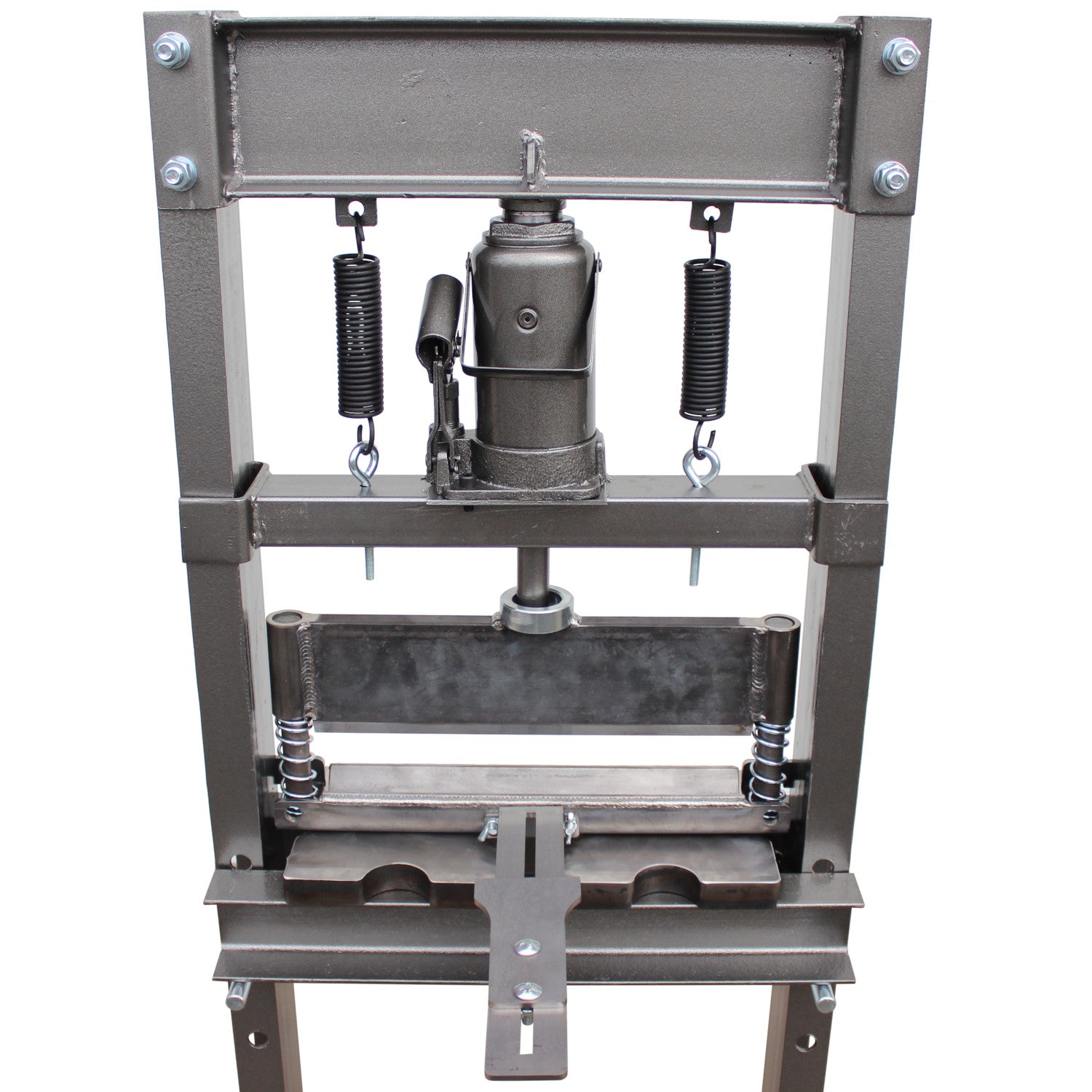

Designed to fit the Harbor Freight 12 ton hydraulic press Item # 33497
Press brake kit includes an adjustable back stop for accurate and repeatable bends.
NOTE: Shop Press and Bottle Jack are NOT Included. Tools required for assembly: welder, grinder, level, small square.
The DIY 12 ton finger press makes a great addition to the arbor press plates we sell HERE.
Designed to fit the Harbor Freight 12 ton hydraulic press Item # 33497
Press brake kit includes an adjustable back stop for accurate and repeatable bends.
- Max Bending Radius (deg.) 110
- Max Bending Capacity 3/8" plate
- Max Bending Width 13.85"
- Total width of the brake is 16.375" wide
- 13.85" = Full bending width of the bottom die on anything 1/8" or thinner.
- 8" in 3/16"
- 6" in 1/4"
- 2.5" in 3/8"
NOTE: Shop Press and Bottle Jack are NOT Included. Tools required for assembly: welder, grinder, level, small square.
The DIY 12 ton finger press makes a great addition to the arbor press plates we sell HERE.
