SWAG 20 TON Press Brake DIY Builder Kit
Sale price$249.95

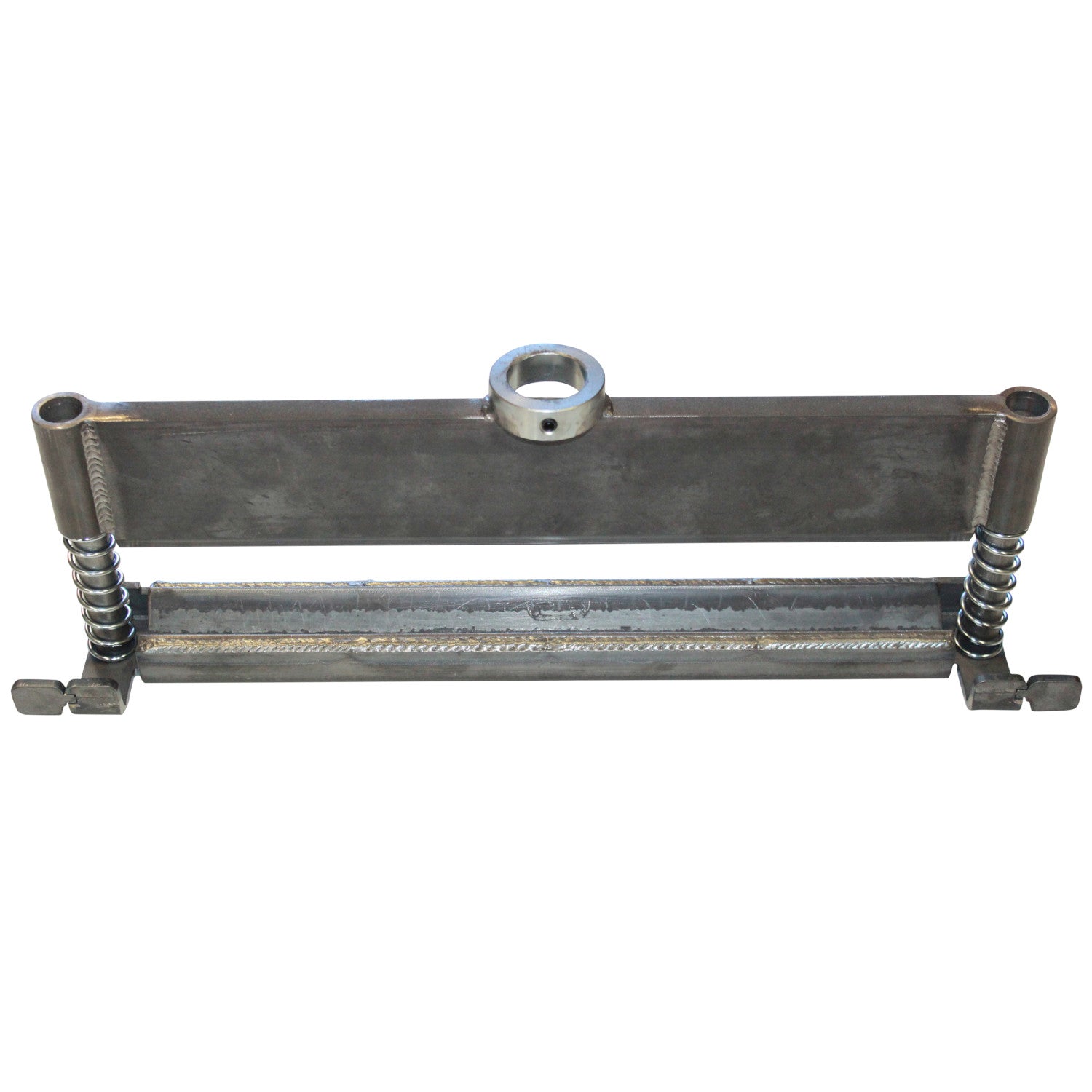

20 TON Press Brake DIY Builder Kit

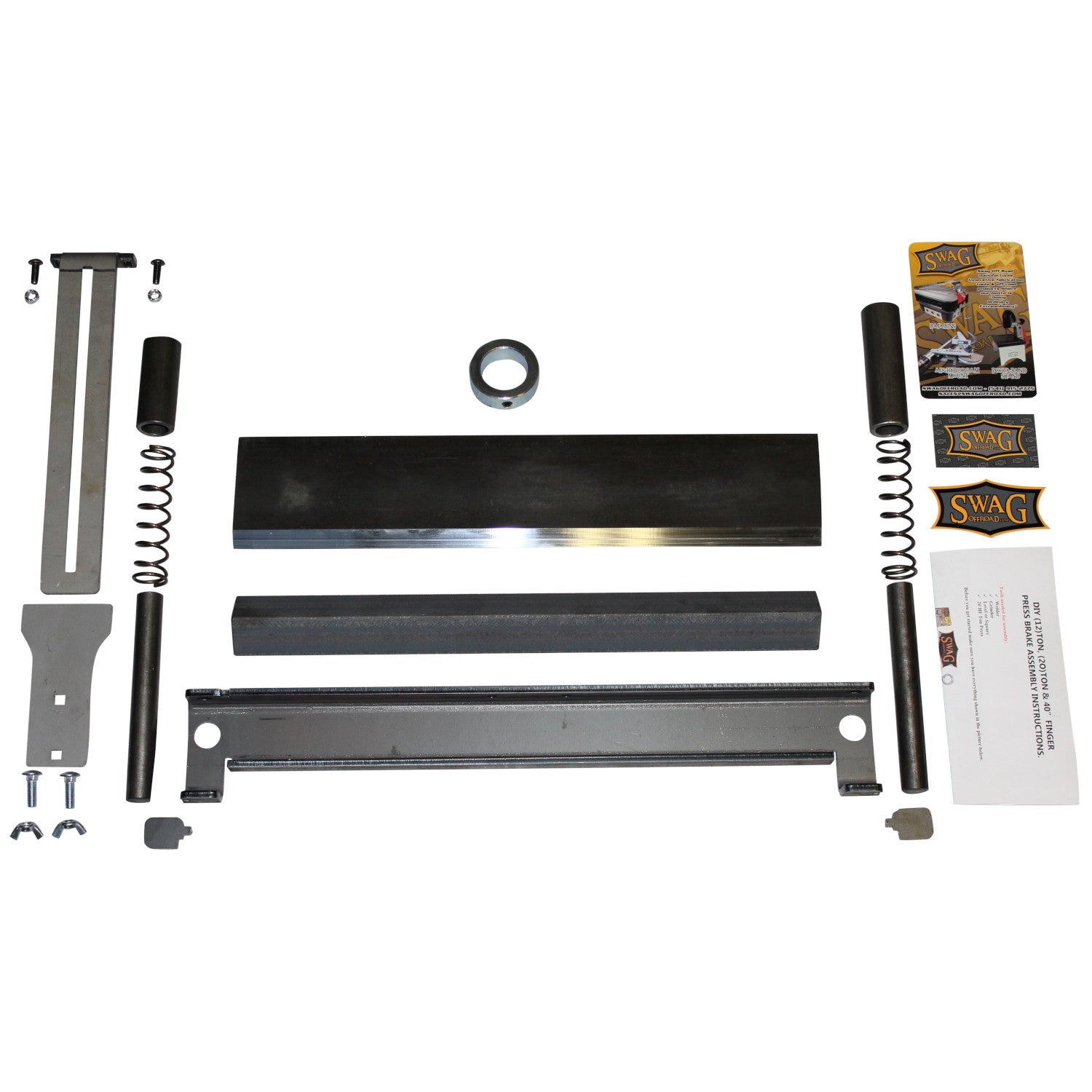

Press Brake kit comes unassembled, you do the final assembly and welding.
Designed to fit the Harbor Freight 20 ton hydraulic press Item # 32879, 60603 & 70603.
Press brake kit includes an adjustable back stop for accurate and repeatable bends.
- Max Bending Radius (deg.) 110
- Max Bending Capacity 3/8" plate
- Max Bending Width 19.25"
- Total width of the brake is 22.125" wide
Tools required for assembly: welder, grinder, level, small square.

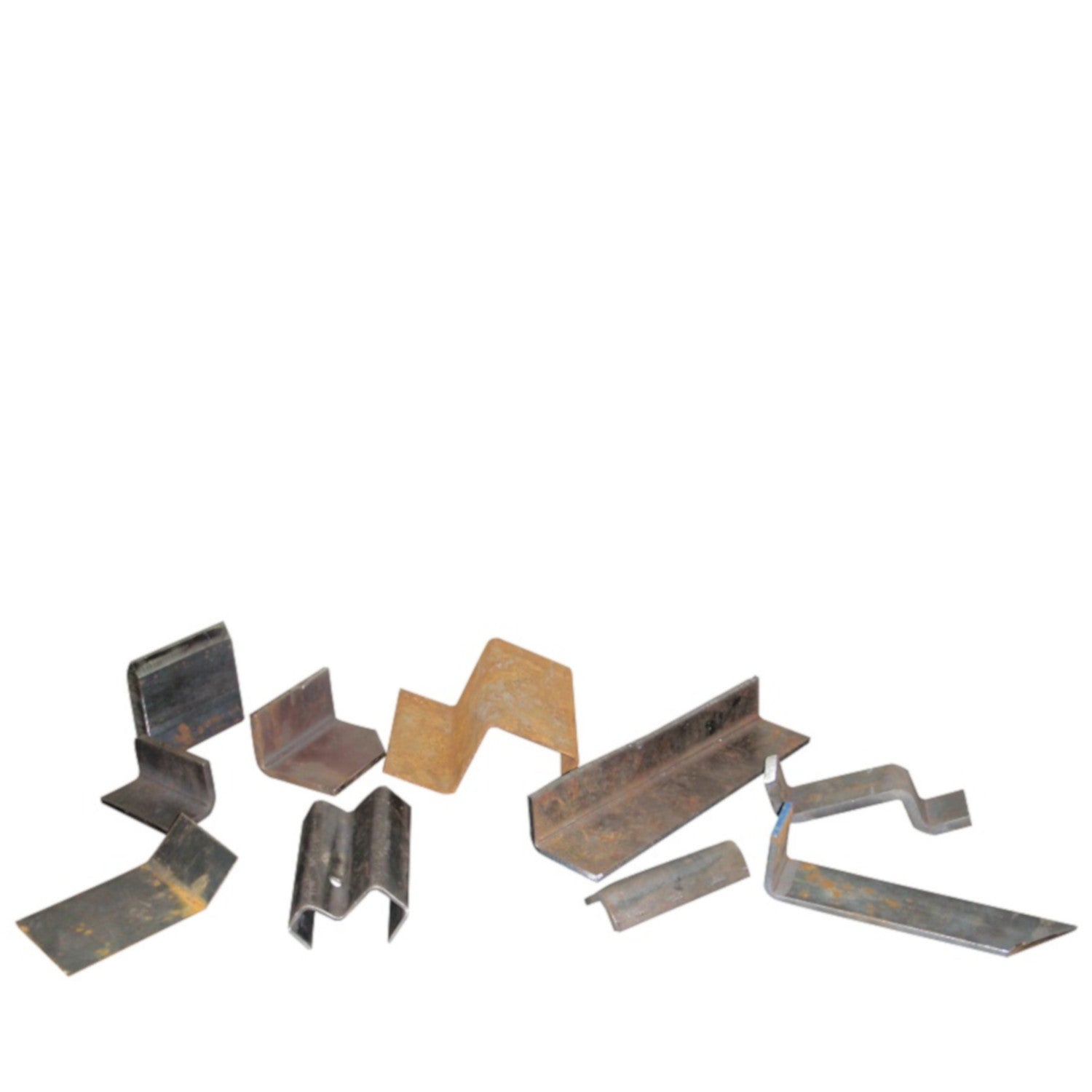

It Is capable of bending mild steel in the following length and thickness.
- 19" = Full bending width of the bottom die on anything 1/8" or thinner.
- 15" in 3/16"
- 12" in 1/4"
- 5" in 3/8"
Please provide us a valid shipping address that UPS/FEDEX will deliver to.
NOTE: Shop Press and Bottle Jack are NOT Included
NOTE: The optional centering tabs provided with the press break do not come attached on the fully welded kit.
The DIY 20 ton press makes a great addition to the arbor press plates we sell HERE.
