Press brake kit comes un-assembled, you do the final assembly and welding.
You asked for it... & here it is.
Constructed out of high strength 3/8" steel with a 1.0" x 4.0" thick top die and 3.0" wide bottom die. The kit is shipped with fingers in the following sizes, 1", 2", 3", 4", 9.5", 11.8" & 17.7" long dies.
The top die clamping bar is machined out of massive 2"x3" solid block of 4140 chromoly steel to help handle the increased bending width compared to our 40" press brake kit.
This 50" finger press brake kit will bend steel up to 49" wide and is designed to fit in hydraulic presses that are at least 52" wide between the vertical beams, however it can easily be cut down or modified to accommodate smaller presses.

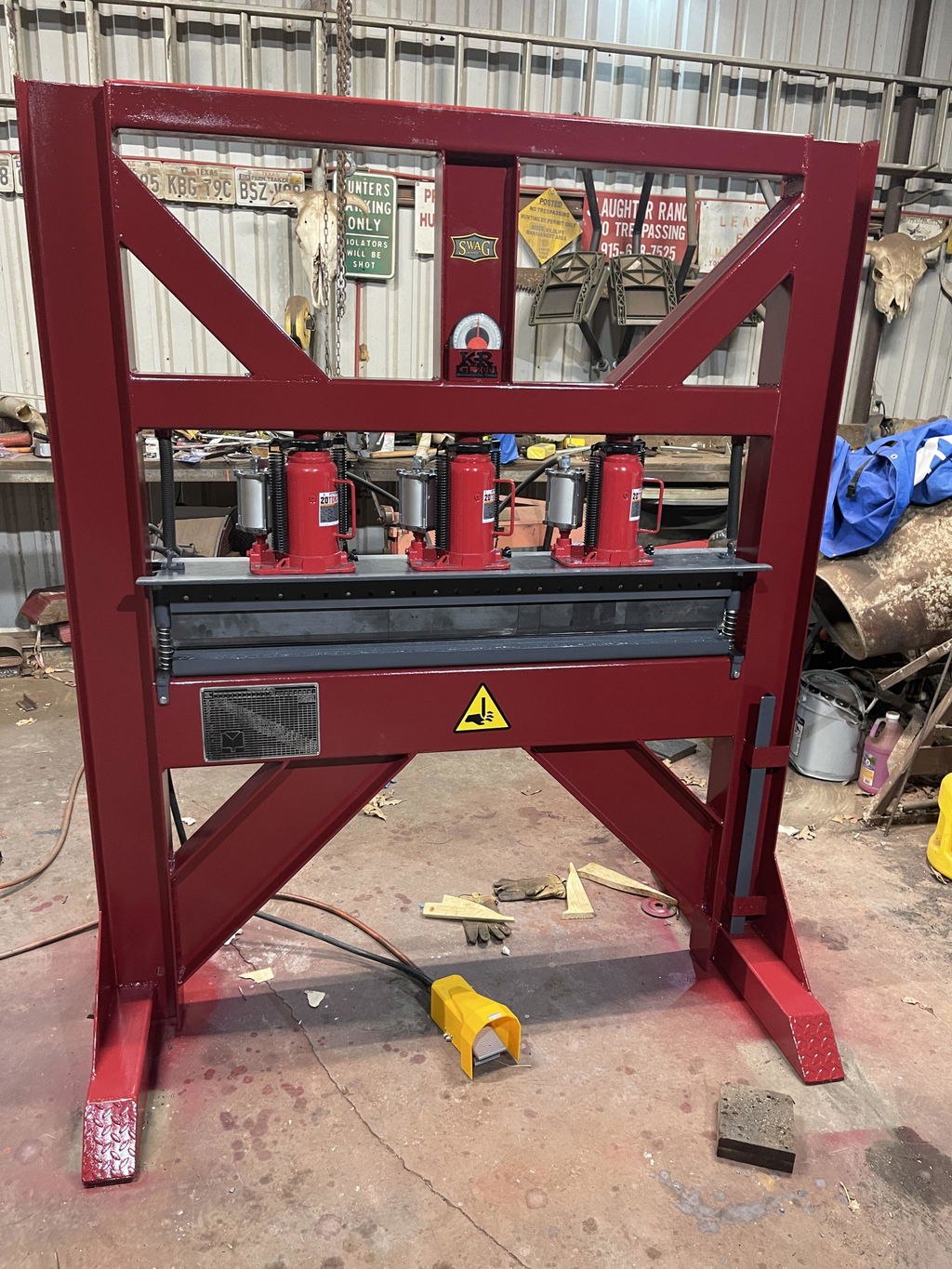

Note: the max bending width and thicknesses are determined upon your hydraulic press and thus actual numbers are dependent upon your press. But with ample tonnage and proper support, this brake will bend up to 1/4" of A-36 steel full width. We recommend 60 tons; (3) 20 ton jacks spaced evenly works great.
Tools required for assembly: welder, grinder, level, small square.
Note: The springs provided with the kit are not intended to fully lift the top die. They are just to assist with assembly. We recommend adding extension spring from the top of your press frame to assist in lifting the top assembly.
Check out the first link below for a fully detailed list of material needed to create your own I beam press brake stand...which is less work than you may think & fairly inexpensive, considering what it allows you to create. While not exact, the link below will provide you the basic building platform to build your own 50" press brake stand.
Related Products
- Regular price
- $15.95
- Sale price
- $15.95
- Regular price
-
- Unit price
- per
- Regular price
- $17.95
- Sale price
- $17.95
- Regular price
-
- Unit price
- per
Customer Reviews
I purchased the Swag 50 finger brake after looking at a few different brands and what could be done with all the options vs my budget that I could spend on a large brake. Swag was a clear winner for price but when I received this brake it was clear that the quality of the components was very high as well. The kit came with all the parts and directions, we'll packaged and had no damages. With the parts unpacked and directions in hand the brake assembled quickly. I also bought the gooseneck and hemming dies which were easy to assemble and weld. I have made a few bends with the brake and it performs very well
Iv been looking for a larger brake press that wasn't goint to break the bank. After a ton of research I found swag offroad. Though this product isn't plug and play and does require some elbow grease to put together. It's doable for most guys that know there way around a welder.
Pros - it's 10x + less than industrial presses
- it's modifiable
- straight forward kit
- tons of versatility with the fingers and shop needs.
Cons - instructions need major updates on 50 in press. I'd love to see some detailed build videos from swag that can add tips to this large of a build. YouTube guys leave so much out and then want you to buy there build plans.
-shipping needs improvement. Ups damaged the base plate and bent a end that needs pressed and forged down to work now. I'd recommend you guys crate the heavy base with wood and thick foam and metal band it together. Cardboard seems ridiculous with that heavy of a package and ups wouldn't hate you guys!
Overall I'd recommend this product to others and appreciate swag resolution on the damaged ups package!
I am very impressed with the quality and size of the materials in building this press brake.
Beautiful workmanship!!!!
Looking forward to building the rest of the machine.

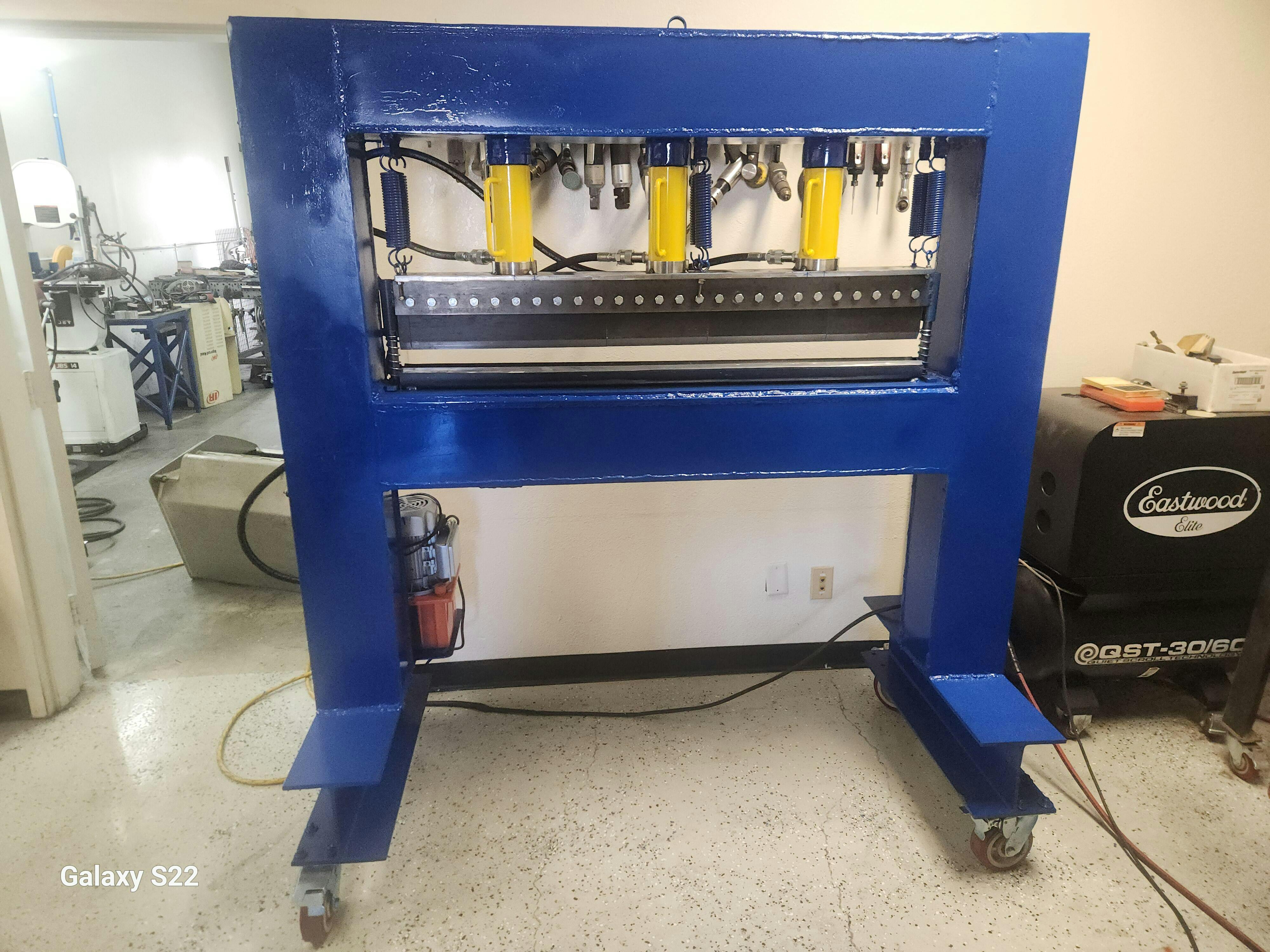

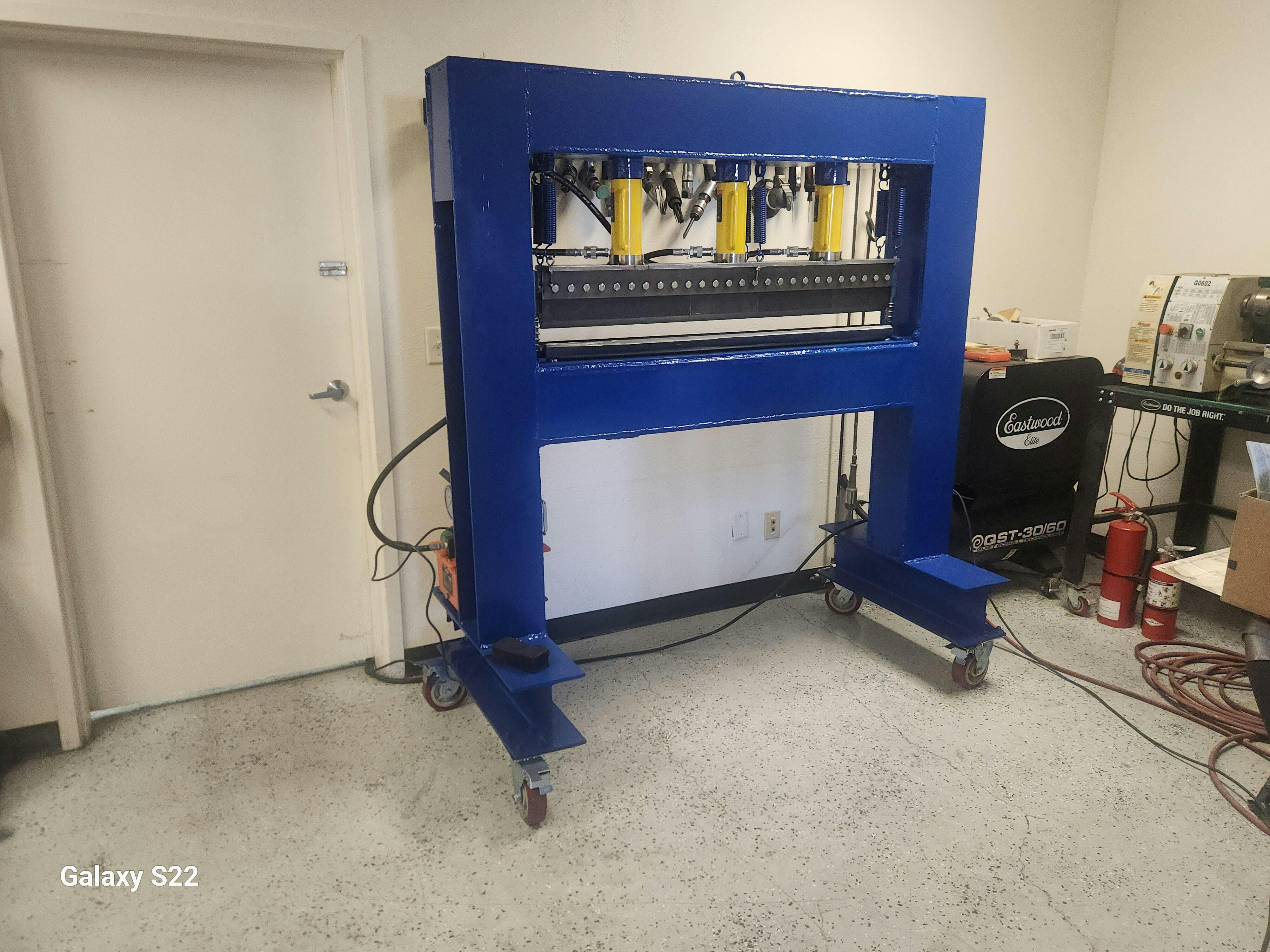

The 52” kit arrived 2 weeks ago and I’ve been steadily working part time to complete. Workmanship and tolerances were top notch as with other Swag products I’ve purchased.
Thanks again
I am currently getting the framing system built for it, once i have it in operation i will send you my comments.
Thanks
Wayne Landry
