A lot of us fabricators run into a common problem when bending a long piece of tube in a standard size garage, you often run into a fixed object, project vehicle, work bench or walls.

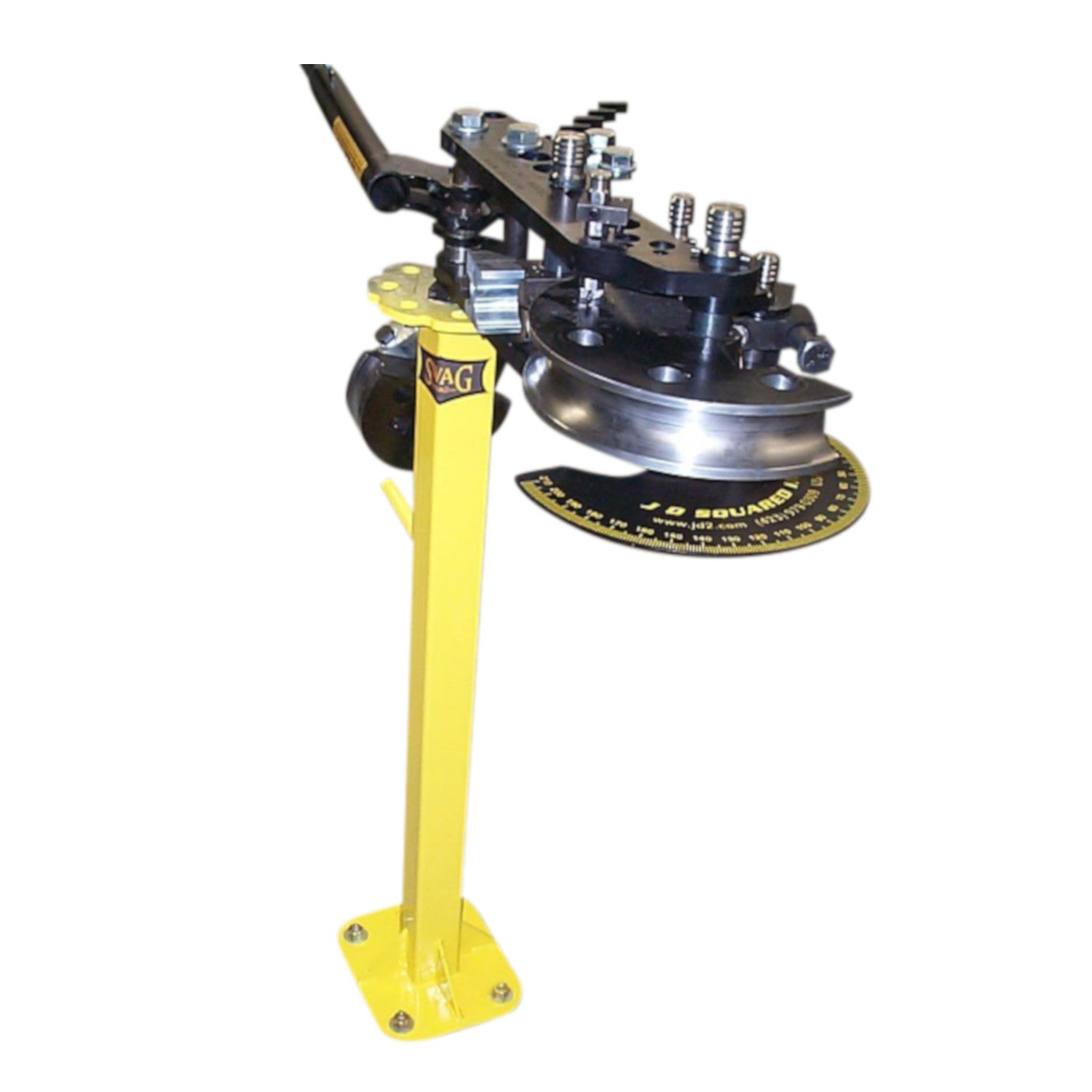

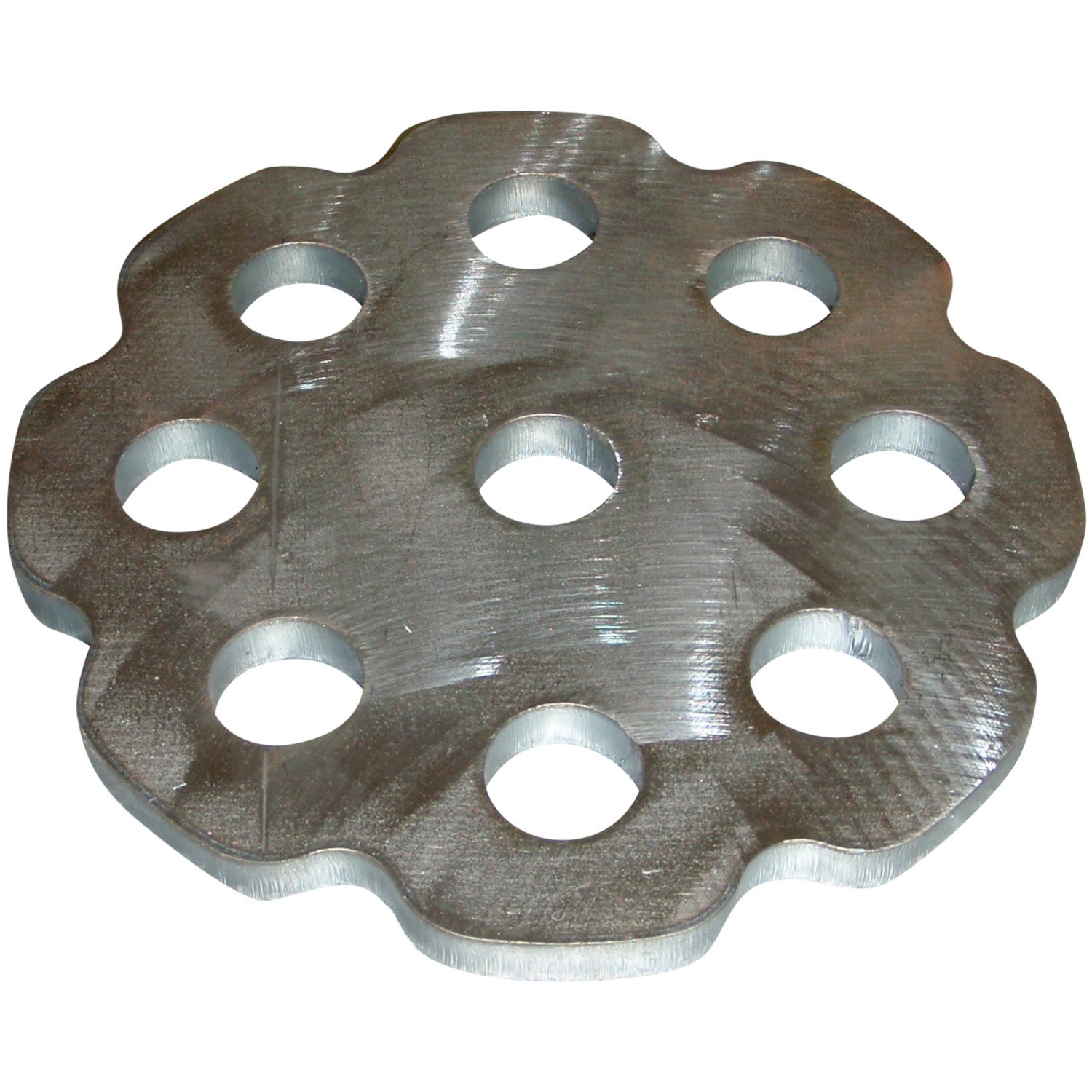

The laser cut 3/8" thick steel Infinite (8) tube bender mounting plate allows you to rotate your bender in 45 degree increments and swing the bender 360 degrees in any direction.

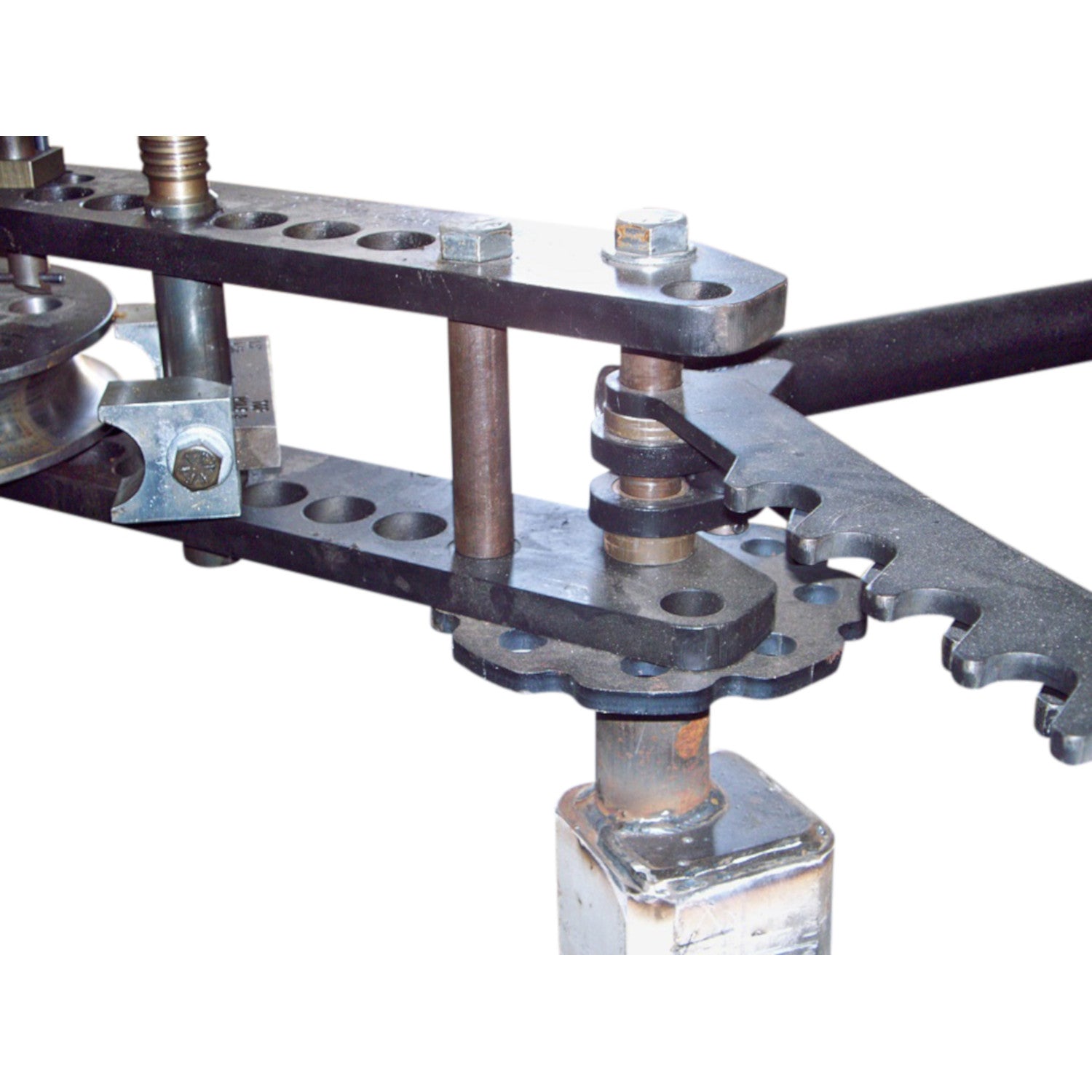

Installation is very easy as you simply weld one of the 3/4" nuts that came with your tube bender to the center hole in the mounting plate then weld the mounting plate to your vertical tube bender stand. You are now able to use one of the 8 holes on the outside of the mounting plate to clock your bender arms and thus rotate your material out of the way of any stationary object in your path.
The Infinite (8) tube bender mounting plate greatly reduces the amount of tubing splices you will have to make due to limited space in your shop/garage.
Works on JD2, JMR, Pro Tools, Woodward Fab WFB2, Eastwood 21115, as well as the new JD-32 tube benders.
When ordering please specify which model of tubing bender you have.
Please note: The Swag infinite 8 tube bender mounting plate is not compatible with the machined air/hydro ram mount.
This was a no brainer upgrade for my 32 bender. I was able to mount the bender off center in the garage and still have room to work on a vehicle. Loosen 2 bolts and turn the bender so I can bend tube without moveing the vehicle that was otherwise in the way. The holes all line up perfectly. This small upgrade makes my bender more usable when I just need to make a quick bend in the middle of my other projects
Order shows fulfilled but hasn't shipped so unfulfilled till I receive it , going on three weeks now , so I can't give a review on the item but I'm sure it will be fine if I ever get it I'll have to review it then .
A+ build quality, fast shipping, and works perfectly!
Creates a solid mounting plate and all holes line up perfect.
Great for small shop space. Fit as intended. Shipped out quickly. I didn't think about it but make sure you set the orientation correctly if you want the bender mounted in a particular way.
