SWAG Upgrade Bundle for JD2 Notch Master

The Notch Master is an excellent tool right out of the box but if you want to get the most out of your notcher, there are a few parts that can be improved. The Upgrade Bundle includes everything you need to take your notching to the next level.

The Notch Master Upgrade Bundle includes the following items.

  • SWAG Reach Around Arm
  • SWAG Notch Master GOAT
  • SWAG Tube Notcher Super Shaft
  • (1) Small Hole Saw Arbor
  • (1) Large Holes Saw Arbor

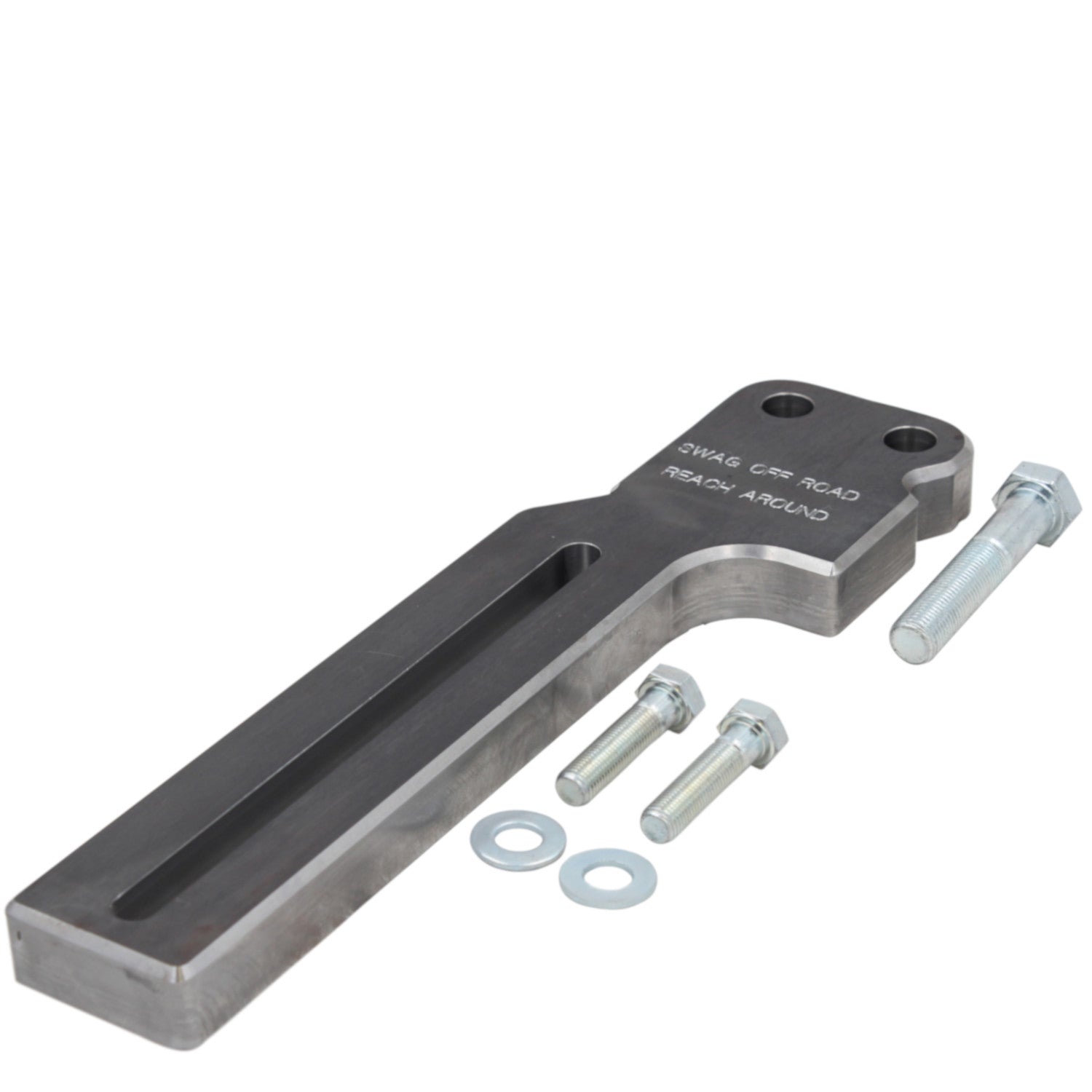

SWAG Reach Around Arm

The SWAG Reach Around Arm allows you to easily notch from the back side of the tube and allows for a wider ranger of movement in every direction. In stock form, the Notch Master can notch tubing from -5 degrees to 55 degrees, with the SWAG Reach around arm you can notch from -25 degrees up to 270 degrees. It also makes the swing arm longer by ~ 5 inches so the notcher bearing block can be moved further back. If you ever use deep hole saws, this will make notching much easier.

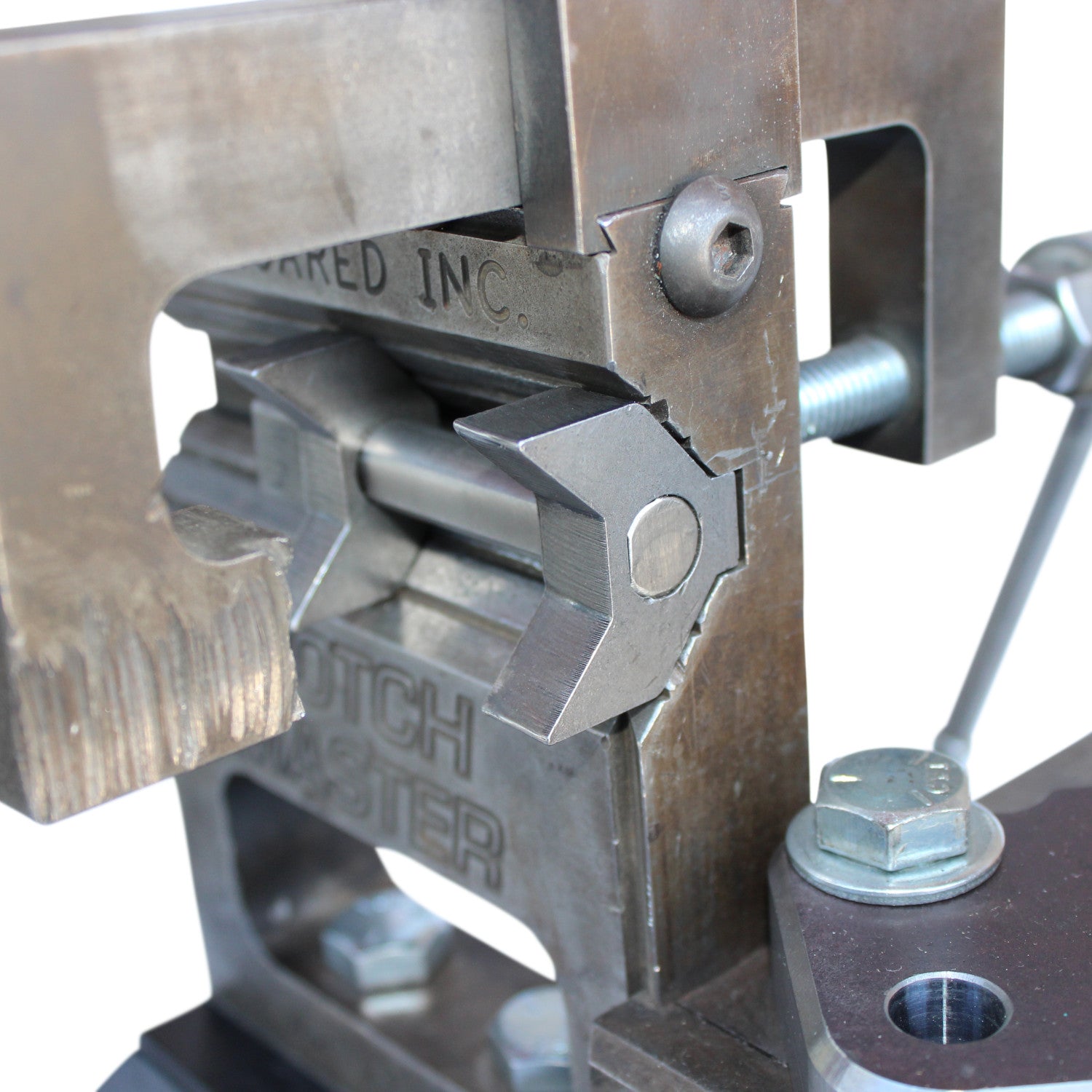

SWAG "GOAT"


 The GOAT is a simple clip on magnetic upgrade for your JD² Notch Master that instantly adds much needed versatility which is currently lacking on your tubing notcher... The ability to notch on a bend.

If you own the Notch Master tubing notcher, then you know how truly awesome this little add on can be. The GOAT allows you to do notches and fabricate parts that were never possible before.

The GOAT will allow you to tackle any project from this point forward without limitations, or go about producing parts that were just too difficult previously.

SWAG Super Shaft


With the SWAG Super Shaft, you no longer need to jam screw drivers in the ports of your hole saws to remove them and/or use thread reducers in your hole saws to get the correct thread diameter. You will no longer be breaking screwdrivers, ob-longing your hole saws, and or breaking and welding the thread reducers on your hole saws, do the math and save your self the aggravation.

The Super Shaft uses a broached hole and set screws to hold a hole saw arbor. Rather than attaching your hole saw directly to your notcher shaft, you attach it to a cheap and easily replaced arbor. Changing hole saws is then as simple as loosening a few set screws and sliding out the the arbor.

The Super Shaft is machined out of polished and ground 4140 chromoly so it will last the test of time. We have also included one small and one large Milwaukee Hole Saw Arbor. Small Arbors fit hole saws ranging from 9/16" to 1 3/8", Large Arbors fit hole saws ranging from 1 1/4" to 6 7/8".
