Compact SWAG 20 TON Finger Brake Heavy Duty DIY Builder Kit (20.5" Wide)

Sale price$338.25 Regular price$397.95
15% OFF

Black Friday Sale price Ends in 9d 17h 47m 44s

Choose Options

Desired Configuration: Unwelded
Shop Press Internal Width: I have measured the internal width of my 20 Ton Shop press and it is 20.5" or greater.
Free shipping
Made in USA
Pay in 4 interest-free installments of $84.56 with Shop Pay

20 TON Compact Heavy Duty Finger Brake Press DIY Builder Kit


This brake is exactly like the 20 ton HD Finger Brake, just ~2" narrower. A majority of our international customers have hydraulic presses that are 20.5" wide between the inside frame rails, hence this 20.5" wide version.
Please note: The pictures shown above with the Harbor Freight Press are for example only.


The press Brake kit comes un-assembled, you do the final assembly and welding. Designed to fit any press brake that has in inside width between the frame rails of 20.5" wide or wider. The press brake kit includes an adjustable back stop for accurate and repeatable bends.


The top clamping bar is machined out of 4140 material and includes four segmented removable sections. 1", 3", 4" and 9.5" long pieces. Please note that since the Compact Brake is 2" narrower than the full size 20 Ton Finger Brake, the 2" Finger is not included with the kit, though it is available separately. These segmented blocks can be removed and rearranged to allow bending of restricted areas on a piece of sheet metal or on an already partially formed pieces.


The heavy duty press brake kit has the same quality construction and number of components as the standard press brake kit, however the differences are as follows. The bottom formed channel on the HD press brake kit is cut out of high strength 3/8" thick steel and the bottom "V" die of has a total width of 3.75" wide x 1/4" thick to allow for easier bending of thicker material.


  • Max Bending Radius (deg.) 110
  • Max Bending Capacity 5/8" plate
  • Max Bending Width 17.875"
  • Total width of the brake is 20.5" wide
Tools required for assembly: welder, grinder, level, small square. The 20 Ton Brake is capable of bending mild steel in the following length and thickness.


  • 17.875" = Full bending width of the bottom die on anything 3/16" or thinner.
  • 15" in 1/4"
  • 13" in 5/16"
  • 11" in 3/8"
  • 6" in 1/2"
  • 3" in 5/8"
Please provide us a valid shipping address that UPS/FEDEX will deliver to.
NOTE: Shop Press and Bottle Jack are NOT Included

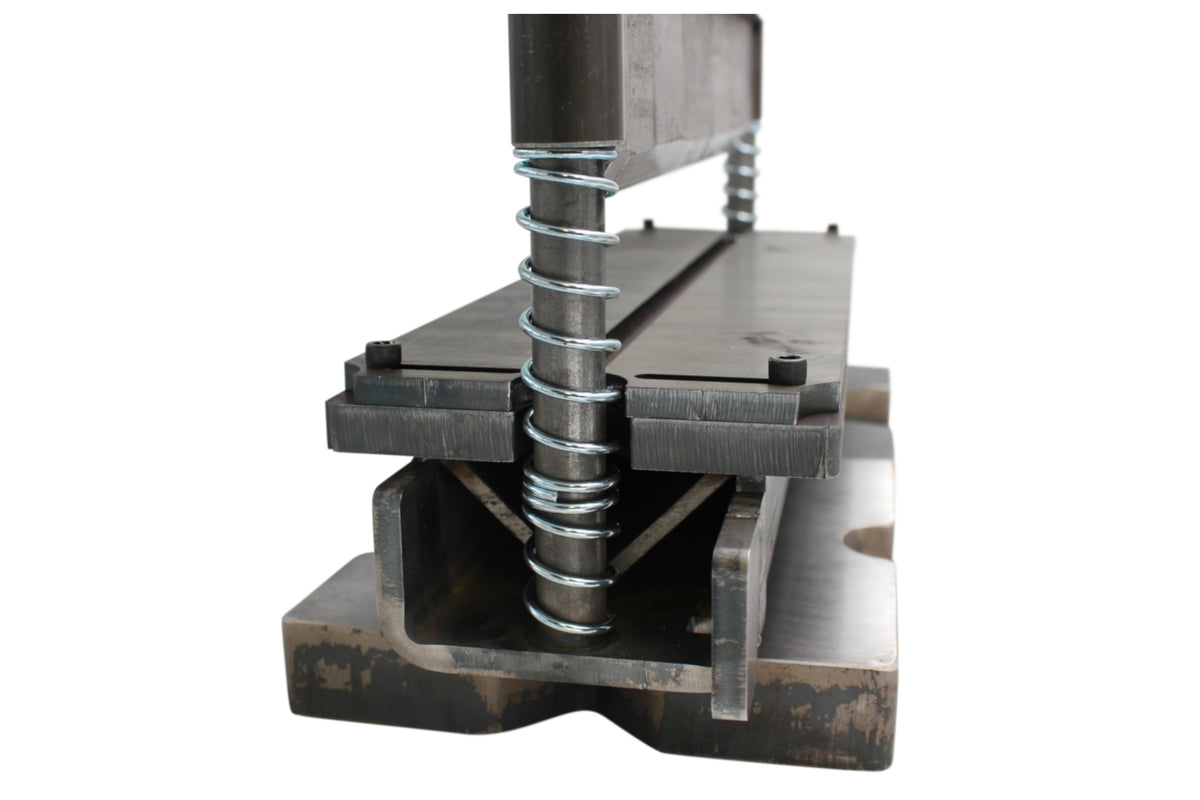

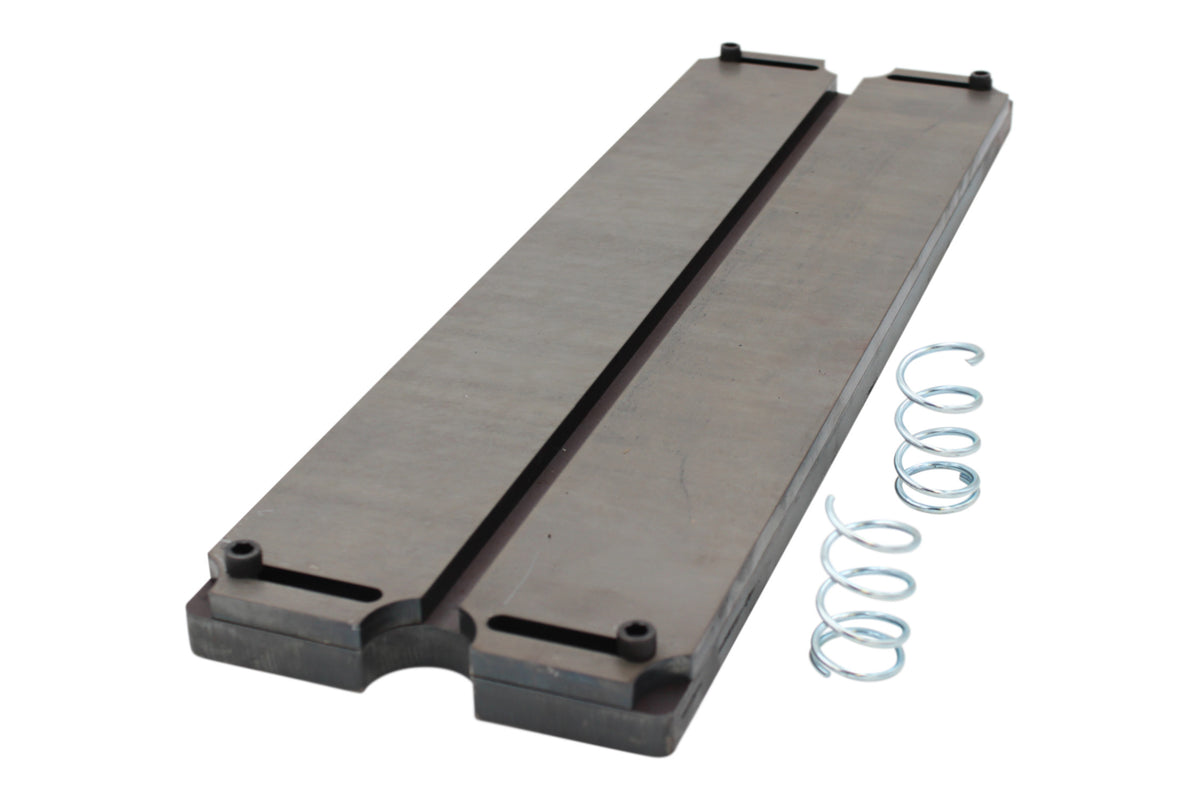

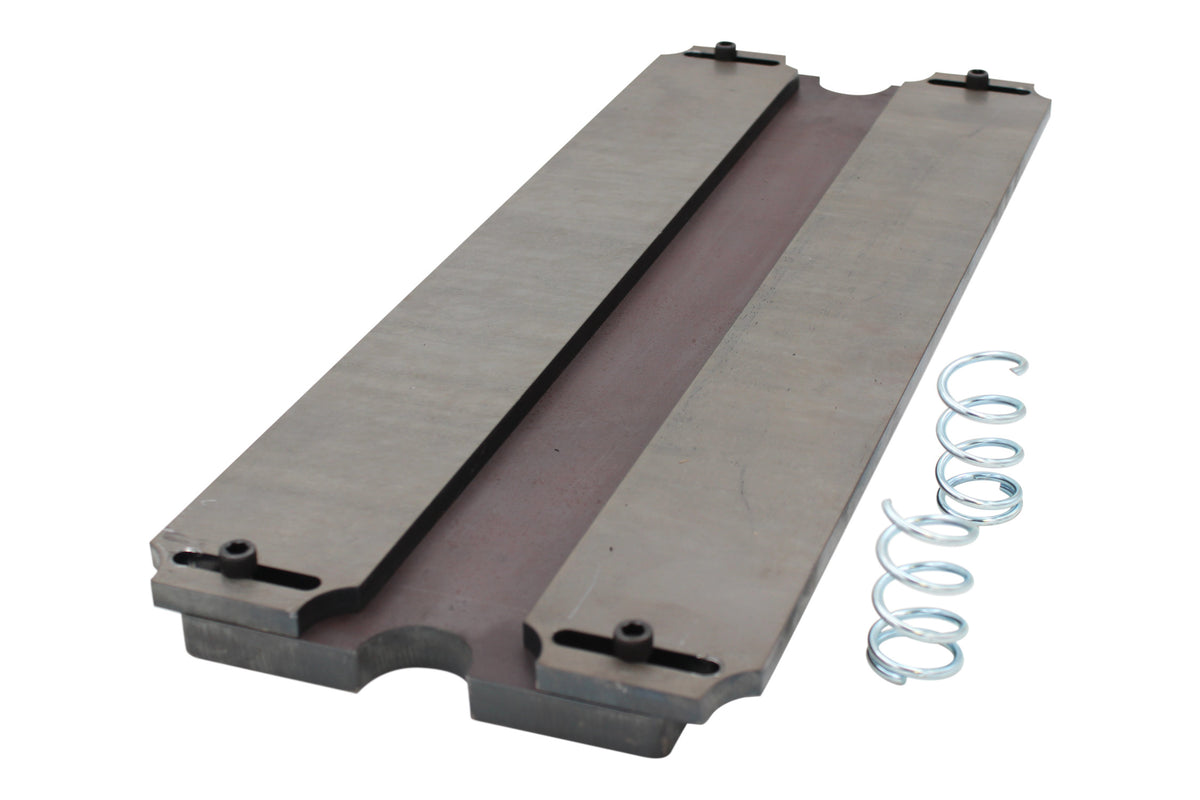

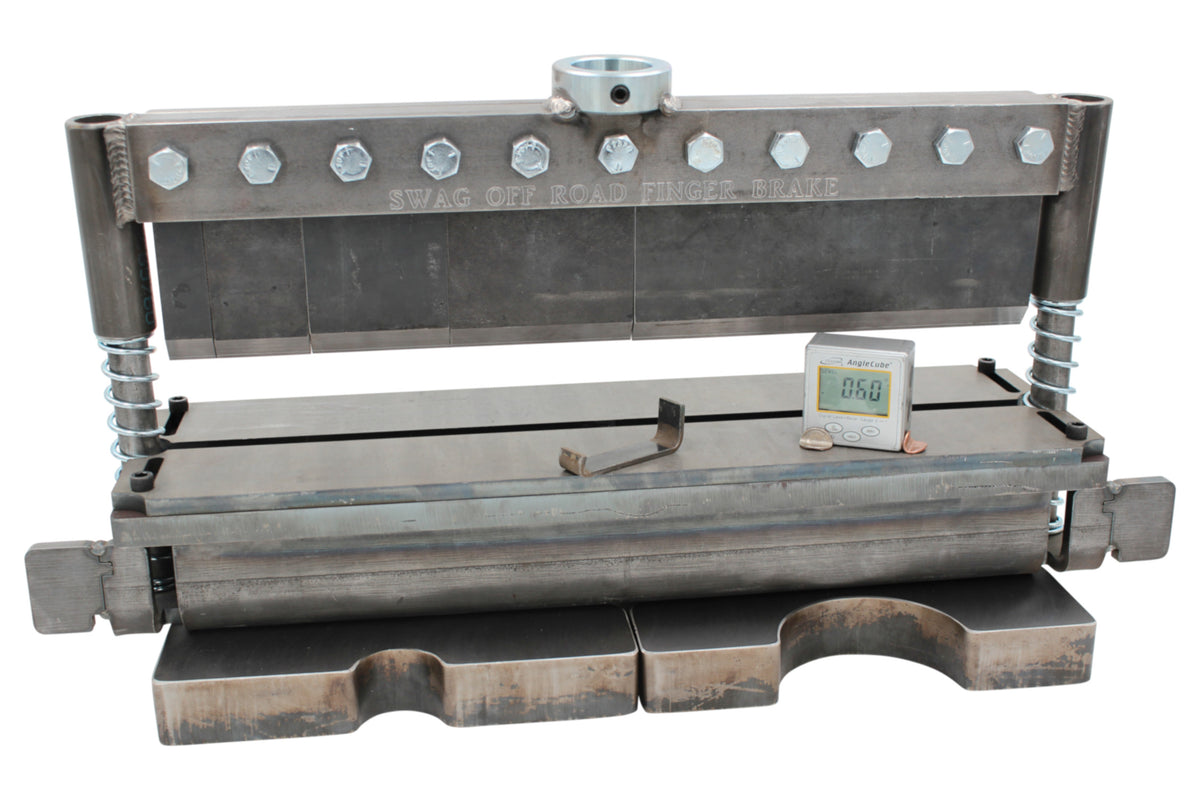

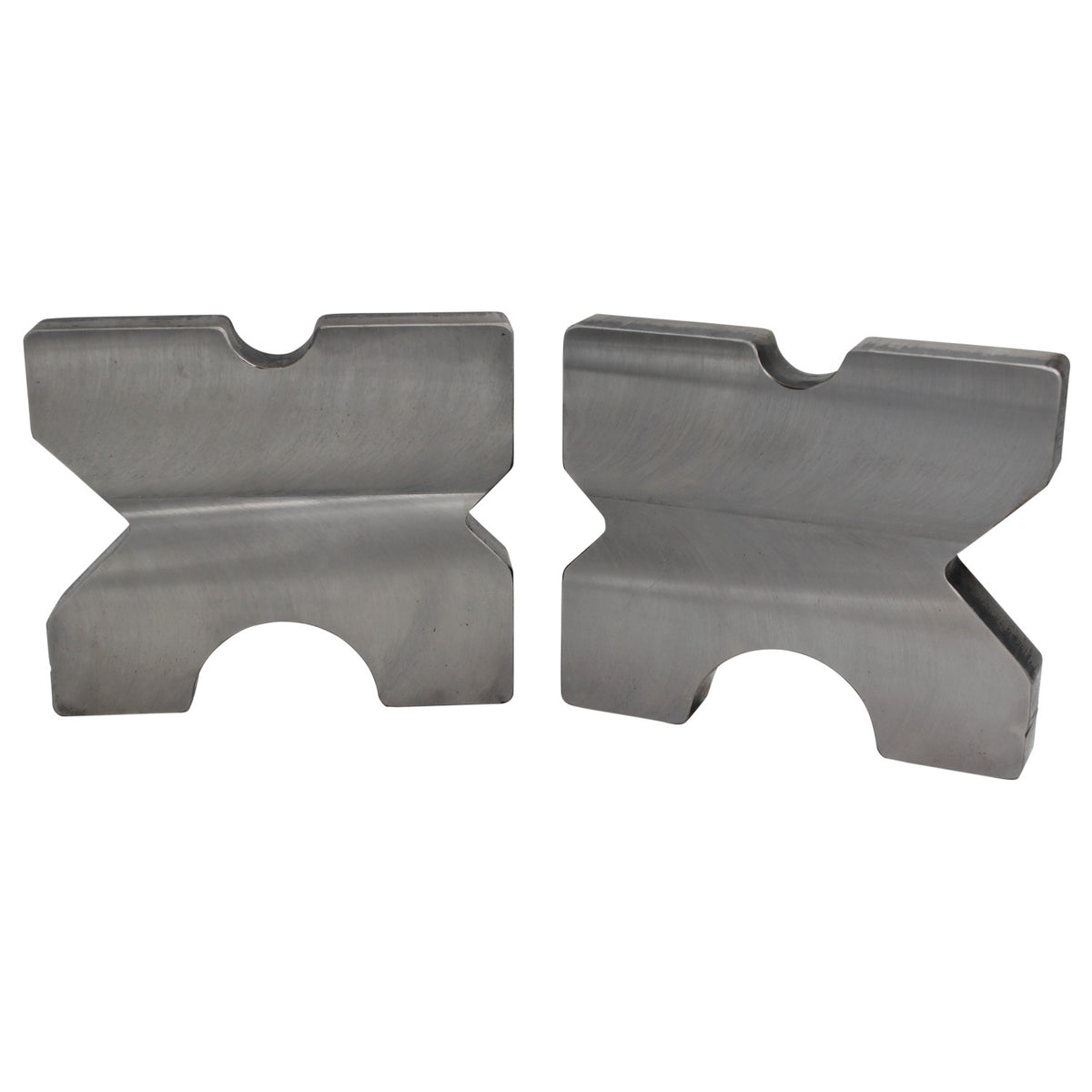

The Compact HD finger press brake makes a great addition to the arbor press plates we sell HERE, as well as the Flat Top assembly shown HERE.


  • 5 stars: 20 (95%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 1 (5%)
  • 1 star: 0 (0%)
R
Rocky Hiracheta
Finger brake

Works great. A must for fabrication. A bend looks better than making two pieces. Haven't tried the gooseneck dies yet.

S
Scott
Very nice finger break!

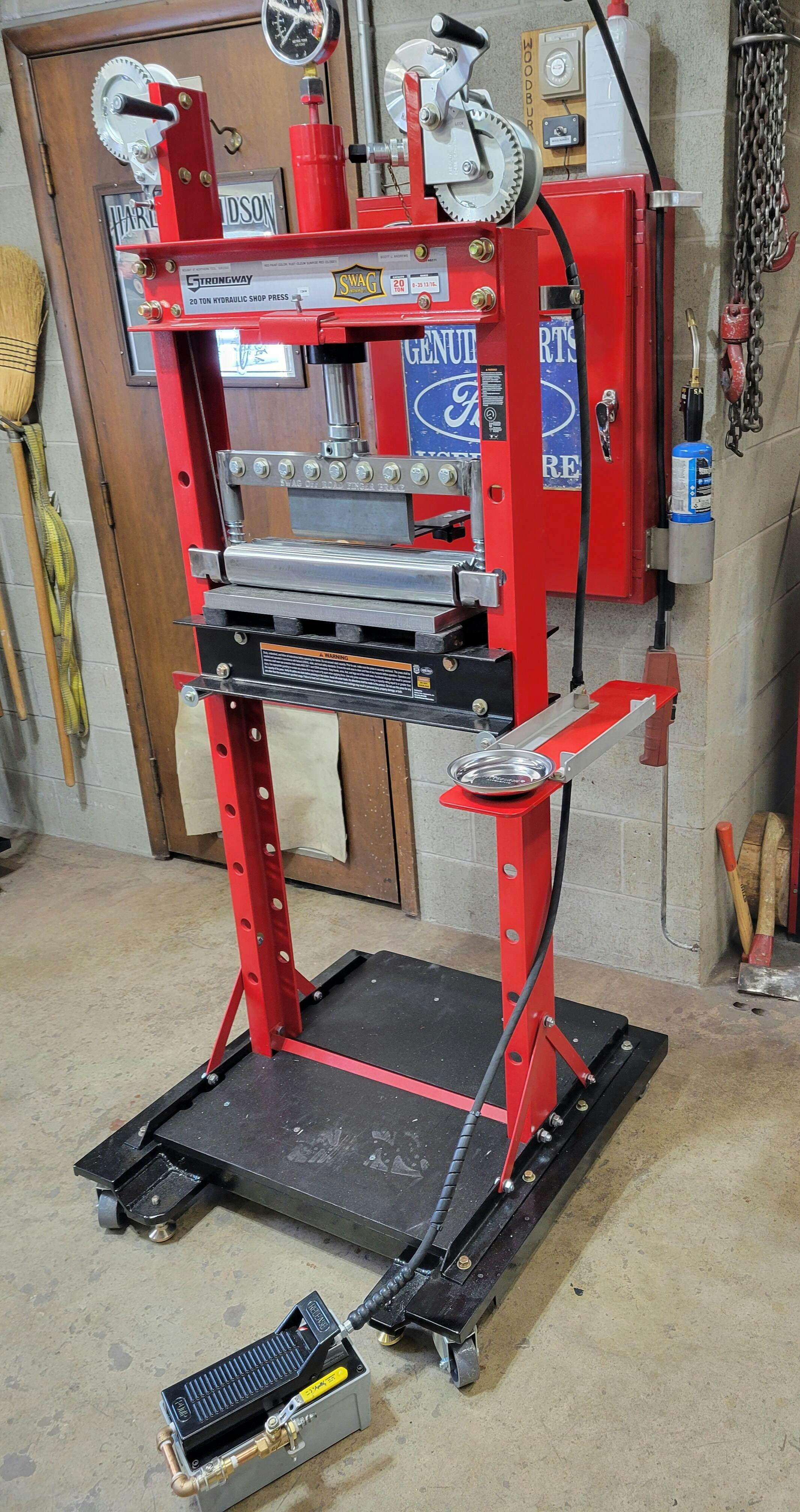

I bought the swag break and was very impressed from the time the packages arrived. It was packaged excellent!!! Then as I opened and began taking the pieces out, it gave me that good feeling, I had purchased a quality product. I have been welding and fabricating for 47 years, so this was very easy to fit together and weld. I have only bent a couple pieces so far, and I'm very happy with it. I did add the extra angle irons, to obtain a tighter bend on lighter gage steel. It's deffintently a economic way to make the break more versatile. I purchased a Strongway press from Northern Tool, and it had a hand pump to operate the cylinder. I ordered
a Vevor brand air/hydraulic pump, and added that. I'm excited to have more bending projects,and use my new break more. I also want to say how nice it is that you can actually call Swag and talk to a real person! Because my 20 ton Strongway brand press is slightly narrower then the Harbor Frieght 20 ton model, I wanted to talk to a representative from Swag, to verify I was purchasing the correct break. They were so great to talk to and deal with! I defenantly would recomend Swag!!

E
Emmanuel

Everything looks amazing and can’t wait to start putting this all together work.

C
Charles Coy
Very nice unit

Didn't take long to prepare the material for assembly.. Quite clean material and clear instructions.. Test bends went very well, then I proceeded to use it for a customers job; saved a lot of time in plate prep and final assembly.. Quite satisfied

R
Roy Russell
Absolutely the best addition to my shop

Very simple to setup and use, I added a pneumatic 20 ton jack to make it easier so I can hold the piece in place to do precision bends. Absolutely without a doubt the best addition to my shop for custom panels!!!!!

D
Dalia M Mask
As a shop owner I was skeptical I was wrong

This is one of those things I purchased holding my breath I’m so glad I did were
Using it every day now it repeats bends acutely we haven’t max bent with it yet does 1/4”&5/16” no problem
I only have one regret I didn’t buy the big wide one

D
Dale Boulier
Happy customer

Have assembled my finger brake, went fine except for 1 screw up, on me. Somehow got the guide tubes misaligned enough that the top assembly wanted to hang up when press was complete, didn’t want to return up. Fixed that by drilling out tubes with a 1”” drill. Works fine now. Like I said that was on me, not Swag. The guide collar for the ram piston is too small for my press, Swag doesn’t offer any other size, so will come up with something else. All an all very happy with it. Would recommend it, just be more careful with the assembly than I was.

A
Antoine Beaudry

Press brake is pretty straight forward but came with 1 wing nut (missing rest of hardware) and missing one of the weld on ears. Box was tapped up like crazy so it didn't fall out in shipping. Not too happy after paying this much plus ridiculous shipping to Canada.

B
Brian Horn
Just as I expected

Went together great but have not tried it out yet as I’m not supposed to lift anything heavy yet due to recent surgery I believe it will work just fine

D
David Romero
setup of 20-ton brake fingers

I have the ability to order this kit and weld it up, my problem is, I am already on a large overland build and needed the brake now, I went to Harbor Freight and purchased the press and the next day ordered the Swag compact finger brake already welded. I worked a few hours on the press assembling (quick to do) adding a lower shelf and installing cross members at the base and added castors. I have the screw drive split winch as well to lift the table. The finger brake came in as described and was a pretty quick set up as it was already welded.

I installed brake fingers on the press and used it the same day to bend some light 18 ga metal sheet for a couple of panels. Yes, this is overkill for that type of work, I was waiting for my 30" wide 3-n-1 hand finger brake to come in, that is really what it was purchased to use with the sheet metal.

I was very pleased with the results of bending the light 18 ga. metal. I was building panels that I could on the swag finger brake due to the smaller width only some panels were bent. But, in all fairness, I purchased the brake for much thicker metal for brackets and of course to use with the bearings and seals on my equipment upkeep. I bent some 2' wide 1/4" thick aluminum for some guide for a truck flatbed. It was like nothing was there, very little effort to bend, I did install an air over hydraulic jack I purchased at Harbor Freight as well, at the same time I ordered the Swag equipment. I found that I could move the ram/fingers down quickly and bend the item close, they I actually used the bar and manually pumped the jack for the fine adjustments, what a great way to control heavy and micro bends. I also added steel plates to the press as I was Leary of the cast iron plates.

I would purchase again, and the extra cost of having it delivered already welded paid for itself in my time better spent in not having to give up my time to weld this out. I would have preferred to weld it out but, I had a project I had to complete and had no time to build and weld out the finger brake.

I give this a big thumbs up!

R
Roque Flores
Finger Brake

First, Thank You! SWAG OR for the great products and especially the service and commitment for standing behind your products. I elected to have SWAG OR weld this kit as I was not sure if my small welder could handle this weld job. BTW Great welding and fitment. I assembled what was left as soon as it arrived and was impressed with the overall assembly. Cleaned it up and painted it to prevent (slow) surface rust. Tested it out with a few small brackets, bending 1/4" steel with very little effort utilizing the step angle iron trick. It worked great! I am very satisfied with this equipment purchase and it is a very valuable tool for my Home shop as I have always wanted one of these when I was employed in the Armored transport industry as the lead maintenance mechanic for the fleet. Looking at a few more items that SWAG OR sells for future appropriation.

l
lawrence pennington
Fab

I am very inpressed with my new 20.5 finger brake. It bends the 3/8plate so easy .Very happy with your product. Thank larry

P
Pat the patio guy
Owner

Love it Extremely impressed

J
Jim B.
Maker/Fabricator

Look good so far. Just arrived. Still have to upgrade my Press with my new air/jack. Based on the weight of everything .... I can cancel my Gym membership. Very fast arrival.

T
Terry
Mr

I loved putting this brake together. The parts were so well made, precise and heavy duty. After I completed it, I gave it a try on some 2 wide x ? thick steel and the brake performed flawlessly. I used a magnetic angle finder and created a perfect 90 degree bend. I highly recommend this brake. Im using a 20 ton King Canada hydraulic press.

H
HARRY FIGUEROA
Swagoffroad

Great machine

S
Scott
Finger press brake

Works great, and went together easy. Great customer service and shipping. @khaleedesign

M
Mark Webb
Owner/Metalsmith

Im really impressed with this finger brake kit and it paid for itself with the first job. Its well made, robust, easy to assemble, and comes with clear instructions. I look forward to adding the gooseneck and hemming dies.

A
Albert Kessler
President

Excellent customer service, shipping very quick , packaging was was very good no damage , I ordered the completely welded version and am very satisfied with the brake . I also have their metal band saw table use it all the time . would strongly recommend Swag products .

G
Gavin M. Warren
V.P

The press brake was well made and easy to assemble, we have already used it for some projects. It works GREAT! I would highly recommend this kit.

K
Kevin Schilling
Mr

Great product.. I have needed this for a long time.

B
Barry Paradies

Will this shear 3/16"?

SWAG Off Road

Hello,

Thank you for your interest in our products.

I do apologize for the confusion but this product is a brake. It is not capable shearing material, just bending it.
That being said, this brake is capable of bending 17.875" of 3/16" steel.

Let us know if you have any other questions.

Thank you,
SWAG Off Road
