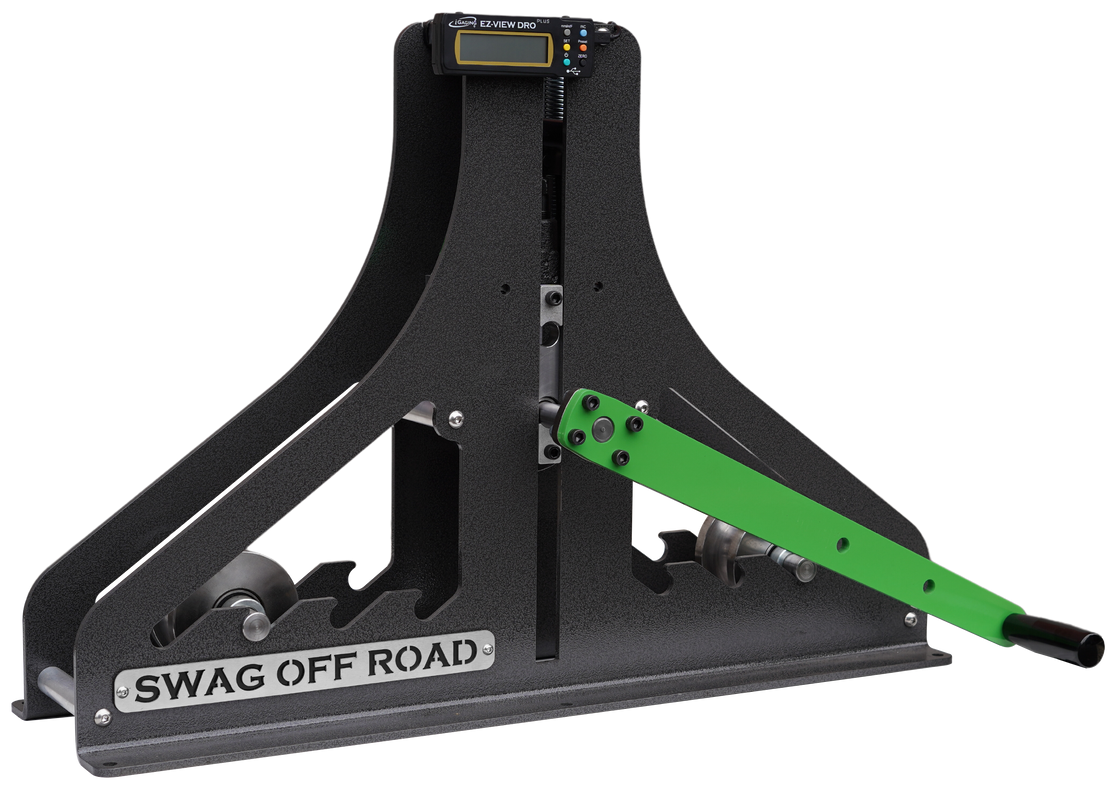

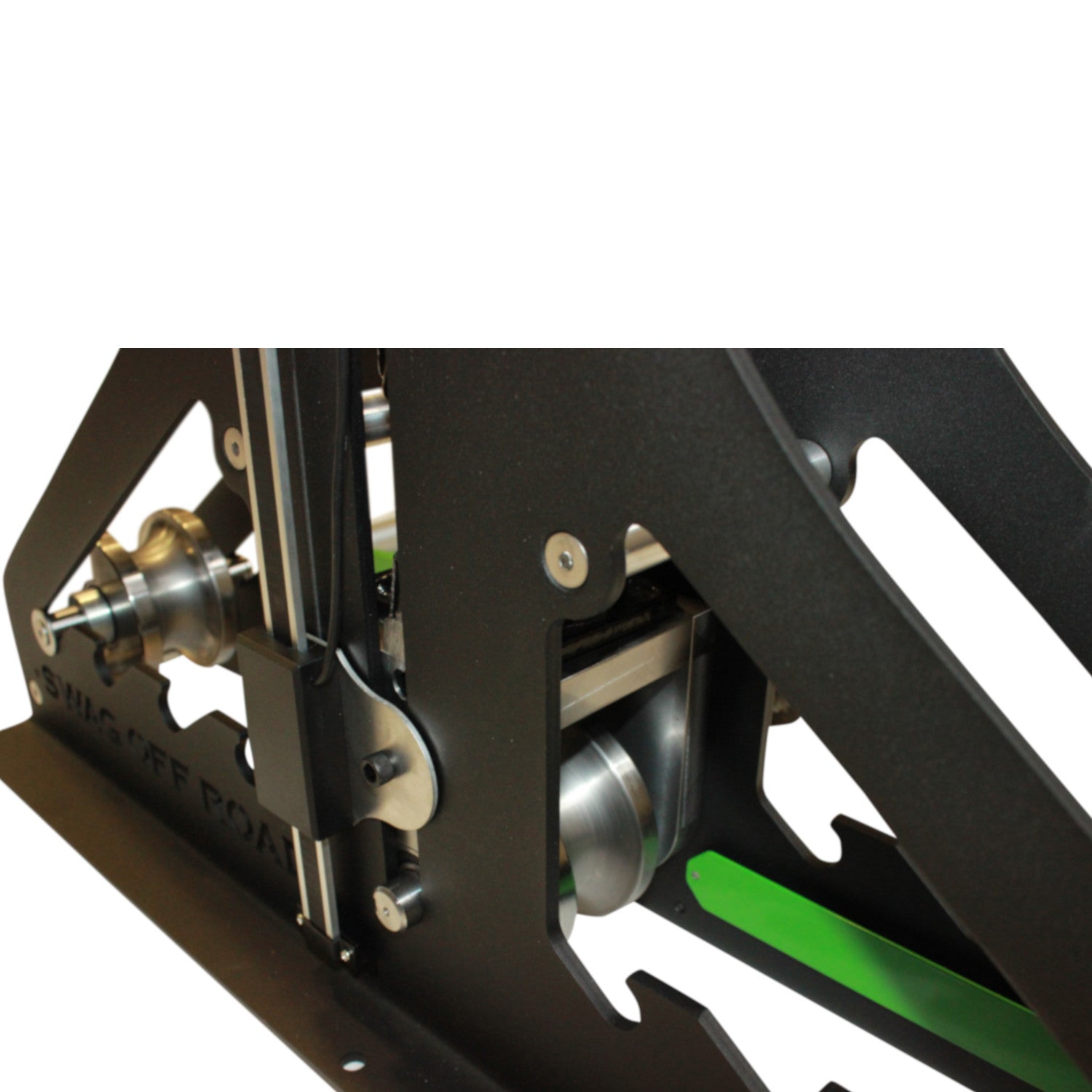

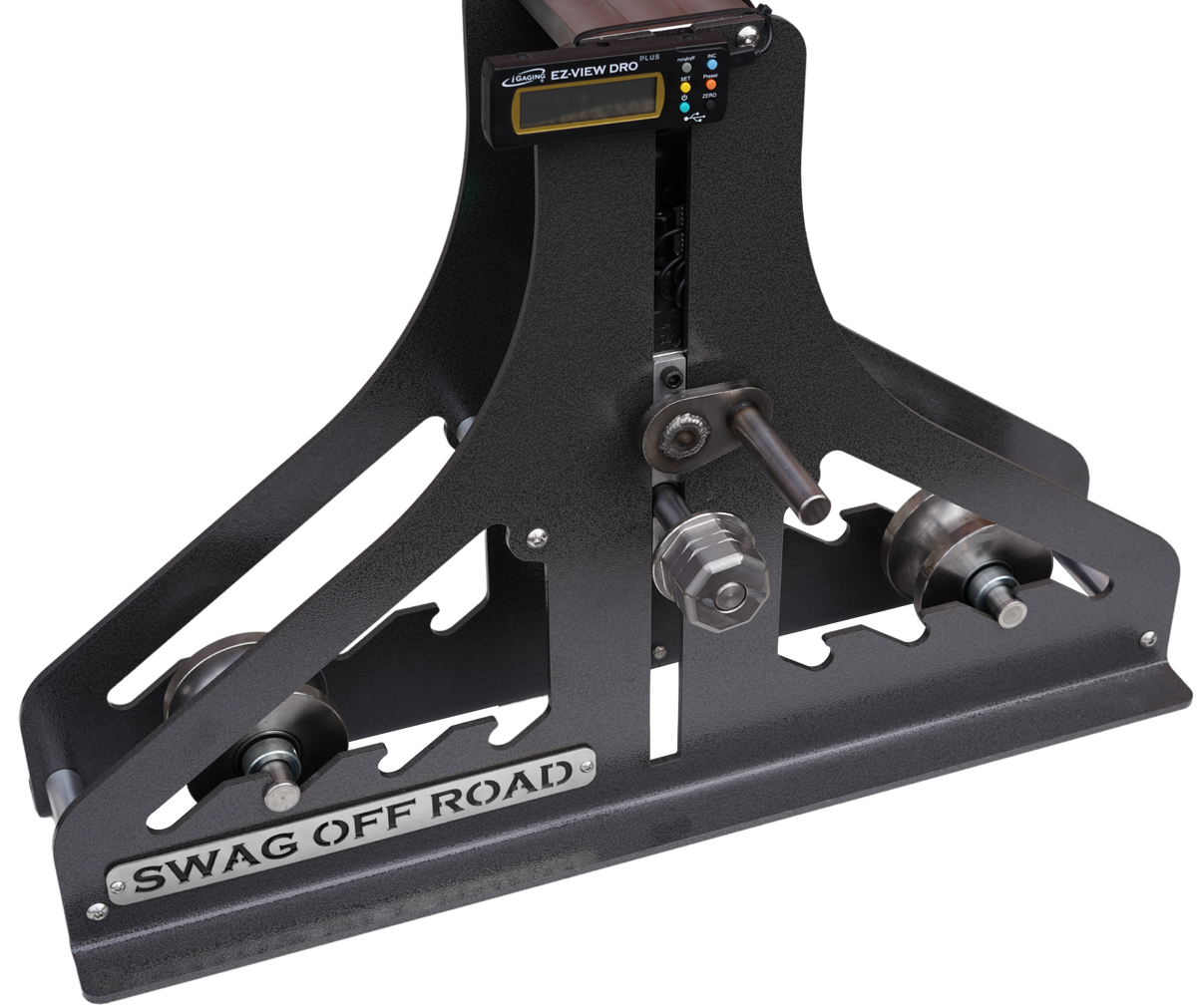

SWAG HULK Tubing Roller
The HULK is 100% designed, machined, formed, manufactured & assembled in the USA.

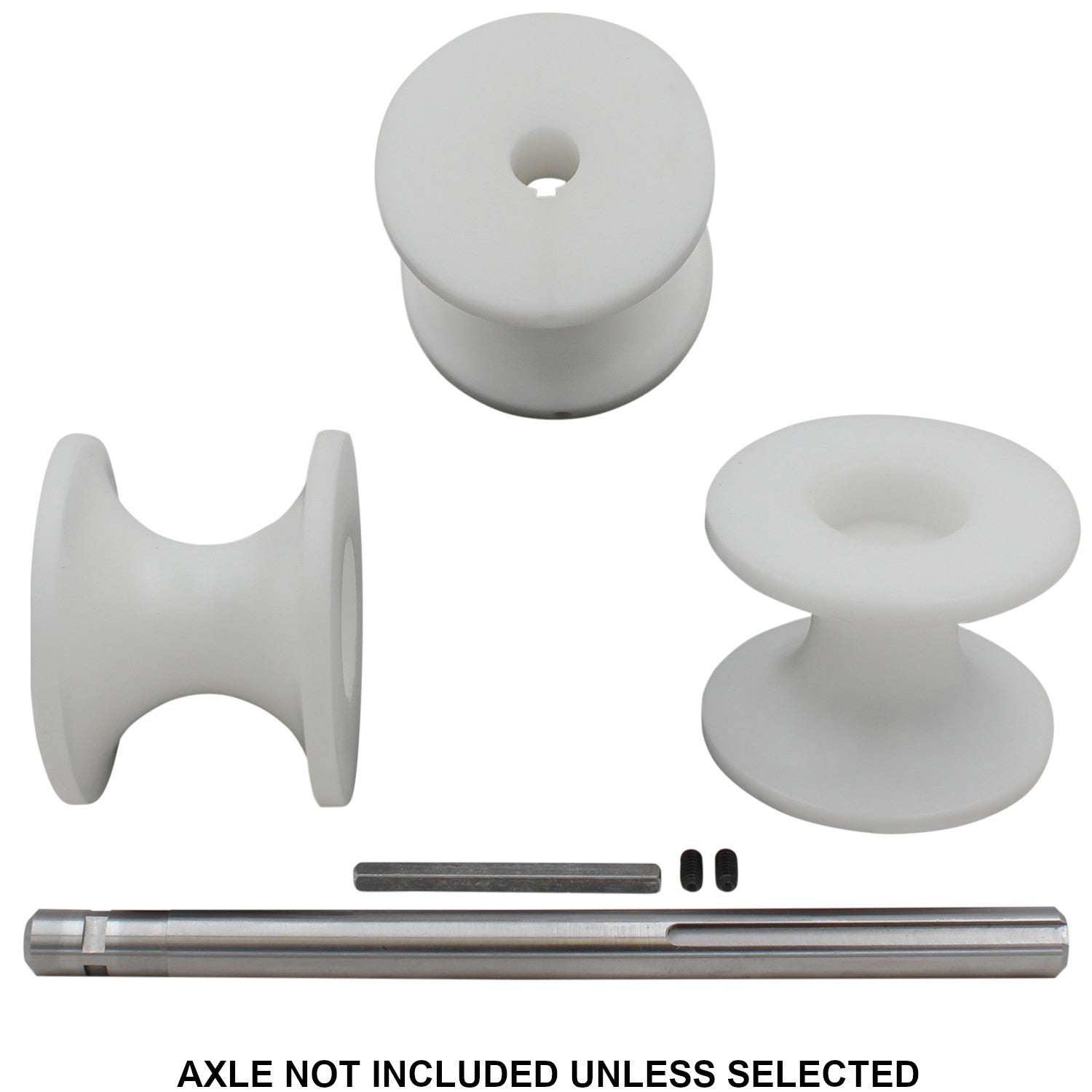

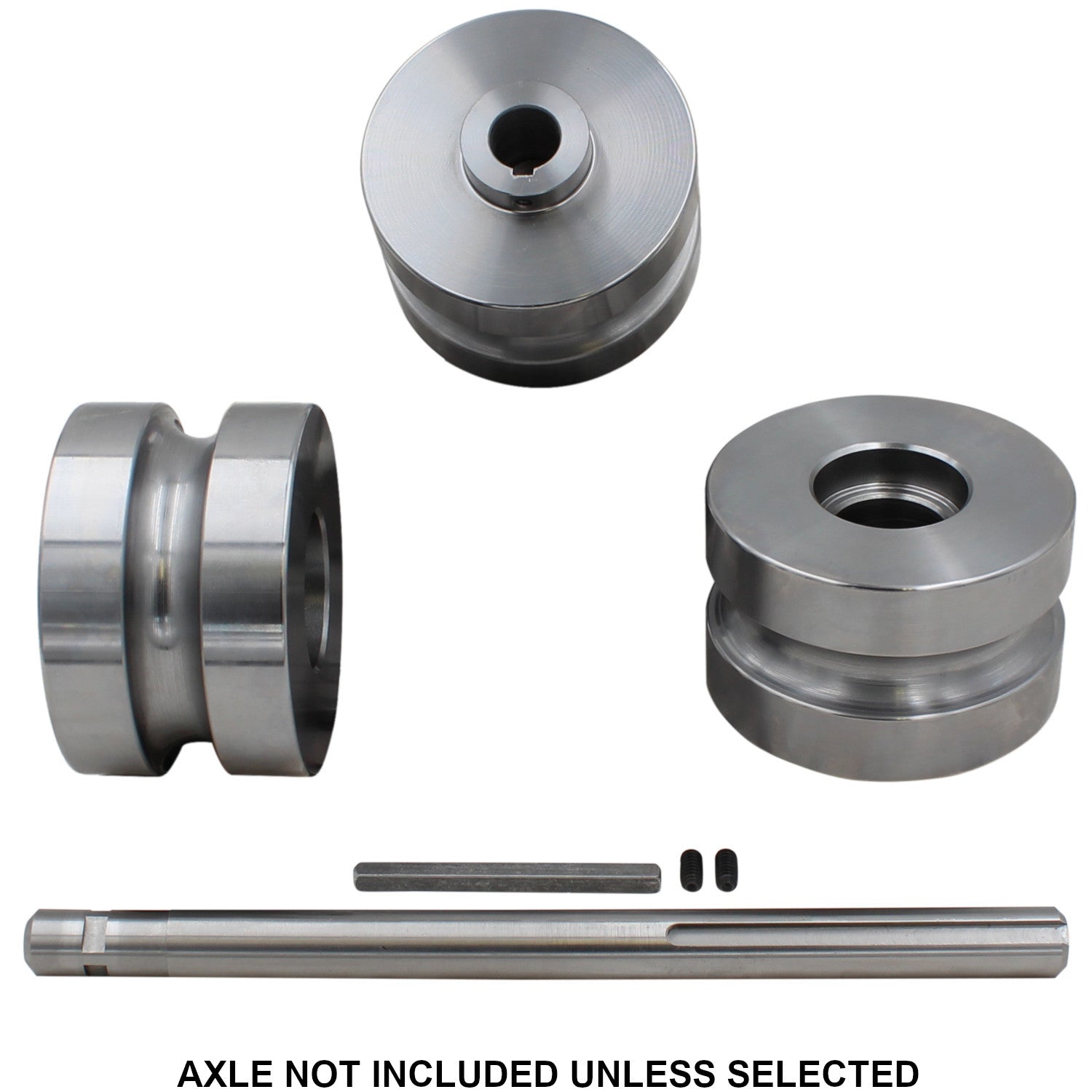

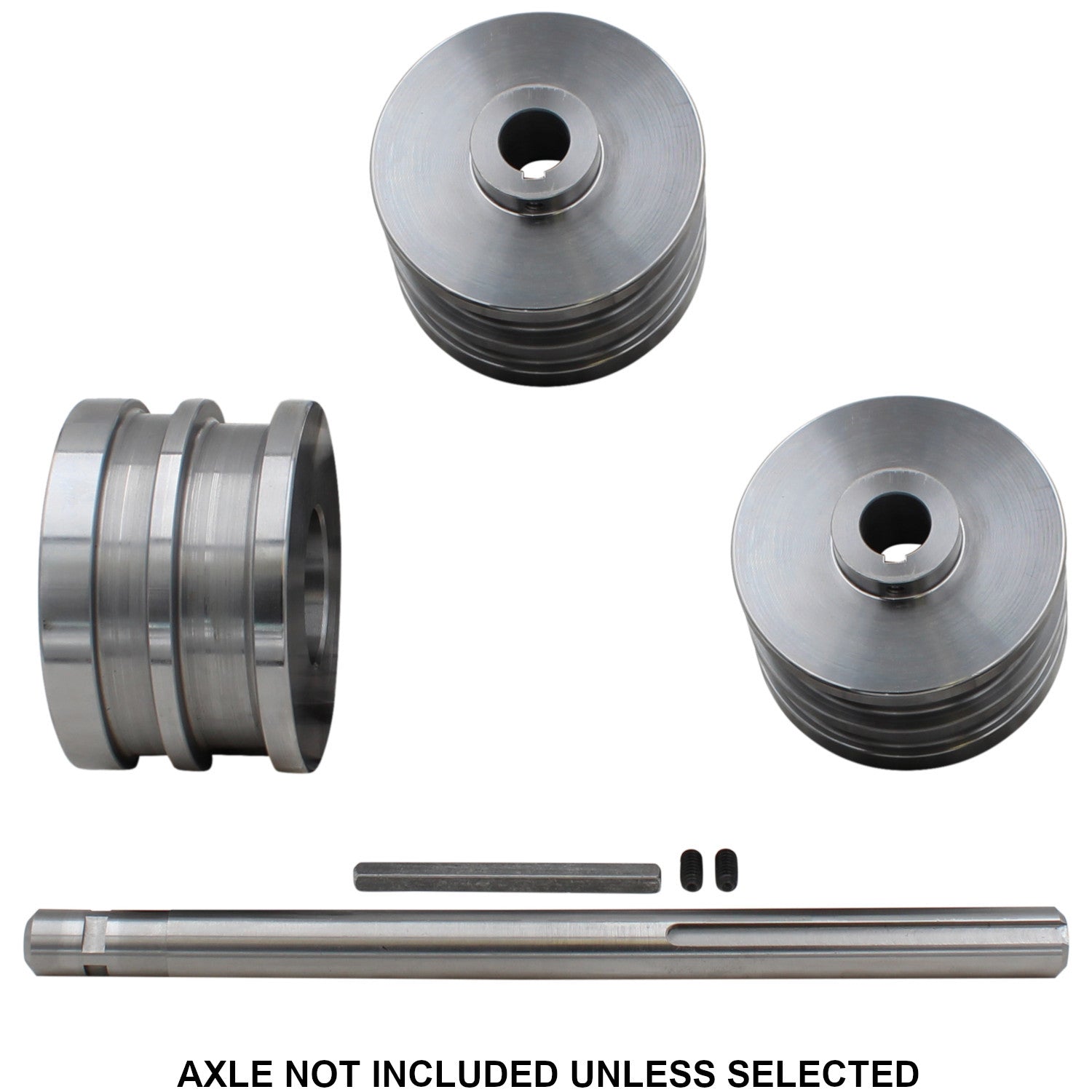

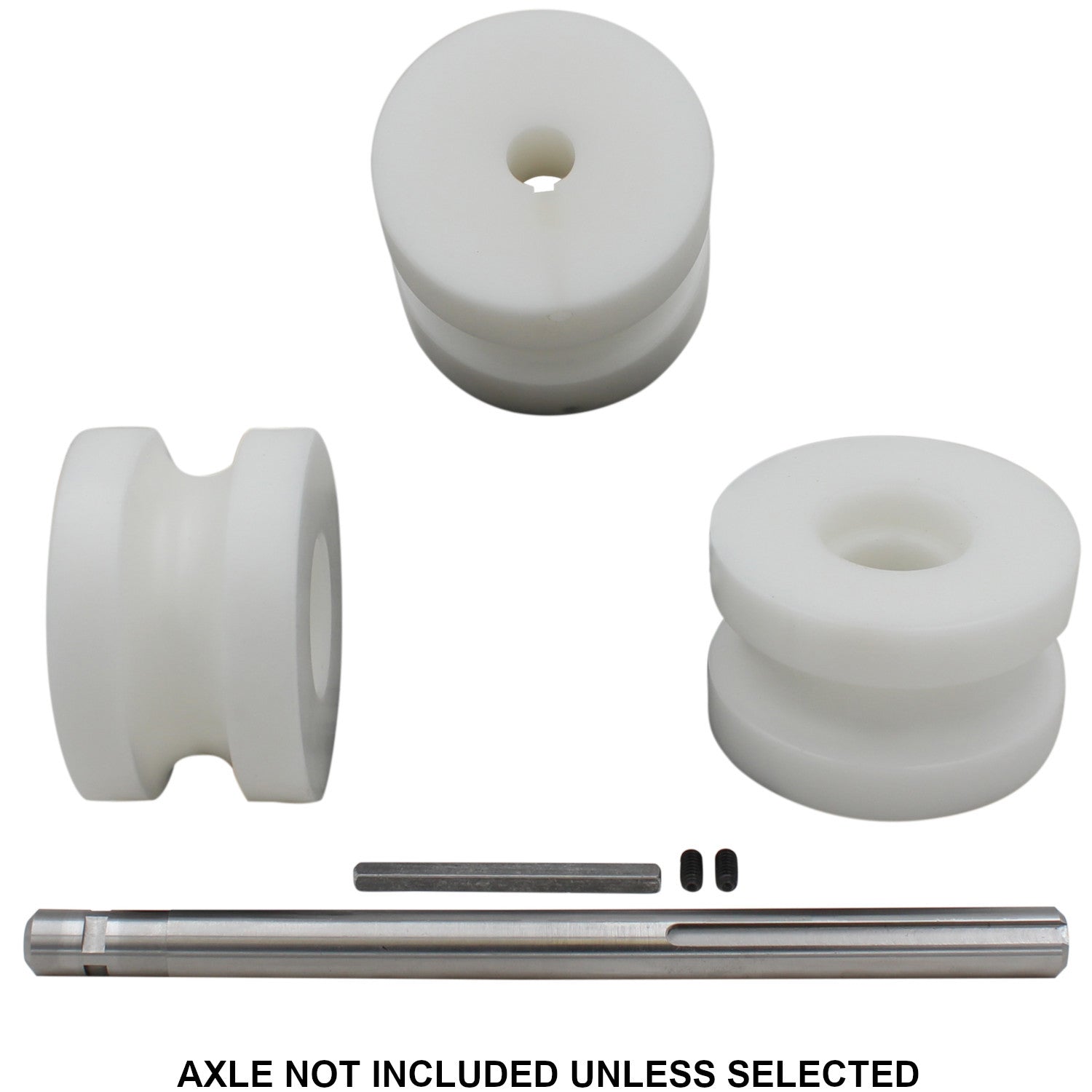

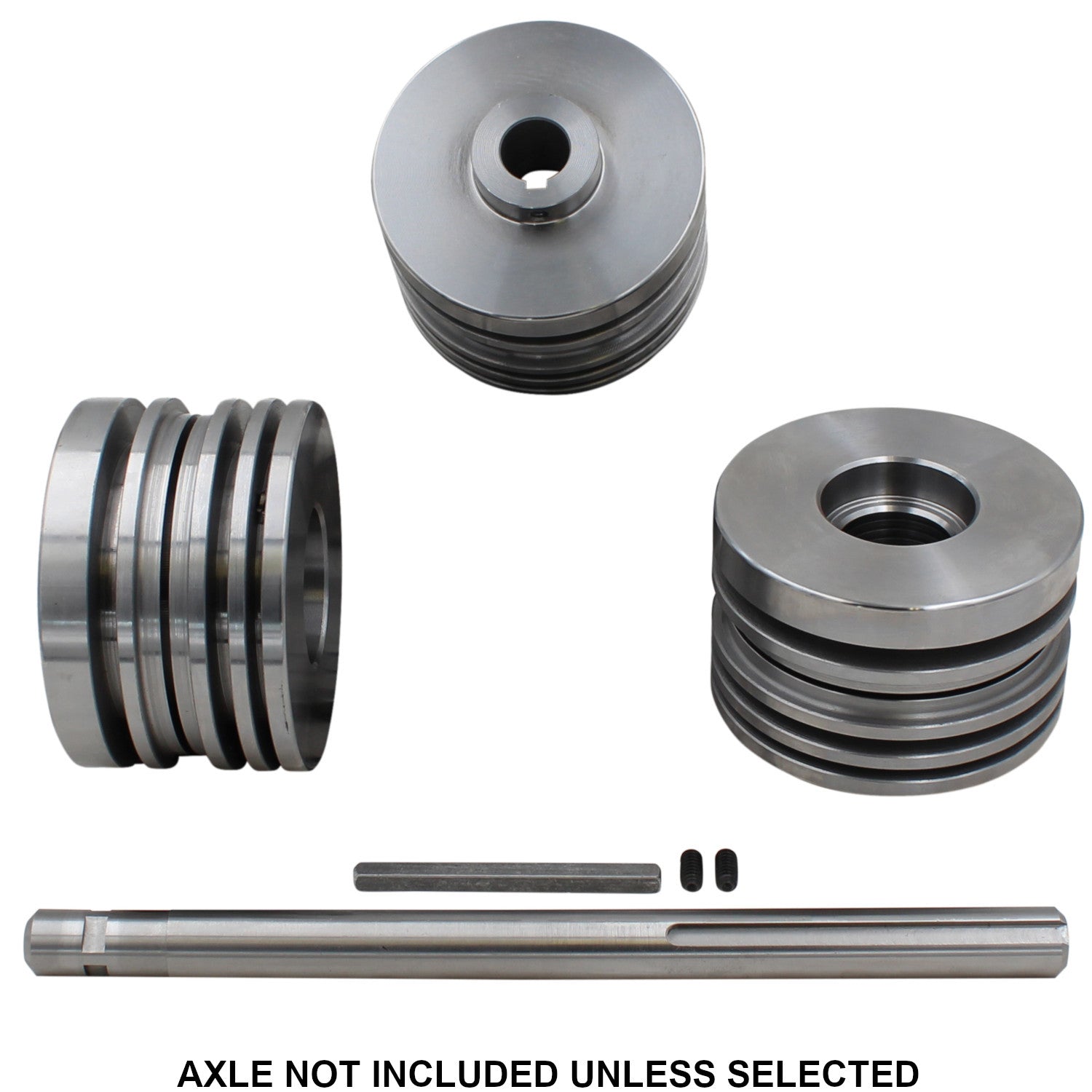

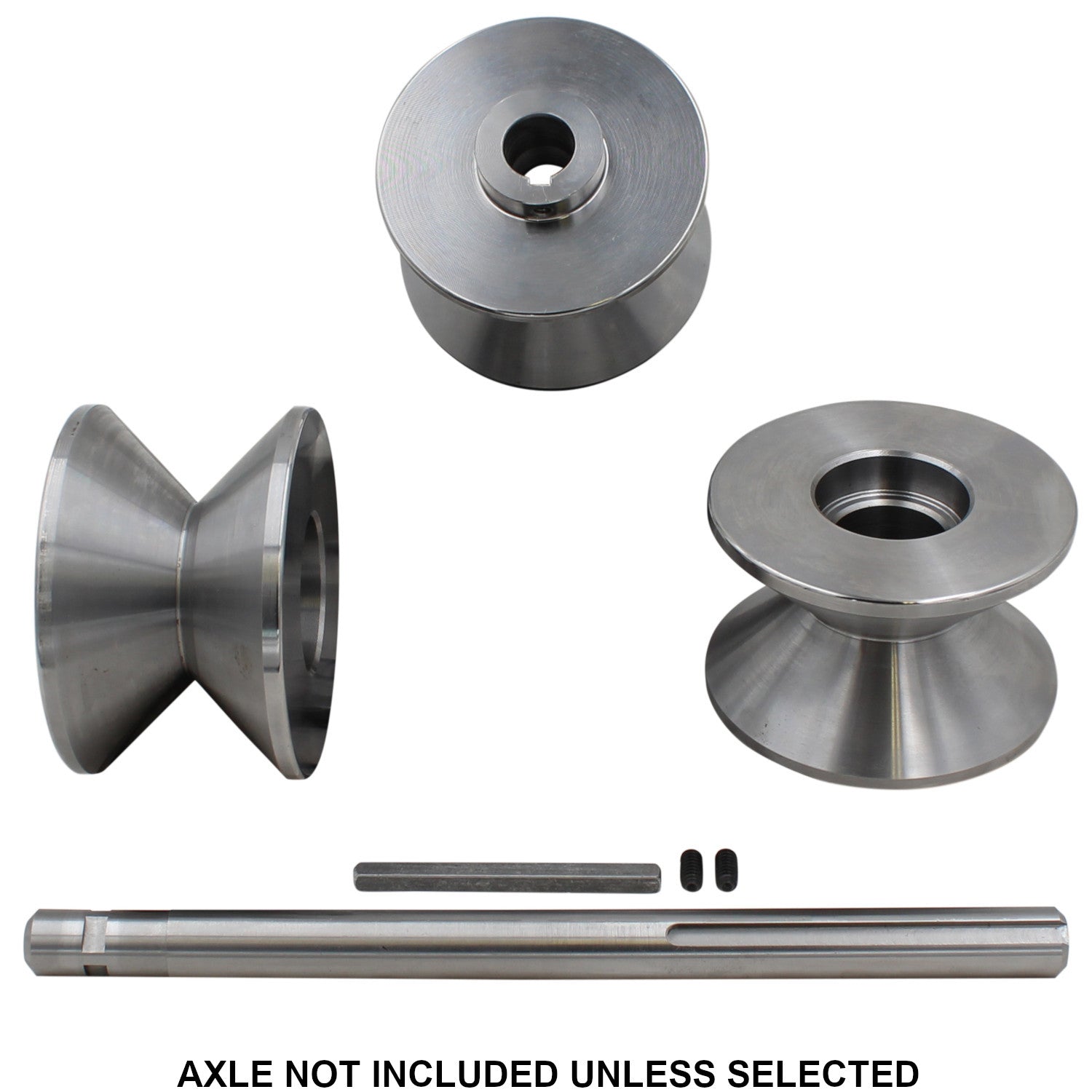

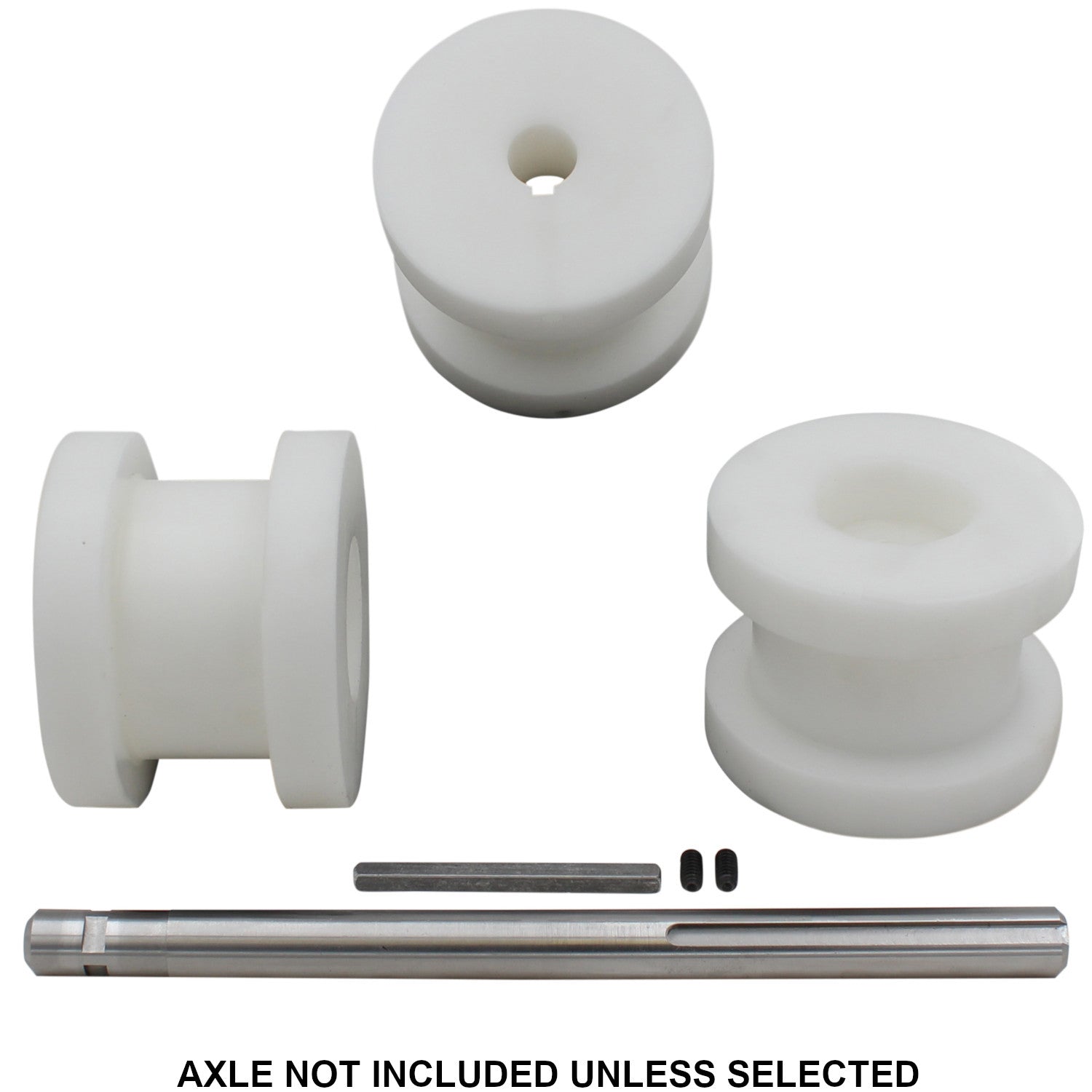

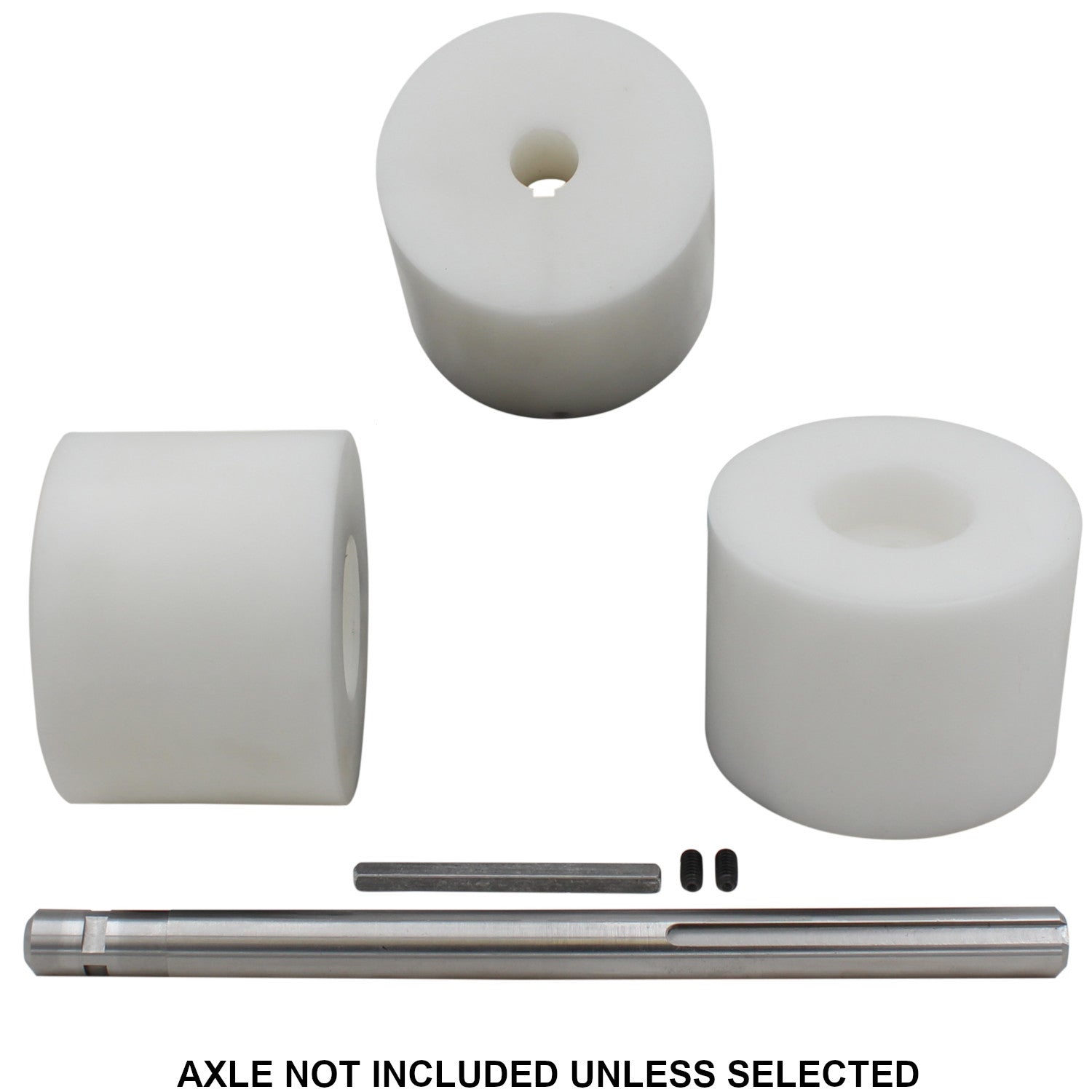

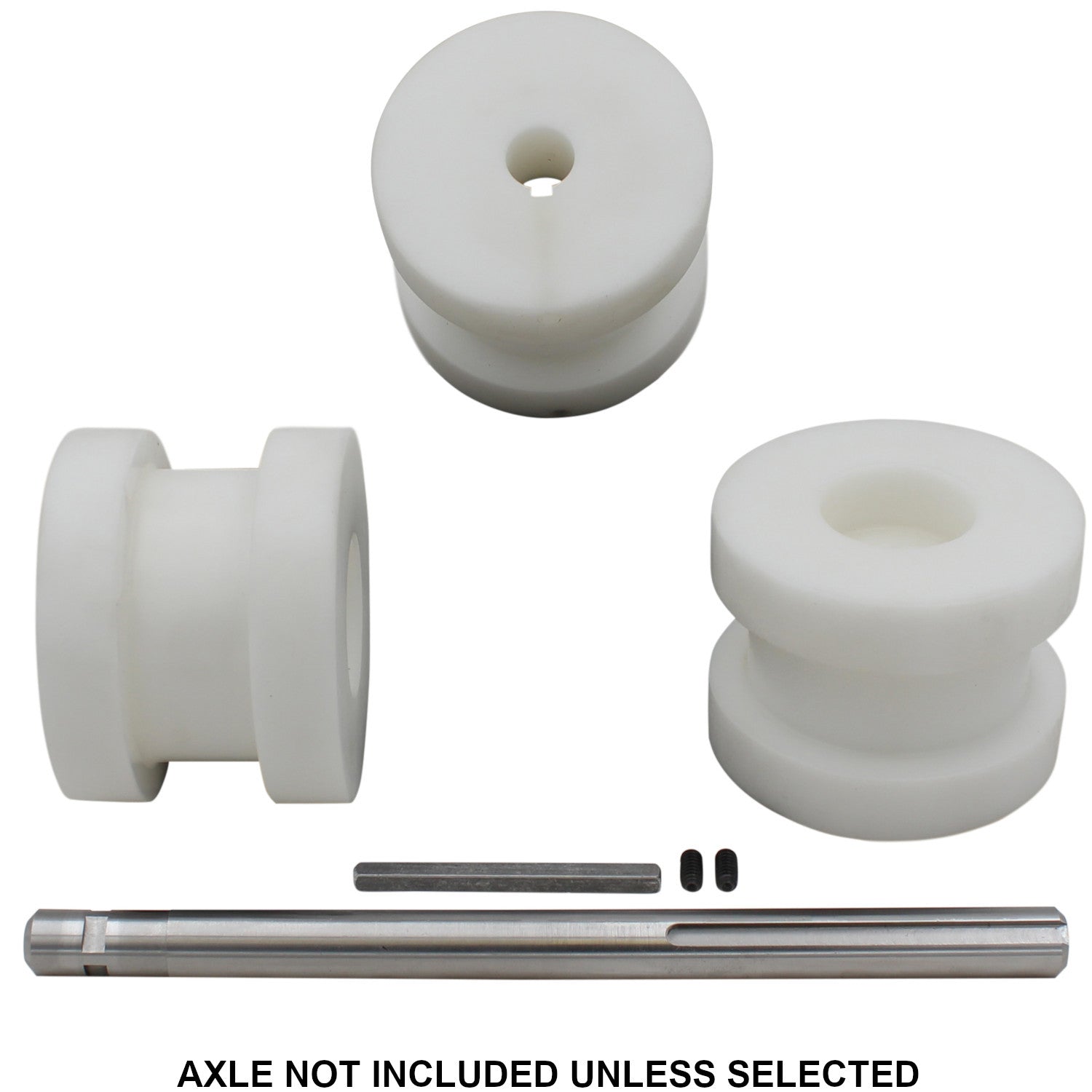

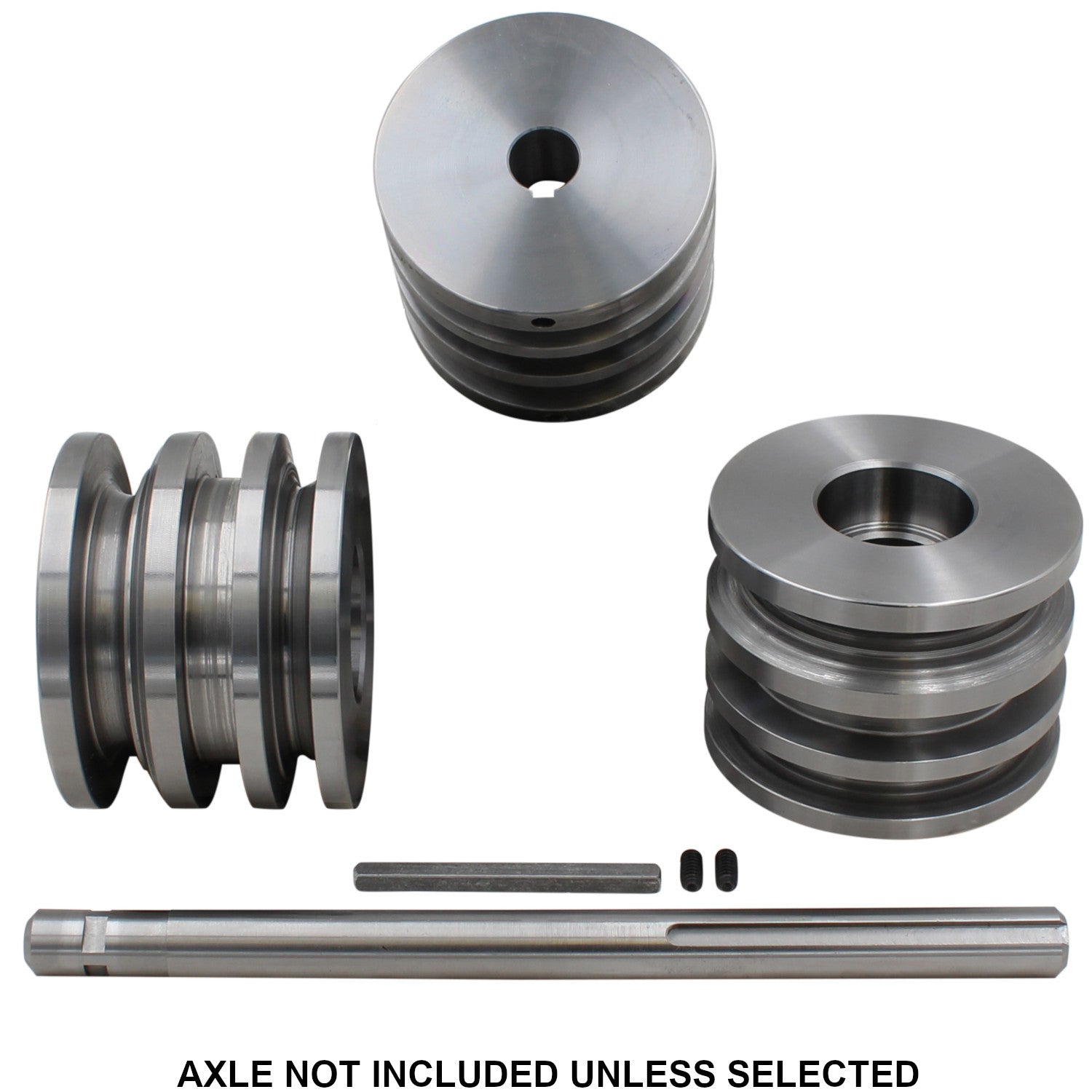

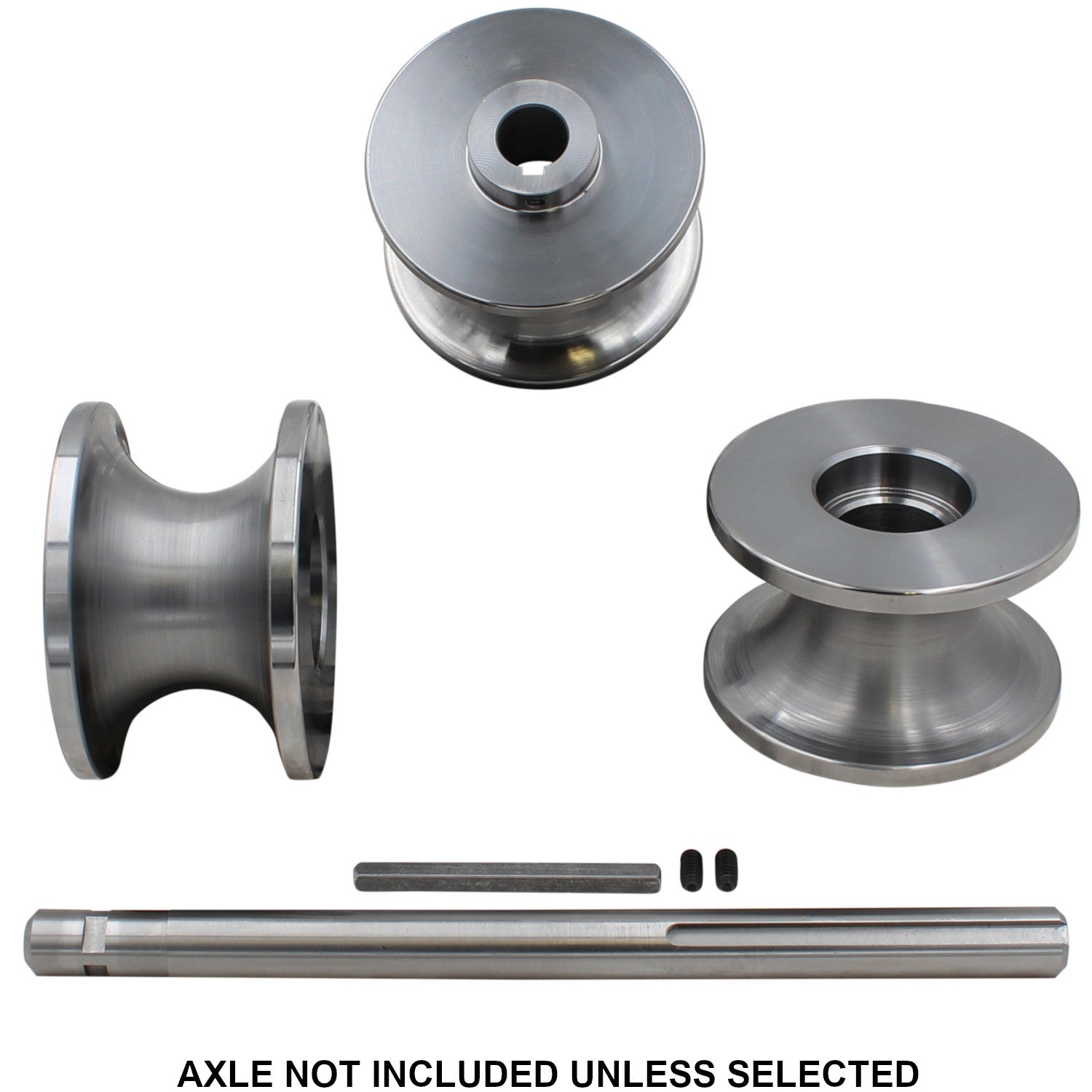

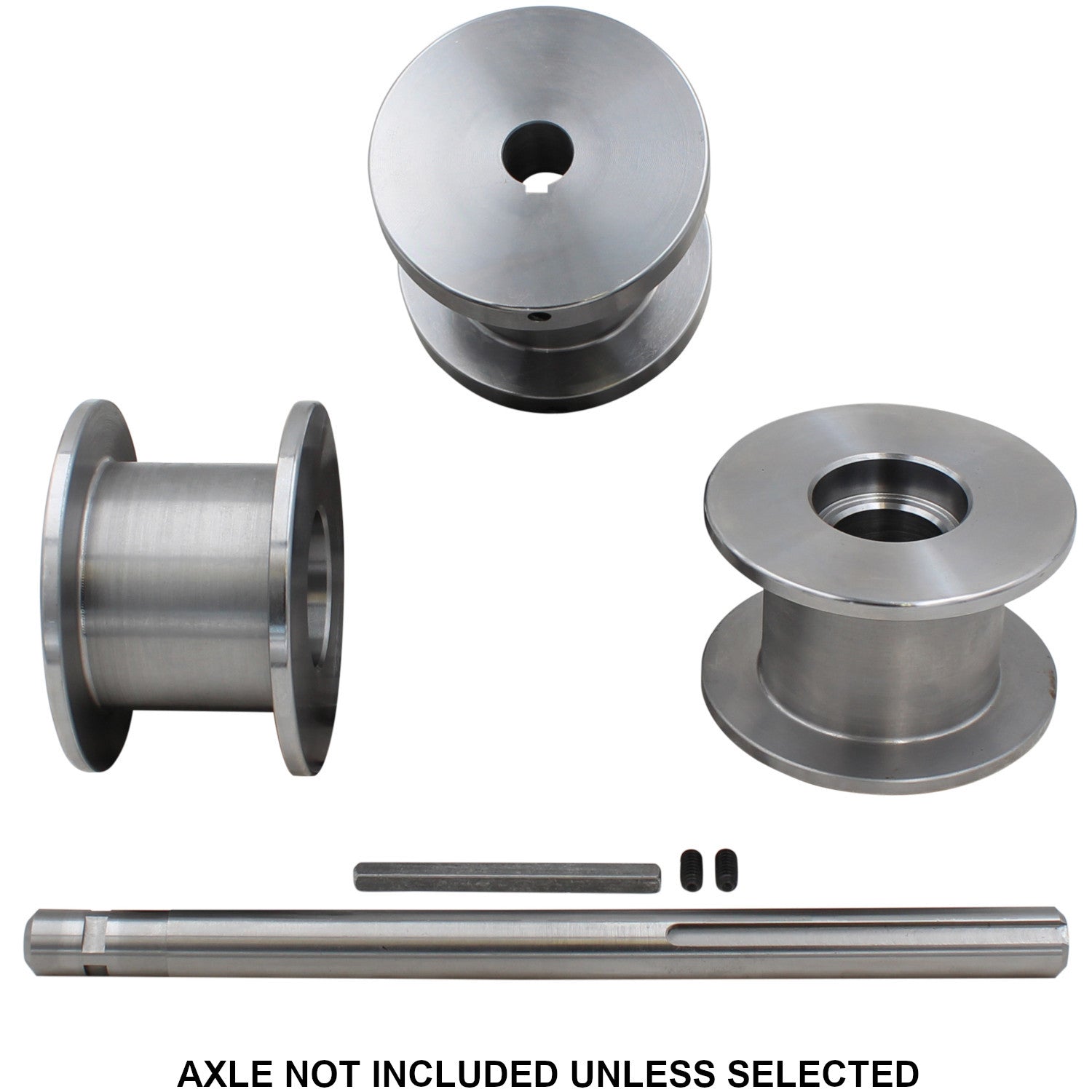

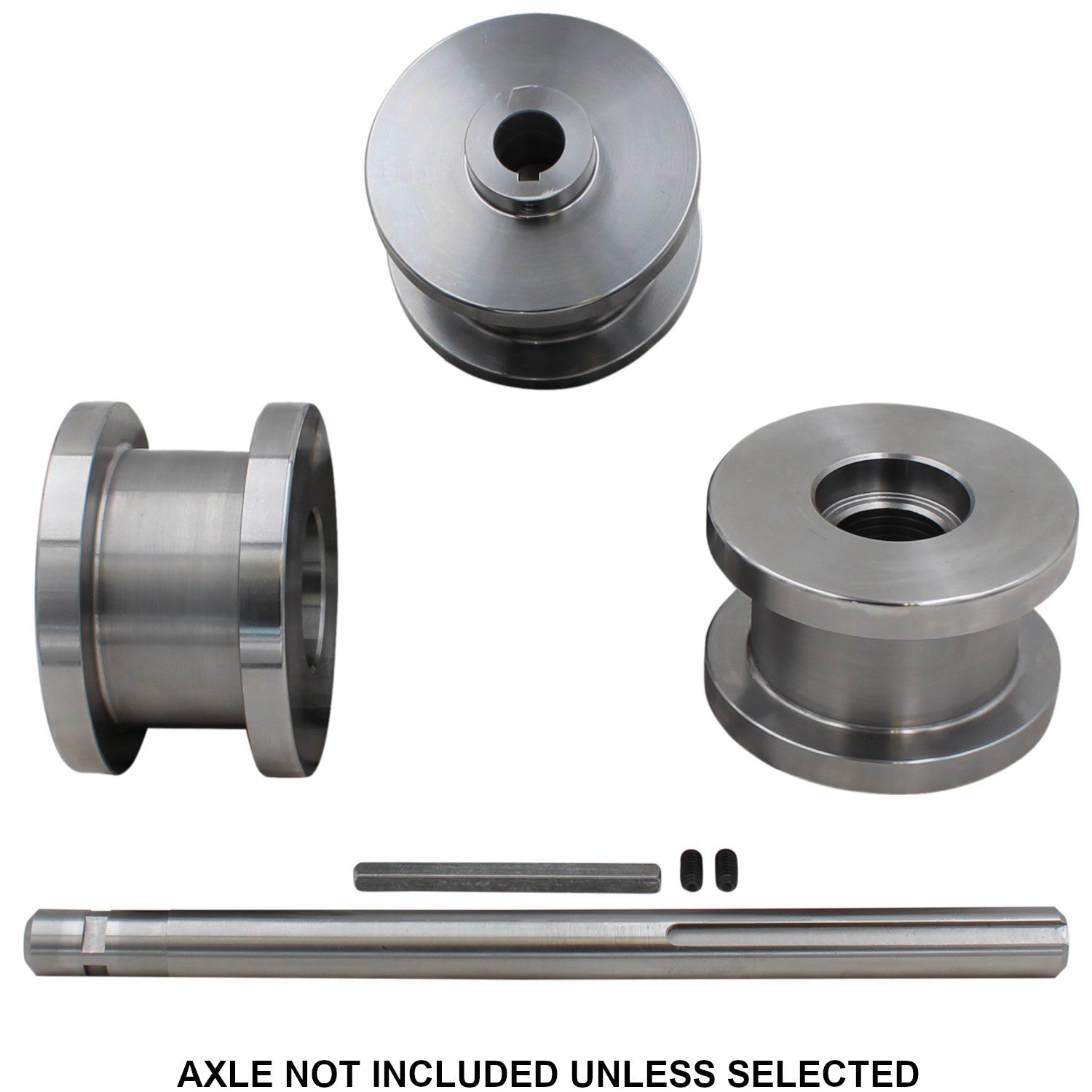

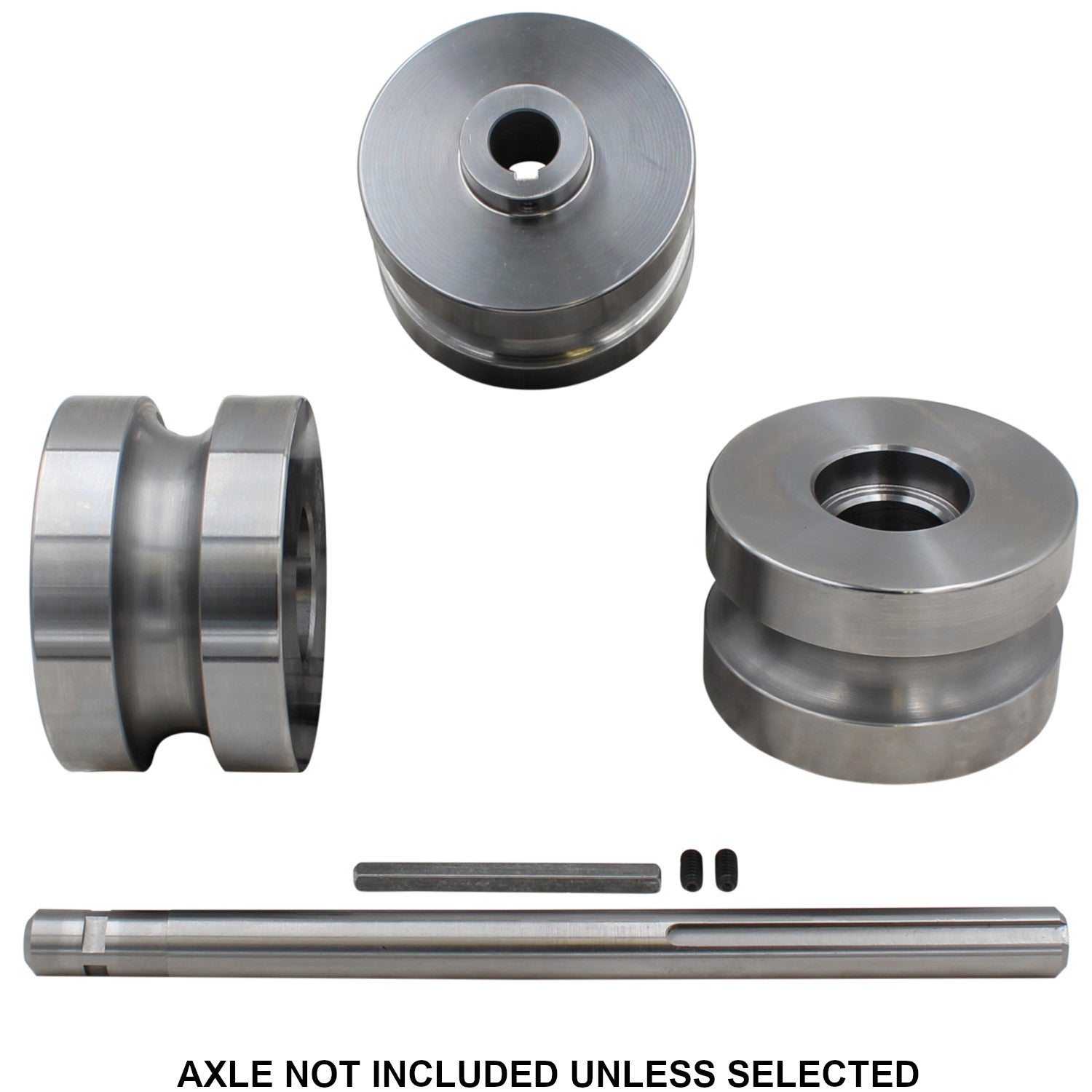

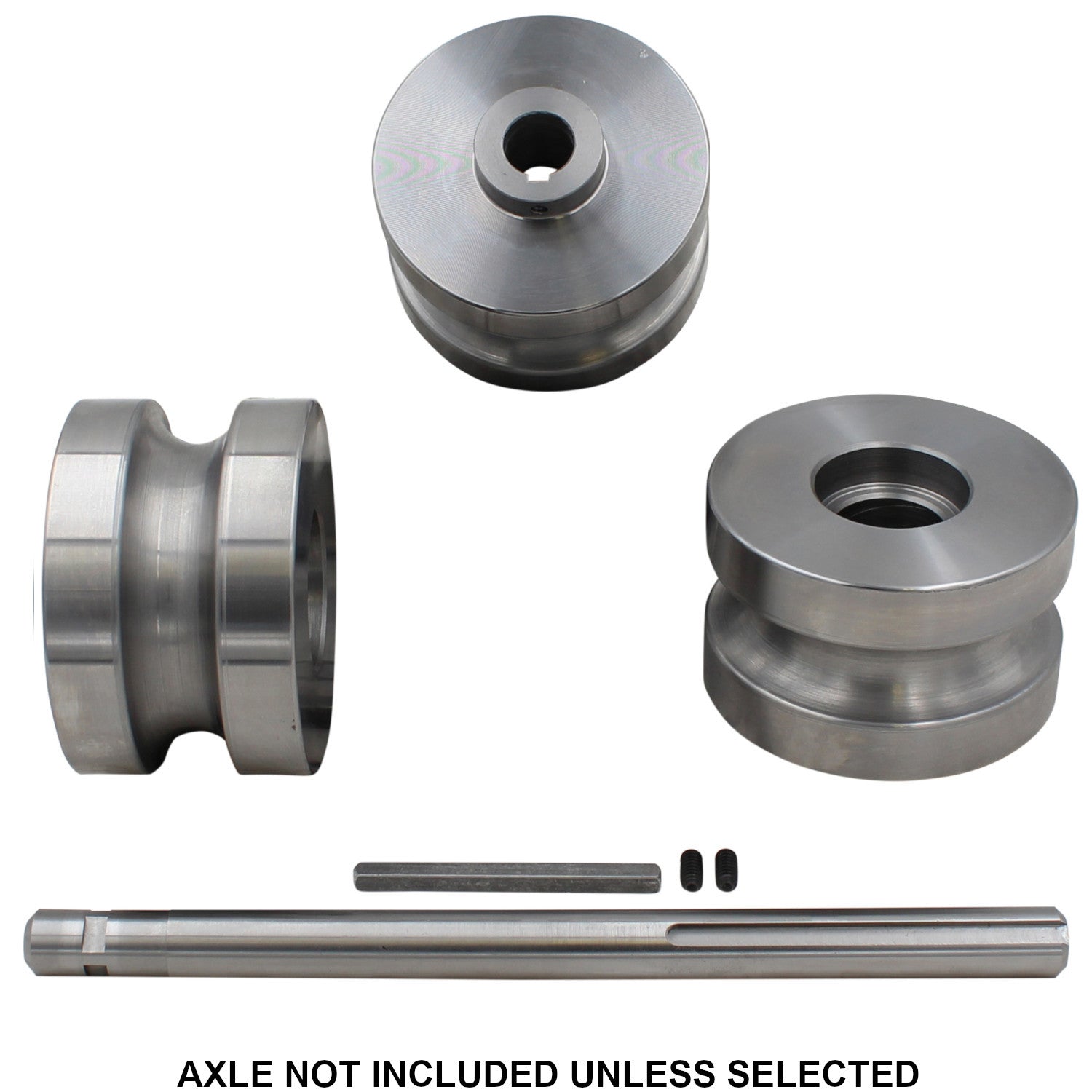

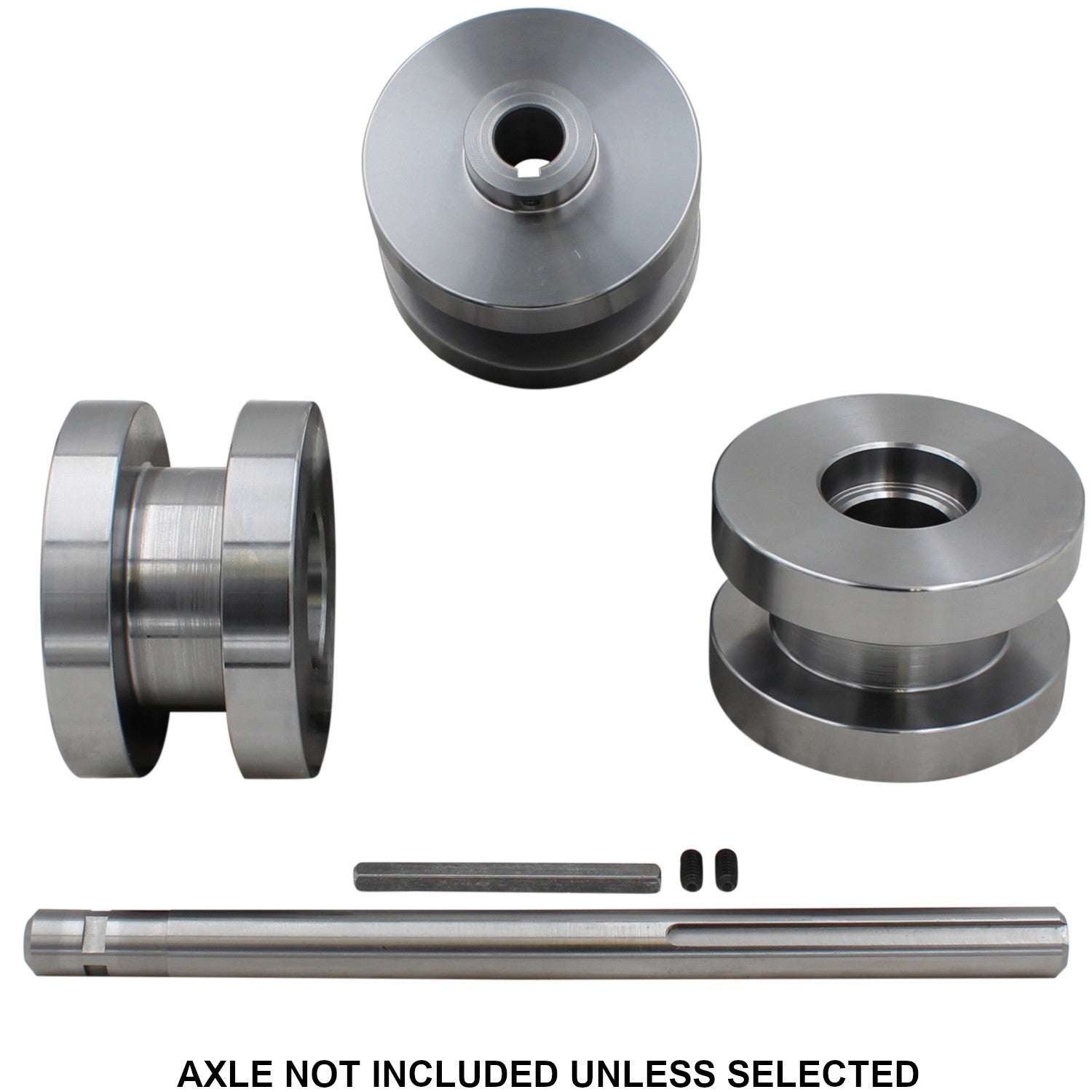

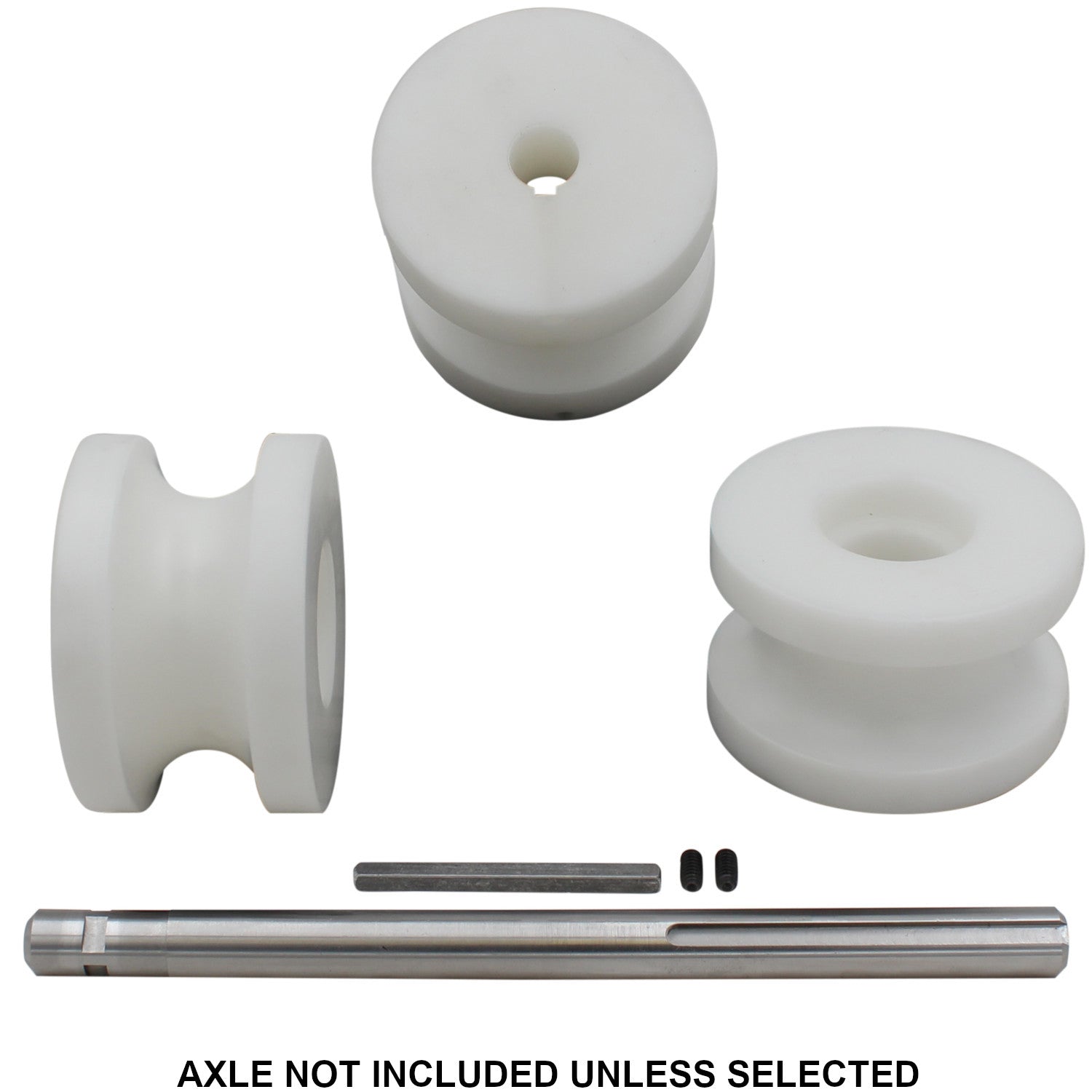

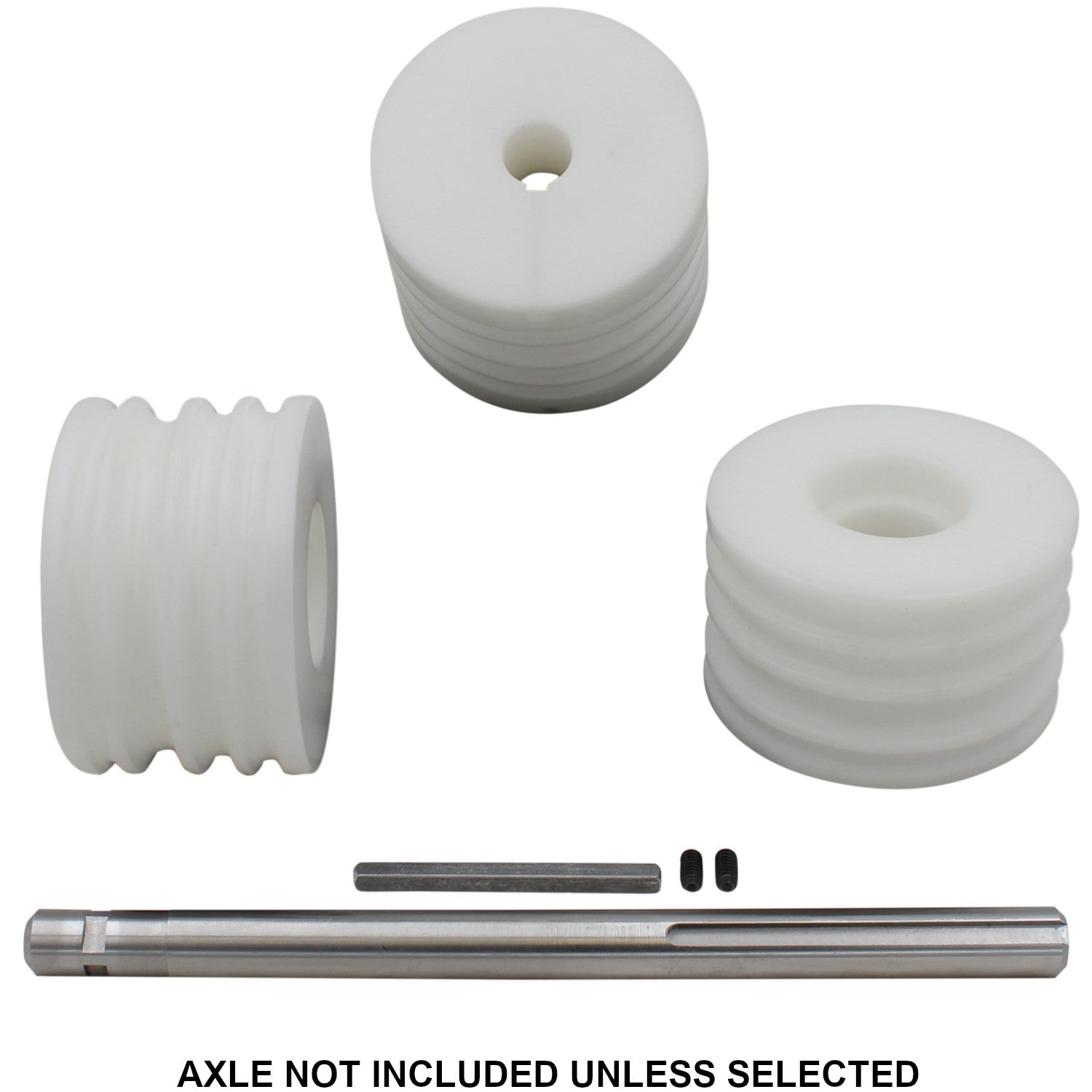

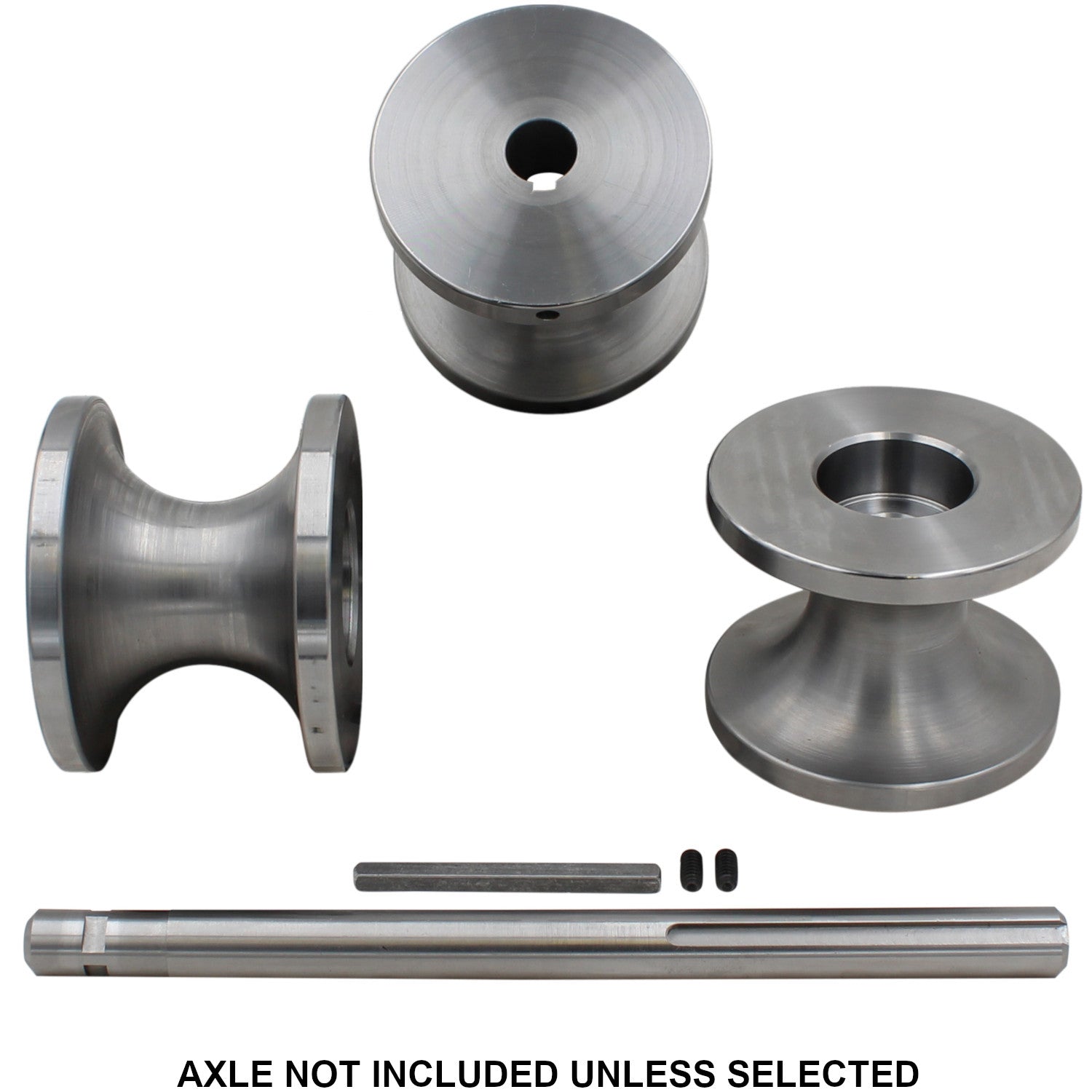

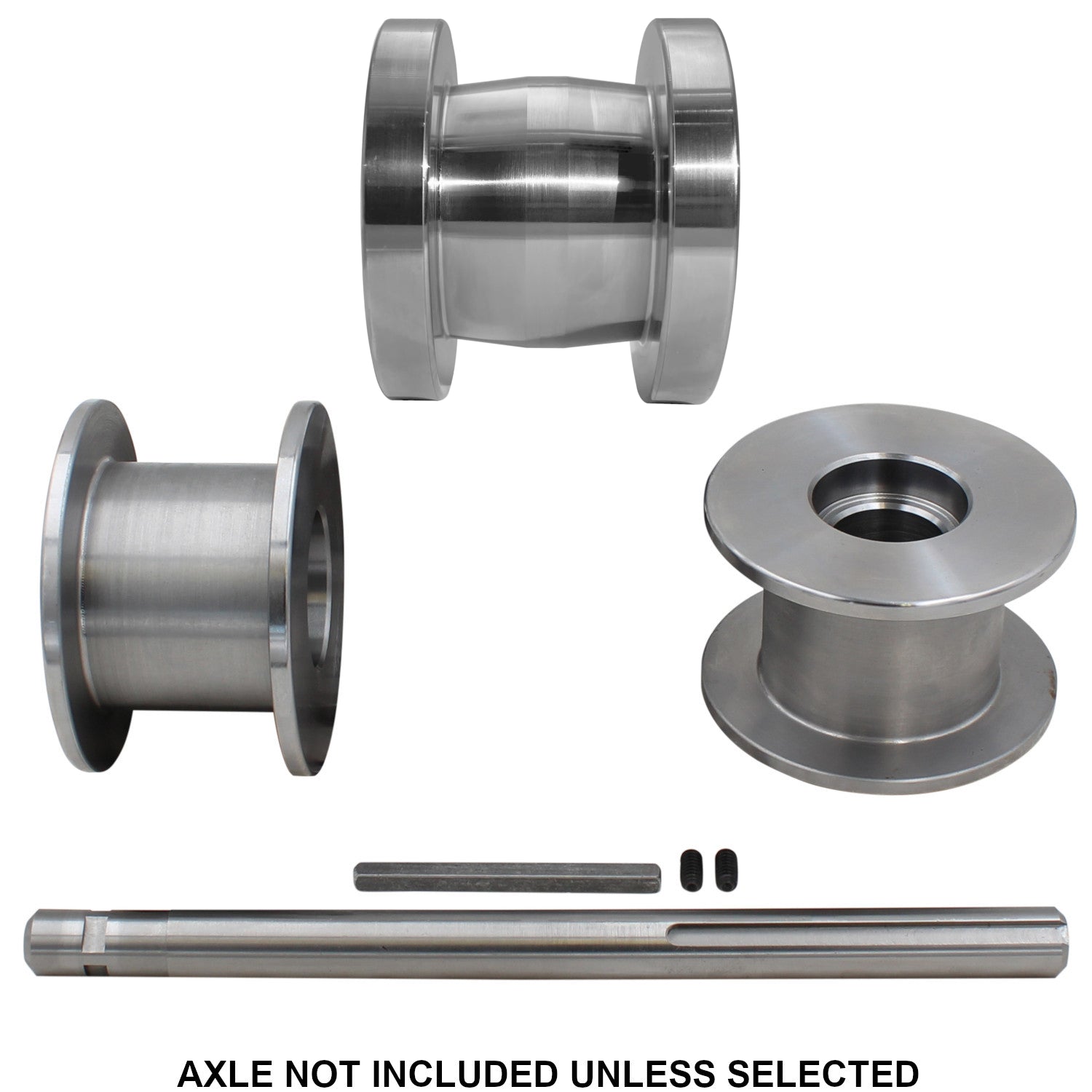

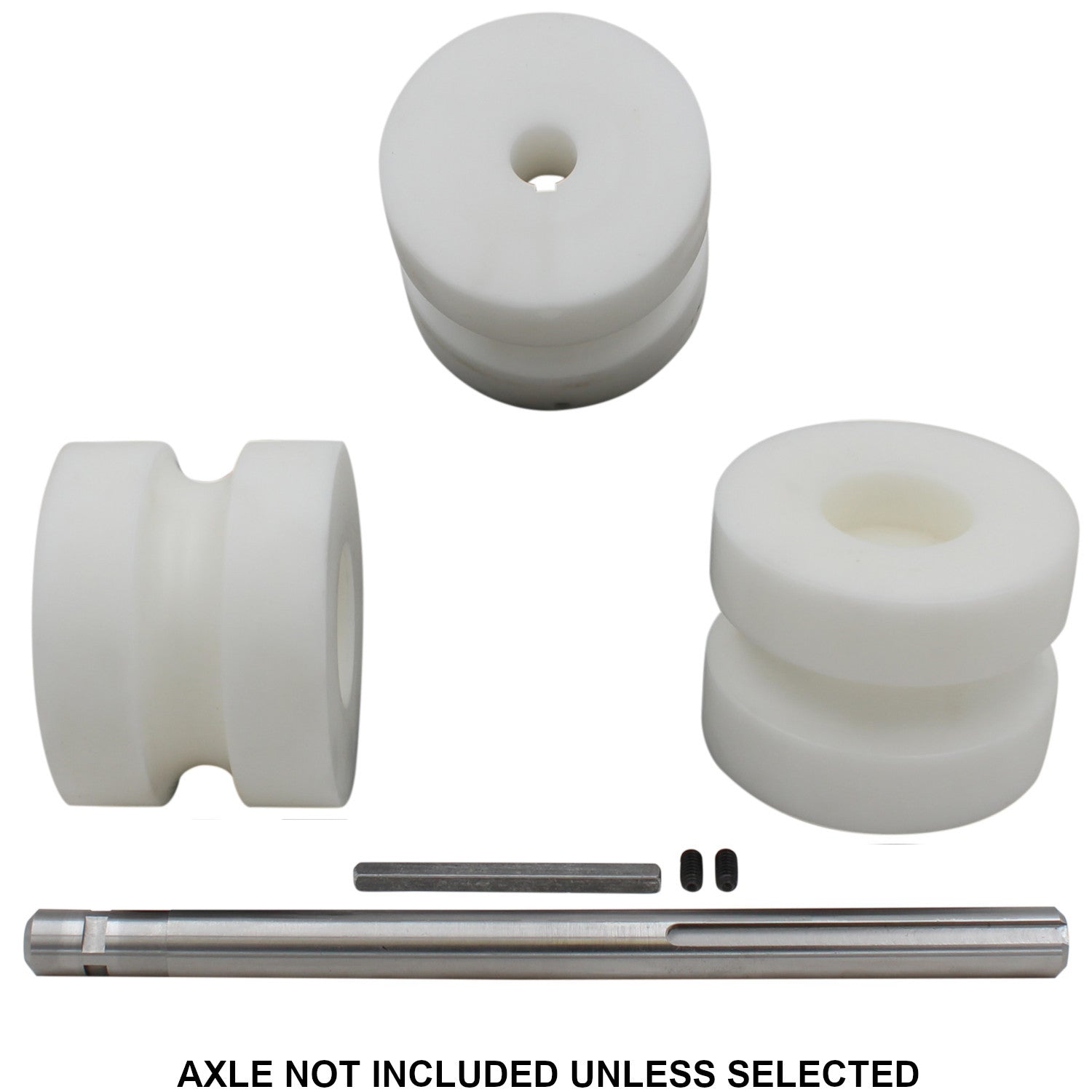

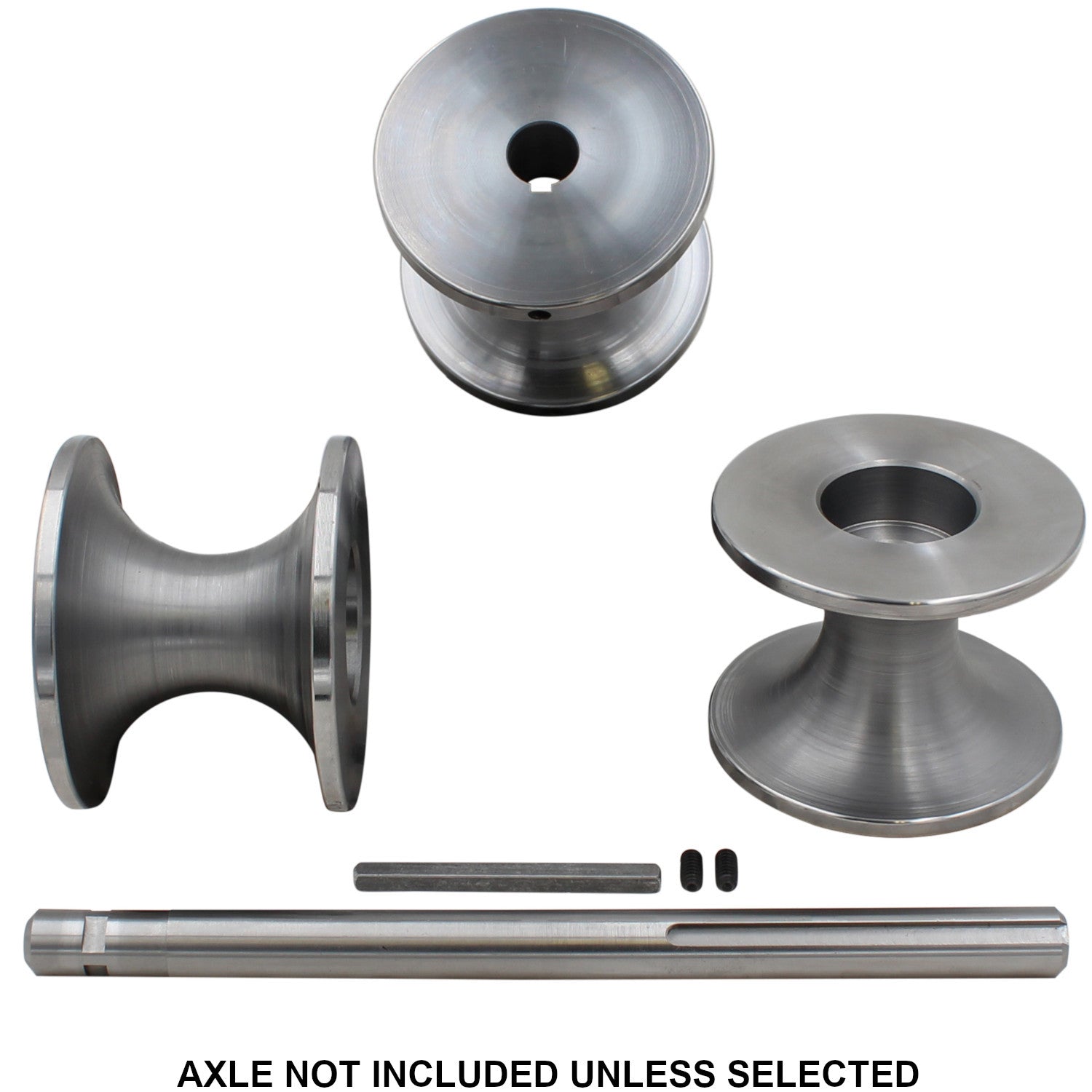

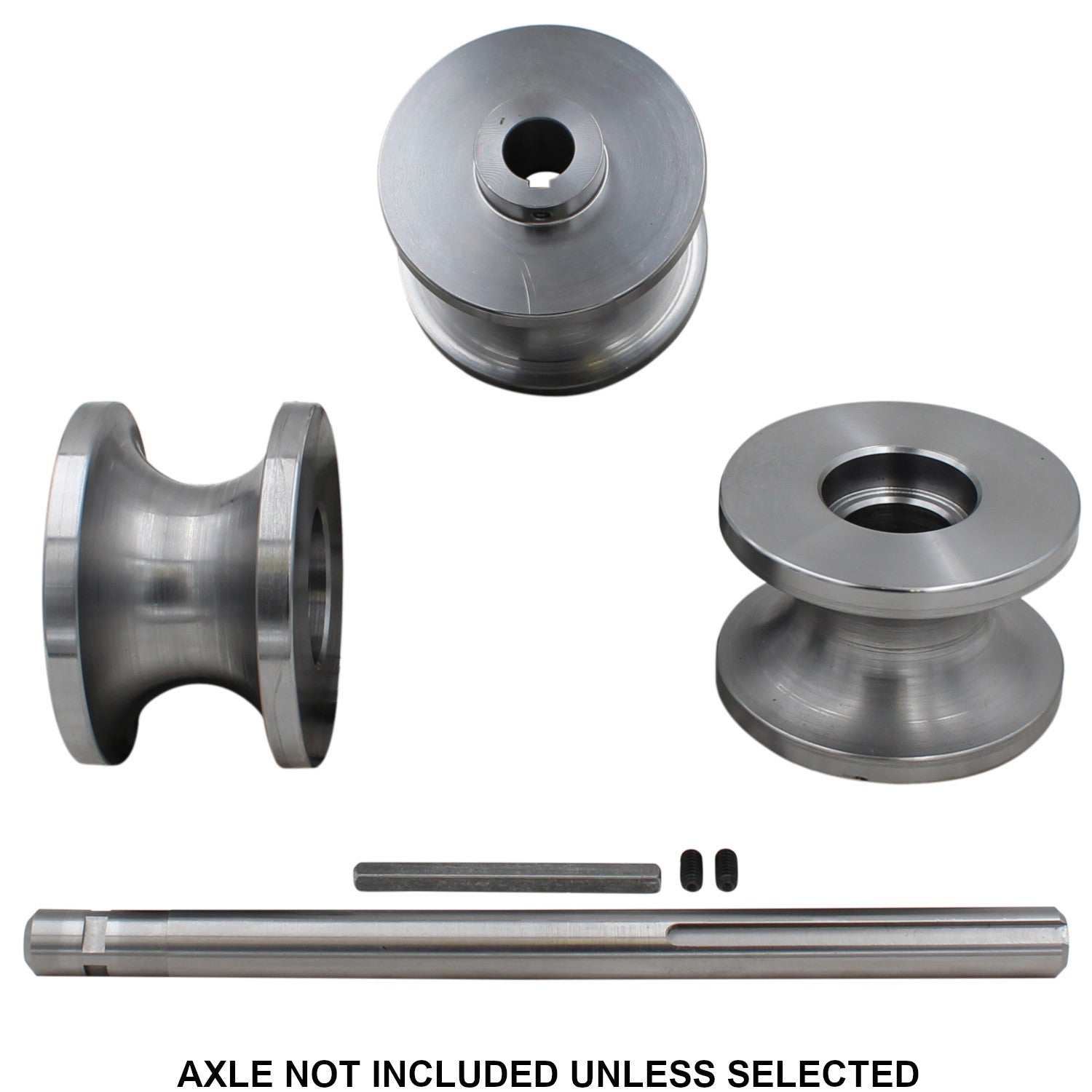

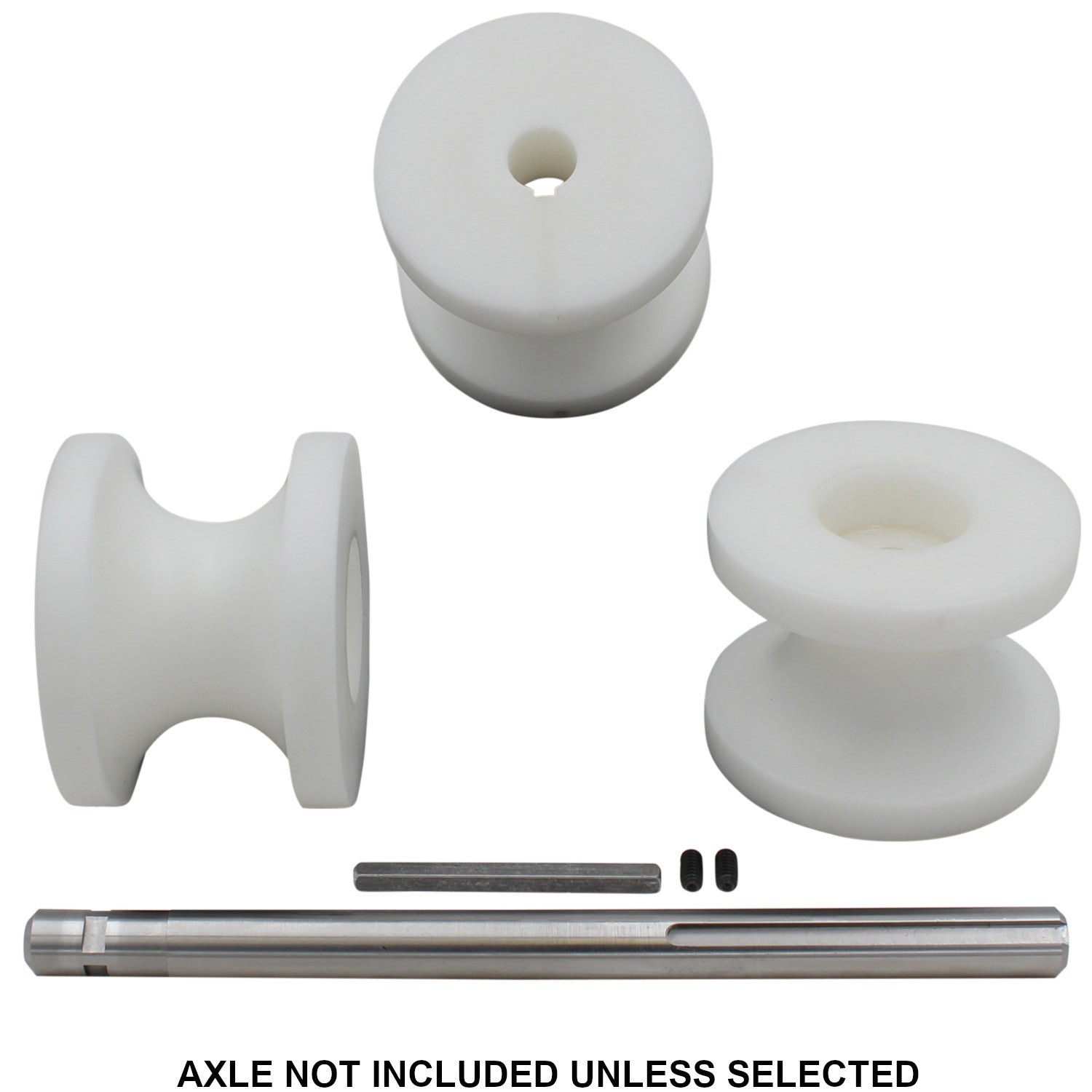

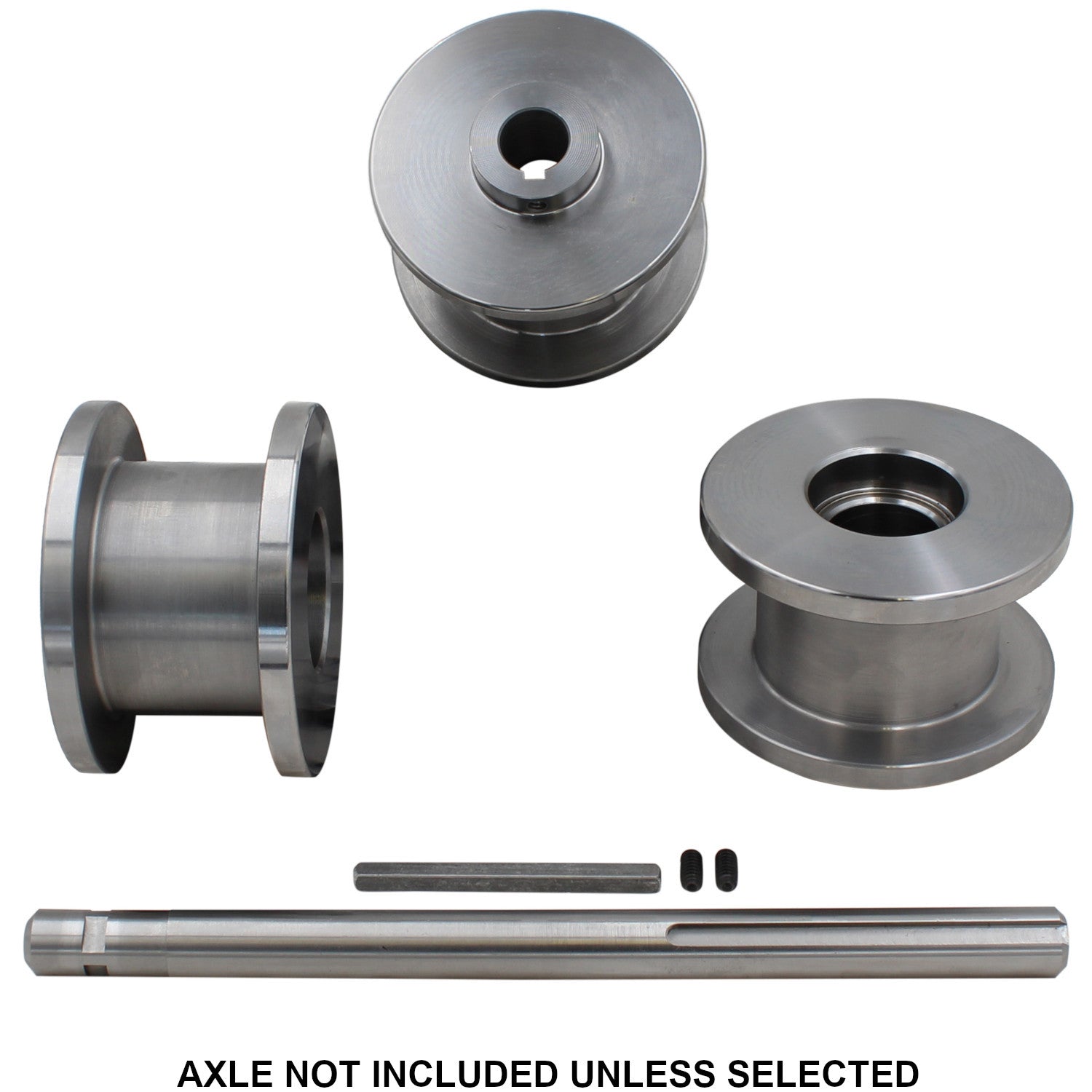

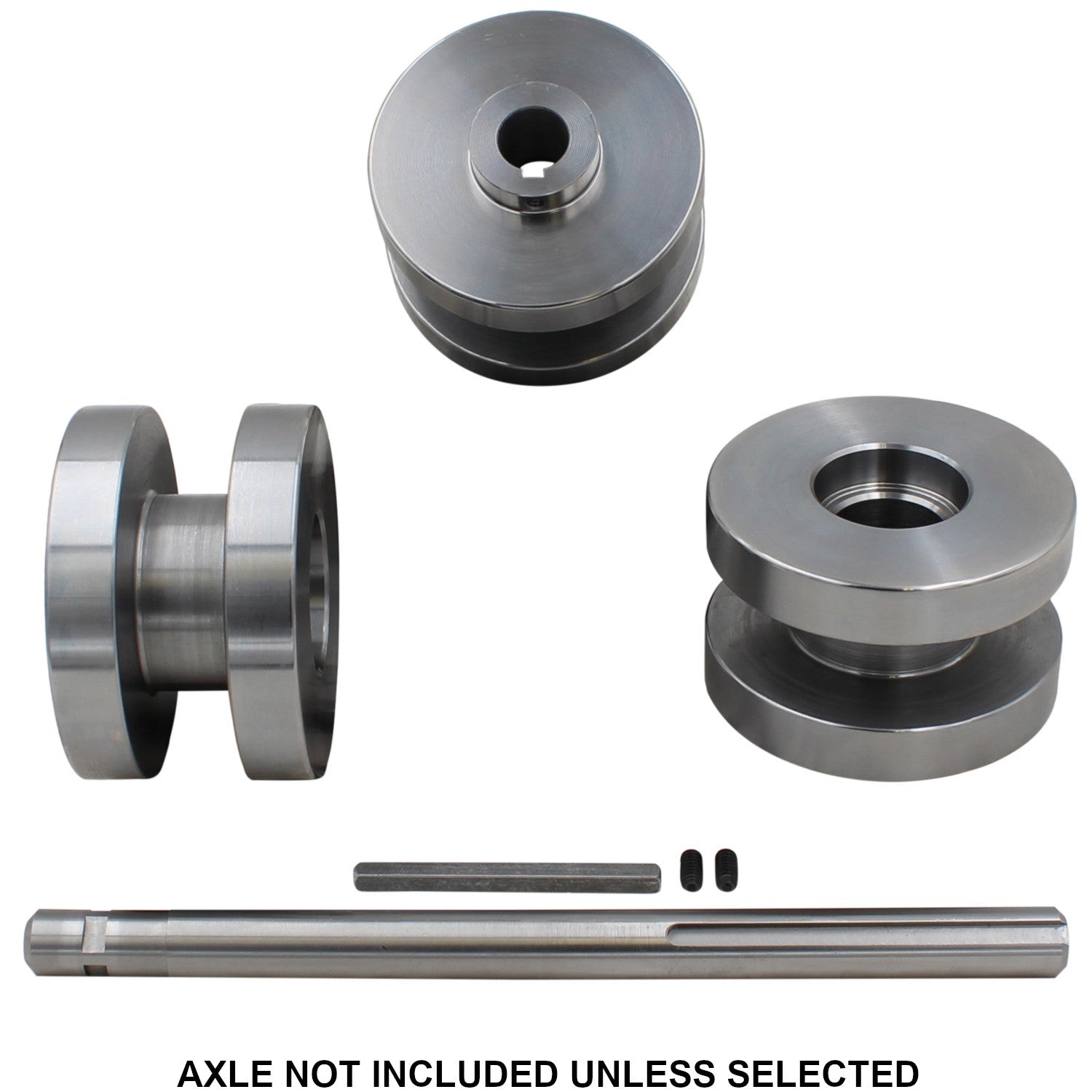

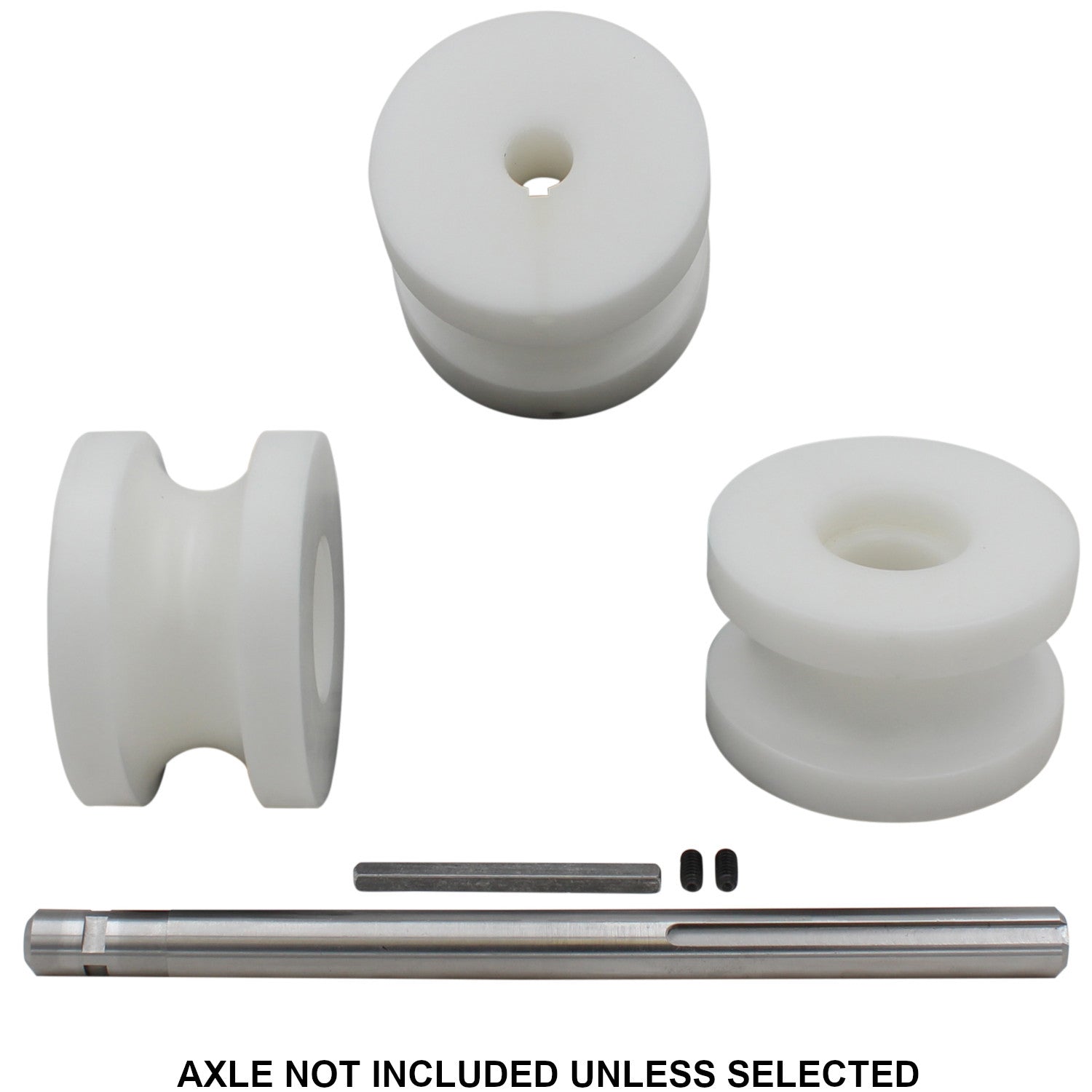

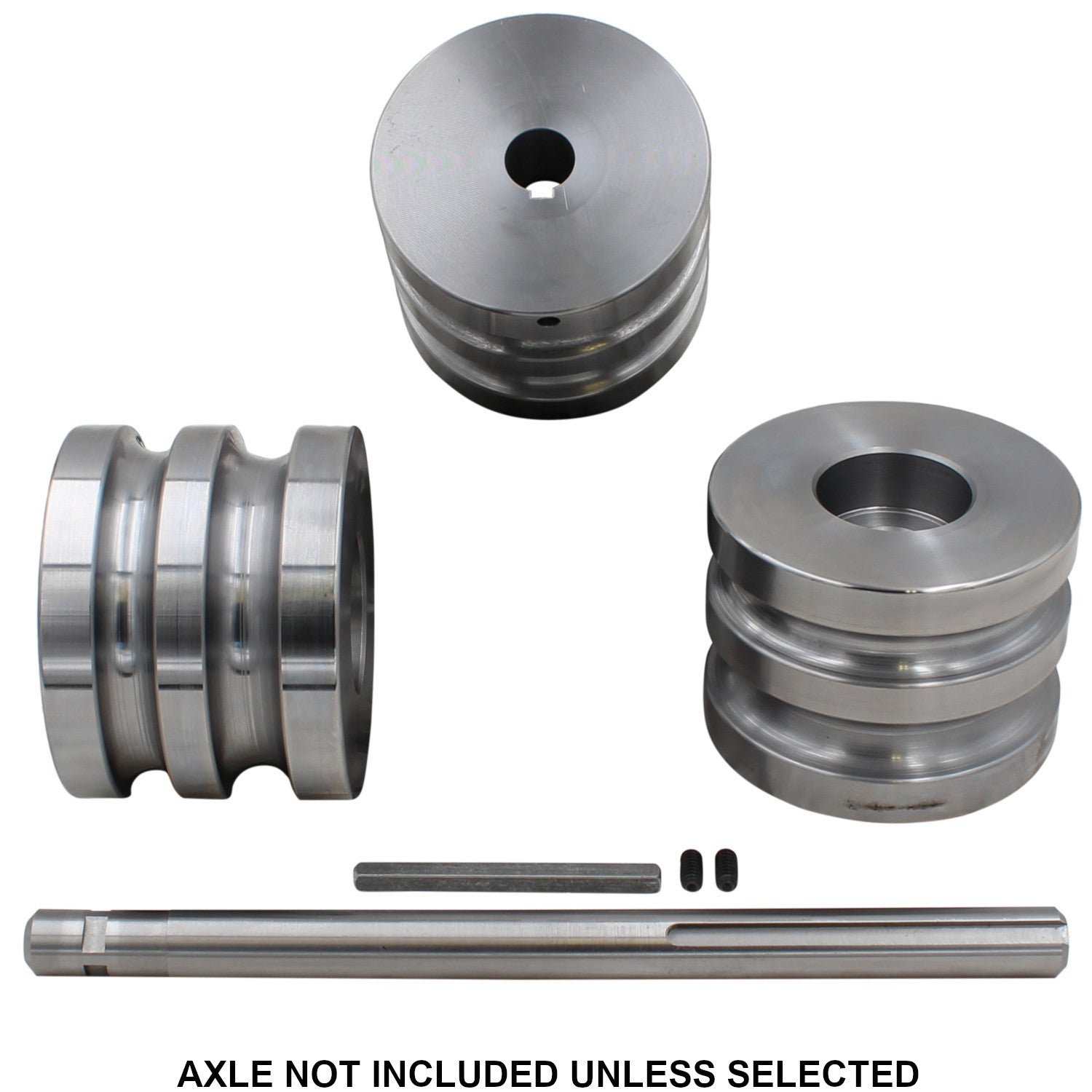

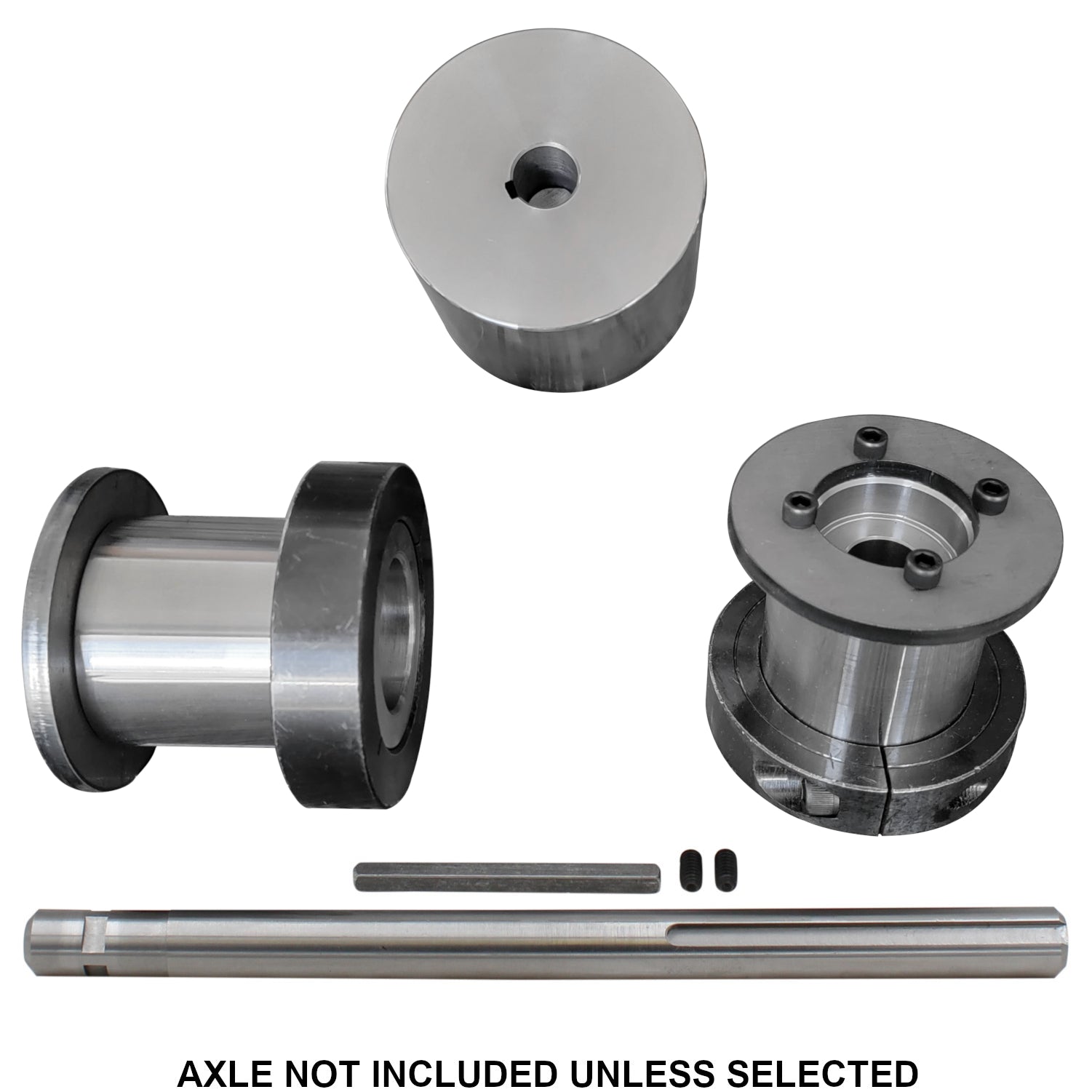

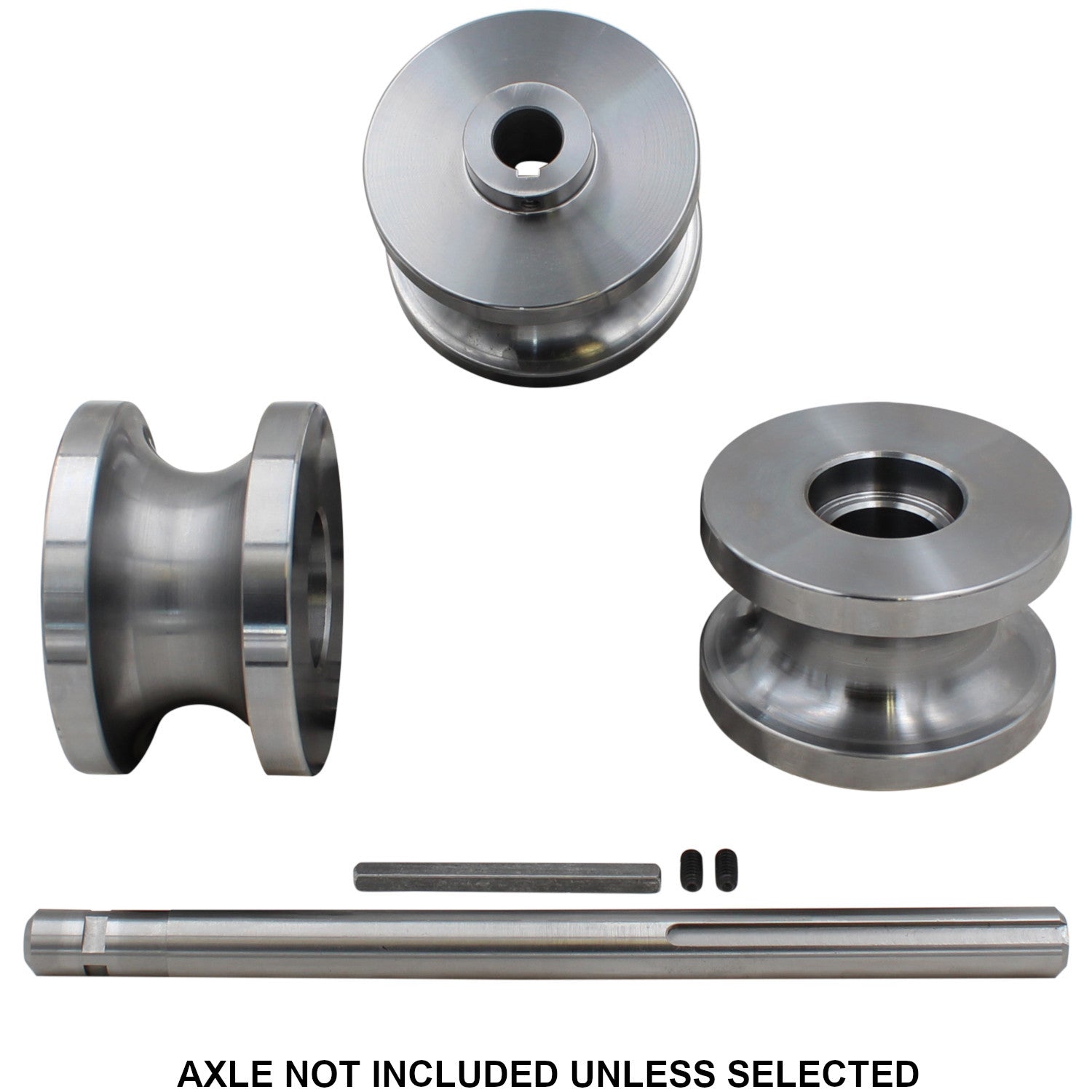

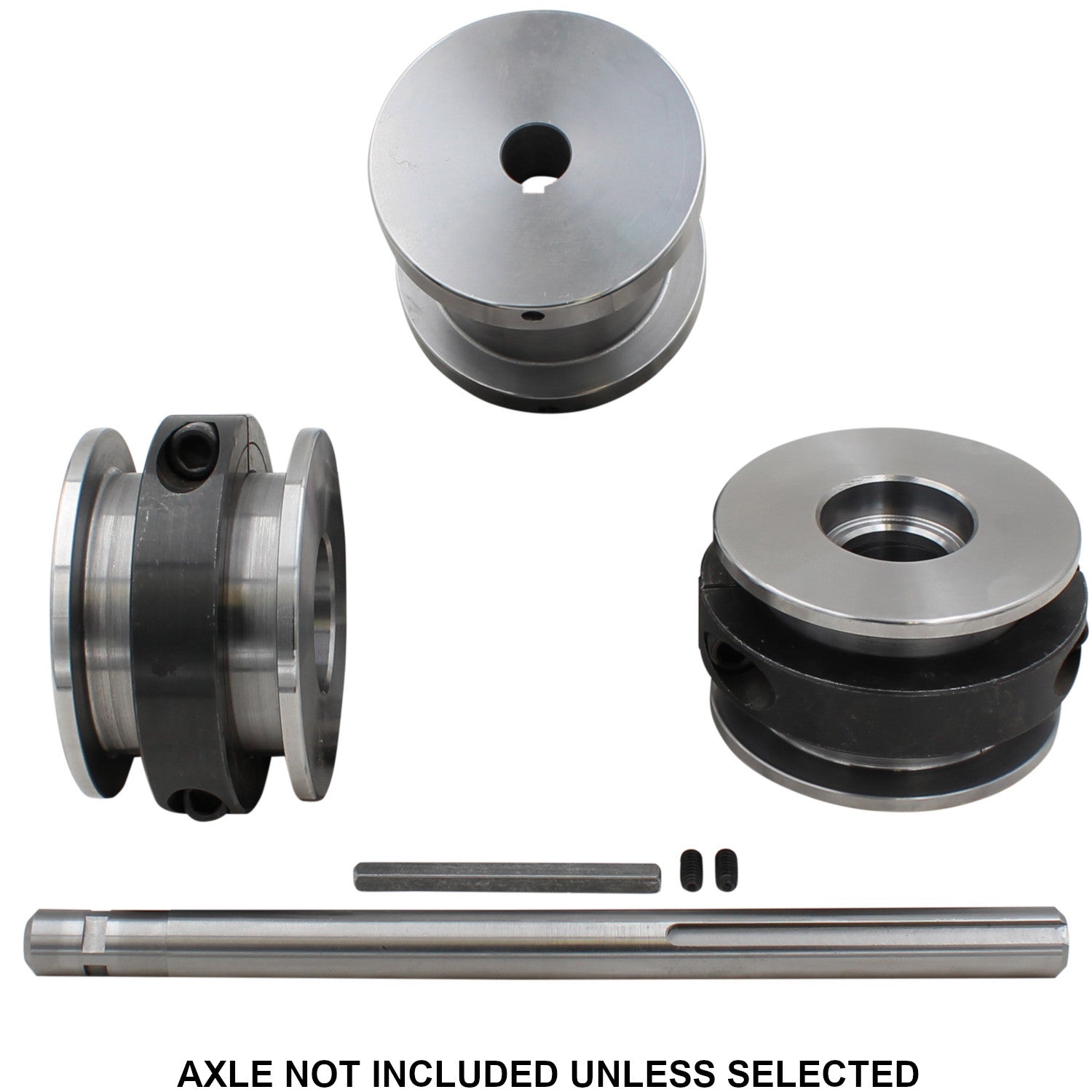

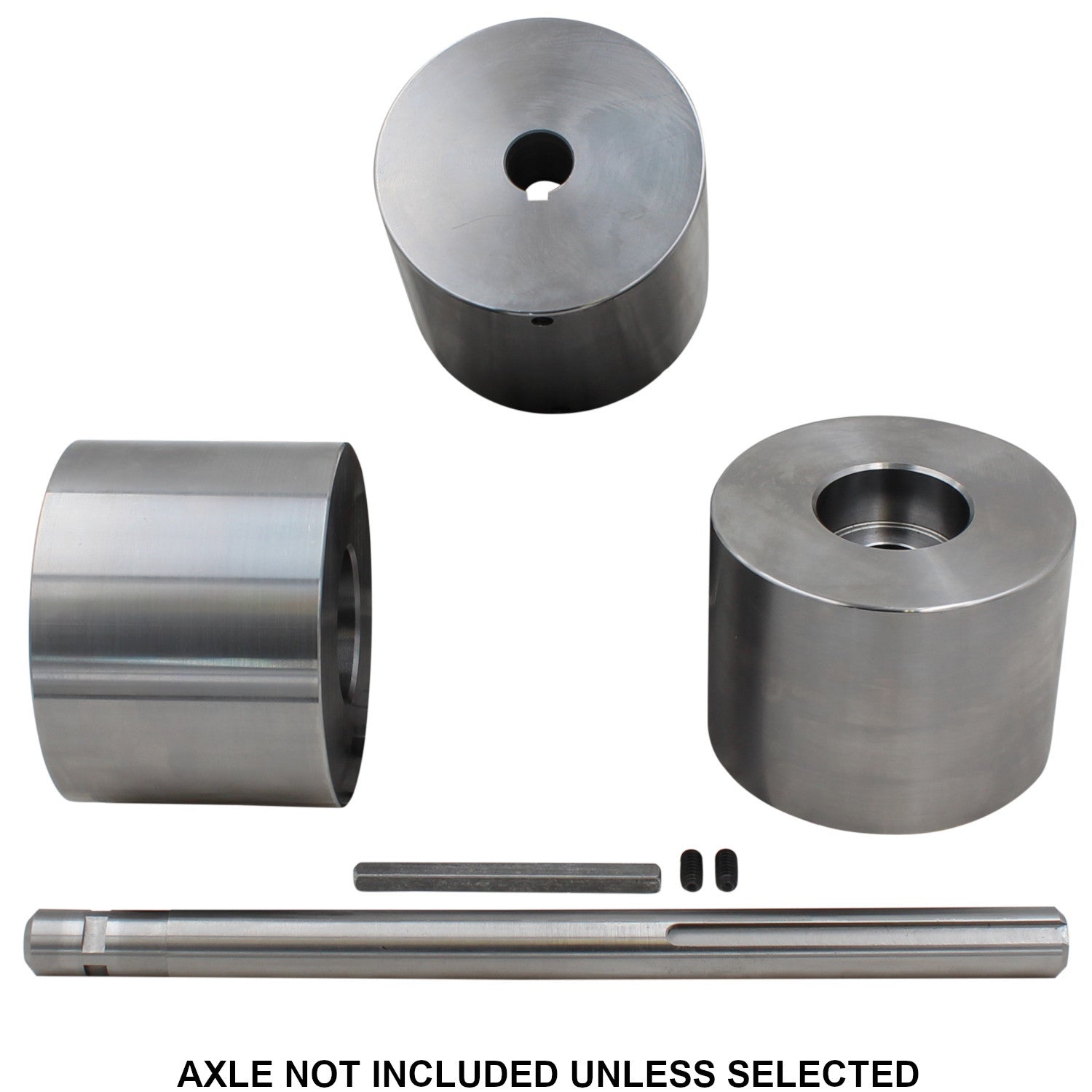

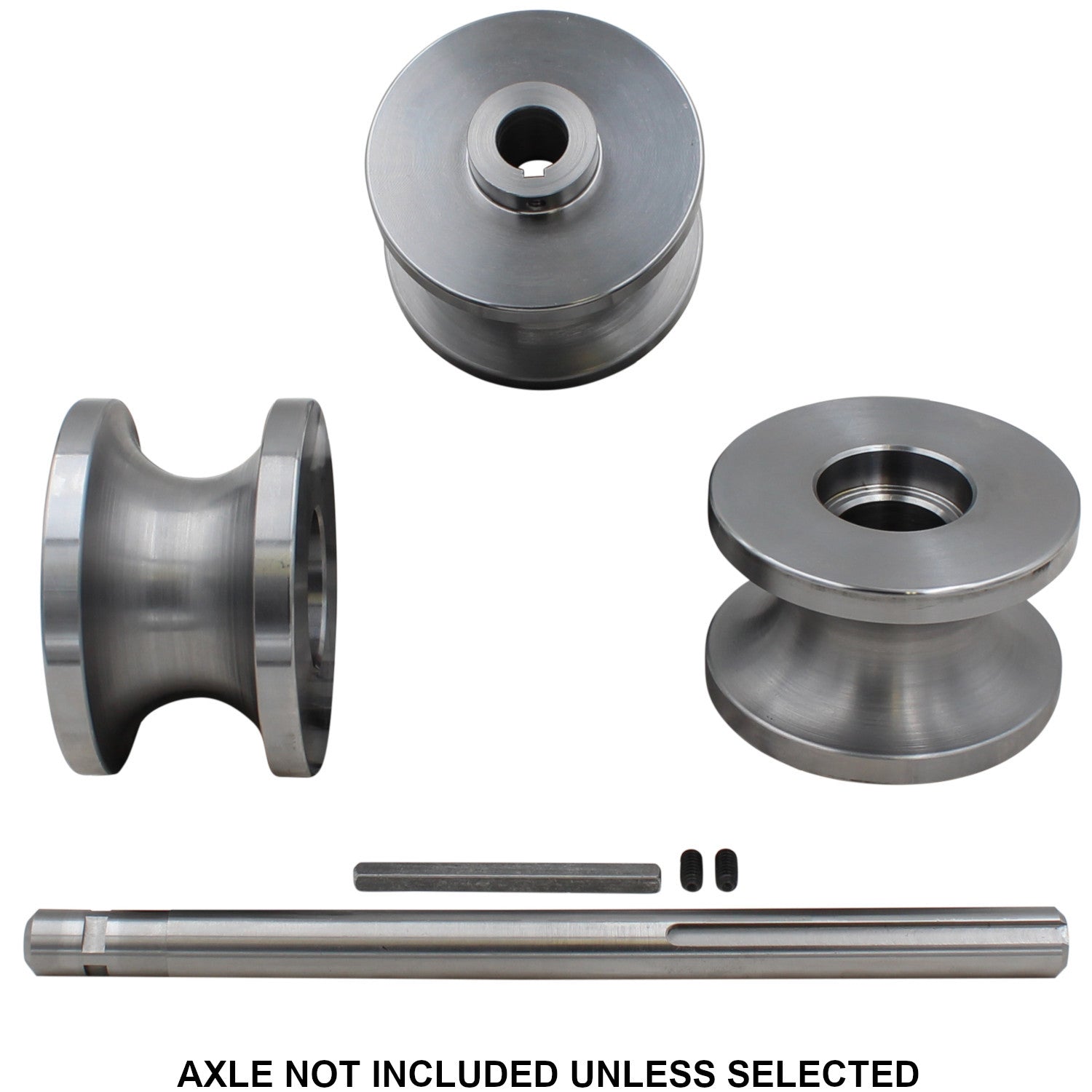

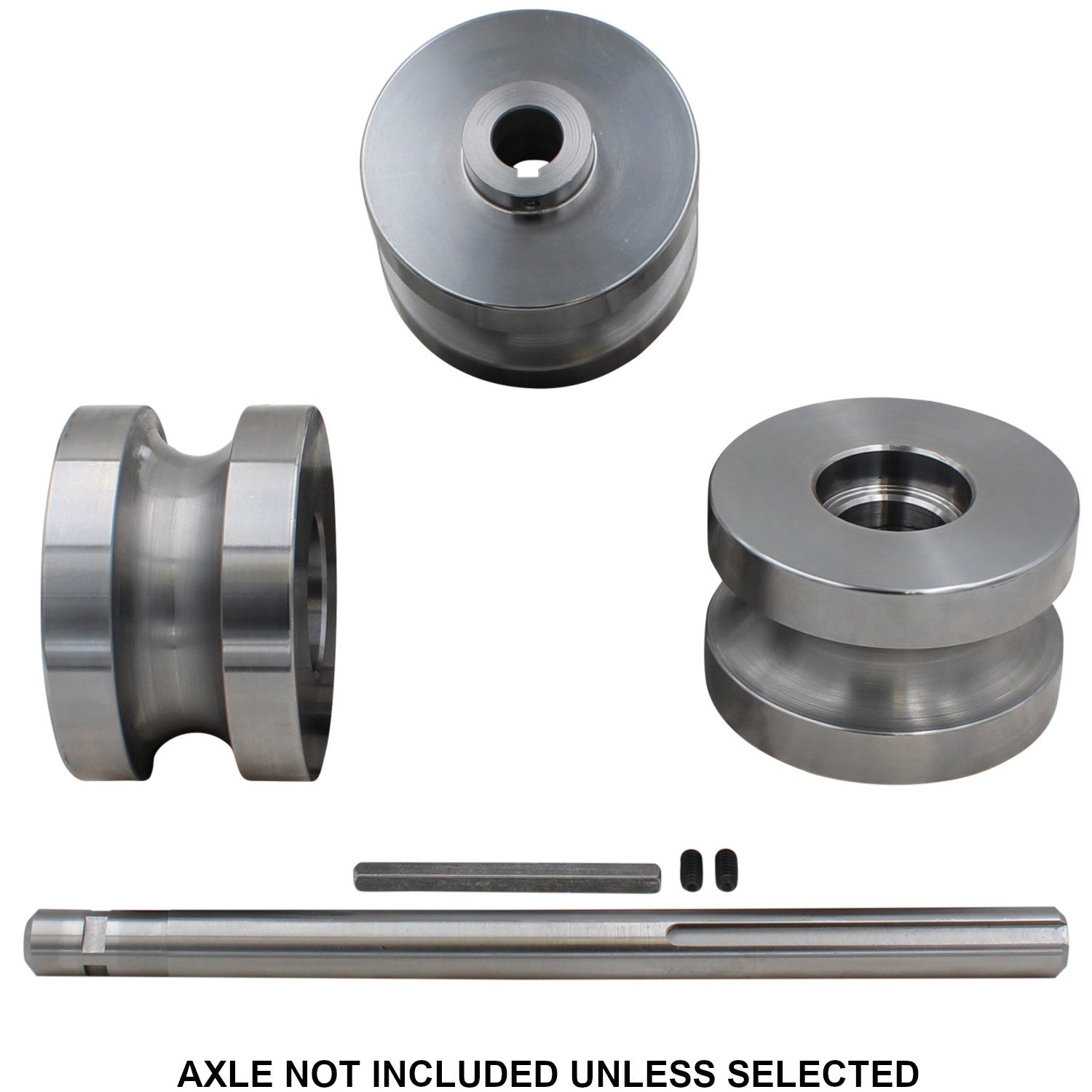

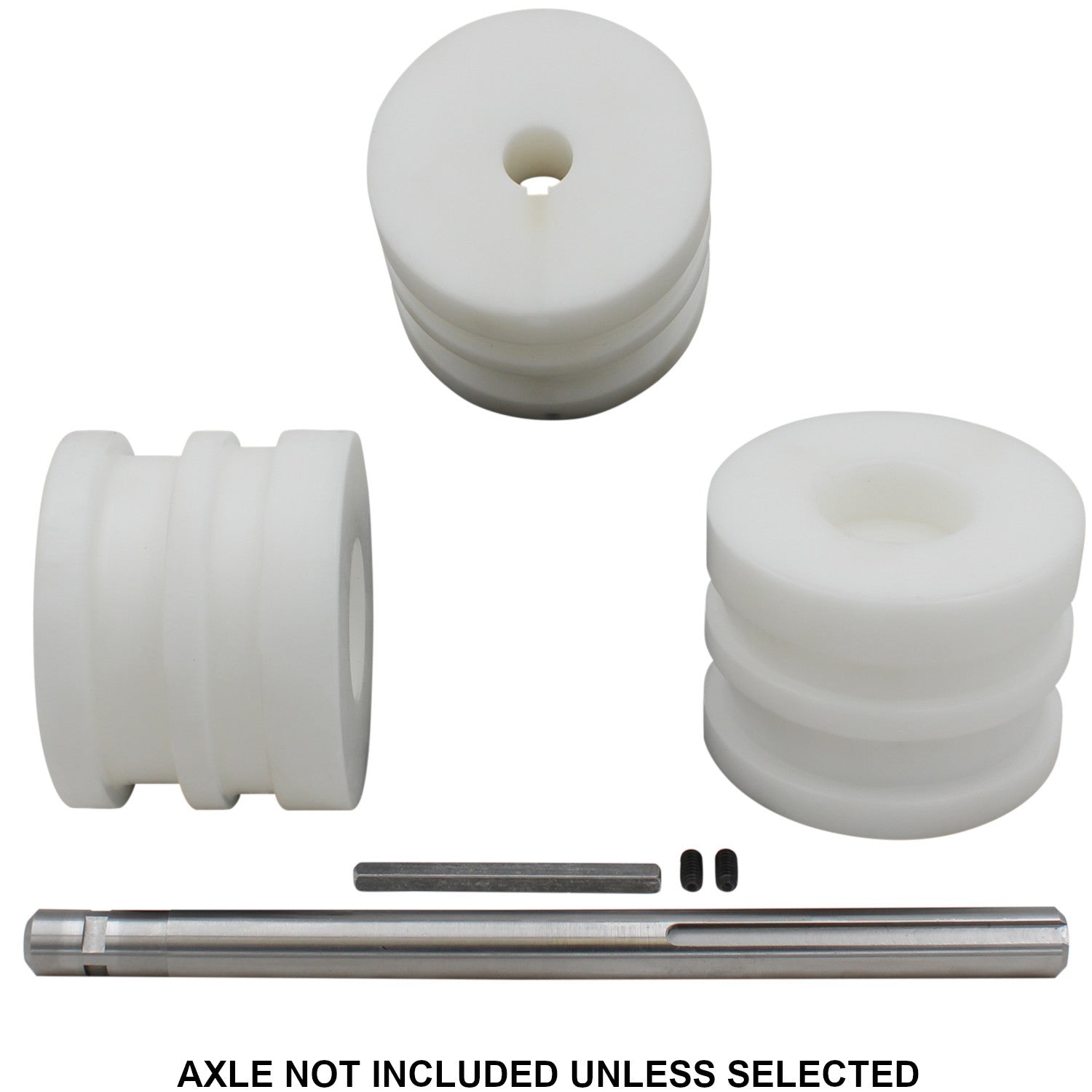

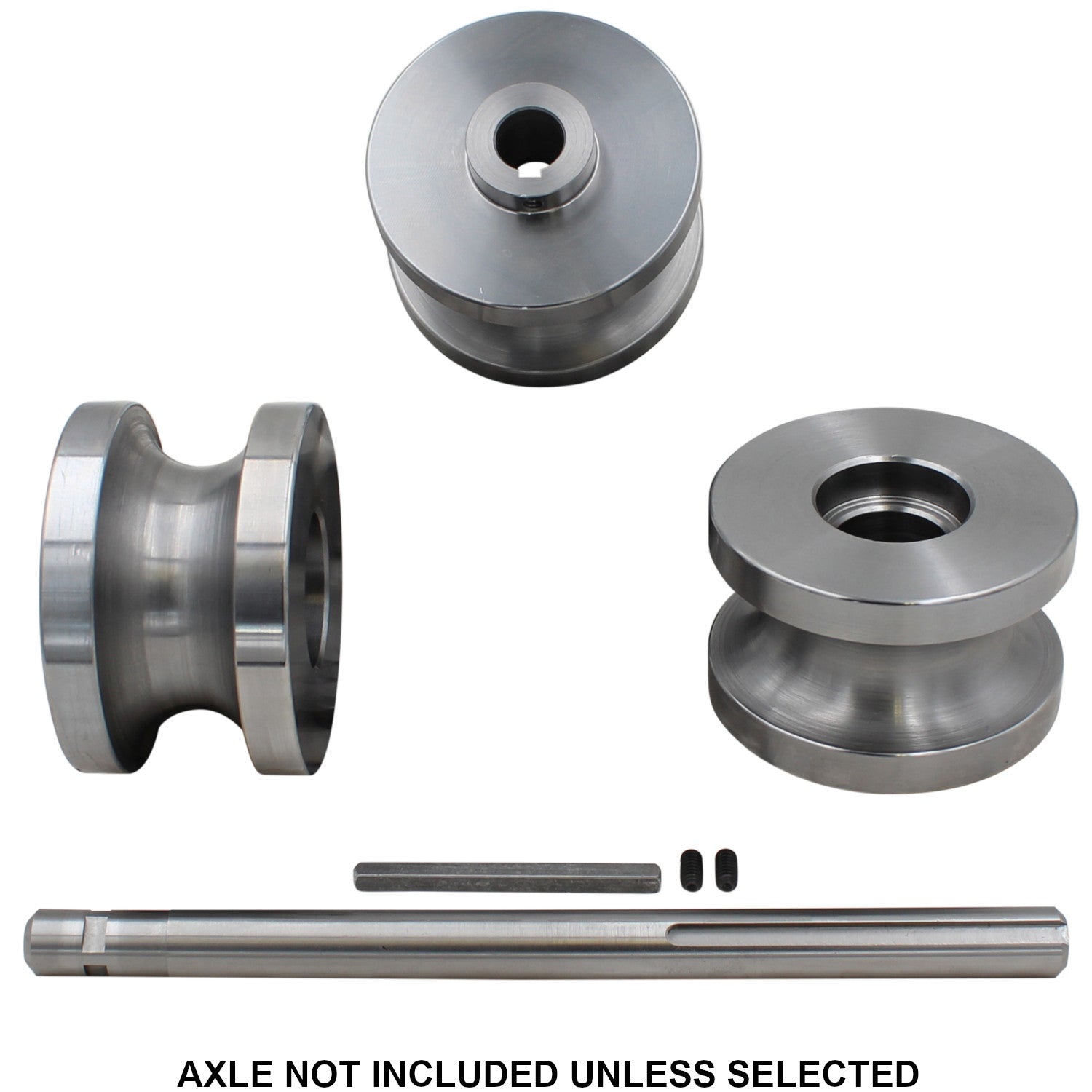

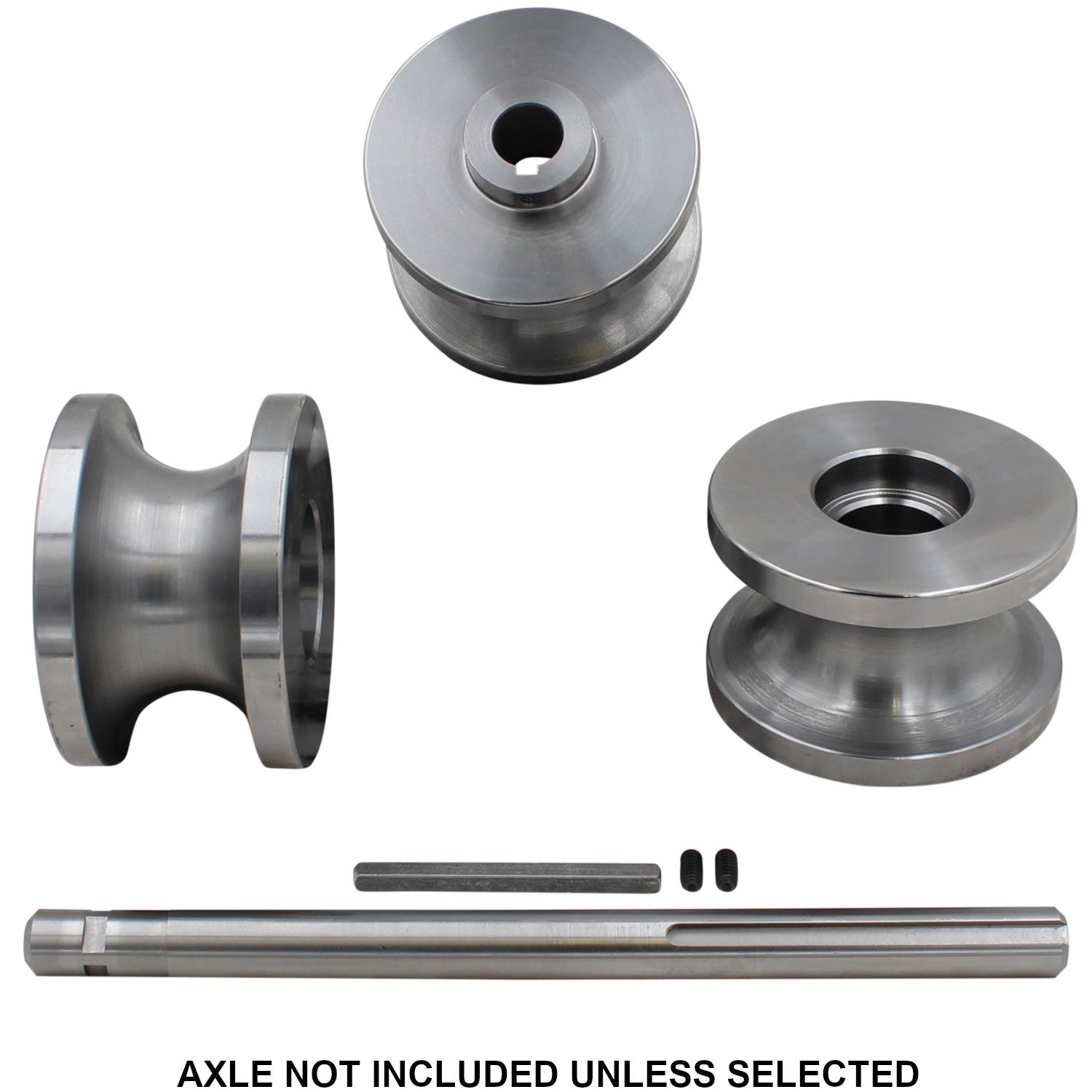

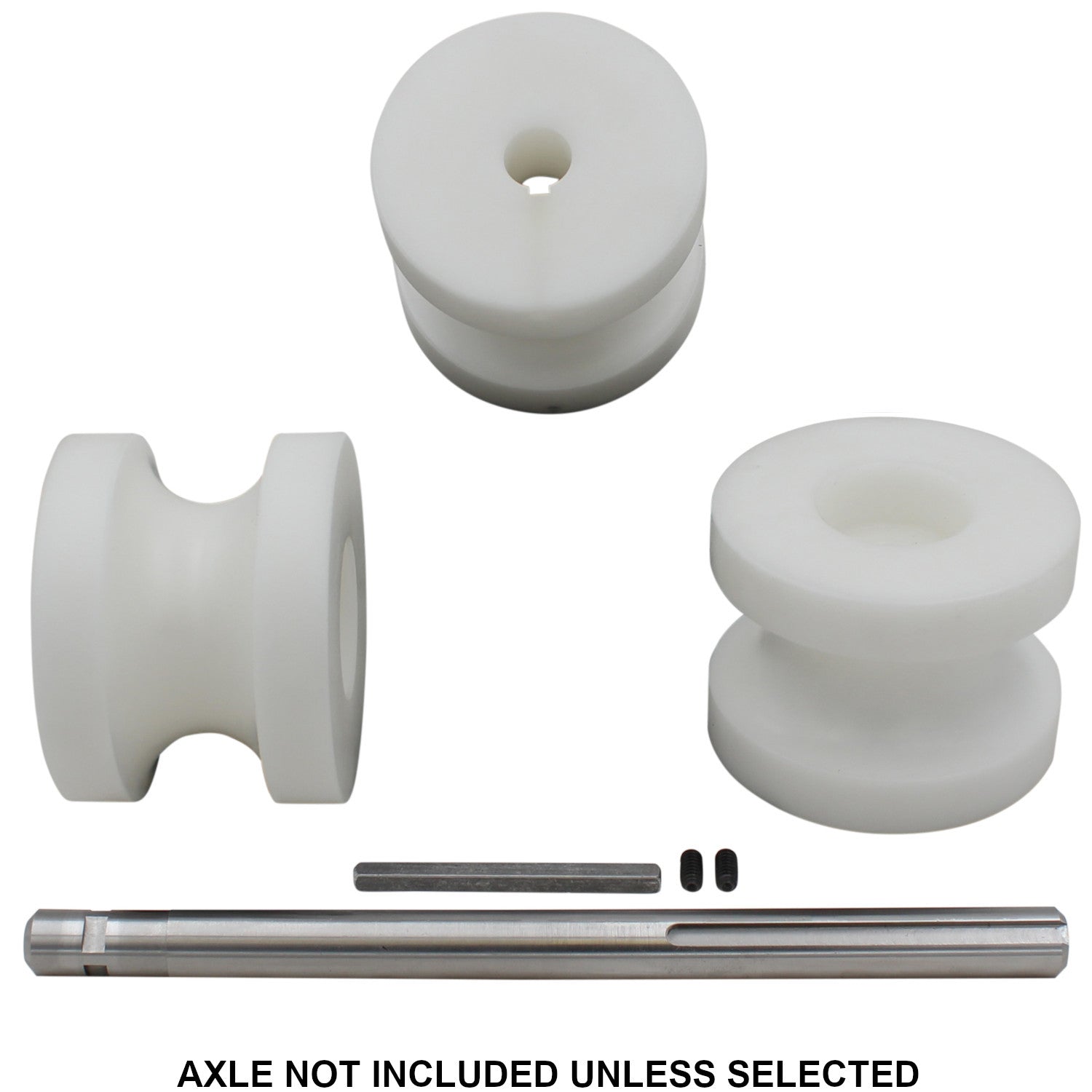

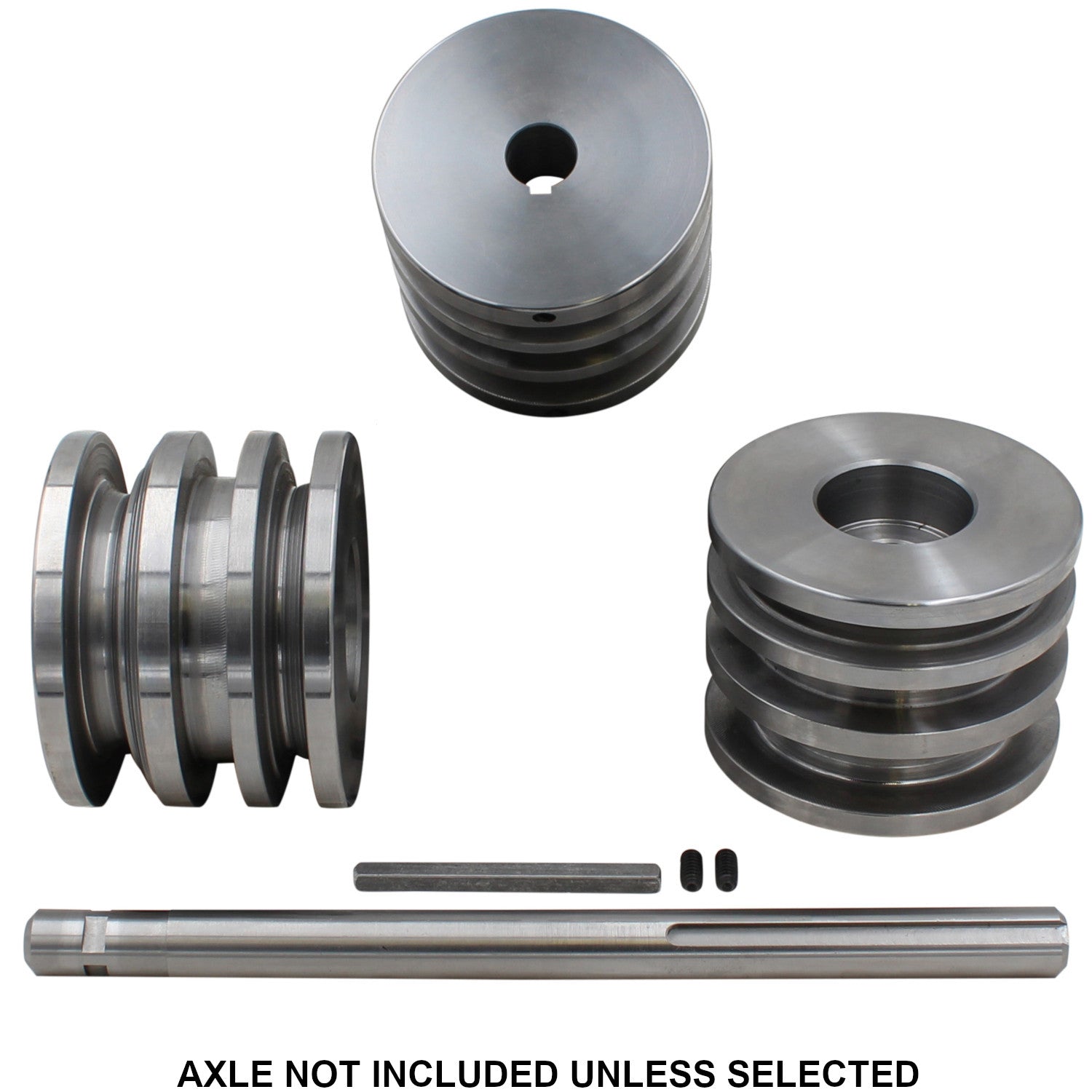

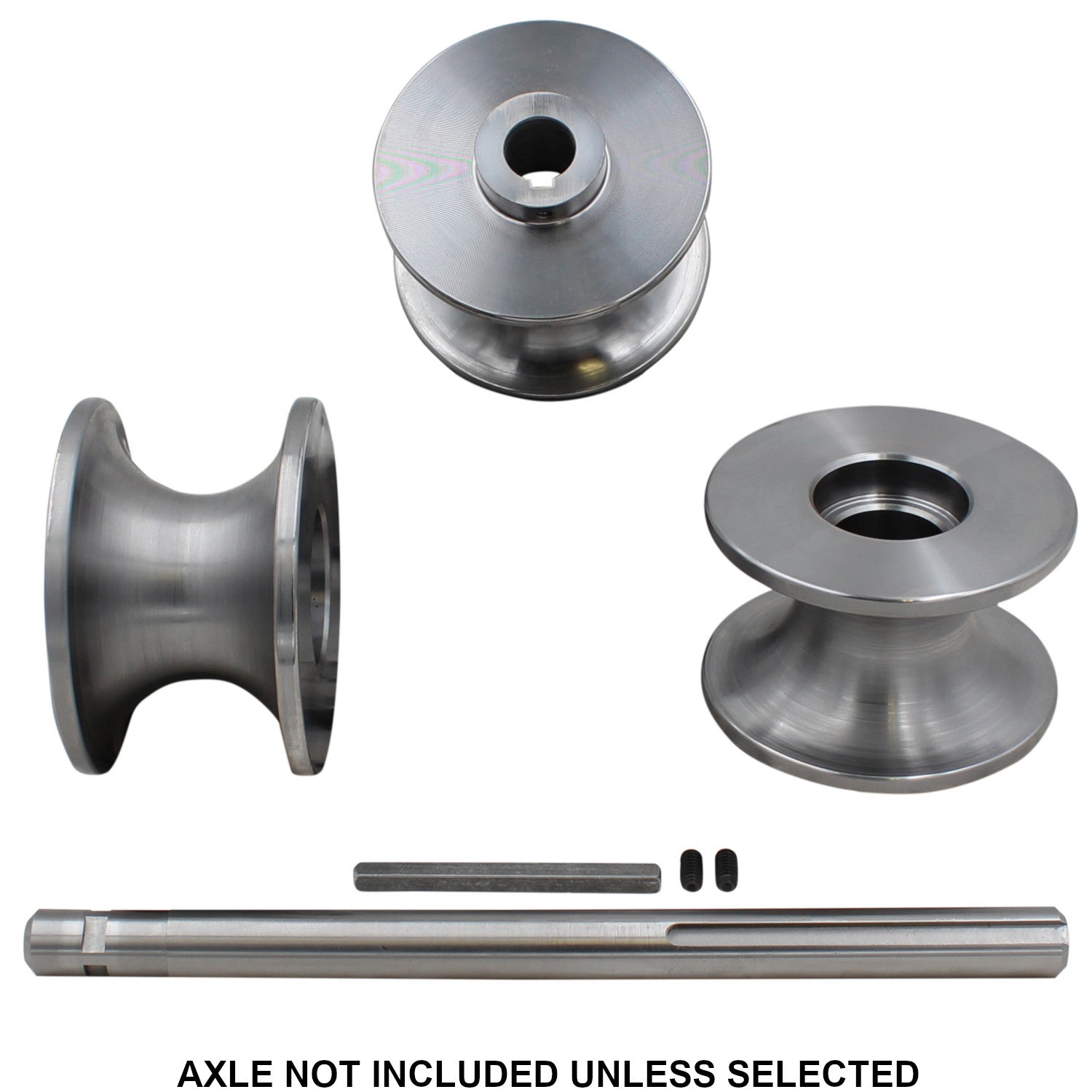

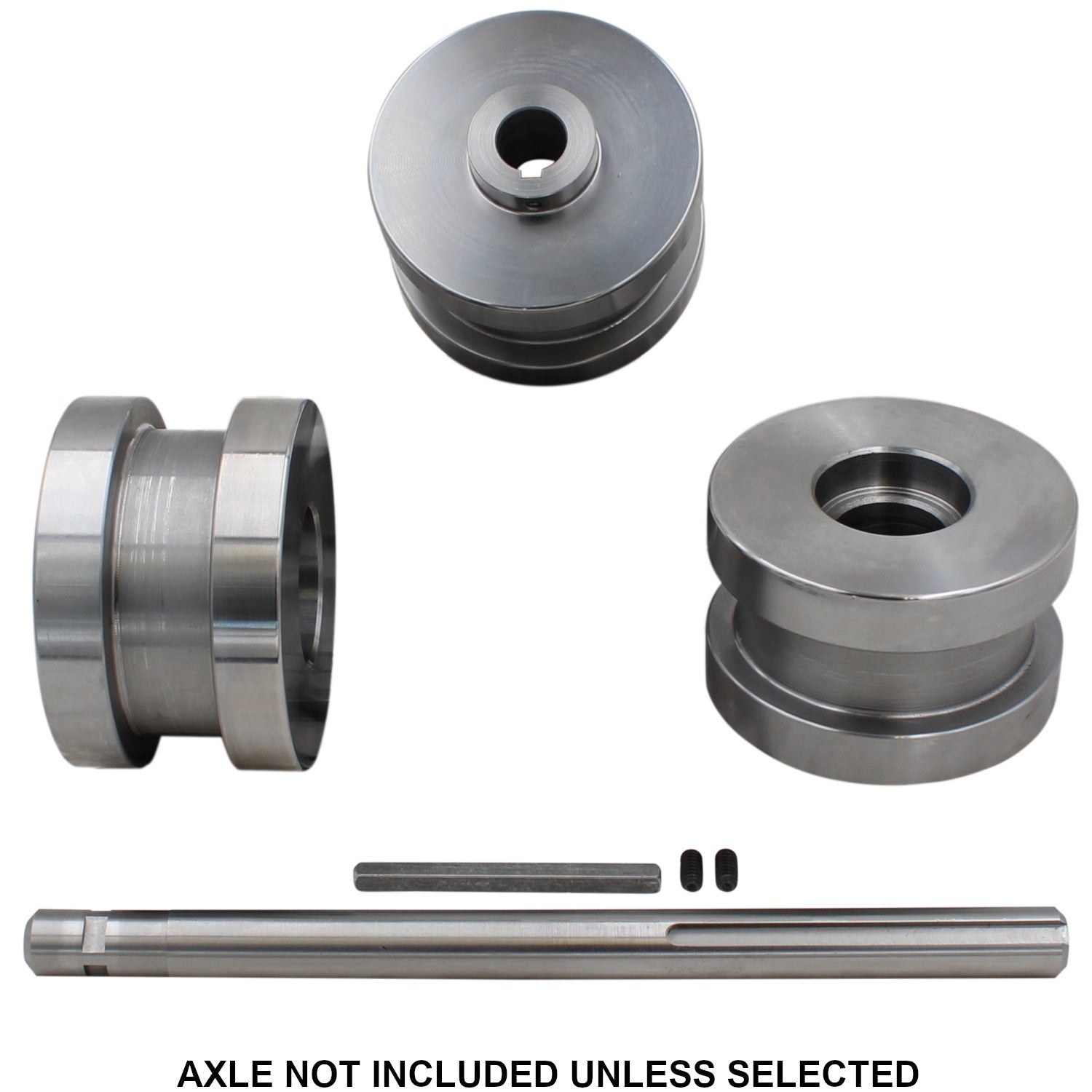

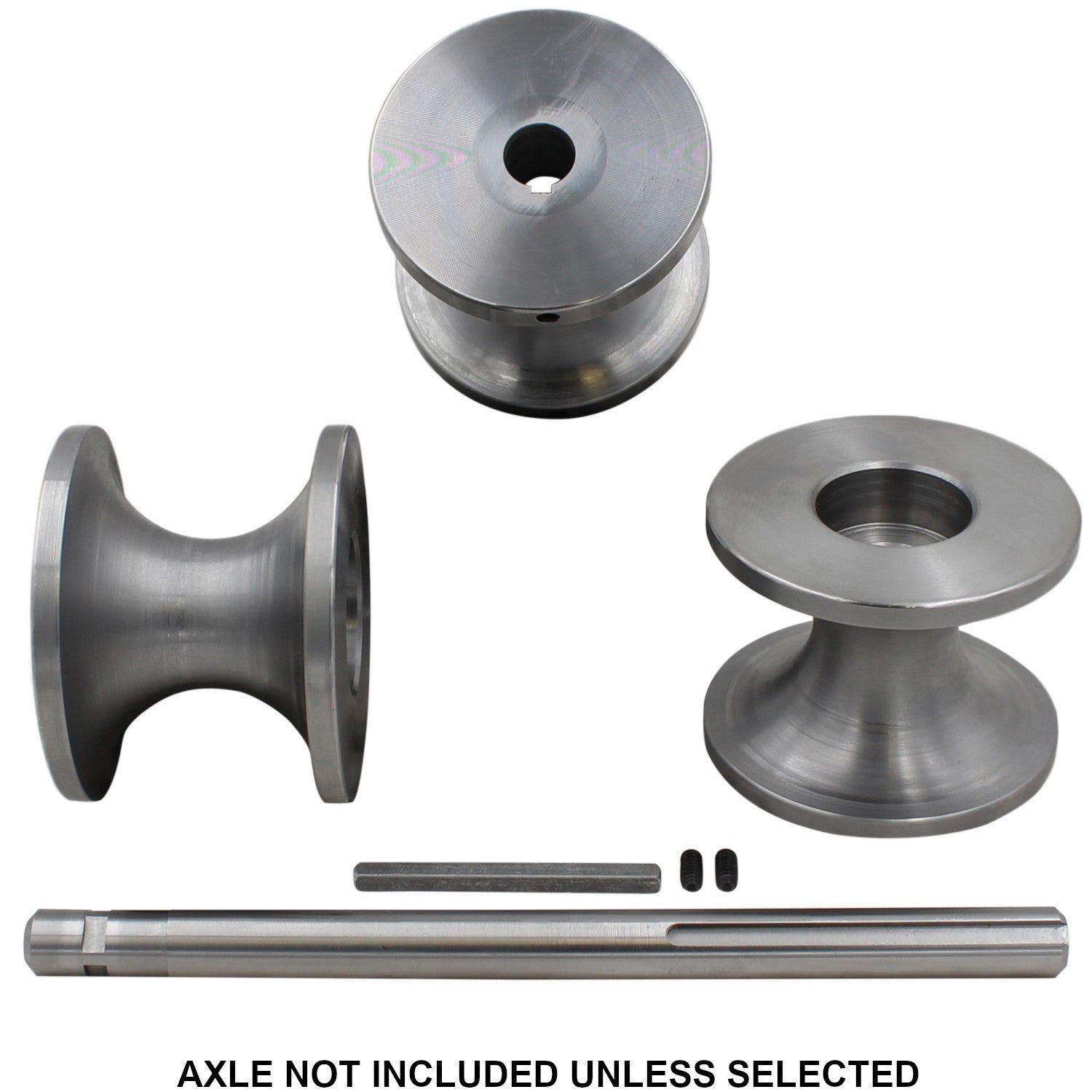

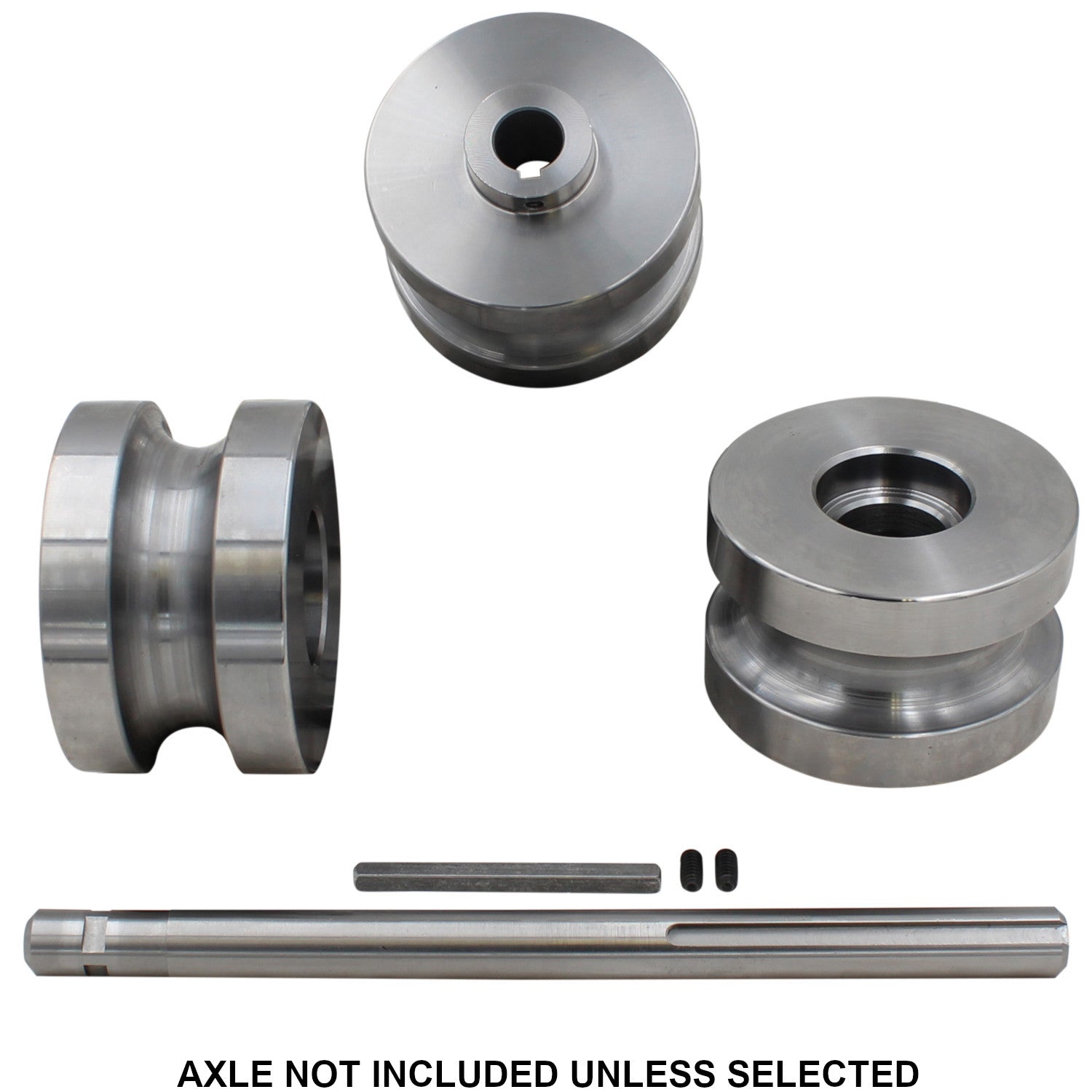

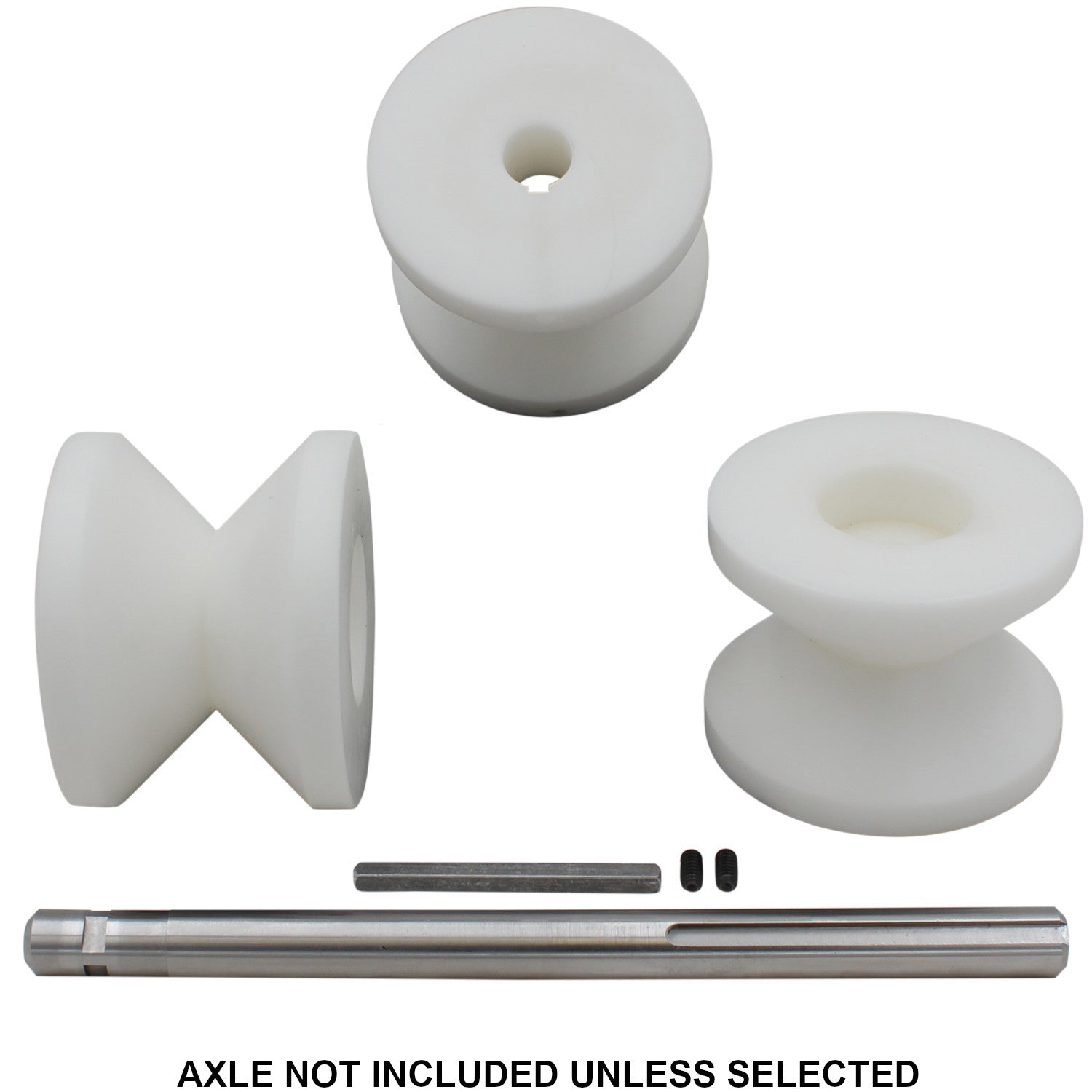

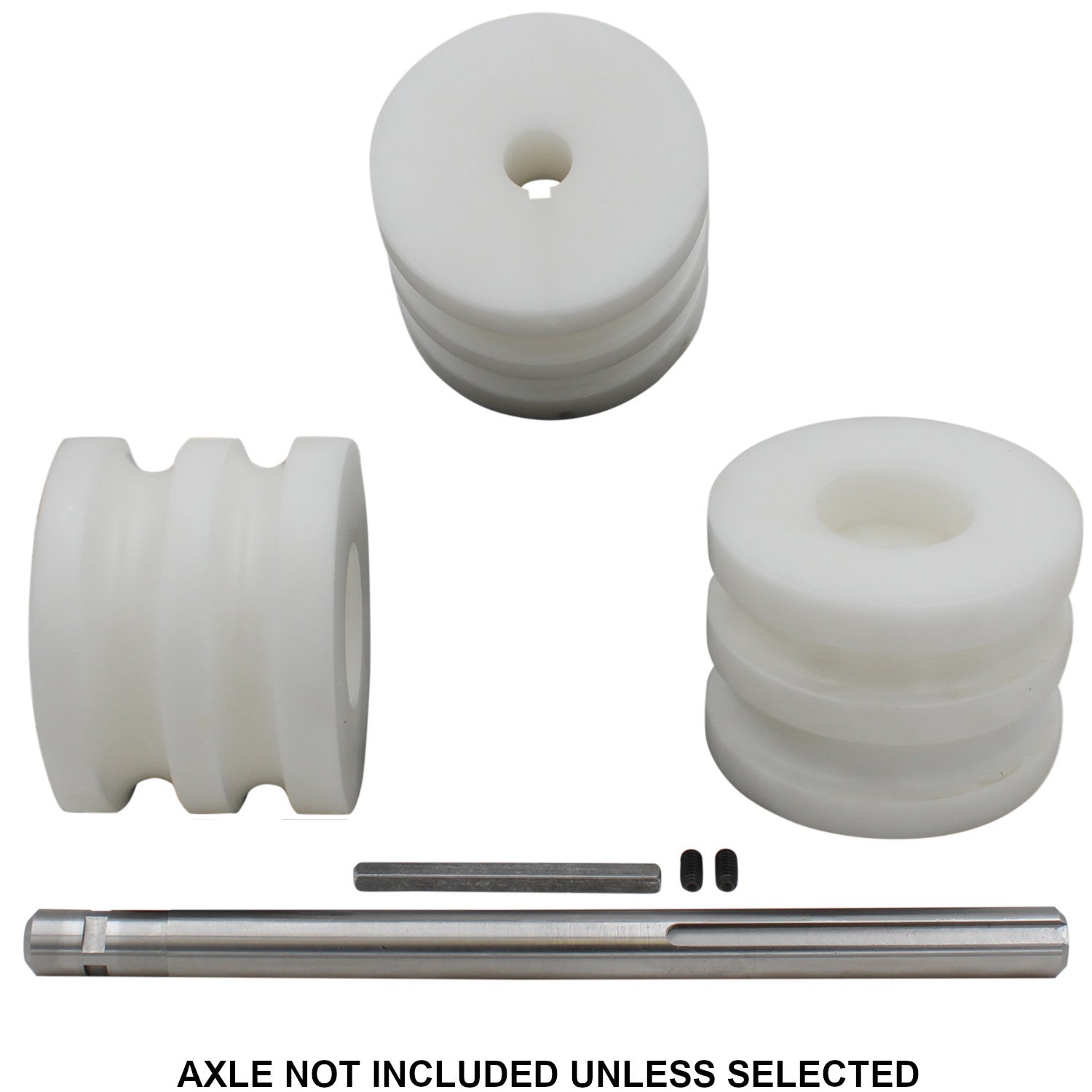

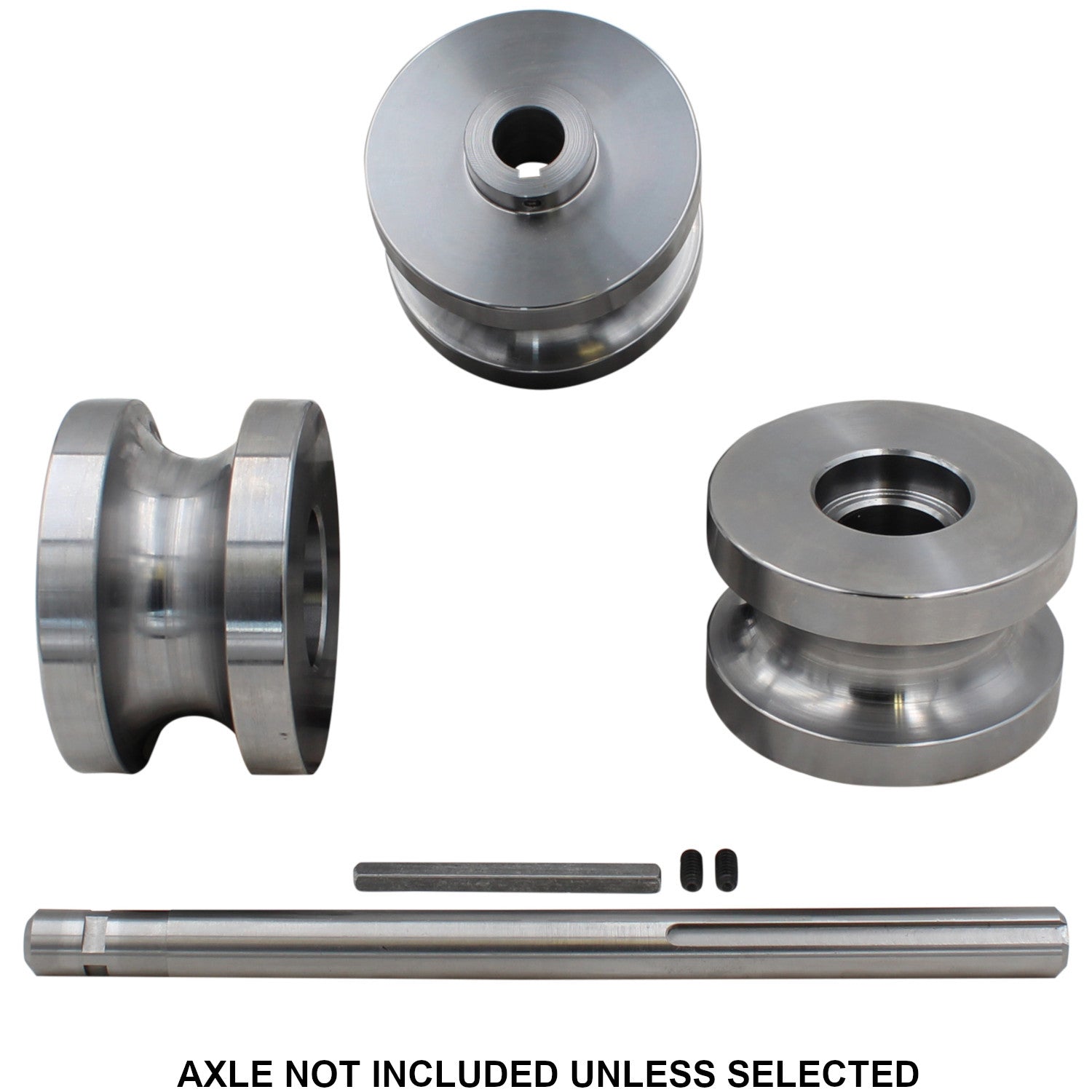

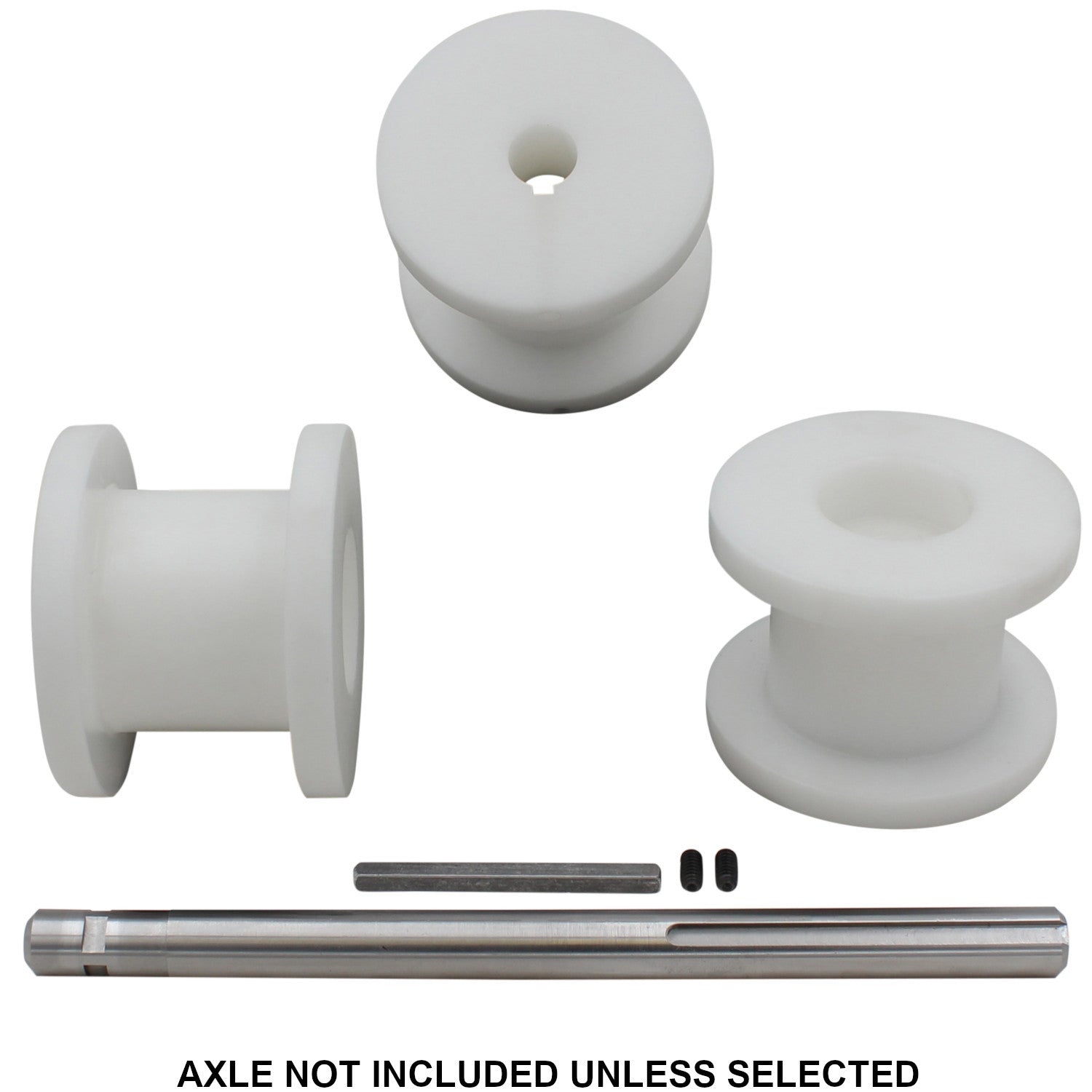

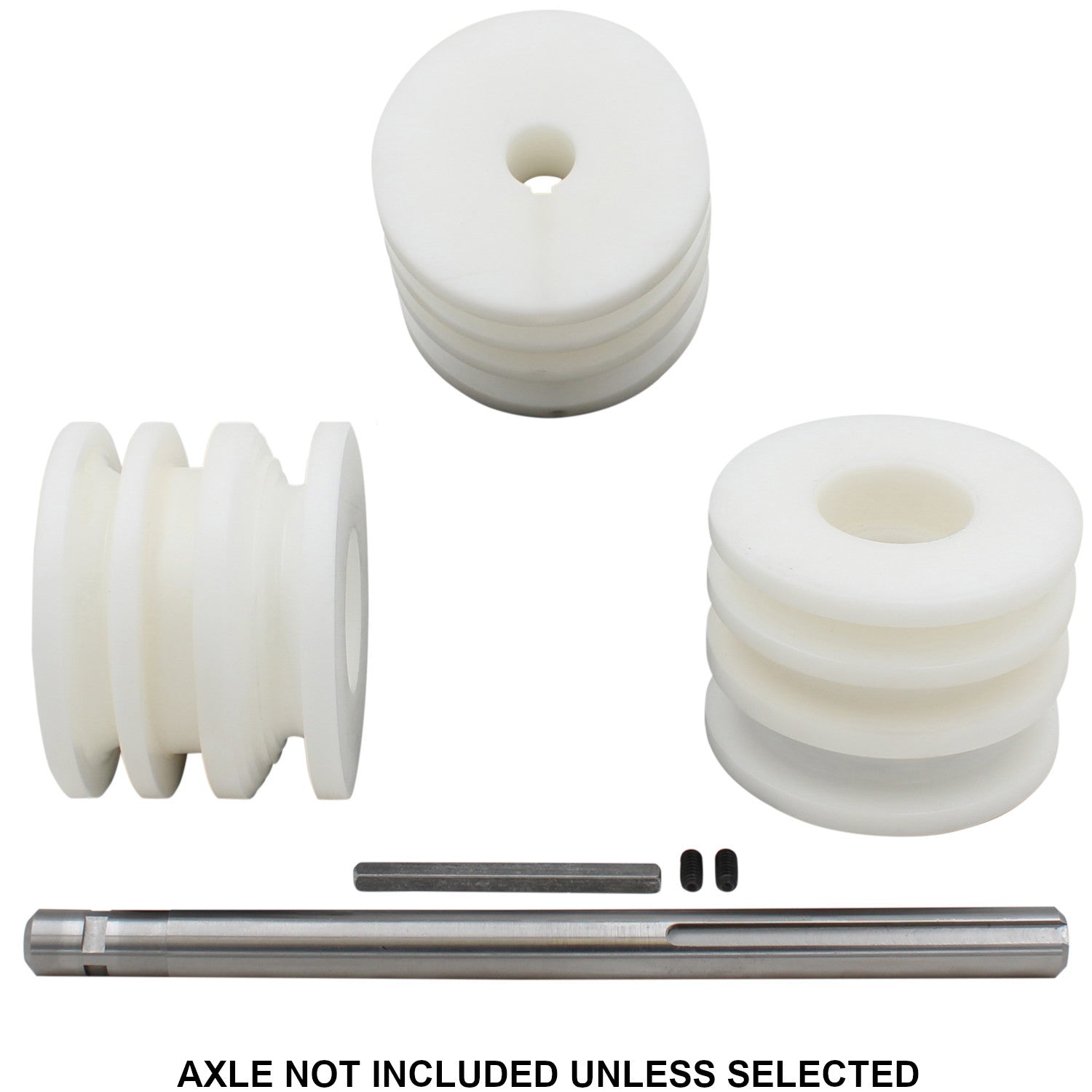

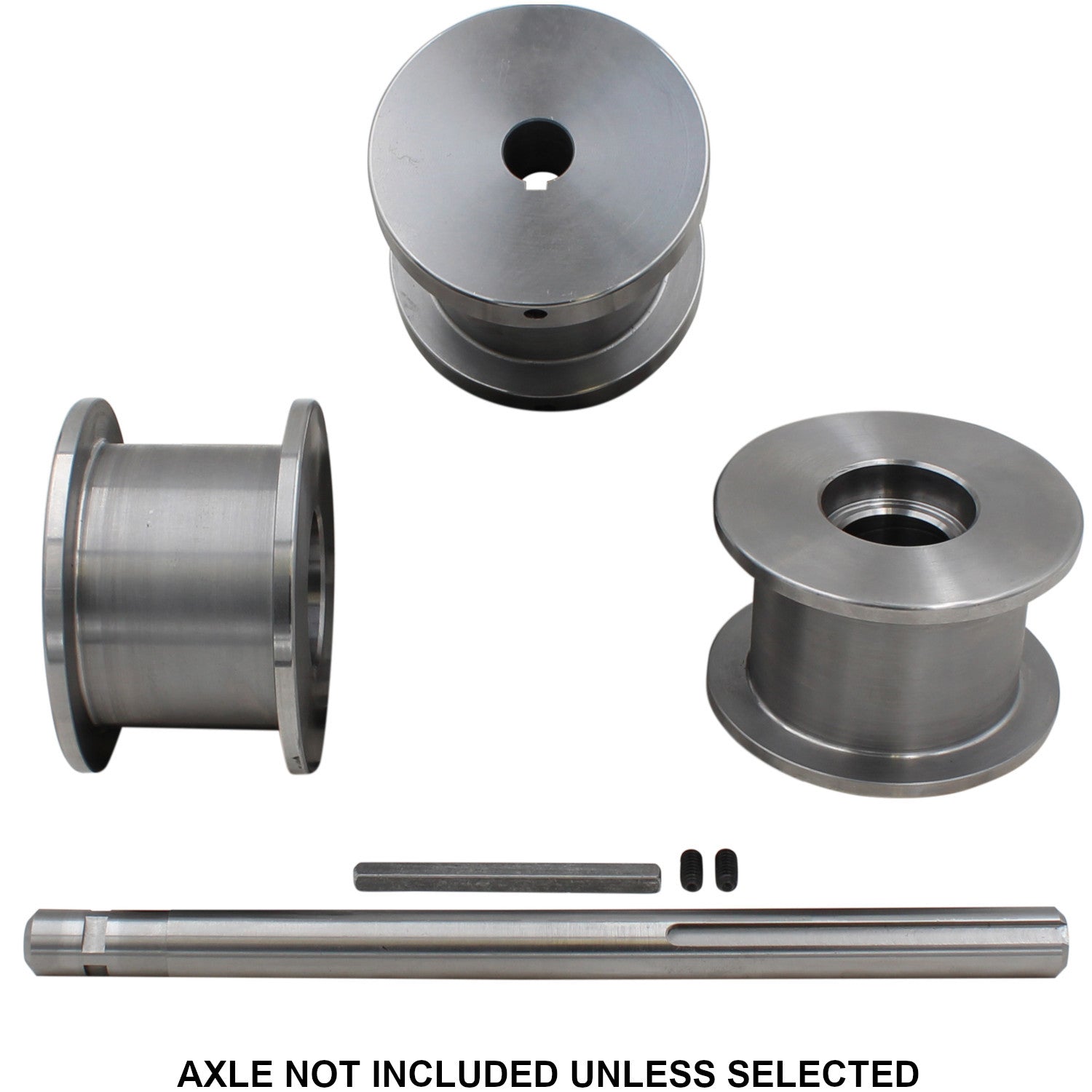

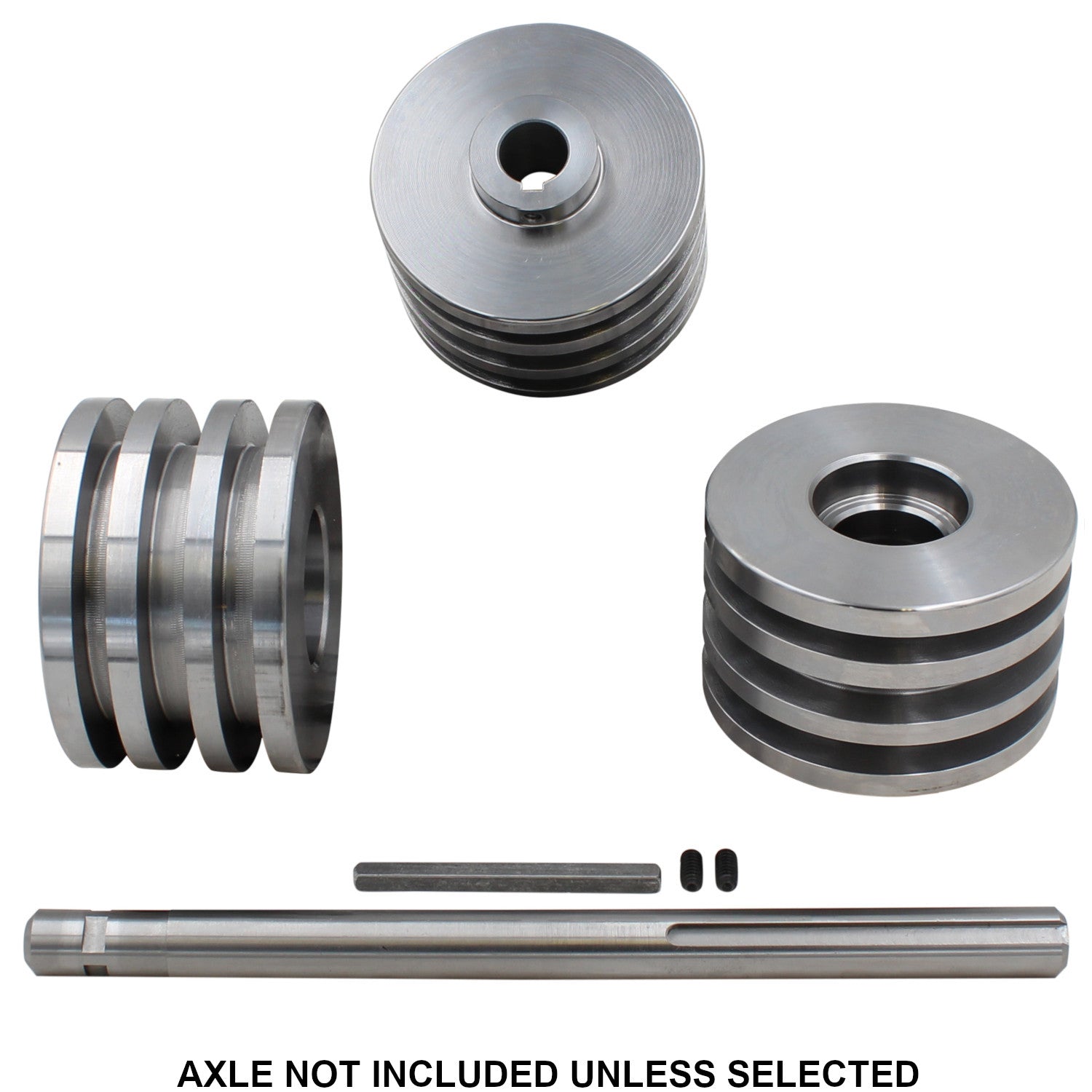

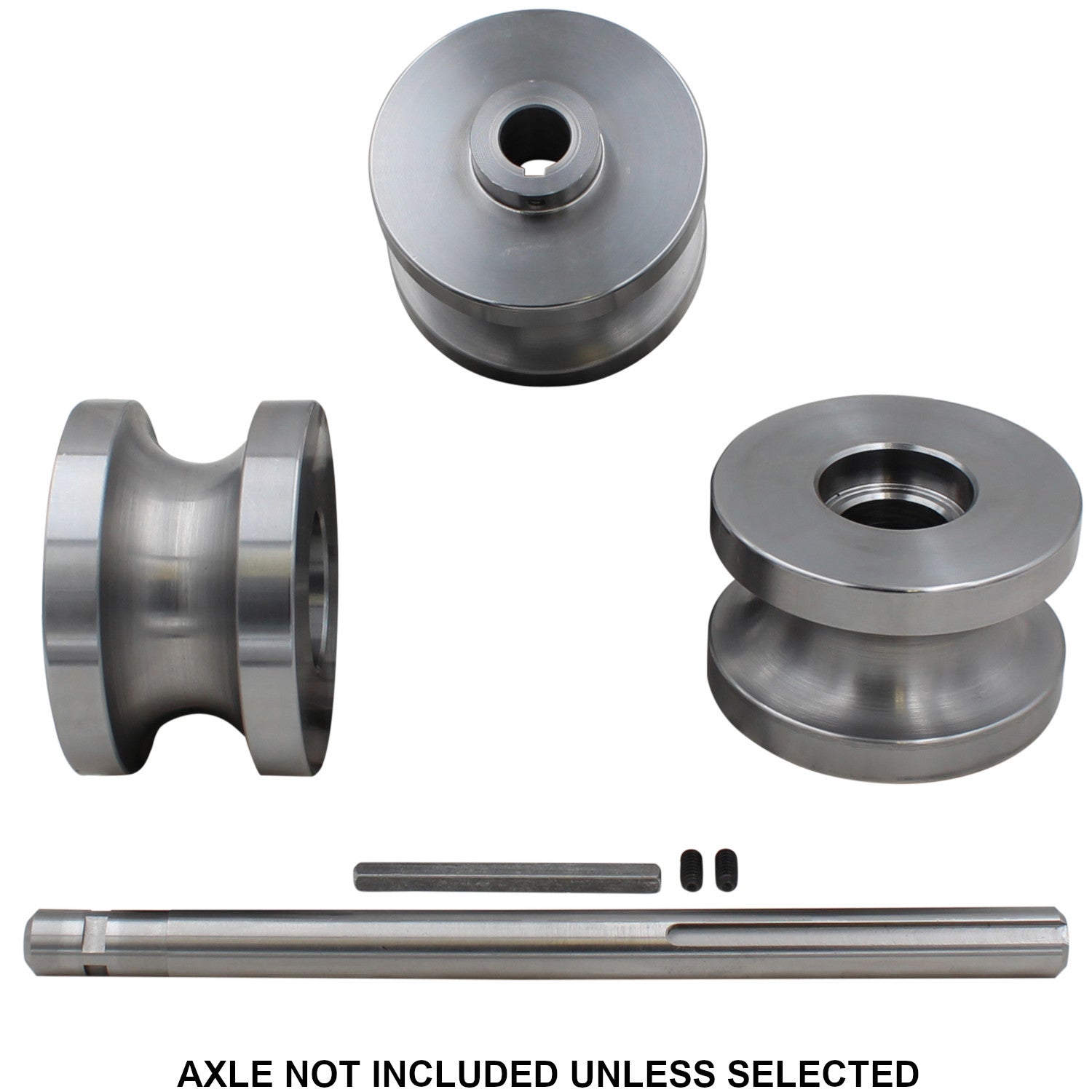

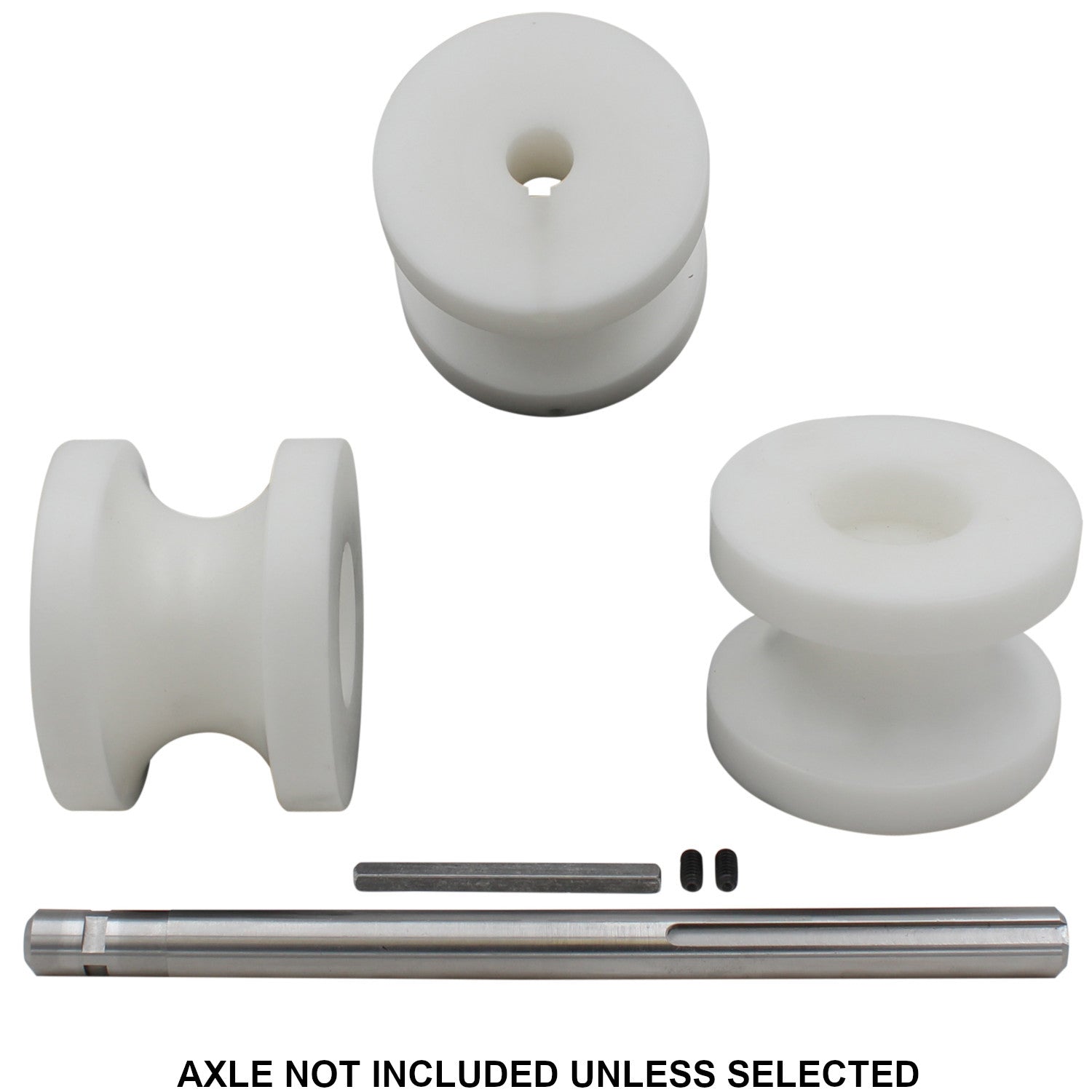

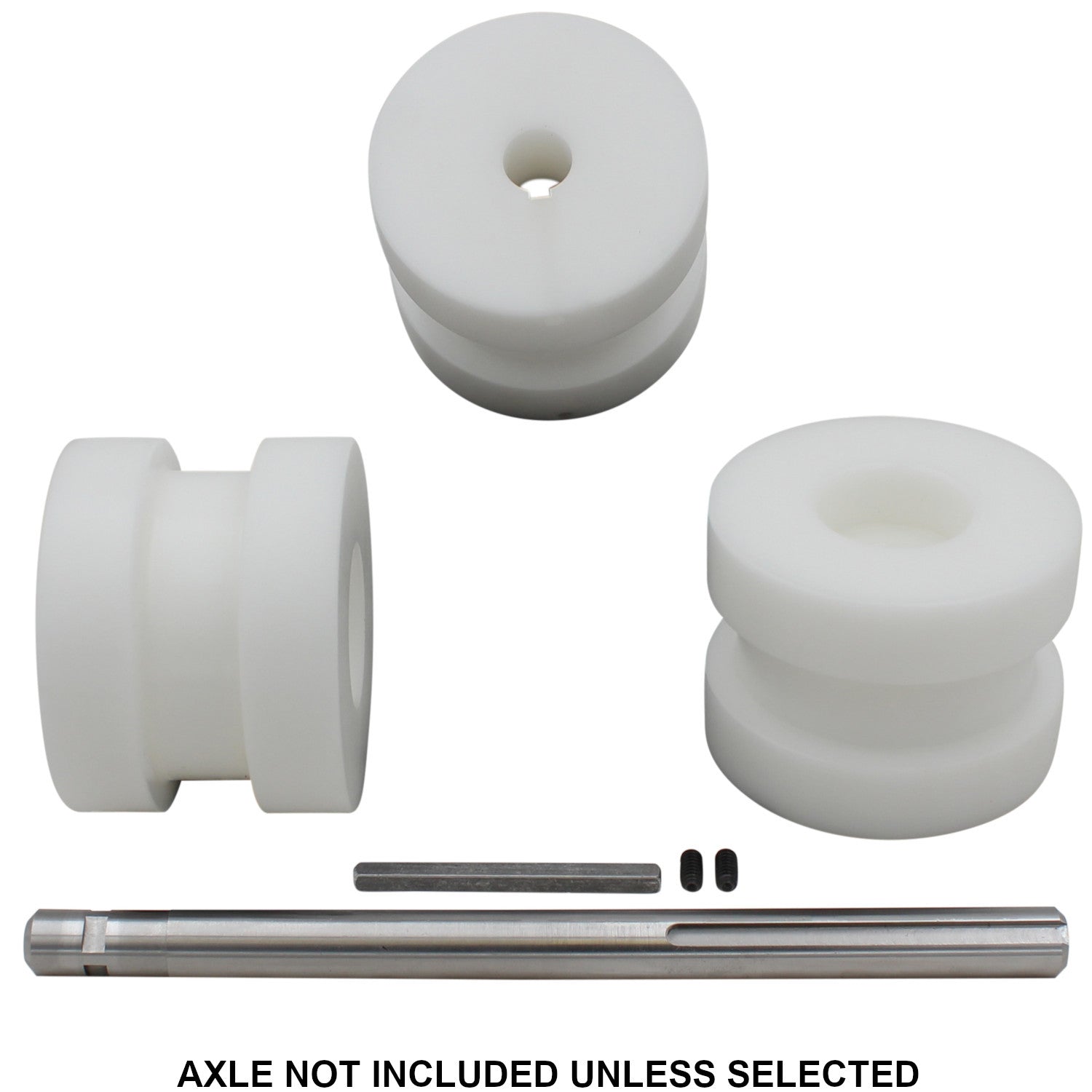

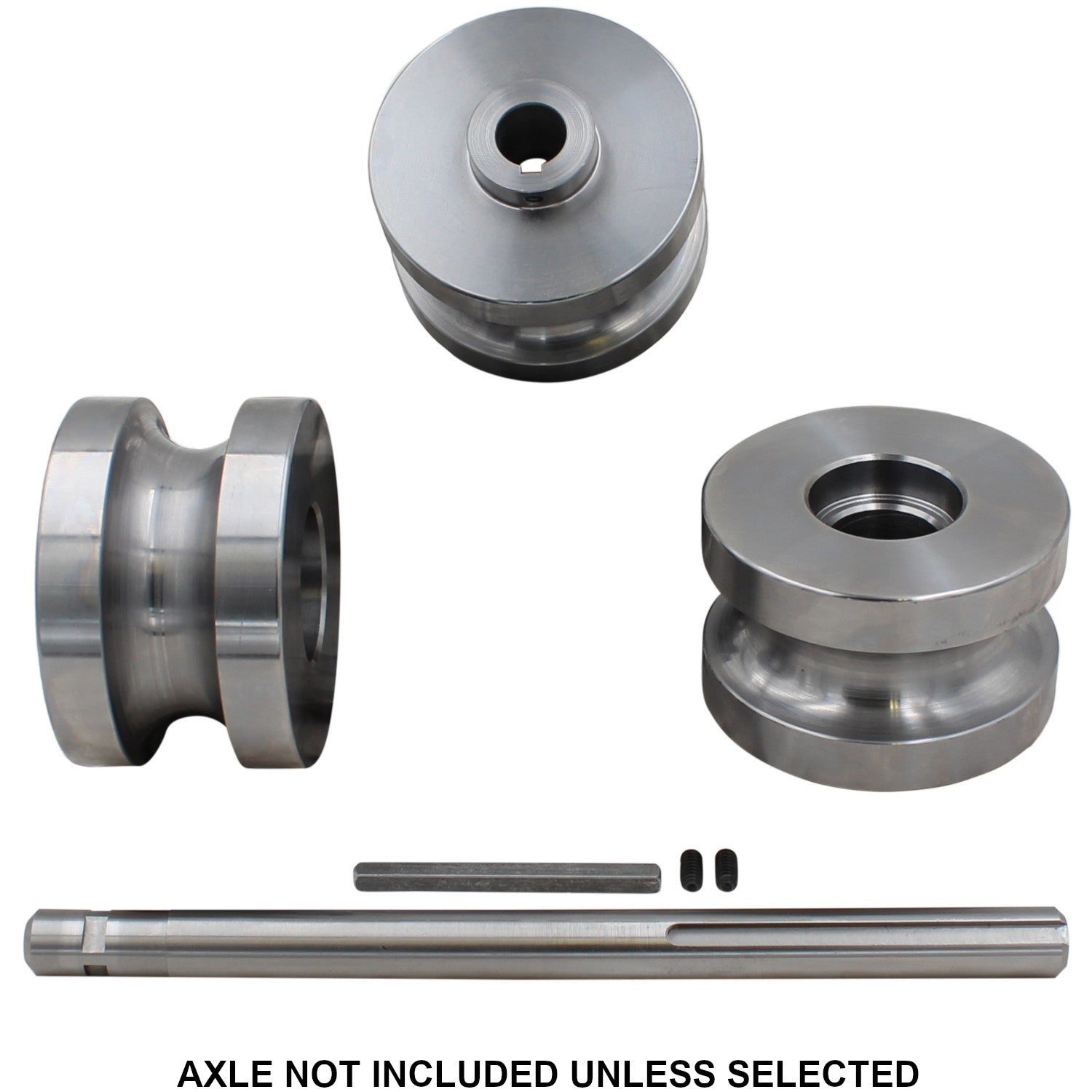

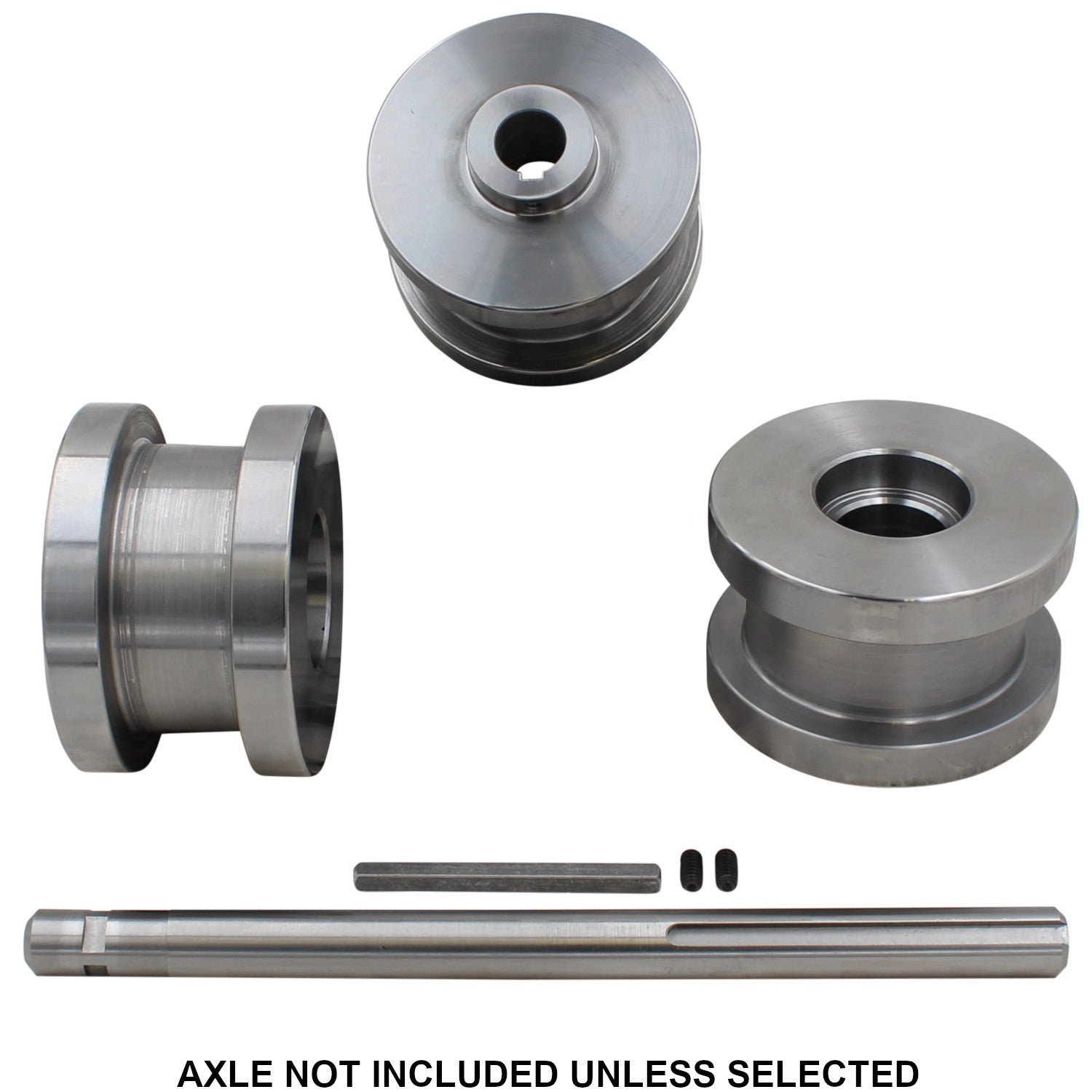

We currently offer 76 different die sizes compatible with round tube, round pipe, and square tubing. We also have a full line of unique dies for rolling flat bar, handrail cap, rectangular tubing, and square tubing in a diamond profile. In addition, we also offer a full line of Delrin dies in round tube, round pipe, and square sizes. Delrin dies are well suited for aluminum, copper, brass, and chrome finishes where abrasion or scratches on the material surface are not acceptable.

We use heat-treated 4340 chromoly for both the non-drive die axles as well as the center drive axle. The center drive dies are fully keyed to the drive axle to ensures smooth operation and a solid connection. Weighing in at 80 pounds, this machine is a real beast!

If you have any experience rolling tubing, you know that most machines have a few main issues; the material twisting as it is rolled and how difficult it is to make repeatable bends. We have addressed the first issue by implementing several key design features. The 4340 chromoly non-drive axles are machined down to a tolerance of +/-.003” and two adjustable shaft collars on each axle are used to keep the dies perfectly centered between the ¼” thick steel frame plates. This prevents any side to side play that can cause the material to corkscrew as it is roller.

The second cause of material twisting is play in the center drive yoke. There are several large radius rollers on the market that use a cast steel yoke or a formed piece of steel to hold the center drive roller in place. Unfortunately, cast and formed parts will never be perfectly square or straight. When the center yoke is not square, the drive die tends to contact the material you are rolling with uneven pressure, thus pushing your material to one side, and causing it to twist. The center drive yoke on the HULK is made of 3 pieces of ¾” thick steel which have been fully machined and bolted together to ensure a perfectly flat and square yoke. This means the downward force that the drive die exerts on the material is always straight down, thus preventing any twisting as you roll and helping to prevent irregular material deformation.

Another often overlooked issue many people experience when rolling tube is the challenge of creating repeatable radius bends. The HULK includes a high-quality digital read out height gauge that measures downward travel of the center drive die, making it easier to create the same arc over and over. To use the DRO, place your material in the roller then “zero” the height gauge when the drive die is barely touching the material. Roll one piece of material to the desired radius and record the location of the outer dies as well as the measurement displayed on the digital read out. If you need to create the same part in the future from the same material, just put the non-drive dies in the same location and roll until the DRO gives you the correct measurement. Easy!

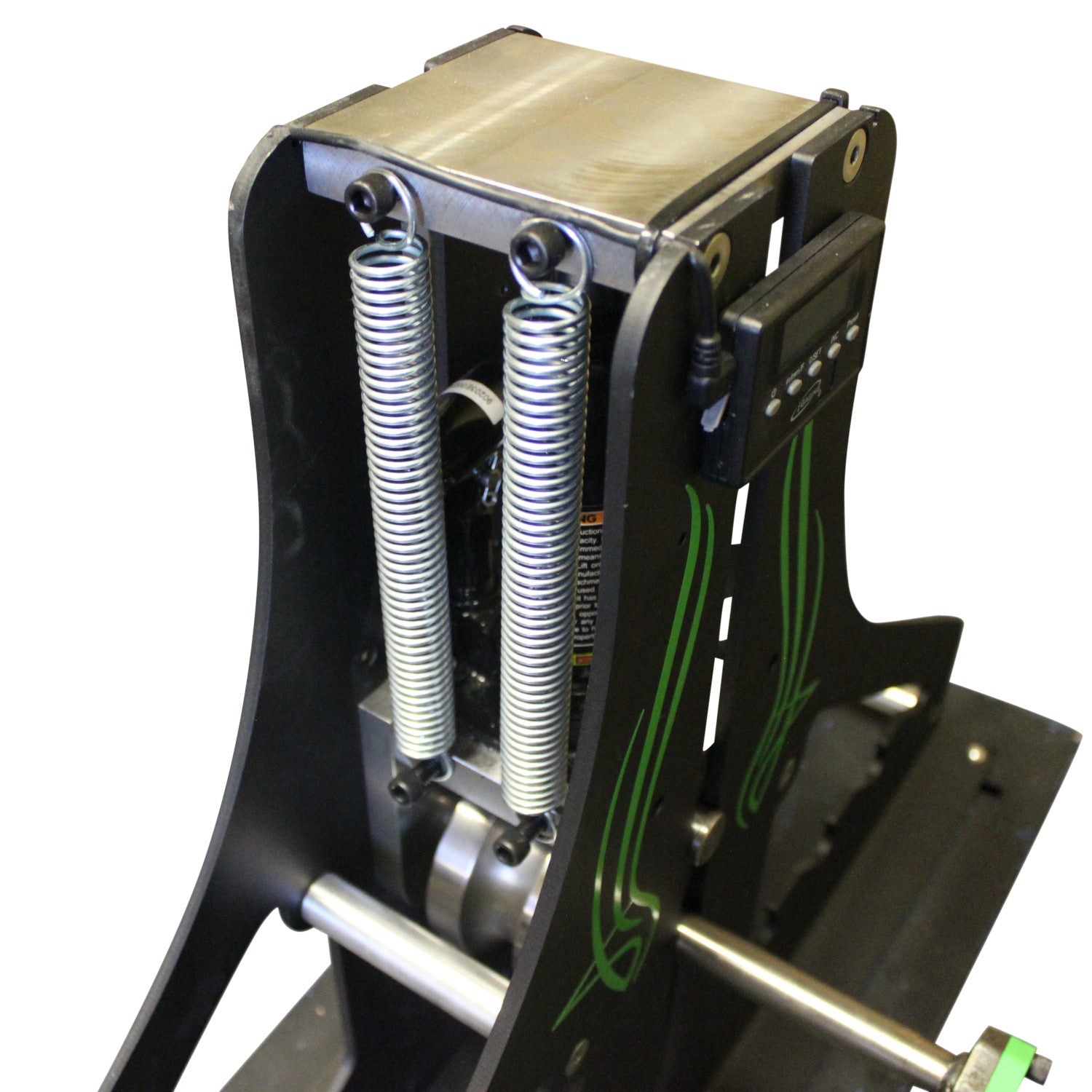

Most rollers on the market use a large top-screw to apply downward pressure on the material and cause it to form a radius. Tightening the top screw can be quite difficult when working with thick-walled material or square tubing in general. The HULK uses a 2-ton bottle jack. This makes applying smooth, consistent downward force much easier. The 2-ton bottle jack is bolted to the top of the drive yoke to prevent any movement while under load and ensure it is always perfectly centered over your material.

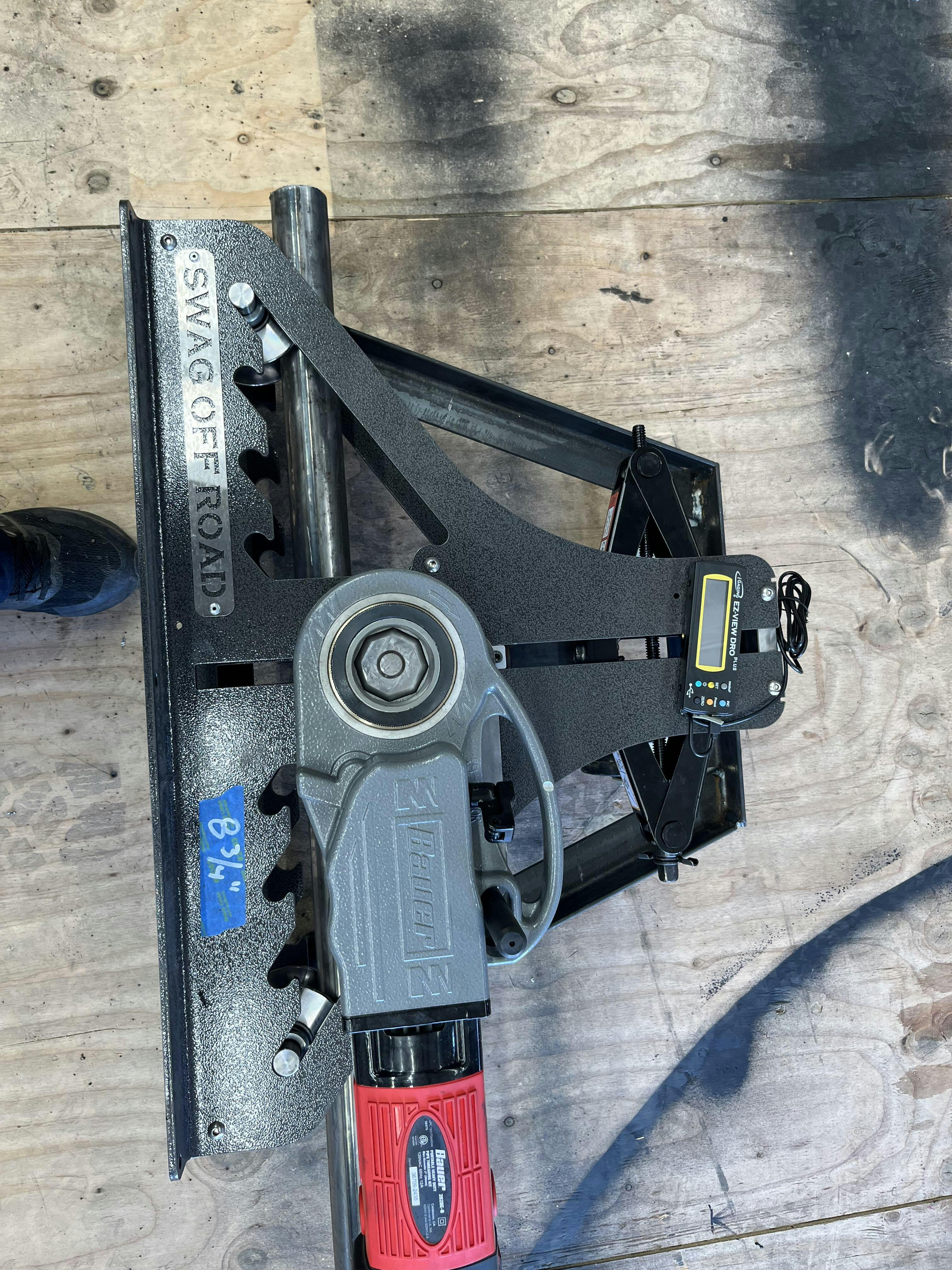

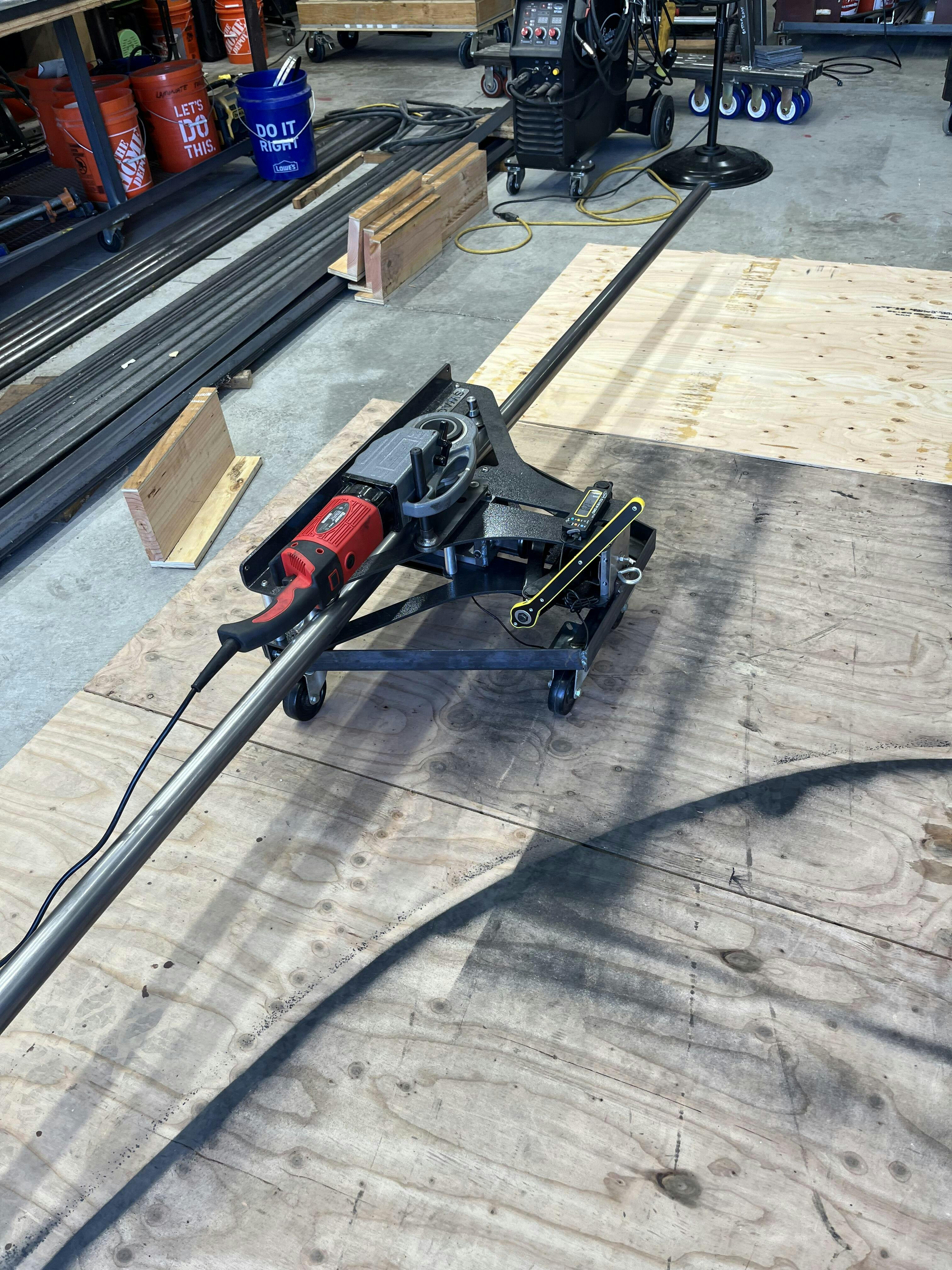

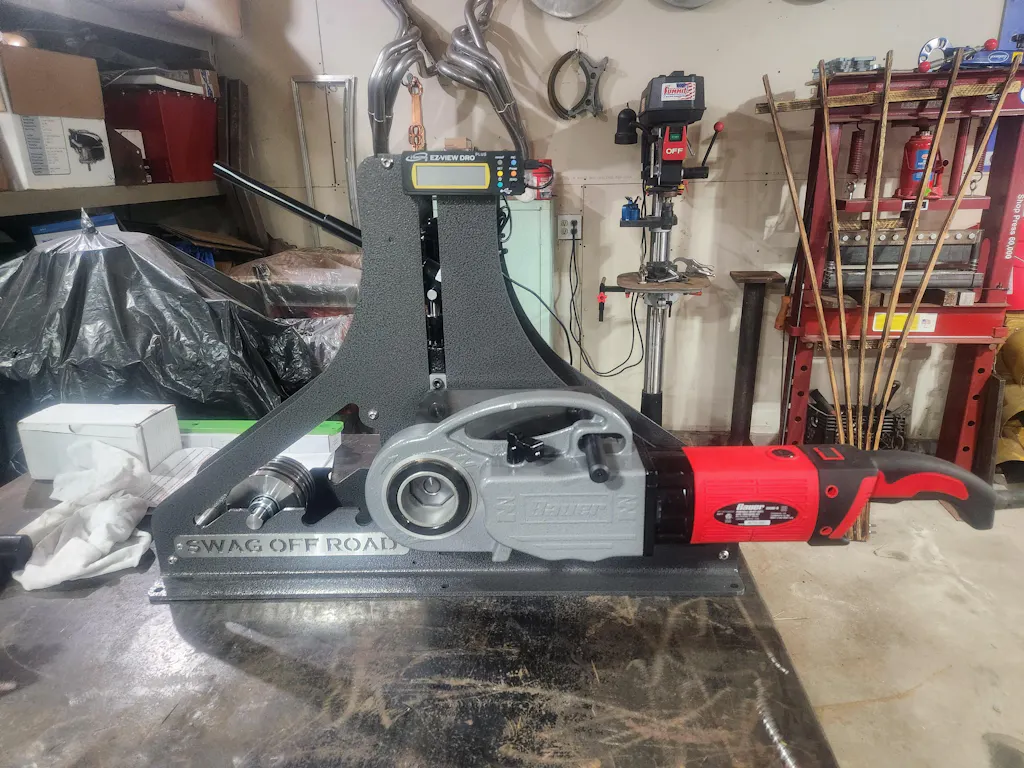

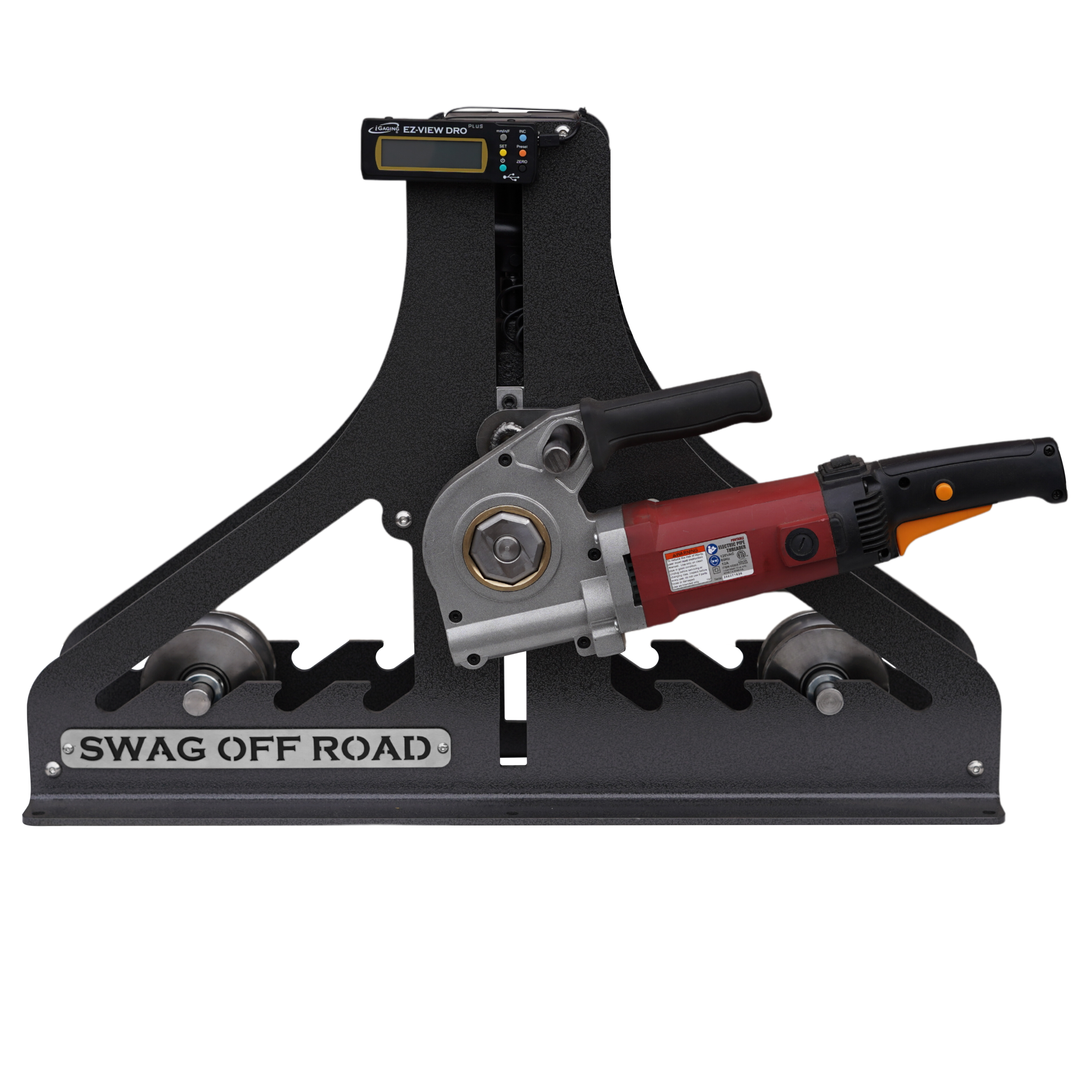

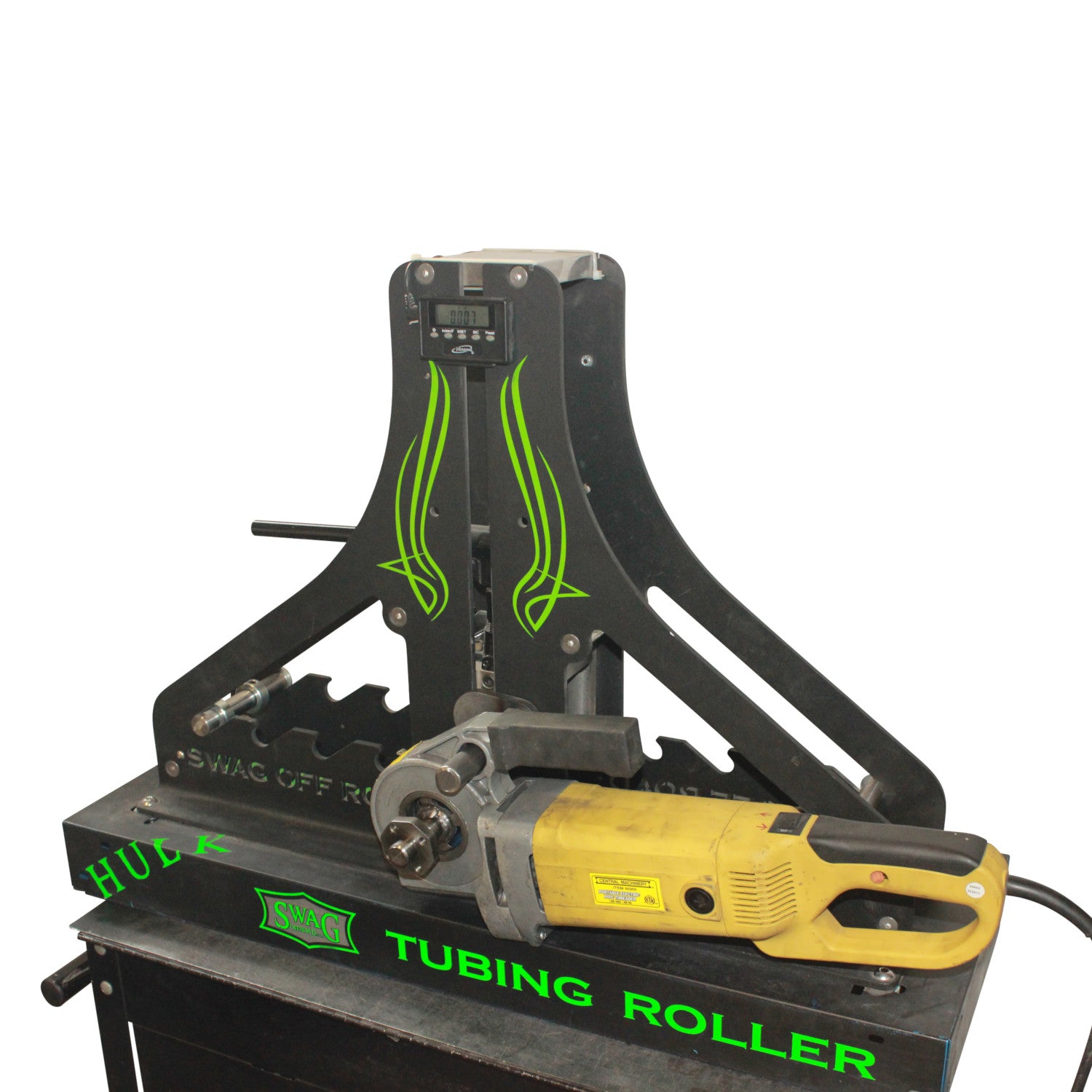

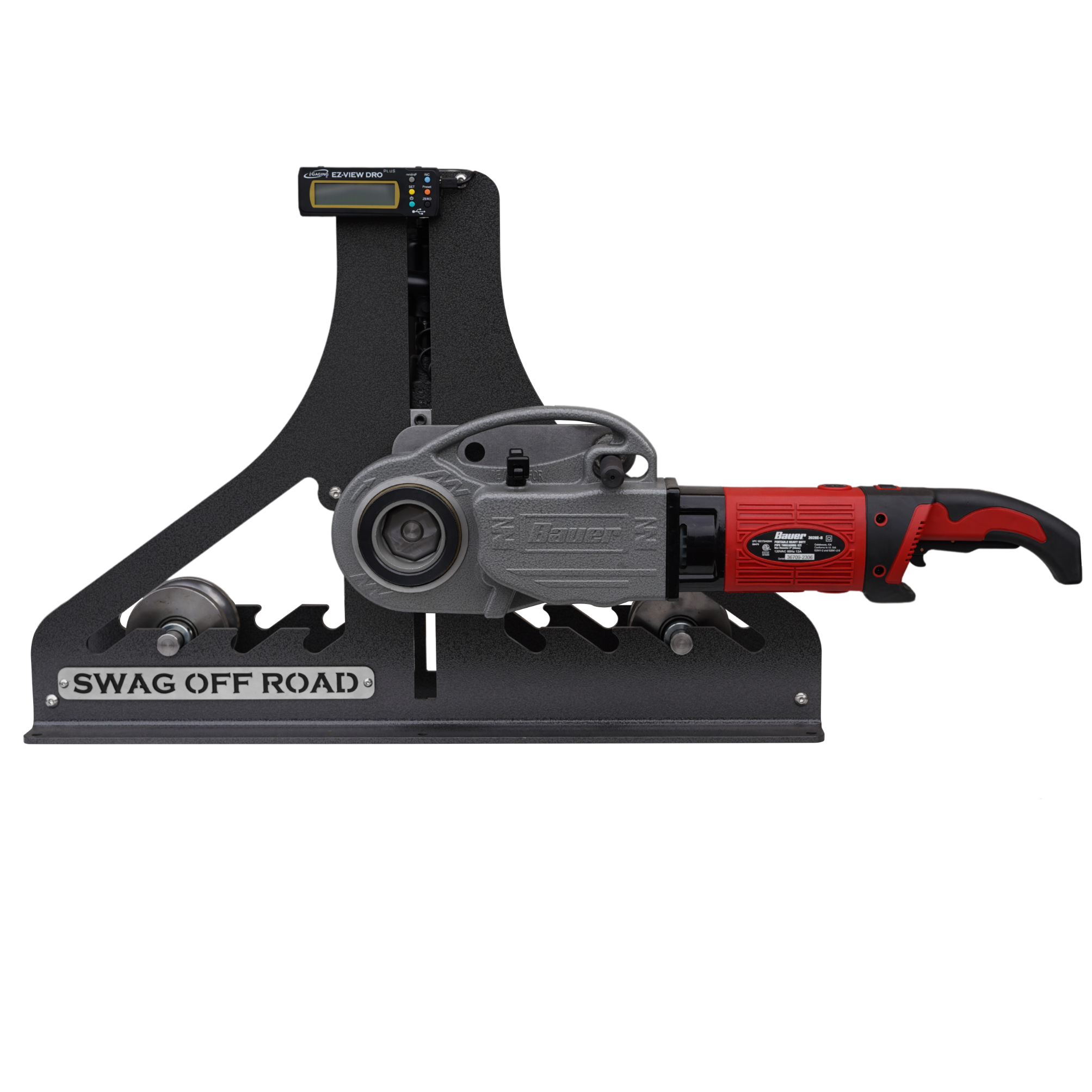

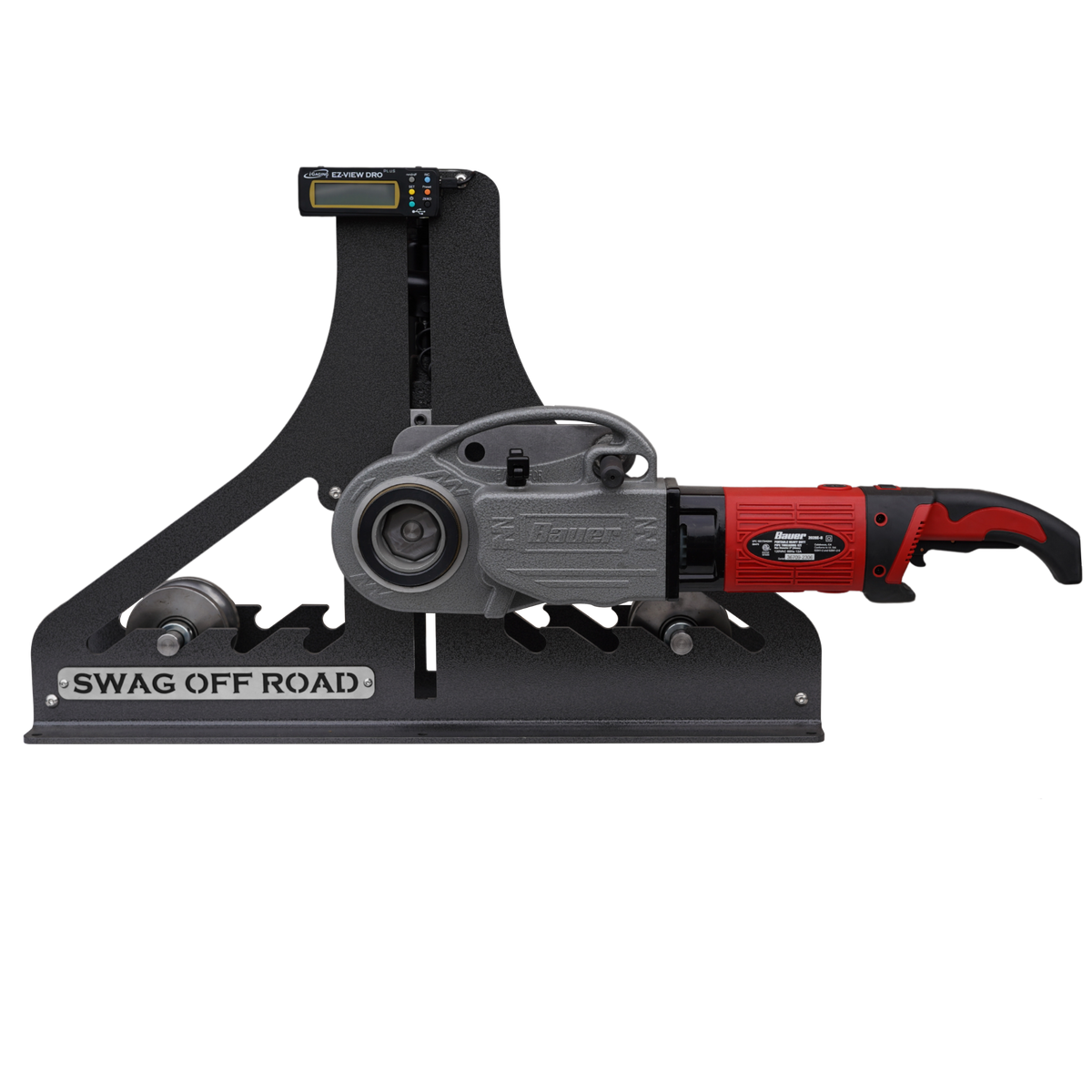

To ensure smooth operation, all of the dies ride on high-quality roller bearing. The 3-way adjustable manual handle can be unbolted and replaced with an electric pipe threader that is available from Harbor Freight. Their pipe threader (item #62203) is an easy, simple to install add on that will take the cumbersome and tedious chore of rolling thick-walled tubing and turn it into an almost completely hands-free operation.

With its powered coated steel frame, internally threaded aluminum spacers, green powder coated handle and stainless-steel fasteners, this tubing roller is designed to look as good as it performs. The HULK is sold as shown above, except for the sheet metal base structure which is not included. It comes 90% assembled.

The (4) 3/8" bottom mounting hole locations are 29" x 7.625" on center. The total footprint of the base plate is 30" x 8.625".

The machine sells for $899.95. Dies can be purchased using the list above or by themselves. Each die size includes one drive roller and two non drive rollers. You will not need a replacement drive axle since one comes with the tubing roller by default. We have over 1000 die sets on the shelf and 99.9% of the time we have every die size in stock ready to ship out the same day.




Optional Accessories

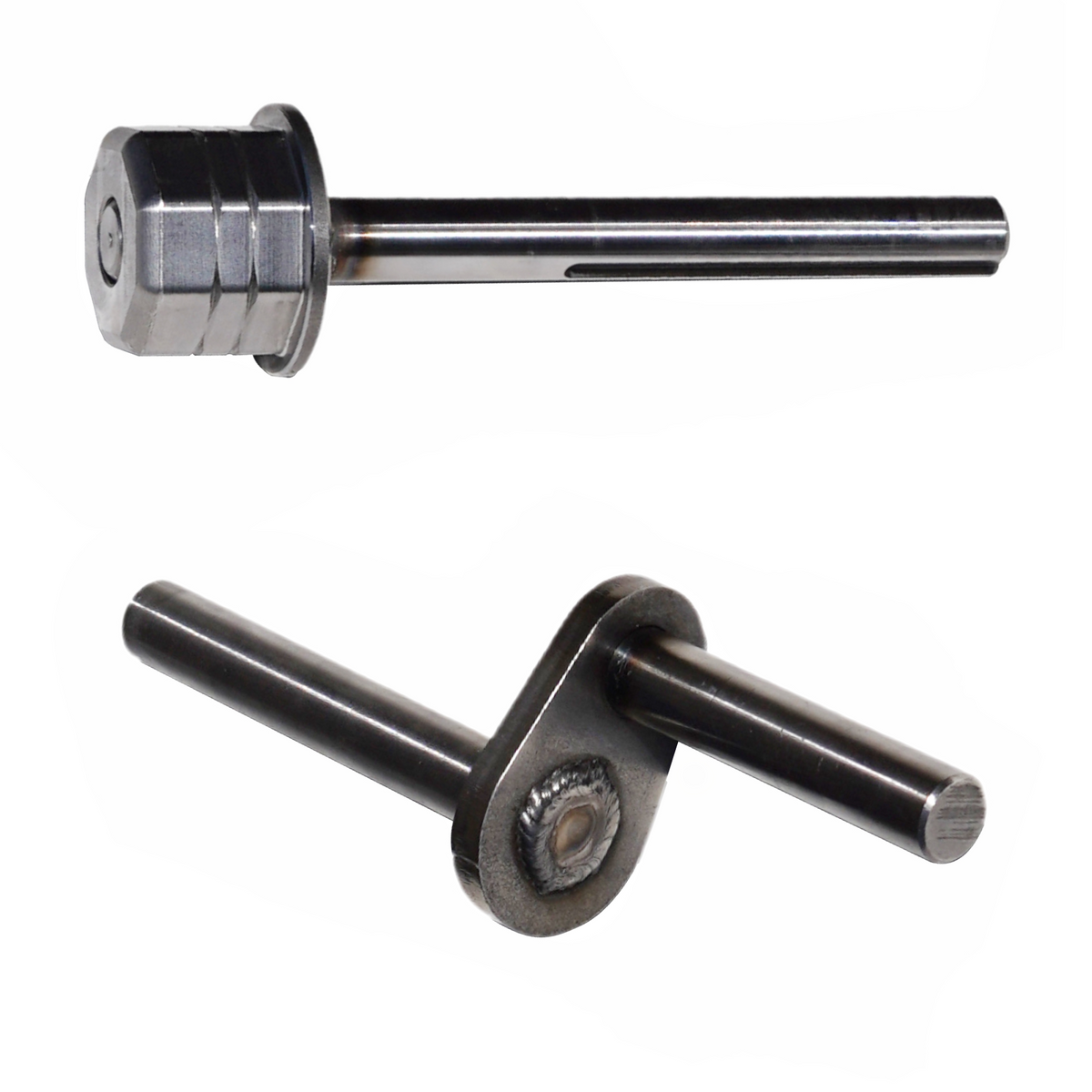

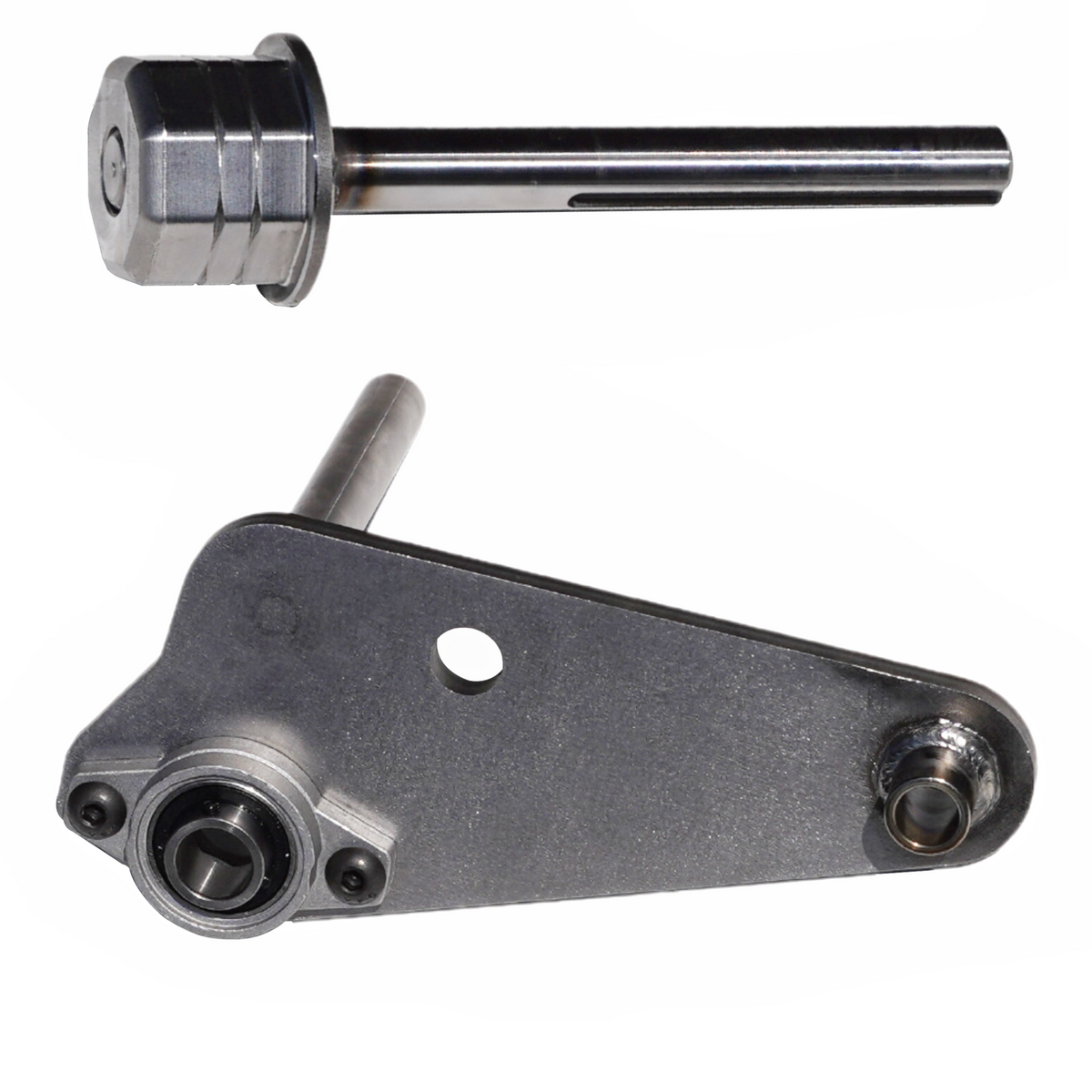

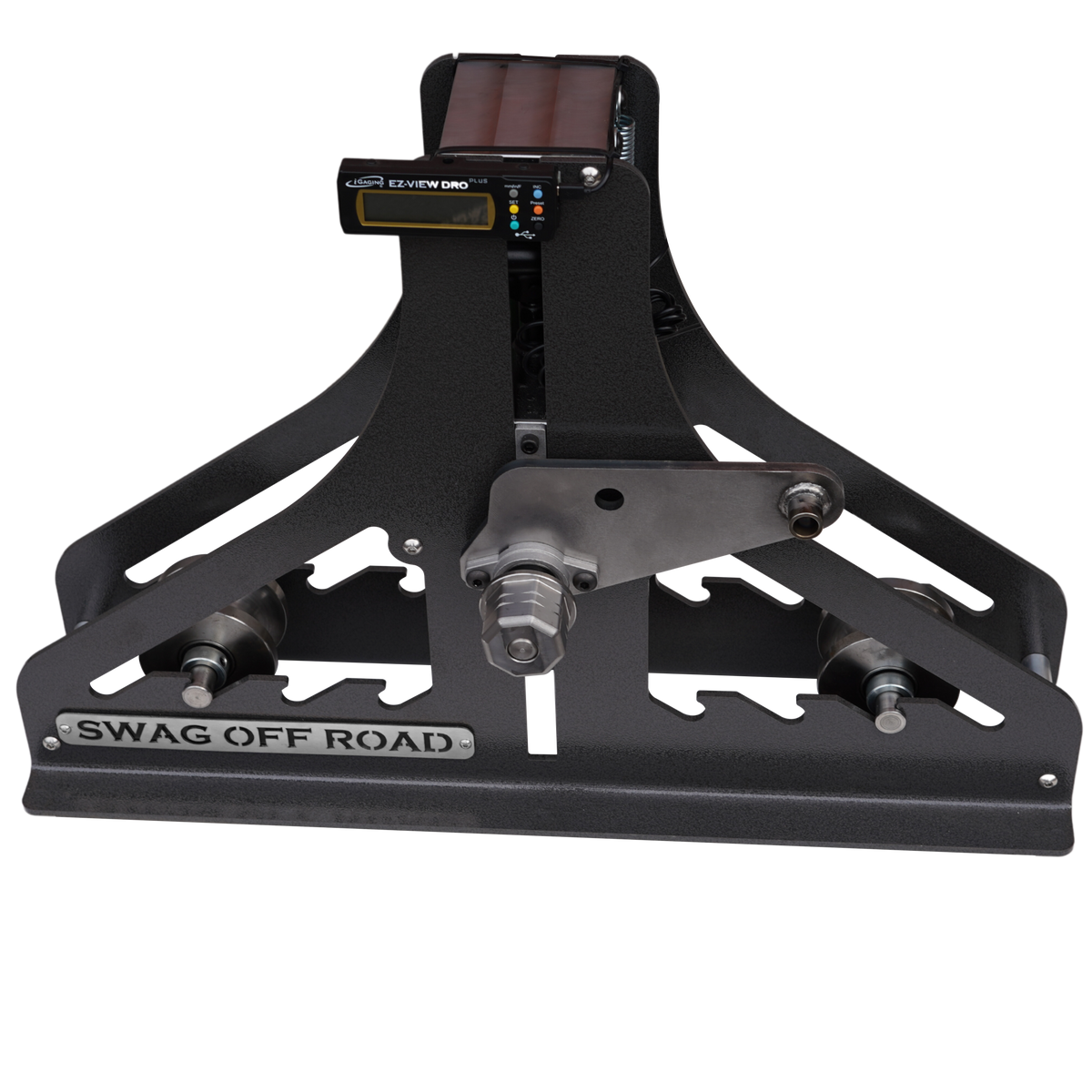

SWAG Machined Drive Hub For The Electric Pipe Threader

If you're looking to speed up the assembly process and don't want to weld the 1/2" pipe threading die that comes with the Harbor Freight pipe threader kit to the tube roller drive axle, we now sell a fully machined drive hub that will allow you to easily attach the pipe threader to the drive axle. The 1/2" pipe threading die is not sold individually through Harbor Freight so once it is welded in place you are not able to take it off if/when you need to use the tool as it was originally intended for. We also sell the tubing roller drive axle that is machined out of 4130 chromoly steel.

The machined drive hub will need to be tack welded to the drive axle, as set screws and or key ways have a tendency to come loose under the high torque loads and the constant back and forth motion of the pipe threader. This machined hub will fit both the HULK tube roller as well as the Harbor Freight tube roller.

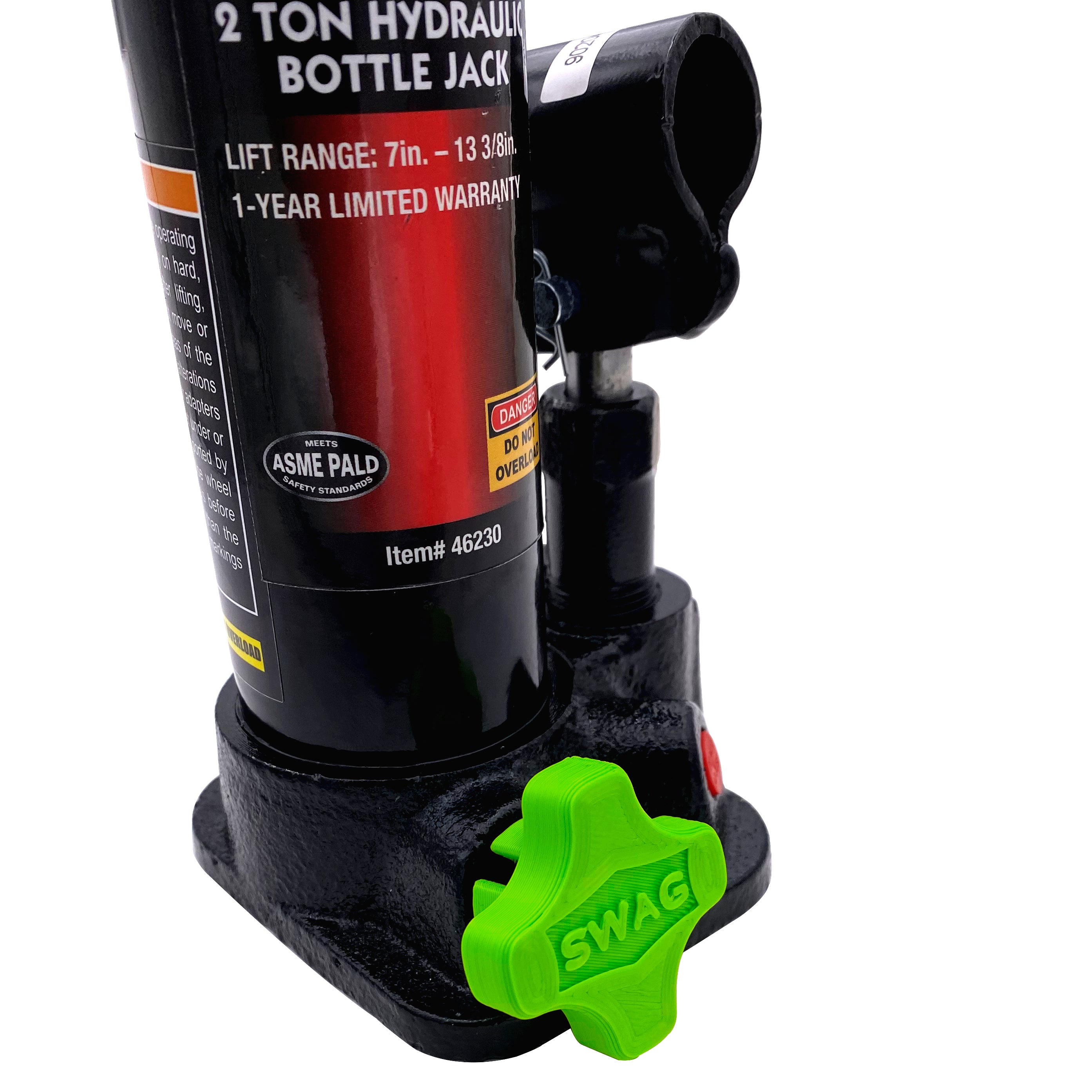

SWAG 3-D Printed Thumb Knob For Bottle Jack

To install the 3-D printed knob, you simply press the knob over the release valve and tap it down into position with a rubber mallet....that's it.

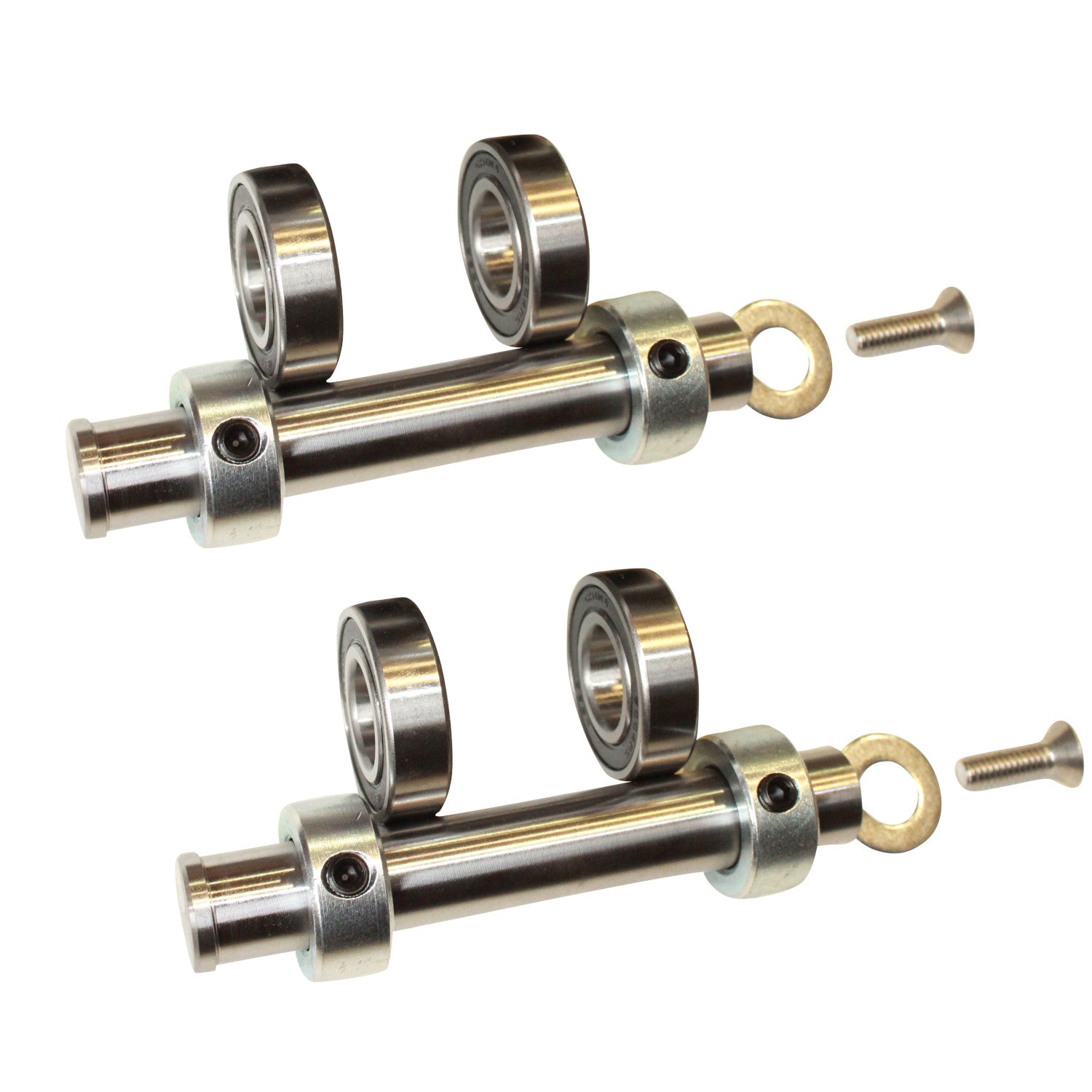

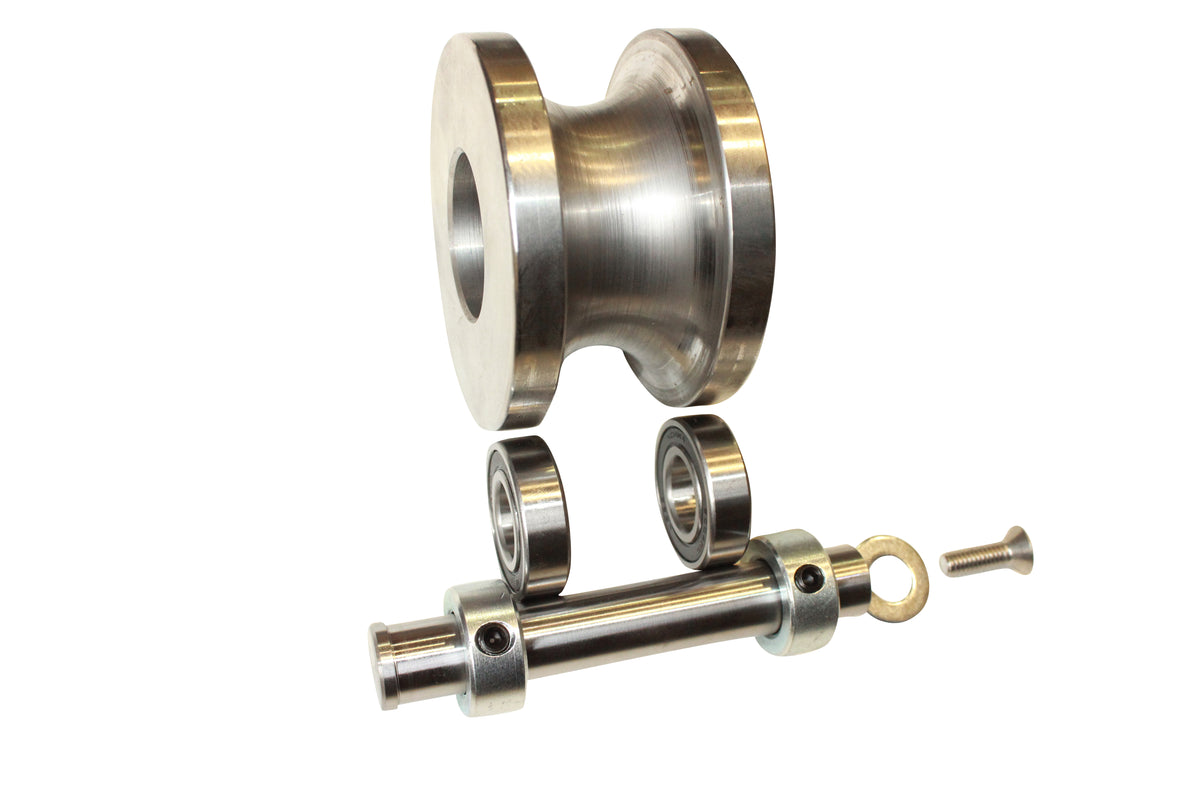

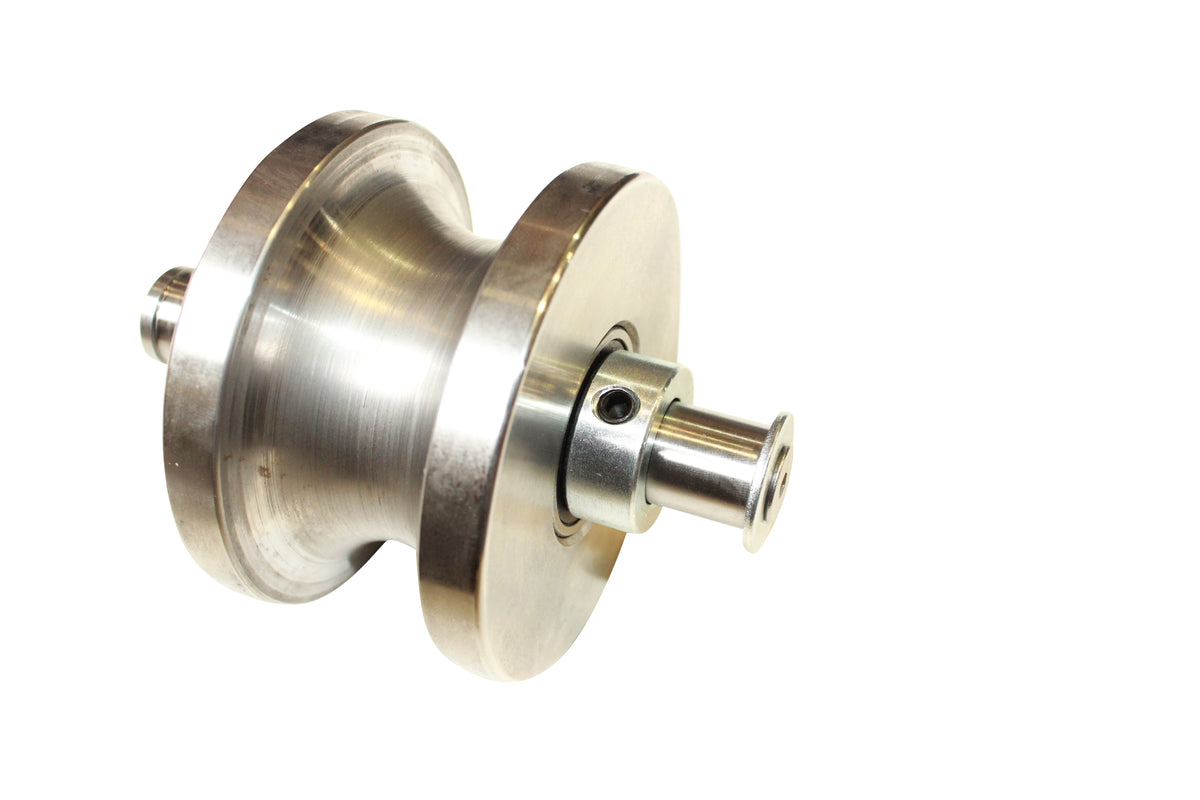

Spare Non-Drive Die Axle Kit

If you're planning on changing dies frequently, having a few Non-Drive Die Axle kits will definitely come in handy. Though the Hulk comes with one set, some people prefer to have a kit for each die set they own. That way, there is no more messing with die centering or re-tightening shaft collar set screws. You can get your dies set perfectly on their axles and then all you have to do to change dies is pull the old ones out and drop the new ones into place. Each kit comes with two non-drive die axles, four bearings, four shaft collars, and all of the appropriate hardware. If you would like to order more than one kit, they are available HERE.

Customer Reviews

Based on 41 reviews
98%
(40)
2%
(1)
0%
(0)
0%
(0)
0%
(0)
C
Chase
Small business start up

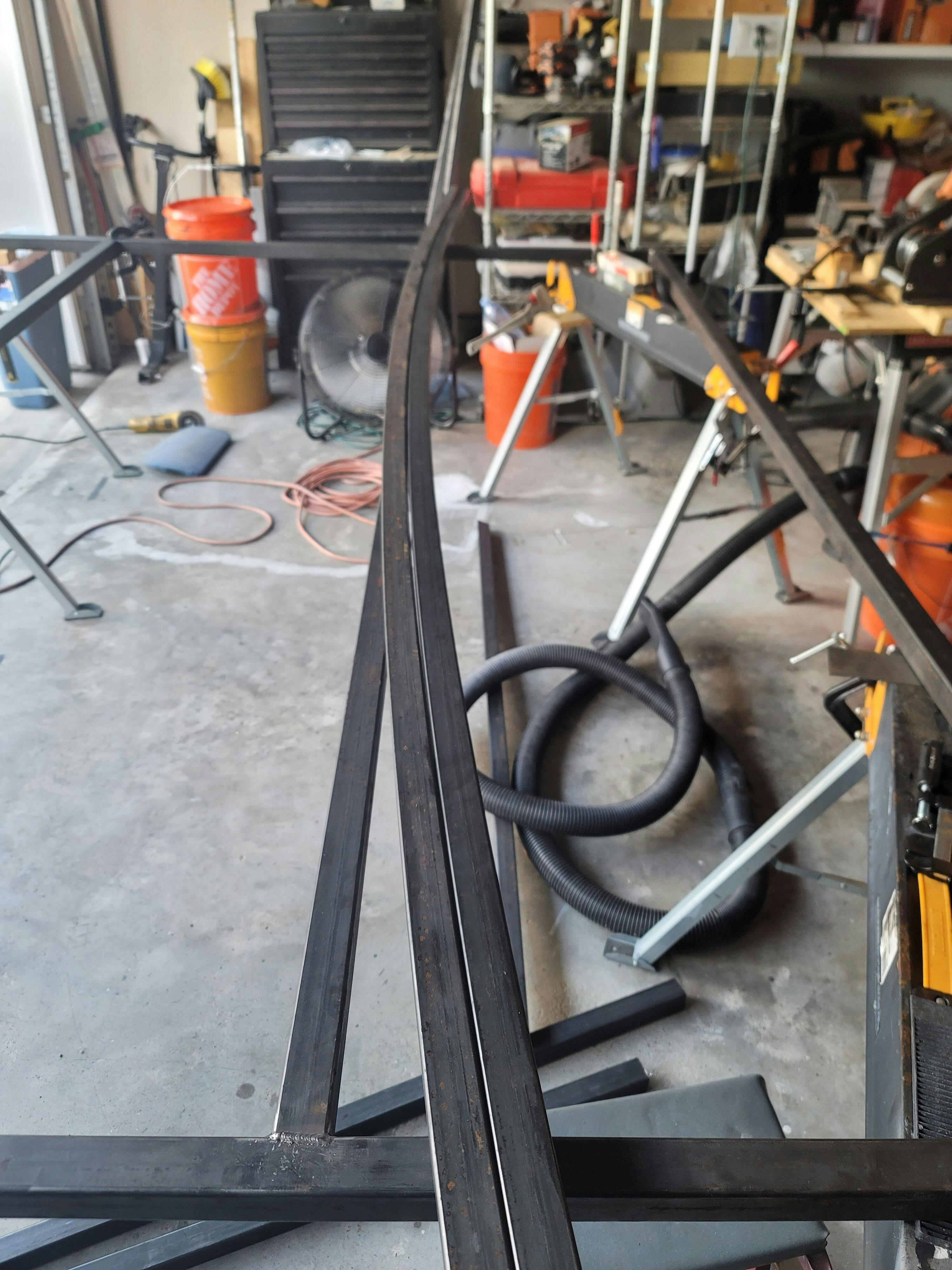

I bought this to build a custom garden arch for one of my clients and I am very pleased with how easy it is to replicate rolled tube. I have now made 8 of the same arch with only one small hiccup. I couldn't figure out why the square tube would roll to one side and quickly figured out that it matters where you put the weld seam so it was my own error. Thanks swag for an amazing product that has paid for itself a few times over!

D
Don
Fabricator/Machinist

Wow!!!! This roller is amazing quality! I was just going to upgrade a harbor freight roller to save some money, but as a machinist I looked at the harbor freight roller and the build quality is mediocre at best. There is so much slop in the sliding mechanism that getting repeatability on your bends would be very difficult without putting a lot of work into tightening up the tolerances. Save yourself a bunch of time and frustration right from the beginning with this roller. It is incredibly built with tight tolerances and beautiful attention to detail all the way around! These guys obviously care about their products and quality and I can assure you I will be doing more business with this company!

M
Mike Richards
Shop owner

Troy, As you are aware, the "Hulk" is great. The quality and workmanship is top notch. Had to think hard to find helpful criticism or suggestions. The return springs seem to be a little weak. Will not pull the jack up. Even lubed where it slides. This is how hard I looked for a negative!!

S
Shaun
Awesome product!

I have over 30 years of experience using roll benders. I have bought and built many benders in that time. The Hulk is by far the best manual roll bender I have ever used. Very precise, well built and a quality product!

D
Dave
Owner: 7260 Metal Works

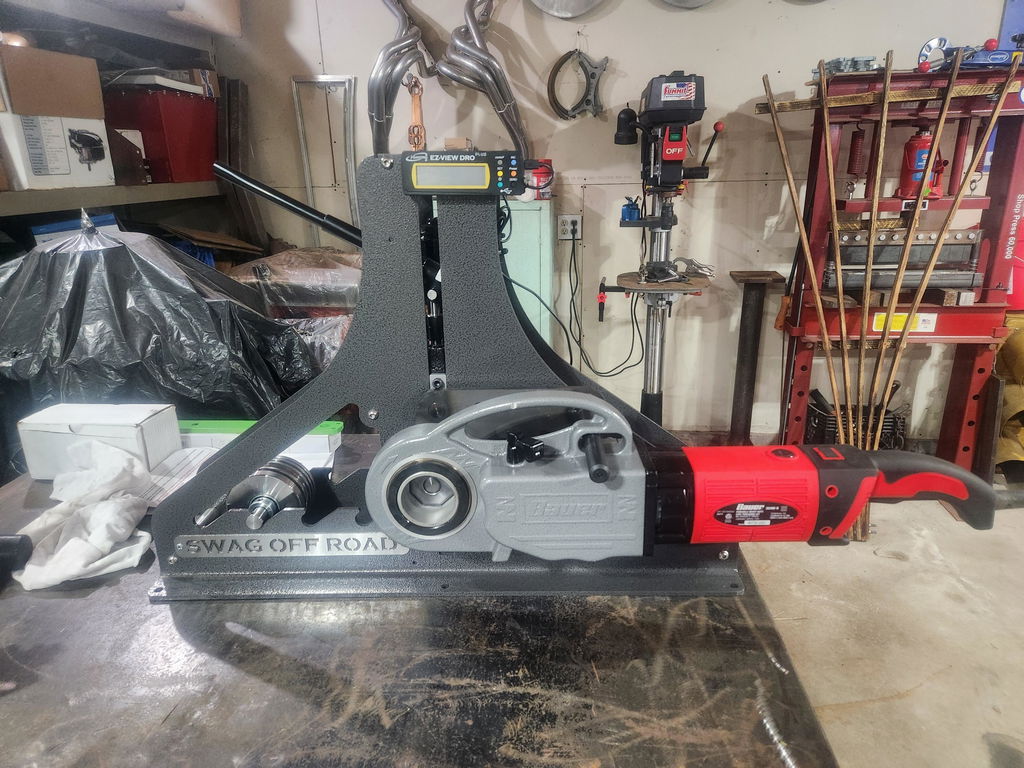

The HULK roll bender is a very good quality machine built to last we roll 10 gauge 2x2 square tubing with it and it handles it with a breeze we also purchased the adapter for the electric pipe cutter but found out it wasn't needed the hand crank was very easy to operate on this machine. Kutos Swag for a well built machine keep up the good work.
